Default NB FPR into NA for 60psi

Not sure how many, if any have done this.. but it works. We were recently tuning an NA8 chassis with an NB1 motor/injectors on the stock fuel system for E85. Power goal was 140whp. We ended up running out of injector at just past 140whp. So we stuck an in tank NB FRP (60psi) onto the NB1 fuel rail for the return type NA8 fuel system and voila, 60psi. No reference port nipple so you might want to put a piece of cheesecloth or nylon over the diaphragm housing to keep grit out of the port hole. It works because the boss on the intake FPR is the same. Total Pnp. How cool is that?

We mounted the NB1 regulator on the forward boss where the damper usually goes. Lined up with the fuel hoses OK.





Attached Thumbnails

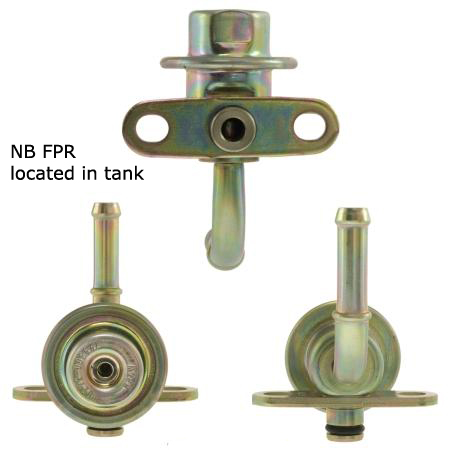

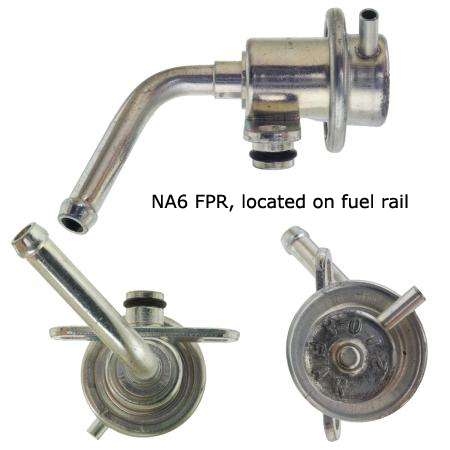

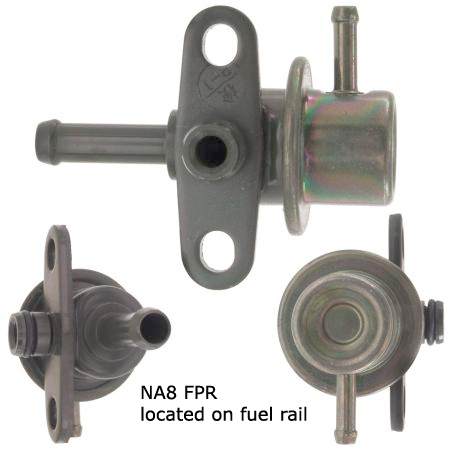

NB FPR into NA for 60psi-nb_fpr.jpg   NB FPR into NA for 60psi-b6_fpr_1.jpg   NB FPR into NA for 60psi-na8_fpr.jpg

Last edited by Joe Perez; 02-17-2014 at 11:24 PM. Reason: Fixed your image embedding problems.
emilio700 is offline   Reply With Quote
Old 02-14-2014, 09:05 PM   #2
Junior Member
iTrader: (5)

Join Date: Mar 2010
Location: Houston
Posts: 370
Total Cats: 62
Default

Pictures aren't showing up; is the problem me or you? Otherwise, nice to learn! What was the final #?
hankclaussen is offline   Reply With Quote
Old 02-14-2014, 09:15 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Pics work for me.

This is neat! I'll have to try it on my 1.6.

So with a turbo, there's no problem leaving it open to atmosphere with a tiny filter?
curly is offline   Reply With Quote
Old 02-14-2014, 09:21 PM   #4
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by curly View Post
Pics work for me.

This is neat! I'll have to try it on my 1.6.

So with a turbo, there's no problem leaving it open to atmosphere with a tiny filter?
For turbo you really want manifold referenced. This is more of an N/A trick. Probably why I have never seen it mentioned. Most of the workaround type of fixes like this are discovered when trying to get turbos to stop blowing up I think.
emilio700 is offline   Reply With Quote
Old 02-14-2014, 09:25 PM   #5
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

its amazing...25 years later and we are still discovering little tricks to these cars.
Seefo is offline   Reply With Quote
Old 02-14-2014, 10:10 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by curly View Post
Pics work for me.

This is neat! I'll have to try it on my 1.6.

So with a turbo, there's no problem leaving it open to atmosphere with a tiny filter?
I don't see why it wouldn't work for low to moderate boost.

Injectors work based on pressure differential. Typical NA FPR is rated for 43 psi at 0 vac + 1:1 rising rate with boost. Typical NB FPR is rated for 60 psi static.

Assume 10psi positive manifold pressure.

NA:
53 psi rail pressure (43 base + 10 boost reference rise)
less 10 psi manifold pressure
-----
43 psi differential pressure

NB:
60 psi rail pressure (static)
less 10 psi manifold pressure
------
50 psi differential pressure

Theoretical difference: NB regulator provides 7 psi additional differential pressure.

What does that mean for flow?
Adjusted flow rate = SQRT (50psi/43psi) x injector flow rate = 108%

So in theory, at 10 psi of boost, the static 60 psi NB regulator would would increase fuel flow through the injectors by an additional 8% as compared to a typical NA regulator.

For a n/a application, the theoretical increase in fuel flow at 0 vac is 18%.
Ben is offline   Reply With Quote
Old 02-14-2014, 10:21 PM   #7
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by Ben View Post
I don't see why it wouldn't work for low to moderate boost.

Injectors work based on pressure differential. Typical NA FPR is rated for 43 psi at 0 vac + 1:1 rising rate with boost. Typical NB FPR is rated for 60 psi static.

Assume 10psi positive manifold pressure.

NA:
53 psi rail pressure (43 base + 10 boost reference rise)
less 10 psi manifold pressure
-----
43 psi differential pressure

NB:
60 psi rail pressure (static)
less 10 psi manifold pressure
------
50 psi differential pressure

Theoretical difference: NB regulator provides 7 psi additional differential pressure.

What does that mean for flow?
Adjusted flow rate = SQRT (50psi/43psi) x injector flow rate = 108%

So in theory, at 10 psi of boost, the static 60 psi NB regulator would would increase fuel flow through the injectors by an additional 8% as compared to a typical NA regulator.

For a n/a application, the theoretical increase in fuel flow at 0 vac is 18%.
Yah, some gain. Just not as much as an N/A setup. Can't beat the price. Most guys throw away the tanks. We have. New they're $120 or so. Tanks tend to get tossed out when tubs are scrapped. So yeah, now we'll salvage the regulators from any NB tubs we scrap.
emilio700 is offline   Reply With Quote
Old 02-15-2014, 09:34 PM   #8
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

I wonder if you could put this on a stock ecu 90-97 car and run E85?
jacob300zx is offline   Reply With Quote
Old 02-15-2014, 10:14 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by jacob300zx View Post
I wonder if you could put this on a stock ecu 90-97 car and run E85?
That would be a bad idea. You'd be better off installing injectors with a flow rating 140% that of stock.

You'd be much better off with the addition a standalone EFI controller.
Ben is offline   Reply With Quote
Old 02-15-2014, 10:32 PM   #10
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by jacob300zx View Post
I wonder if you could put this on a stock ecu 90-97 car and run E85?
Problem is ideal lambda values for gasoline and E85 are different at lean cruise, light load and full load. You might back into something that sorta worked at full load but would be hella rich everywhere else. Like the guy that makes his living selling ECU's said, just get a programmable ECU.
emilio700 is offline   Reply With Quote
Old 02-15-2014, 10:50 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

No bias was intended in the previous post.

The stock ECU is expecting a rise in fuel pressure as load increases, and its fuel tables are set up accordingly. The combination of (1) super conservative (rich) power tuning and (2) fuel tables set up for low fuel pressure at idle and cruise would easily create conditions as described by Emilio...

IOW, bad idea.
Ben is offline   Reply With Quote
Old 02-17-2014, 09:21 AM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

So there is a hole already. Thread in and JB weld a barb and viola, 60psi base pressure regulator that is 1:1 referenced.
Leafy is offline   Reply With Quote
Old 02-17-2014, 01:10 PM   #13
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by Leafy View Post
So there is a hole already. Thread in and JB weld a barb and viola, 60psi base pressure regulator that is 1:1 referenced.
Might actually work.
emilio700 is offline   Reply With Quote
Old 02-17-2014, 06:26 PM   #14
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I can't see the pics either.
wannafbody is offline   Reply With Quote
Old 02-17-2014, 06:35 PM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I couldnt see the pics at work and figured it was just block at work. Now at home I cant see them either.
Leafy is offline   Reply With Quote
Old 02-17-2014, 07:21 PM   #16
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Pics no working? Most of you have probably noticed all the bugs in this site. Weird redirects, incorrect commands and dead links. No other VB ~3.8x site I'm on has them. If I use the image icon from the toolbar, nothing displays. So I have been manually entering every image this way for a year or two

[img]www.blahblahblah.com/carpronz.jpg[/img]

MT.nets server copies the file to it's own server and renames it as miataturbo.net/attachment that may or may not display.php?blah blah

That usually works. The image file I post are either on my server or inline from facebook. The links in the first post here display in chrome on my machine just fine.
emilio700 is offline   Reply With Quote
Old 02-17-2014, 07:23 PM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by emilio700 View Post
Pics no working? Most of you have probably noticed all the bugs in this site. Weird redirects, incorrect commands and dead links. No other VB ~3.8x site I'm on has them. If I use the image icon from the toolbar, nothing displays. So I have been manually entering every image this way for a year or two

[img]www.blahblahblah.com/carpronz.jpg[/img]

MT.nets server copies the file to it's own server and renames it as miataturbo.net/attachment that may or may not display.php?blah blah

That usually works. The image file I post are either on my server or inline from facebook. The links in the first post here display in chrome on my machine just fine.
They're cached on your machine then and not available to either us or the MT net server. The little picture button has always worked for me.
Leafy is offline   Reply With Quote
Old 02-17-2014, 07:36 PM   #18
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by Leafy View Post
They're cached on your machine then and not available to either us or the MT net server. The little picture button has always worked for me.
Nope. Same webserver as my website so it's accessible 24/7, http, not https.

http://949racing.com/supermiata/NB_FPR.jpg
http://949racing.com/supermiata/B6_FPR_1.jpg
http://949racing.com/supermiata/NA8_FPR.jpg

That's what I manually add img tags to. mt.nets server caches and renames whether I like it or not. Might have something to do with being a site sponsor/advertiser. It's definitely a site glitch. I post inline images on forums all over the world, two of which cache and rename. The only site that has display issues is this one.

It's not complicated. Add img tags, done.
emilio700 is offline   Reply With Quote
Old 02-17-2014, 09:05 PM   #19
Junior Member

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

Ever had any troubles running E85 on the stock fuel system?
natedawg is offline   Reply With Quote
Old 02-17-2014, 09:39 PM   #20
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,346
Default

Quote:
Originally Posted by natedawg View Post
Ever had any troubles running E85 on the stock fuel system?
Not so far. We have a few NB's with hundreds of hours on the stock fuel system/E85. The NA's in our shop maybe 50hrs combined but so far no issues.

We always rotate fuel stock and try to burn off whats in the tank when we get to the next track event before refilling.
