Default new Schroth SHR Flex HNRS

Hello folks, I thought many of you here would be interested in this.
As you may know, Schroth released their own HNRS to compete with HANS. I just received mine today, as part of the first batch that reached the US.

Special thanks to the team at SpeedFreaks USA for helping me order. I was able to preorder with a discount through their site with free shipping and they even included the posts

I feel like I got some serious white-glove service from them and would highly recommend them to anyone in the market for safety equipment.

Full album of pictures here.

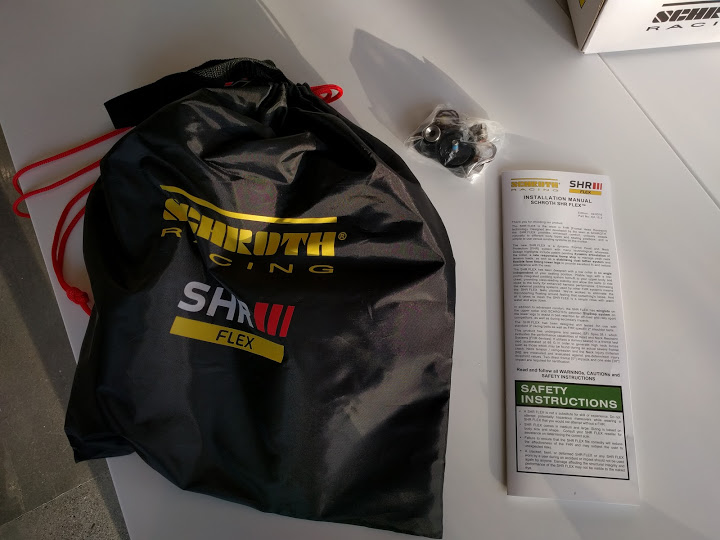

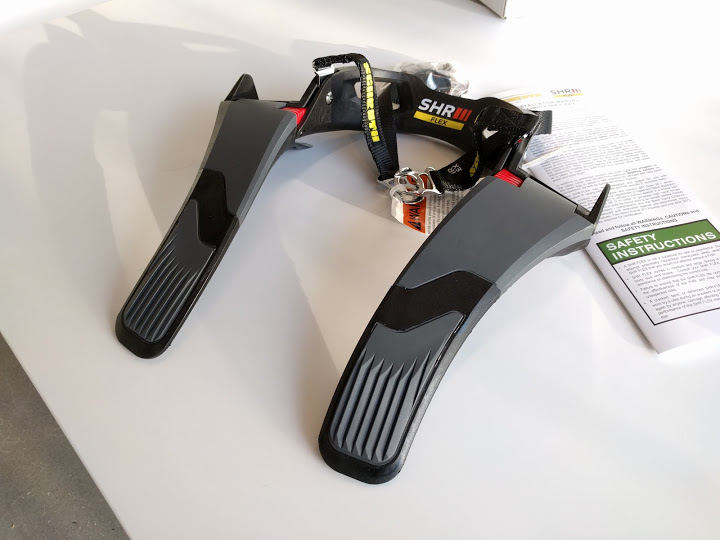

The Flex came with a bag, instructions, and the anchors. They run large, so I ordered a medium even though I usually use a HANS in large.

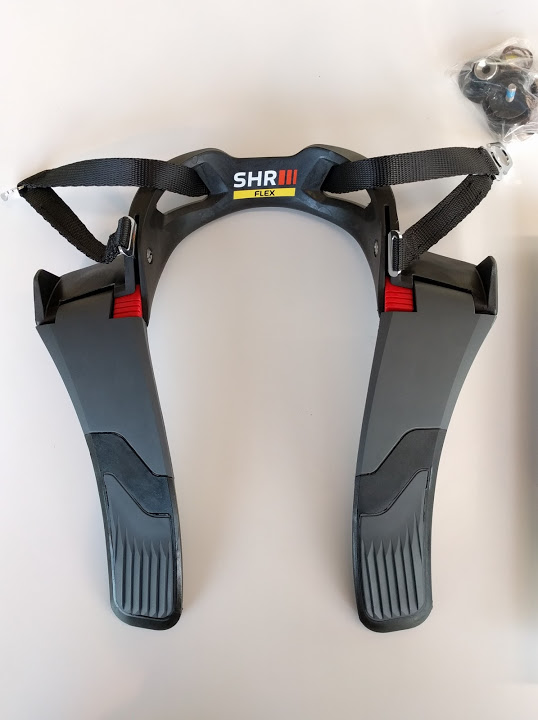

Each of the chest mounts is made from a dense flexible rubber and is articulated.

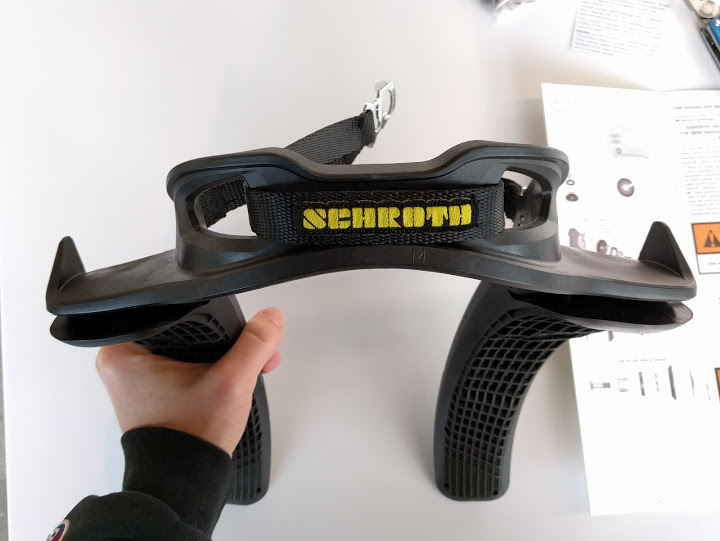

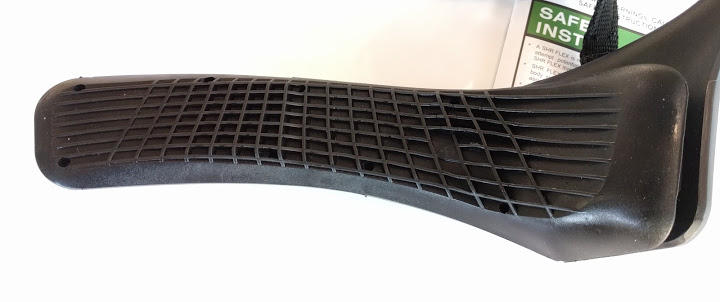

The bottom of the chest mounts is a rubber webbing with no padding. The profile has a relief for your collar bone.

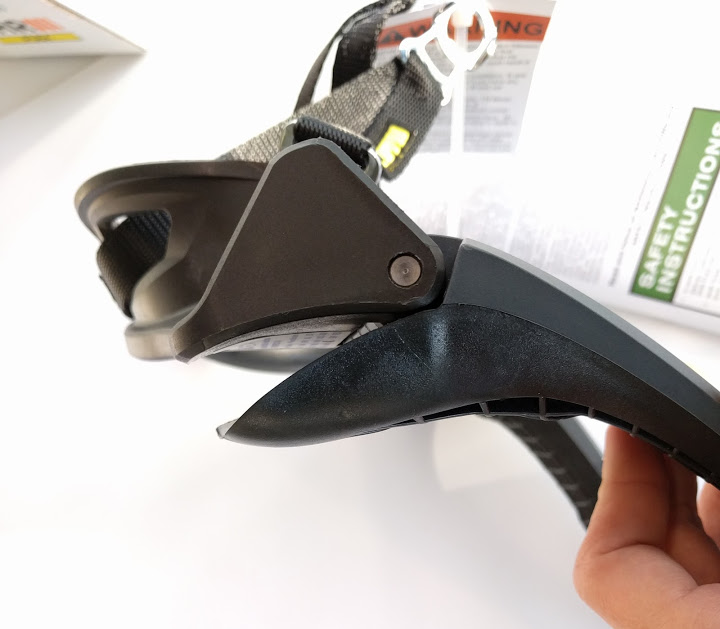

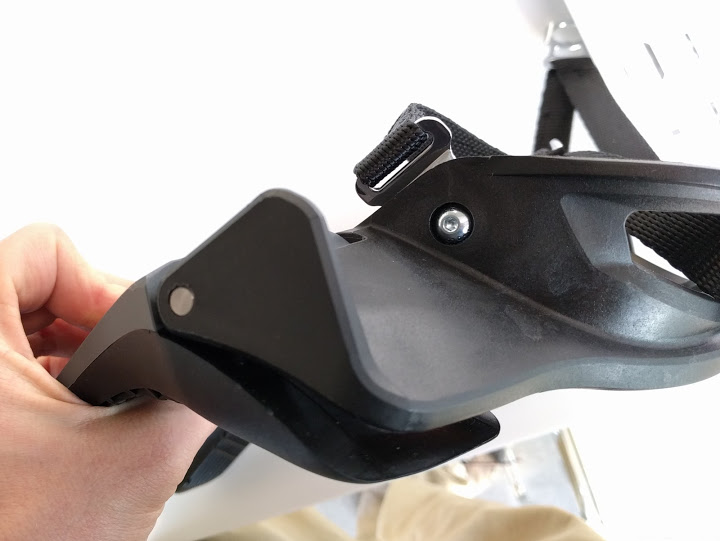

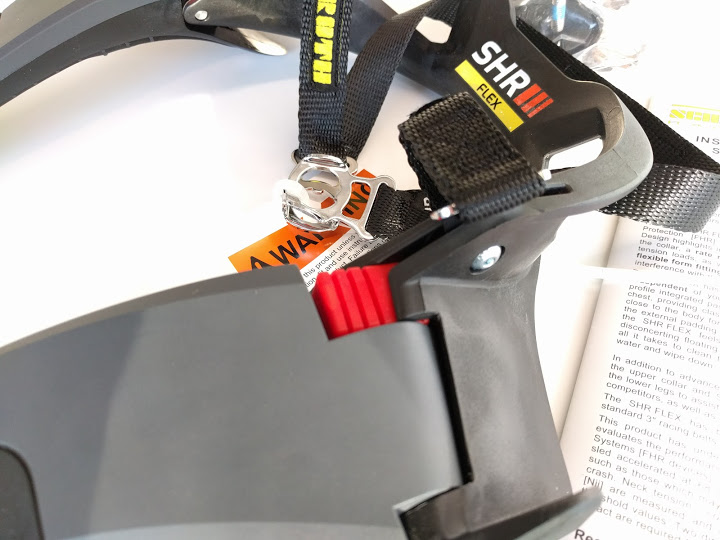

It has these "bump stops" at the end of travel of the articulation of the chest mounts.

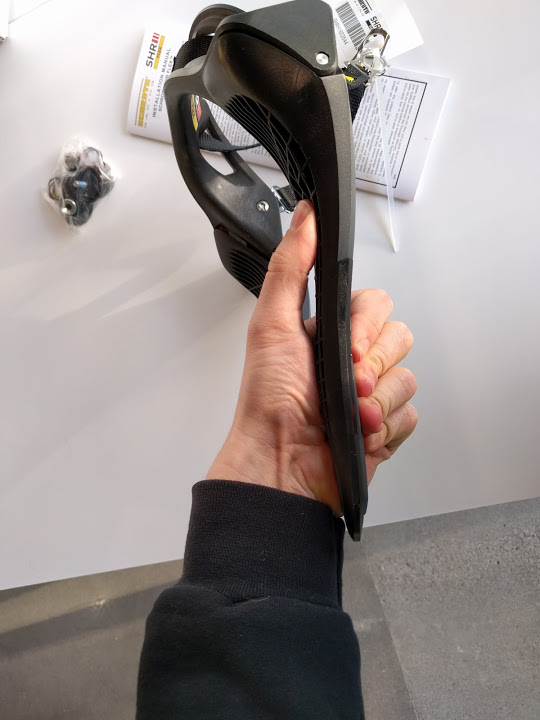

I was surprised by how flexible the chest mounts were (I guess thats where the name comes from). More on this later.



The Flex has the fixed lower tether/sliding upper tether design like the NecksGen. I read in some NecksGen literature that this style supposedly offers better resistance to injury in side-impact situations.

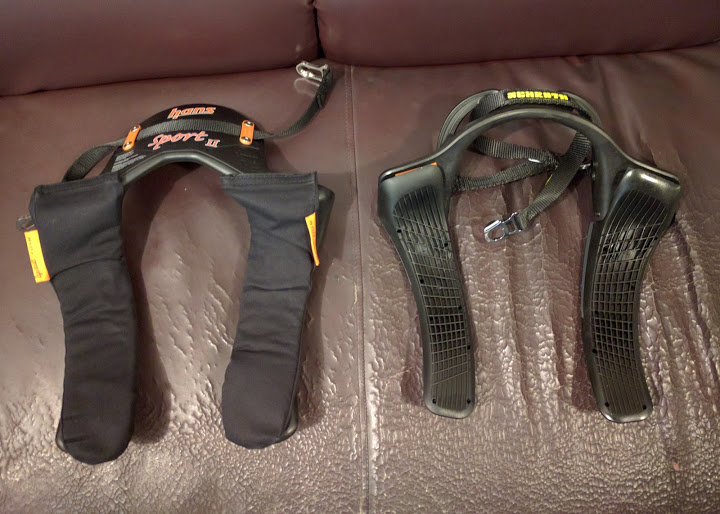

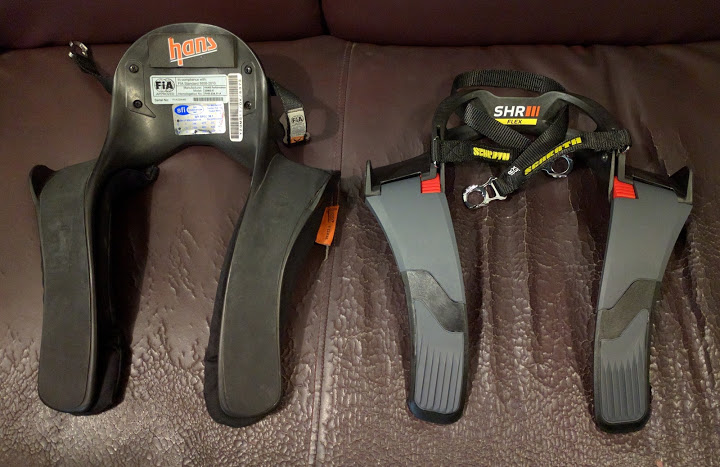

It weighs the same as my HANS Sport II, 2lbs.





My new helmet hasn't arrived yet (also ordered from Speed Freaks), so I havent installed the anchors, but my initial impressions from strapping in are extremely positive.
One of my major concerns with the HANS was that the thick shoulder pads were required for the shape to fit my profile properly, but the pads also resulted in a "floaty" feeling where I felt that the HANS was never quite seated properly.
The Flex does away with the foam pads of the HANS, and the rubber webbing and flexible chest mounts form to the profile of your collar and chest, resulting in an extremely secure and planted feel. As the harness tightens, it doesnt press into my collarbone the way the HANS did. The lower collar also allows a more natural fit in my racing seats.

For an MSRP of $575, I think this is the new HNRS to go for. It's by far more comfortable than the HANS, and slots in between the Sport II at $550 and the Sport III at $600.
If the fixed lower tether design makes it safer, thats just another added bonus.

Overall I'm very satisfied with this product so far and can't wait to try it out on the track.
Attached Thumbnails
new Schroth SHR Flex HNRS-img_20160321_183314.jpg   new Schroth SHR Flex HNRS-img_20160321_183345.jpg   new Schroth SHR Flex HNRS-img_20160321_183409.jpg   new Schroth SHR Flex HNRS-img_20160321_183404.jpg   new Schroth SHR Flex HNRS-img_20160321_183350.jpg

new Schroth SHR Flex HNRS-img_20160321_183427.jpg   new Schroth SHR Flex HNRS-img_20160321_183512.jpg   new Schroth SHR Flex HNRS-img_20160321_183524.jpg   new Schroth SHR Flex HNRS-img_20160321_183529.jpg   new Schroth SHR Flex HNRS-img_20160321_195546.jpg

new Schroth SHR Flex HNRS-img_20160321_195559.jpg
scenturion is offline   Reply With Quote
Old 03-22-2016, 07:33 AM   #2
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

Oh boy. Mine should be here any day then. I ordered from Winding Road.
doward is offline   Reply With Quote
Old 03-22-2016, 01:25 PM   #3
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

I've been looking at getting one of these ever since Schroth started advertsing them. I've never used a HNRS before and am using 3" Schroth harnesses. I'm curious as to how well this will work with the 3" harness. Can you measure the distance between the wings?
FrankB is offline   Reply With Quote
Old 03-22-2016, 01:42 PM   #4
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

for posting the review! I'm in the market for a hans style device and this was helpful.

Once you get some on track time with the schroth can you please post up a review and compare it to the HANS. Thanks
cyotani is offline   Reply With Quote
Old 03-22-2016, 02:40 PM   #5
Junior Member
Thread Starter
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Quote:
Originally Posted by FrankB View Post
I've been looking at getting one of these ever since Schroth started advertsing them. I've never used a HNRS before and am using 3" Schroth harnesses. I'm curious as to how well this will work with the 3" harness. Can you measure the distance between the wings?
Sure. The instruction booklet that came with the Flex said that it had been tested with 3" shoulder belts and showed how to orient the belts in the winglet. I'll snap a picture and put it up this evening.

FWIW from Schroth's product description:
Quote:
The SHR FLEX™ has been designed and tested for use with standard 3" racing belts as well as FHR specific 2" shoulder belts.
scenturion is offline   Reply With Quote
Old 03-23-2016, 12:01 AM   #6
Junior Member
Thread Starter
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

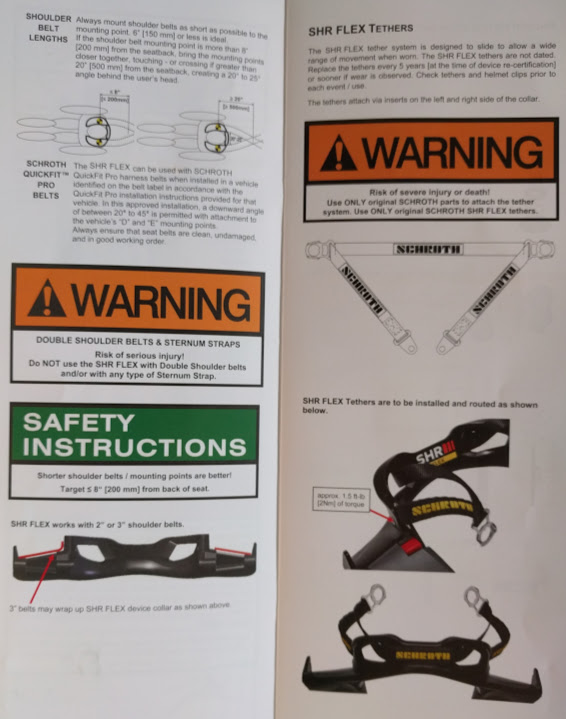

See bottom left illustration:

Attached Thumbnails
new Schroth SHR Flex HNRS-img_20160322_172653.jpg
scenturion is offline   Reply With Quote
Old 03-23-2016, 12:16 AM   #7
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Perfect, just what I was looking for. Thanks!
FrankB is offline   Reply With Quote
Old 04-19-2016, 03:18 PM   #8
WMP
Junior Member
iTrader: (1)

Join Date: Aug 2014
Location: Louisville, KY
Posts: 78
Total Cats: 3
Default

Any updates on the SHR Flex? I'll be ordering a head and neck restraint soon and really like the looks of this one.
WMP is offline   Reply With Quote
Old 04-22-2016, 06:54 AM   #9
Junior Member
Thread Starter
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Still waiting for my new SA2015 helmet to arrive, so I havent used this on the track yet. What's the appeal of a HANS over this unit, out of curiosity?
scenturion is offline   Reply With Quote
Old 04-23-2016, 09:25 PM   #10
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Looks like a good design. To be fair though any of the modern suspended frame HNRS like the necksgen or impact are also far more comfortable than a HANS.

I don't know what has happened in this industry but it is clear that Hans has lost control and everybody has figured ways around their patents. Or maybe HANS can't afford to sue everybody. It's great to see the market opening up and competitive, more affordable designs entering.
emilio700 is online now   Reply With Quote
Old 04-24-2016, 10:20 PM   #11
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

I spent all weekend in my SHR Flex.

And while I don't have any experience in other HNRS systems, I can say that after 9 15-20 minutes sessions and 2 35 minute races over two days, I have zero sore spots on my shoulders/neck. I played around with placement most of the day Saturday and ended up barely noticing it on me on Sunday.

Super comfy. Still passed my escape in under 10 seconds. Didn't die.
doward is offline   Reply With Quote
Old 04-27-2016, 03:22 PM   #12
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I just ordered one of these and should have it tomorrow. I'm still waiting on sa2015 helmets to come into stock before I can try it with a helmet on.
asmasm is offline   Reply With Quote
Old 04-28-2016, 06:32 PM   #13
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Still waiting on a new helmet to test this out but the articulating design is super cool. Fits nicely sitting in my office chair and in my 30 degree layback tillett seat. No adjustment needed.
asmasm is offline   Reply With Quote
Old 05-12-2016, 02:35 AM   #14
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

has anyone put track miles on one of these yet? I'm looking to order one soon and was hoping for some feedback. It's between this and the necksgen right now
cyotani is offline   Reply With Quote
Old 05-12-2016, 03:35 AM   #15
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,602
Total Cats: 28
Default

.....

Quote:
Originally Posted by cyotani View Post
has anyone put track miles on one of these yet? I'm looking to order one soon and was hoping for some feedback. It's between this and the necksgen right now
Quote:
Originally Posted by doward View Post
I spent all weekend in my SHR Flex.

And while I don't have any experience in other HNRS systems, I can say that after 9 15-20 minutes sessions and 2 35 minute races over two days, I have zero sore spots on my shoulders/neck. I played around with placement most of the day Saturday and ended up barely noticing it on me on Sunday.

Super comfy. Still passed my escape in under 10 seconds. Didn't die.
thumpetto007 is offline   Reply With Quote
Old 05-12-2016, 11:12 AM   #16
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by thumpetto007 View Post
.....
my bad, forgot about that post. I was wondering if the few others that mentioned they ordered it had tried it out yet.
cyotani is offline   Reply With Quote
Old 05-12-2016, 01:06 PM   #17
Junior Member
Thread Starter
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Still waiting on my new helmet :(
scenturion is offline   Reply With Quote
Old 05-12-2016, 01:36 PM   #18
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

I really want to try one of these on. Pretty sure I'm going to sell my original Necksgen and make the switch.
jpreston is offline   Reply With Quote
Old 05-13-2016, 10:58 PM   #19
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Found a nice review for those interested...

https://www.discoveryparts.com/blog/...epth-review-n2

cyotani is offline   Reply With Quote
Old 05-14-2016, 06:00 PM   #20
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,602
Total Cats: 28
Default

^ thanks for that link... I'll be using that discount code.

How do I know what size flex to get? I looked on shroth and discovery parts for sizing information.
