Default Oil cooler choice.

As I'm currently planning and buying for the next version of my car, I've come to the conclusion that I will need an oil cooler for track duty.

The specs of the car will be:
Intercooled turbo system on stock internals, S4 mani with inconel studs.
This will mostly see track in scandinavia, with the odd nordschleife excursion.

I'm leaning towards a mocal 16-row oil cooler with a thermostat block, since the car sees street/auto-x/track and I don't really want it running to cold.

So what do you guys think of my choice? What do you use for oil cooling?

Please chime in, especially you guys from tx / cal, as you see high ambient temps.

cheers.
Sentic is offline   Reply With Quote
Old 08-24-2011, 06:53 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Anyone from Tex/cal will say to run a rx-7 oil cooler in place of the front bumper support and forget about it. Big enough that you don't need airflow, and has a built in thermostat (I think).
curly is online now   Reply With Quote
Old 08-24-2011, 07:06 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

Would that be FC or FD?
Seems like a 10-row piece (FD), and probably with lower efficiency than a mocal.
Maybe 16-row is a little over the top then.
Sentic is offline   Reply With Quote
Old 08-24-2011, 07:13 AM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

FC. It doesn't look like any other oil cooler. Roughly 6x6" and about 2 feet long.
curly is online now   Reply With Quote
Old 08-24-2011, 12:55 PM   #5
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

FC cooler does have a thermostat built in, but I don't know the temp it opens at. It is big, and very effective. Would not be the lightest choice if thats a concern though.
stinkycheezmonky is offline   Reply With Quote
Old 08-24-2011, 03:44 PM   #6
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Can anyone post pics of their rx7 oil cooler setup
v01canic is offline   Reply With Quote
Old 08-24-2011, 03:54 PM   #7
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

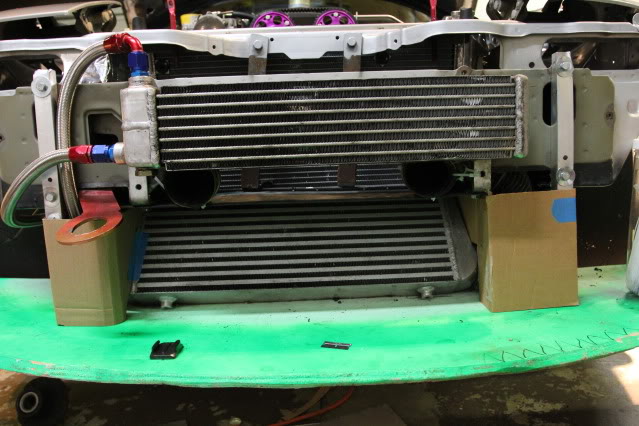

thesnowboarder's setup:
Attached Thumbnails
Oil cooler choice.-img_9779.jpg
chokeasphyxia is offline   Reply With Quote
Old 08-24-2011, 04:12 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

That is actually pretty cool, but without ventilation? I dont want to cut holes in the bumper, and no airflow seems... well, inefficient.
What about the flyin miata-kind of setup?
Sentic is offline   Reply With Quote
Old 08-24-2011, 11:56 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Sentic View Post
That is actually pretty cool, but without ventilation? I dont want to cut holes in the bumper, and no airflow seems... well, inefficient.
What about the flyin miata-kind of setup?
No airflow needed, it's big.

Thesnowboarder, Savington, and a number of others (Hustler now?) don't have ANY airflow beyond the little that goes under it, and have ZERO issues. One of the reasons it's so nice. It's hard enough sealing a intercooler and radiator, no need to complicate your heat exchangers with another one to duct.
curly is online now   Reply With Quote
Old 08-25-2011, 03:50 AM   #10
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

This is exactly what I was assuming, but it seems that Hustler is running some other oil cooler and he said ducting was required (I think).

I don't believe many people duct the FC oil cooler.
MartinezA92 is offline   Reply With Quote
Old 08-25-2011, 10:27 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have a smaller 8x13" Earl's cooler mounted to the steering rack. It gets the job done but needed a duct/rock scooper. I'm going to move it to a bumper duct eventually.
hustler is offline   Reply With Quote
Old 08-25-2011, 02:43 PM   #12
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

does the RX7 one come with the AN fittings?
v01canic is offline   Reply With Quote
Old 08-25-2011, 03:23 PM   #13
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Nope. Thread is m18x1.5. Need crush washers as well.
crashnscar is offline   Reply With Quote
Old 08-25-2011, 03:33 PM   #14
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

i just ran my car at the track this past weekend in the nice blazing AZ heat and my oil temps only got up to 200* (oil temp sensor is installed onto the oil drain fitting). Do oil temps really rise that much more running moderate boost.

Also where exactly is the thermostat located on the RX7 cooler and what year RX7?
v01canic is offline   Reply With Quote
Old 08-27-2011, 08:43 PM   #15
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Think about the fact that you would be running oil through a super hot turbo. Yes it changes oil temps that much.
MartinezA92 is offline   Reply With Quote
Old 08-29-2011, 02:58 PM   #16
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

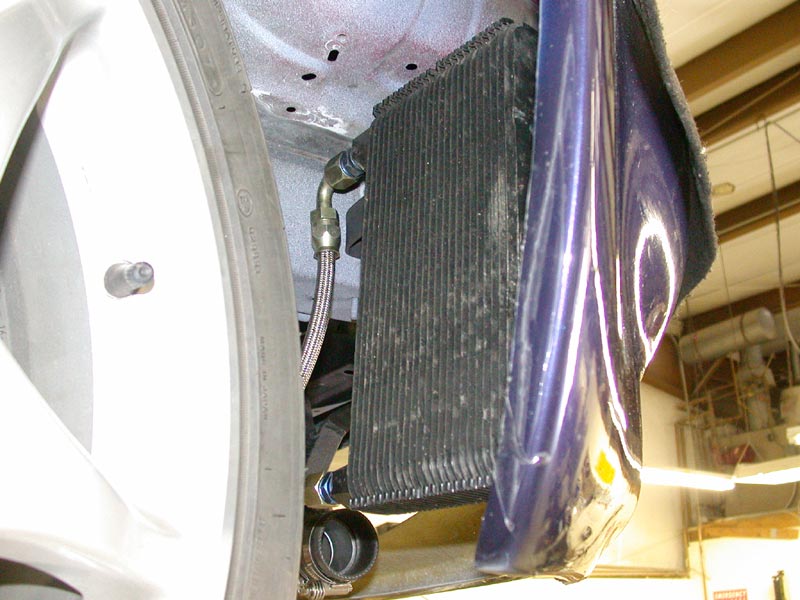

Need to fit something like this in mine for the track...

Attached Thumbnails
Oil cooler choice.-otc_oil_cooler.jpg
RavynX is offline   Reply With Quote
Old 08-29-2011, 03:34 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

RavynX,
You'll want something to keep rocks out of there and other debris. I would not mount one there, naked.
hustler is offline   Reply With Quote
Old 08-29-2011, 03:42 PM   #18
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
RavynX,
You'll want something to keep rocks out of there and other debris. I would not mount one there, naked.
Are you referring to not having the wheel-well liner in there? I definitely would not leave it naked like that. They probably did that just for the photo's sake.
RavynX is offline   Reply With Quote
Old 08-29-2011, 07:48 PM   #19
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by RavynX View Post
Are you referring to not having the wheel-well liner in there? I definitely would not leave it naked like that. They probably did that just for the photo's sake.
You'd be surprised... I've seen many installations such as this that never get any sort of protection.
crashnscar is offline   Reply With Quote
Old 08-29-2011, 07:50 PM   #20
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by crashnscar View Post
You'd be surprised... I've seen many installations such as this that never get any sort of protection.
Seriously? Wow. Common sense isn't so common I suppose.
RavynX is offline   Reply With Quote
