Old 08-04-2012, 01:53 PM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default Oil leak, any suggestions

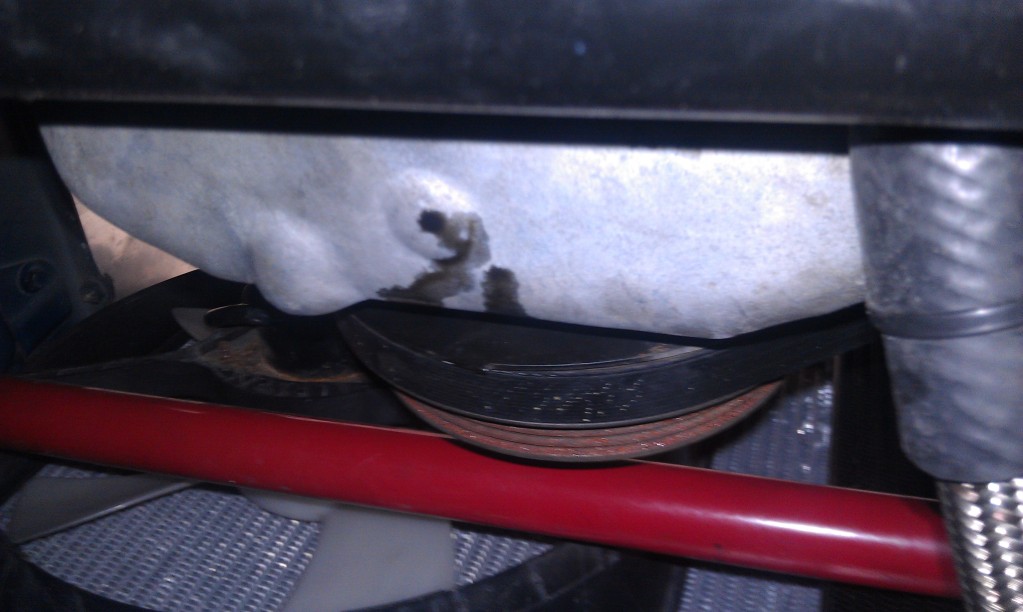

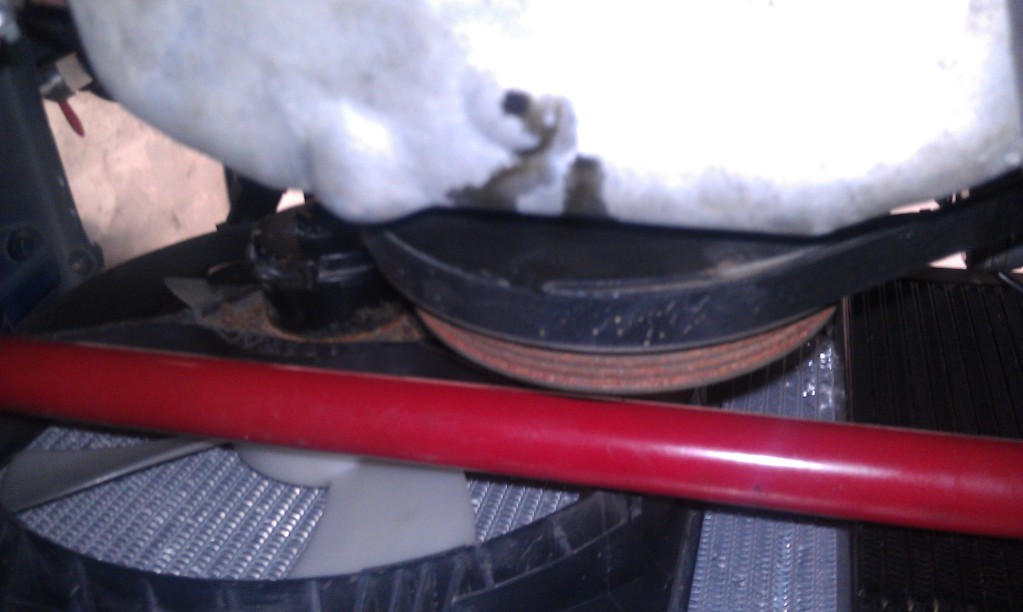

I was messing with the car this morning and noticed a small puddle of oil underneath when i moved it. I don't have a lift and can't get the car very far off the ground, so excuse the crappy pics. I can't get far enough away to use the DSLR so these are crappy cell pics. It looks like the oil is coming from behind the crank pulley, being a noob with the platform is this bad? i'm of the opinion that any oil leak is bad, especially on a track car.



Attached Thumbnails
Oil leak, any suggestions-imag0021.jpg   Oil leak, any suggestions-imag0020.jpg
shanem is offline   Reply With Quote
Old 08-04-2012, 02:26 PM   #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

From that location I'm guessing front seal.
rleete is offline   Reply With Quote
Old 08-04-2012, 02:36 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

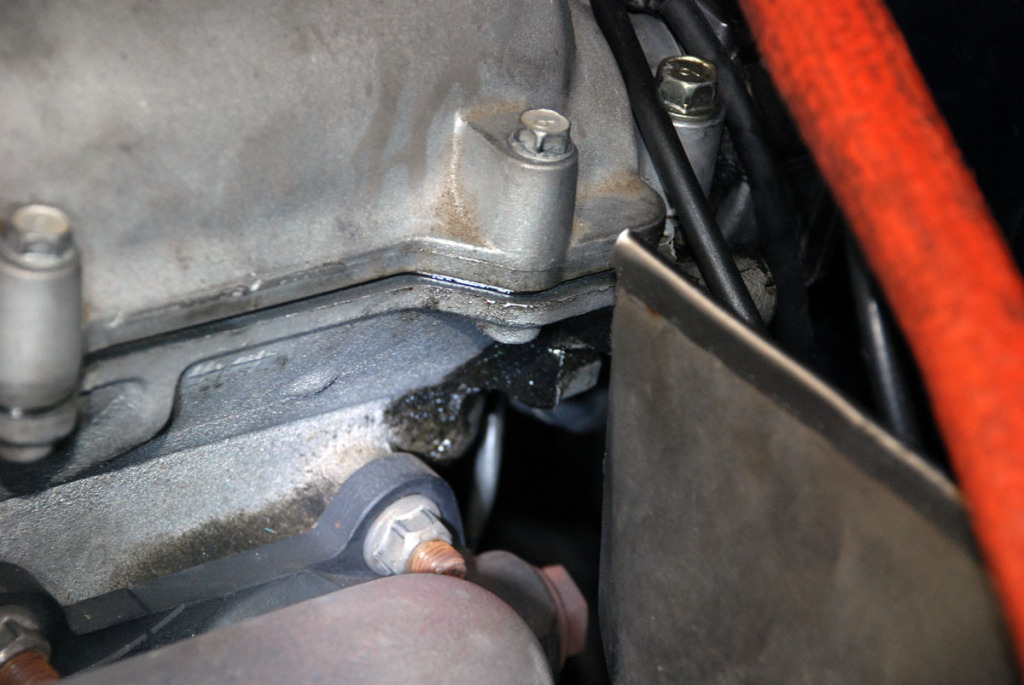

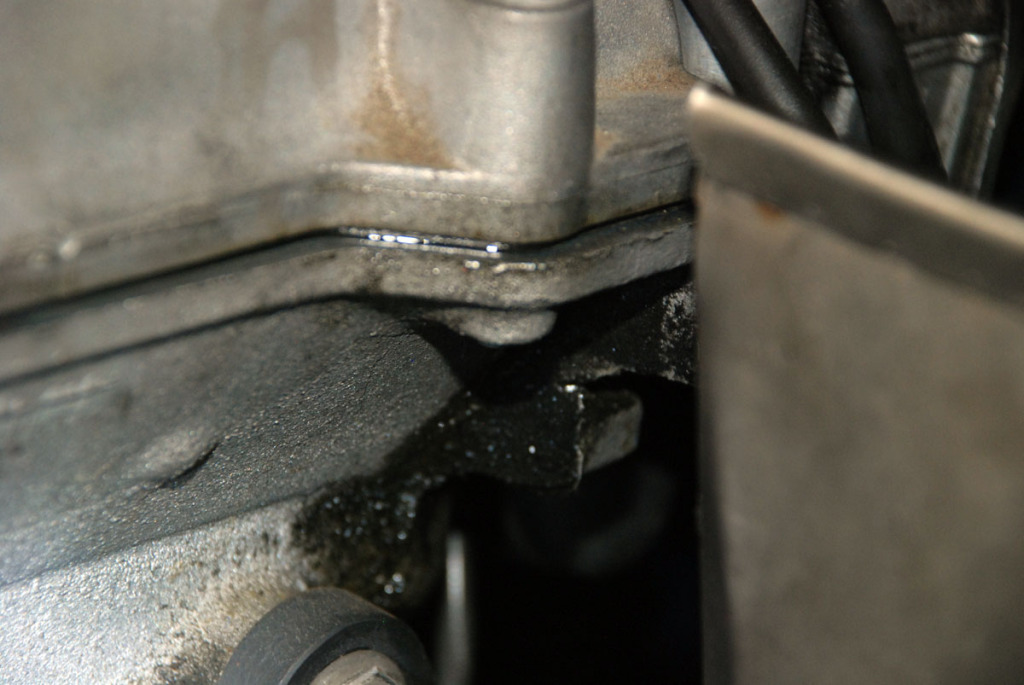

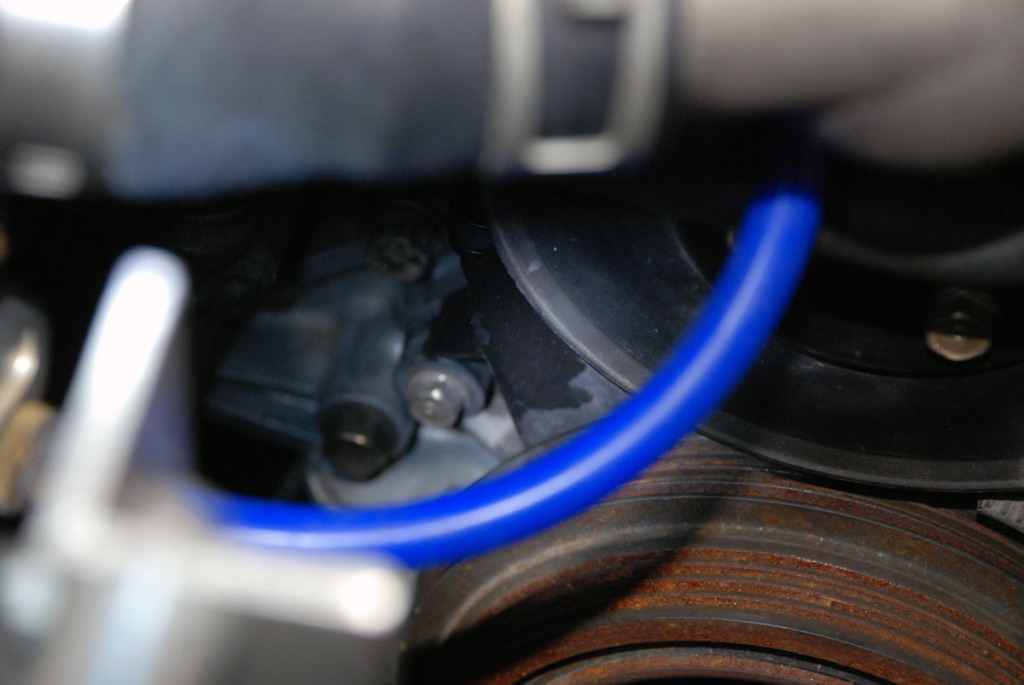

i just walked back in from trying to find a bit more detail and found both of these fresh oil spots. this engine has 3 sessions on it, roughly 12 hot laps, after being "gone through" and having all the seals replaced, cam etc







the leak near the firewall is only an inch or so above and to the driver's side of where the oil was dripping under the car. There was a smaller puddle of oil under the car as well a few inches to the passenger side and forward of the main puddle that the fresh oil between those two pullies would match up with.
Attached Thumbnails
Oil leak, any suggestions-leak-2-.jpg   Oil leak, any suggestions-leak-3.jpg   Oil leak, any suggestions-leak-1.jpg
shanem is offline   Reply With Quote
Old 08-04-2012, 04:13 PM   #4
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

99% valve cover gasket
EunosBen is offline   Reply With Quote
Old 08-04-2012, 07:36 PM   #5
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Quote:
Originally Posted by EunosBen View Post
99% valve cover gasket
I agree. Fortunately that's the easiest one to replace. Clean all the oil off the gasket mating surfaces and then let the goop cure for 24hours before starting the engine.
Mobius is offline   Reply With Quote
Old 08-04-2012, 08:23 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

thanks for the input guys
shanem is offline   Reply With Quote
