Default Power steering fluid that i wont boil? cheap cooler set up?

every event with my 02 street car with 15x7 and 100tw tires i pop the hood to find power steering fluid all over the place. trying to find a fluid or that wont boil over and or a cheap power steering cooler option.
jeff_man is offline   Reply With Quote
Old 07-19-2010, 01:24 PM   #2
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

I went through that with my 97:
Lowered the fluid level ... FAIL.
Swapped to redline ... FAIL.
Swapped to RP ... FAIL.
Drained fluid and plugged lines ... SUCCESS.

Is it boiling or cavitation? I couldn't tell on my car. I got tired of cleaning up the engine bay after every session and finally had someone pull the power steering.
orion4096 is offline   Reply With Quote
Old 07-19-2010, 01:32 PM   #3
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

im working it out on my setup too.

i have converted to -10an feed line and -6an return line with a canton 32oz resevoir that is firewall mounted and a cheap summit trans cooler.

i havent had it overheat yet even without the ps cooler installed but im just fixing the little leaks im having with my adapter plate to adapt the pump to AN.

Its about 300$ in parts and lines.
shlammed is offline   Reply With Quote
Old 07-19-2010, 07:41 PM   #4
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

I'm running a C5 powersteering cooler and amsoil automatic trans fluid.
chpmnsws6 is offline   Reply With Quote
Old 07-19-2010, 10:36 PM   #5
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by chpmnsws6 View Post
I'm running a C5 powersteering cooler and amsoil automatic trans fluid.
i have something like the c5 system, it's a bar bolted to my fmic so it can get cool air and us the fmic as a heat sink.

think i'm going to order a $30 cooler from summit and run the ams oil
jeff_man is offline   Reply With Quote
Old 07-20-2010, 12:33 AM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Whatever you do, don't buy the $50 pulley from Gary and win at life with a depowered rack. There is a reason I depowered mine immediately after driving John's car.
hustler is offline   Reply With Quote
Old 07-20-2010, 01:04 AM   #7
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by hustler View Post
Whatever you do, don't buy the $50 pulley from Gary and win at life with a depowered rack. There is a reason I depowered mine immediately after driving John's car.

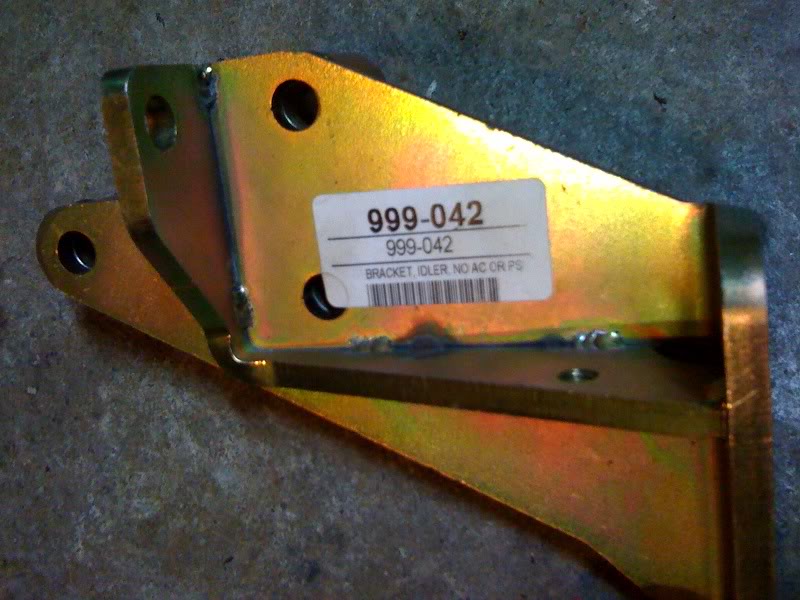

what you just said is imposable. you can't depower with out the no ps idler pulley bracket thing on a mp supercharger. if i go depowered i would have the buy the pulley mount.

Name:  securedownload.jpg
Views: 11
Size:  79.3 KB

Last edited by jeff_man; 07-20-2010 at 01:24 AM.
jeff_man is offline   Reply With Quote
Old 07-20-2010, 01:09 AM   #8
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by hustler View Post
Whatever you do, don't buy the $50 pulley from Gary and win at life with a depowered rack. There is a reason I depowered mine immediately after driving John's car.
If the WHMBO'd didn't drive the car, this would be a viable option.
chpmnsws6 is offline   Reply With Quote
Old 07-20-2010, 01:34 AM   #9
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

Remove PS, remove AC, be a man.
saedrin is offline   Reply With Quote
Old 07-20-2010, 04:47 AM   #10
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Quote:
Originally Posted by saedrin View Post
Remove PS, remove AC, regret everything.
fix'd
Bond is offline   Reply With Quote
Old 07-20-2010, 04:59 AM   #11
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

Quote:
Originally Posted by Bond View Post
I need AC to help dry my nails on the way home from the salon.
Fixed.
saedrin is offline   Reply With Quote
Old 07-20-2010, 08:46 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Bond View Post
I used to mod this place moron, i remember all douche bags like you. Your 200 pounds at 5'10 with 12% bf(at least you were)...im glad you think thats awesome. Why would i ride you ***** , i was bigger and leaner then you when i was 17. I dont ride anyones ***** here, but i do respect people like timber. Hes a great guy, never a mean thing to say, and never pimps himself like you do.

Your nothing more then a beach boy build looking for attention. Your the guy that rides my nuts in the gym and wants to use my machine after so you can sniff the seat with some hope you will grow from it. You make every excuse in the book as to why you cant do this or that...its simple really...you aint got in son. Stick to curls and bench press, they work slightly for you. Dont worry, if you wear baggy enough **** no one will say anything about those number 2 pencils you call legs. At least they match your 15" pipe cleaners.

You wanna talk ****, game on, im the master at that around here, i can rip you apart all day long. You have nothing to add to this place so leave once again and come back in 2010 with the same pics hoping everyone will ride your nuts, cause thats all you really want, you want a bunch of nerds to worship you. Sorry jobs taken, timbers got it and he does it well. So please take this gracious offer to just leave or wipe the slate clean an start over from here. I will even help you get somewhere otehr then pics from 2005. Btw post something recent

hugs and kisses
fix'd
hustler is offline   Reply With Quote
Old 07-20-2010, 09:24 PM   #13
Newb

Join Date: Dec 2009
Posts: 13
Total Cats: 0
Default

brb getting popcorn.
field is offline   Reply With Quote
Old 07-21-2010, 05:24 PM   #14
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

The fluid probably isn't boiling, the pump is just blowing it out of the dipstick.

Sweet Mfg's anti-foaming fluid helped a lot, when I tracked my daily-driver years ago. SWEET MFG Power Steering Fluid
There are other companies that make anti-foaming fluid, but I have no experience with them. Sweet Mfg fluid is the only non-off-the-shelf fluid I tried, that worked.

Maruha makes a plug & play high-pressure dipstick, specifically to deal with your problem. Japanese/English translation = HA!
Maruha Power Steering Dip Stick
wildo is offline   Reply With Quote
Old 07-23-2010, 01:18 AM   #15
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Just use ATF. I have never had a problem.
Oh, I also have the BEGI power steering cooler.
TURNS101 is offline   Reply With Quote
Old 07-23-2010, 01:23 AM   #16
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Holy ****. 15" pipe cleaners LMAO!!!

Originally Posted by Bond View Post
I used to mod this place moron, i remember all douche bags like you. Your 200 pounds at 5'10 with 12% bf(at least you were)...im glad you think thats awesome. Why would i ride you ***** , i was bigger and leaner then you when i was 17. I dont ride anyones ***** here, but i do respect people like timber. Hes a great guy, never a mean thing to say, and never pimps himself like you do.

Your nothing more then a beach boy build looking for attention. Your the guy that rides my nuts in the gym and wants to use my machine after so you can sniff the seat with some hope you will grow from it. You make every excuse in the book as to why you cant do this or that...its simple really...you aint got in son. Stick to curls and bench press, they work slightly for you. Dont worry, if you wear baggy enough **** no one will say anything about those number 2 pencils you call legs. At least they match your 15" pipe cleaners.

You wanna talk ****, game on, im the master at that around here, i can rip you apart all day long. You have nothing to add to this place so leave once again and come back in 2010 with the same pics hoping everyone will ride your nuts, cause thats all you really want, you want a bunch of nerds to worship you. Sorry jobs taken, timbers got it and he does it well. So please take this gracious offer to just leave or wipe the slate clean an start over from here. I will even help you get somewhere otehr then pics from 2005. Btw post something recent

hugs and kisses
TURNS101 is offline   Reply With Quote
Old 07-23-2010, 02:37 AM   #17
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

I feel like I walked in on the middle of something hilarious.
