Default Removing AC heat exchanger

For now, I just want to remove the heat exchanger. I need more cooling so it has to go. Until I see that it is successful I don't want to pull the whole system. Can I just pull the radiator out and get to the AC heat exchanger and disconnect it easily? (I have a friend that will siphon off the Freon)

Thanks!!
tomiboy is offline   Reply With Quote
Old 08-19-2014, 03:08 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Yes. Easily accessed with the radiator out. Get caps for the lines to keep junk out.
hornetball is offline   Reply With Quote
Old 08-19-2014, 05:19 PM   #3
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

For what it's worth, I was able to get mine out with the radiator still in place.
krazykarl is offline   Reply With Quote
Old 08-20-2014, 07:50 PM   #4
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Removal of the entire AC system, allofit, was less than an hour for my car. This was with Curly's help, though He's fast. He enters some sort of savant trance when you give him a wrench, a task, and a bottomless beer. Condenser, lines, compressor, and the ventilation box was replaced with the Mazda non-ac connector piece. We did not remove the radiator but the bumper was off. Absolutely take the bumper off.
Mobius is offline   Reply With Quote
Old 08-24-2014, 02:25 AM   #5
Junior Member

Join Date: Nov 2009
Location: SF, CA
Posts: 49
Total Cats: 2
Default

Second that on the ease/speed of removing the entire A/C. Saves quite a bit of weight - 33 lbs as I recall on an NA.

Job was made easier by having OEM A/C installation instructions which I found online for a 90 NA - http://webpages.charter.net/a7037196/miata/90ACINST.pdf - (hopefully there are some for NBs). Do the instructions backwards.

Anyone with an NA should also Google "A/C delete bolt" - a bolt you have to buy to plug a hole in the block that would weep oil otherwise. Also on an NA, no need to remove the bumper.
billybobster is offline   Reply With Quote
Old 08-24-2014, 03:58 AM   #6
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Need the bolt for NB as well, but in either case only if you delete the compressor. Which is heavy.

M8x1.25x45mm.
Mobius is offline   Reply With Quote
Old 08-24-2014, 11:02 PM   #7
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by billybobster View Post
Anyone with an NA should also Google "A/C delete bolt" - a bolt you have to buy to plug a hole in the block that would weep oil otherwise. Also on an NA, no need to remove the bumper.
Does this apply to 1.6 cars as well? I may need to go buy a bolt...
njn63 is offline   Reply With Quote
Old 08-25-2014, 11:09 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Mobius View Post
Need the bolt for NB as well, but in either case only if you delete the compressor. Which is heavy.

M8x1.25x45mm.
The compressor isnt that heavy, its the ******* 15lb cast iron bracket that is like half the weight of the A/C system.
Leafy is offline   Reply With Quote
Old 08-25-2014, 11:20 AM   #9
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by njn63 View Post
Does this apply to 1.6 cars as well? I may need to go buy a bolt...
Yes. It's actually an oil pump bolt.
hornetball is offline   Reply With Quote
Old 08-25-2014, 11:41 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Quote:
Originally Posted by njn63 View Post
Does this apply to 1.6 cars as well? I may need to go buy a bolt...
Yes, all '90-'05 Miatas with AC have a longer bolt going through the compressor bracket, through the oil pump, and into the block. Removing the compressor bracket requires either a ~1" spacer, or a ~1" shorter bolt.

Quote:
Originally Posted by Leafy View Post
The compressor isnt that heavy, its the ******* 15lb cast iron bracket that is like half the weight of the A/C system.
Unless you get the 1.75lb aluminum bracket, only available on the MSM I think.

Someone needs to put a cast iron one on a decent quality scale and take a picture. Just so I can charge more for the aluminum one
curly is offline   Reply With Quote
Old 08-25-2014, 11:48 PM   #11
Junior Member

Join Date: Nov 2009
Location: SF, CA
Posts: 49
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
Someone needs to put a cast iron one on a decent quality scale and take a picture. Just so I can charge more for the aluminum one

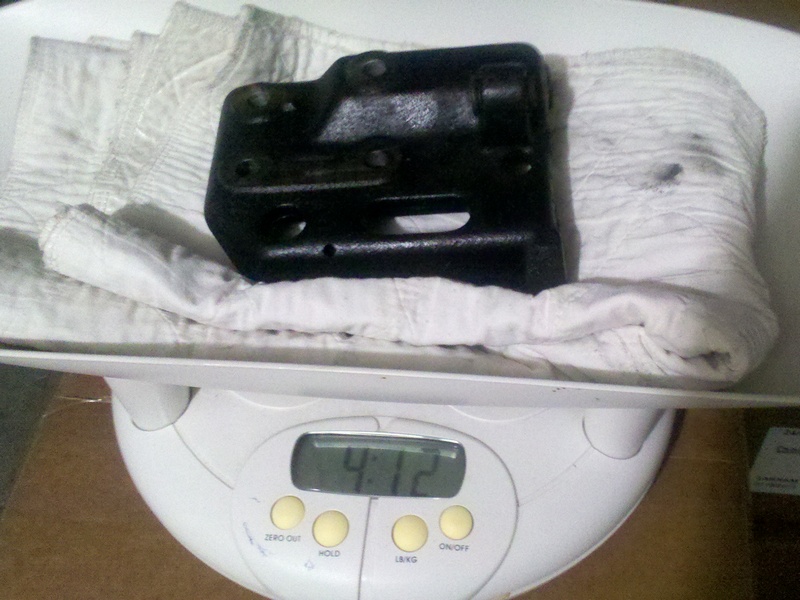

4 lb 12 oz

Compressor - 12 lb 15 oz

Rest of A/C stuff - box feels heavy

I'm keeping all this because someday I may put the car back to stock.
Attached Thumbnails
Removing AC heat exchanger-2014-08-ac-bracket.jpg
billybobster is offline   Reply With Quote
Old 08-26-2014, 12:21 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Still, that's a 3lb savings with the aluminum bracket! Perfect for my for sale thread, thanks.
curly is offline   Reply With Quote
Old 08-26-2014, 03:09 AM   #13
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

32 lbs total for NB2.

My bracket felt a **** ton heavier than 4 lbs when I took it off. I'll go weigh it tomorrow. It's late, it's dark, and the spiders behind the garage scare me.
Mobius is offline   Reply With Quote
Old 08-26-2014, 09:20 AM   #14
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

oooh spiders!

I got my condenser out and put 100% distilled water with water wetter in. Hopefully I can say goodbye to 220* temps and always watching my temp gauge instead of driving!!
tomiboy is offline   Reply With Quote
Old 08-26-2014, 10:58 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by curly View Post
Someone needs to put a cast iron one on a decent quality scale and take a picture. Just so I can charge more for the aluminum one
fwiw Aluminum compressor AND bracket from the 04-05 saves over 10lbs. But you'll have to contend with swaging/brazing hard lines for different port locations and probably tensioning due to the smaller pulley.

https://www.miataturbo.net/build-thr...3/#post1122448 04/05 AC compressor/bracket
m2cupcar is offline   Reply With Quote
