Default Removing factory gauges

I'm considering replacing the coolant temp factory gauge with a dual SPA oil water temp gauge and moving my dual boost/ WB gauge into the factory oil pressure location to regain use of the left side vent where that gauge currently resides.

I've read a lot of posts on gauges but could not find one where someone talks about removing/ replacing those gauges.

I know it would prob be easier to have a pillar mount but I don't care for the look. I also don't want to block more vents.
carnut169 is offline   Reply With Quote
Old 07-23-2014, 06:50 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

https://www.miataturbo.net/build-thr...4/#post1124764

(Shows what goes into making room for the NA gauge in an NB car. May help? idk)
Schuyler is offline   Reply With Quote
Old 07-23-2014, 06:55 PM   #3
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

I don't have any pictures handy, sorry.

The replacement of the OEM gauges is pretty easy, especially the water temp. There are a few plastic tabs that you can snap off and out of the way(water temp gauge). After that a 52mm gauge fits into this area very nice. I'm talking about autometer specifically. I drilled holes in the back of gauge cluster for the threaded terminals to poke through and the used the nuts to hold the gauge in place. Cut off the extra threaded area and then you can place the flexable curcuit over the top. You can run dedicated wires out to the side or tap into the curcuit board(flexy).
Miater is offline   Reply With Quote
Old 07-24-2014, 11:40 AM   #4
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

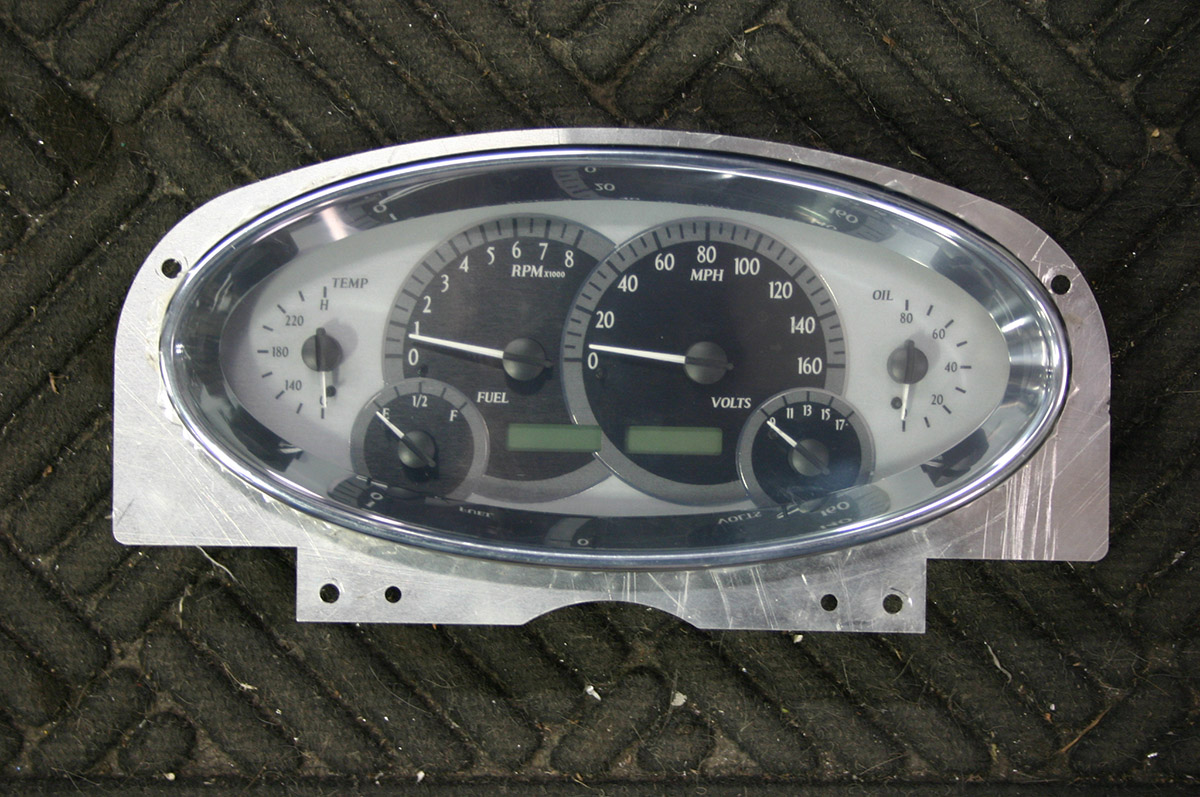

We've got a design for a panel that replaces the stock gauge cluster in the NA and NB. You can drill it for whatever gauges you want to use. Shown here with an oval Dakota digital, but with a hole saw you can easily install round ones. If there's interest, I can put it up for a group buy.
Attached Thumbnails
Removing factory gauges-img_3850.jpg
Keith@FM is offline   Reply With Quote
Old 07-24-2014, 12:16 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

I'm ok with the stock speedo, fuel, tach but don't like the factory oil pressure or coolant temp as I've read they are pretty innaccurate. Plus, how am I going to be able to tell my new FM crossflow is helping me run cooler (whenever you have it back in stock).

I could see installing a Aim MXL dash- really nice logging features but since this is really an occasional track toy and 90% street I'm just after better temp gauges.

If the OBD2 board for the MS3x allows me to read accurate information on a Scangauge or Torque app that might be the solution. Just not sure if the factory sensors are going to be able to tell me the actual water temp.
carnut169 is offline   Reply With Quote
Old 07-24-2014, 12:18 PM   #6
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

The stock sensor should be able to tell you good enough information for water temp. You definitely want something better for oil pressure, but your current switch works well when wired to a big red STOP THE ENGINE NOW light. I run both on my car, a gauge and a light. I need a bigger light.
Keith@FM is offline   Reply With Quote
Old 07-24-2014, 12:34 PM   #7
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

If your running the car hard and lose oil pressure isn't the damage done in seconds? IE, by the time the system triggers the light , you see it and stop the car the damage is already likely done.

In FB, if we had a nano second of air picked up in a high g turn the motor was toast. In FC it was never an issue (dry sump).
carnut169 is offline   Reply With Quote
Old 07-24-2014, 12:55 PM   #8
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

It can make the difference between needing new bearings and blowing a rod out the side of the block. If you react fast enough, you won't necessarily have any damage, there's still oil on the bearings.

If you don't think a light can help, then you don't really need an oil pressure gauge at all. Rotaries are different.
Keith@FM is offline   Reply With Quote
Old 07-24-2014, 01:12 PM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Replacing the water gauge is easy. You can even set it up to use the factory sensor wiring easily enough. Making it illuminate with the rest of the gauges is the hard part.
Leafy is offline   Reply With Quote
Old 07-24-2014, 01:16 PM   #10
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Quote:
Originally Posted by [email protected] View Post
We've got a design for a panel that replaces the stock gauge cluster in the NA and NB. You can drill it for whatever gauges you want to use. Shown here with an oval Dakota digital, but with a hole saw you can easily install round ones. If there's interest, I can put it up for a group buy.
I want it! As long as its black
soviet is offline   Reply With Quote
Old 07-24-2014, 01:16 PM   #11
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

It's the same color as your can of spray paint.
Keith@FM is offline   Reply With Quote
Old 07-24-2014, 01:37 PM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Quote:
Originally Posted by [email protected] View Post
It's the same color as your can of spray paint.


how much?
Attached Thumbnails
Removing factory gauges-biden-fucking-guy.gif
soviet is offline   Reply With Quote
Old 07-24-2014, 01:43 PM   #13
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

$29.95. Laser cut, aluminum. We'd probably need a half dozen to make it go. Give me another one or two hands up and we'll put it up as a GB.
Keith@FM is offline   Reply With Quote
Old 07-24-2014, 02:39 PM   #14
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Yeah, I doubt that will happen.

How about just one? (inb4 $179.70, comes with free 5 other panels...)
soviet is offline   Reply With Quote
Old 07-24-2014, 03:00 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Quote:
Originally Posted by [email protected] View Post
It's the same color as your can of spray paint.
I lol'd IRL
Savington is offline   Reply With Quote
Old 07-24-2014, 09:23 PM   #16
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,126
Total Cats: 145
Default

Quote:
Originally Posted by [email protected] View Post
$29.95. Laser cut, aluminum. We'd probably need a half dozen to make it go. Give me another one or two hands up and we'll put it up as a GB.
I'm game on a GB.
bahurd is offline   Reply With Quote
Old 07-25-2014, 11:45 AM   #17
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

I'll put my name down as well Keith. Maybe a windows tablet in place of the gauges...

For now I've ordered a ELM327 Wifi and Rev's OBD2 device for my Ms3. I'll send the info from the OBD2 to my i5 which when connected to my Pioneer DVD/ radio and using Appradio and Dashcommand will mirror the i5 on the radio. Net result- I'll be able to view any combination of gauges right on my in-dash radio.

The same thing could be accomplished with Keith's replacement dash piece and a windows tablet... although you could also connect the tablet to the MS3 and use Tunerstudio/ VEAL with the display right in your dash. OR, have the dash display a giant tach etc. Between the radio and the tablet in the dash any combination you can dream up would be possible. I'm thinking that a warning light could be configured to flash the whole dash red...
carnut169 is offline   Reply With Quote
Old 07-25-2014, 12:55 PM   #18
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Okay, you're on. The GB is up, and will run for about a week and a half. I'm going to sign up for one of these as well, I have some ideas.

Flyin' Miata : Interior : Gauges : Blank gauge panel for factory hood
Keith@FM is offline   Reply With Quote
Old 07-25-2014, 01:28 PM   #19
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,126
Total Cats: 145
Default

Quote:
Originally Posted by [email protected] View Post
Okay, you're on. The GB is up, and will run for about a week and a half. I'm going to sign up for one of these as well, I have some ideas.

Flyin' Miata : Interior : Gauges : Blank gauge panel for factory hood
My order's in.
bahurd is offline   Reply With Quote
Old 07-25-2014, 01:32 PM   #20
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

X2, in.
carnut169 is offline   Reply With Quote
