Old 02-19-2012, 10:17 AM   #21
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Mobius View Post
Nothing. As soon as the car gets flexed or any shear forces hit the top it pops right off.
Was that top not bolted down? They don't pop off when IT and SM guys wreck.
Ben is offline   Reply With Quote
Old 02-19-2012, 03:01 PM   #22
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 406
Total Cats: 19
Default

It just had the front latches and Frankenstein bolts. The guy was borrowing his buddy's hard top when he wrecked.
FatKao is offline   Reply With Quote
Old 02-19-2012, 04:43 PM   #23
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Good to know, I was unaware of that.
Mobius is offline   Reply With Quote
Old 02-20-2012, 10:44 AM   #24
Newb
Thread Starter

Join Date: Sep 2011
Location: NY
Posts: 20
Total Cats: 0
Default

Quote:
Originally Posted by RacingFootage View Post
Hey Guys, just joined the forum and came across this thread.

So I'm 6'7" and have done 2 HPDEs so far in my Miata.
Mid-Ohio and Summit Point

I did 4 things.

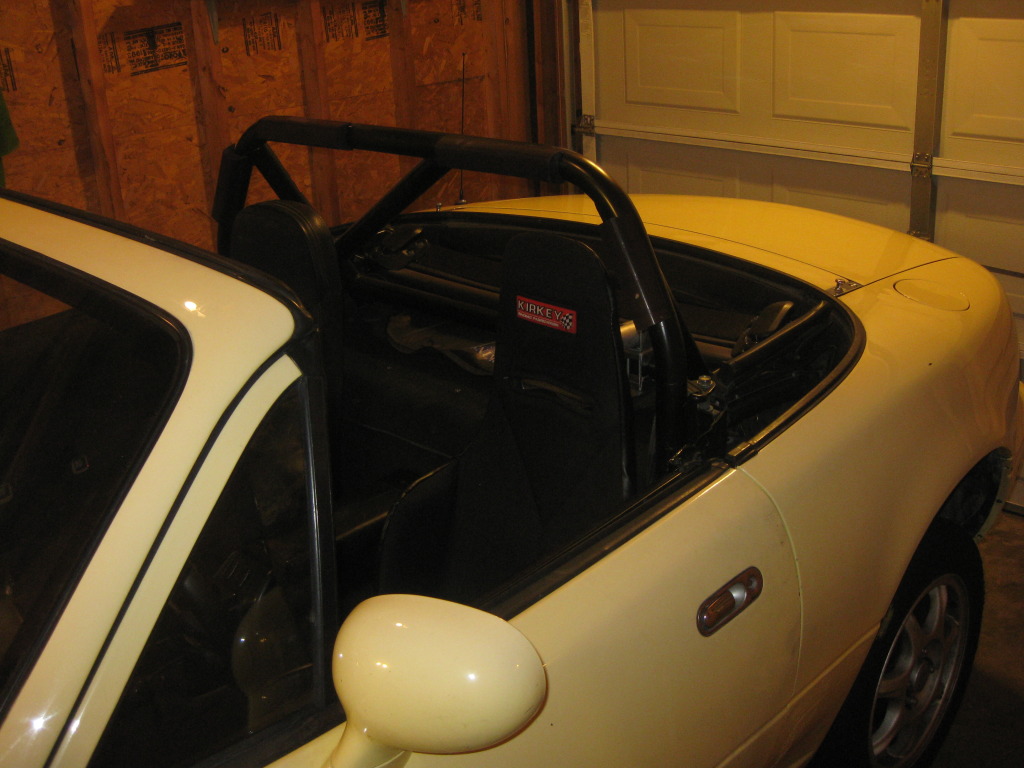

1. Put in a M1 Harddog Roll Bar - the NON Hardtop version

2. Bolted a Kirkey 20degree (this is the slope of the miata parcel shelf) economy seat directly through the floor. I used a cutoff wheel to cutout around the seat humps, so I can still go back to the stock seat. (20 degrees is the slope of the miata parcel shelf)

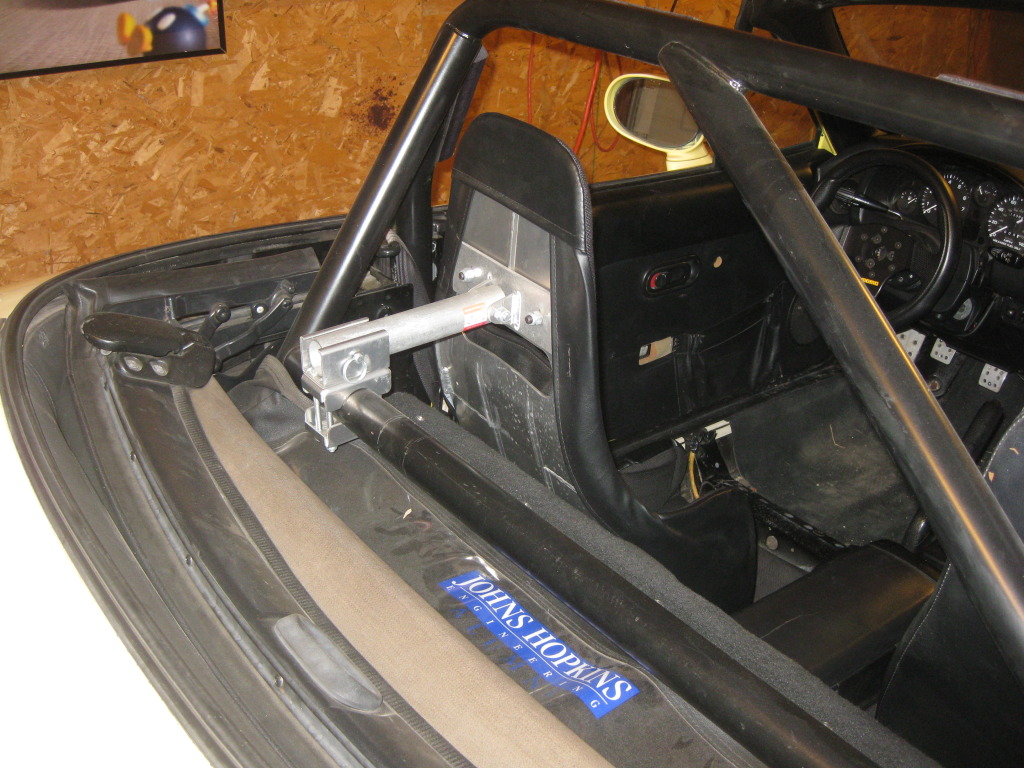

3. Installed an I/O Port seat back brace to my AL seat ( required for safety)

4. Installed Hardtop using bolt in brackets. These are required for racing anyway, and it allows you to use the non hardtop version of the hard-dog roll bar- you gain ~ 1" over the hardtop version, and it fits just fine under the hardtop. The new version is just for the latches to fit.
The Hardtop is a big help because it reduces the number of questions people have at tech. they just pass you.

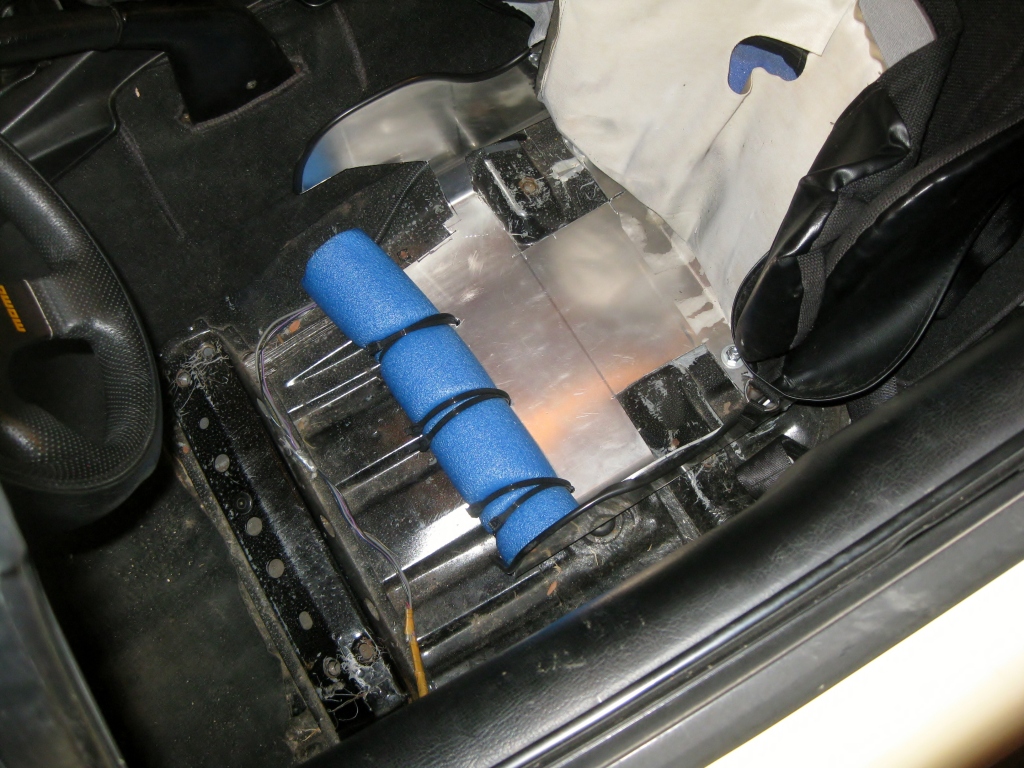

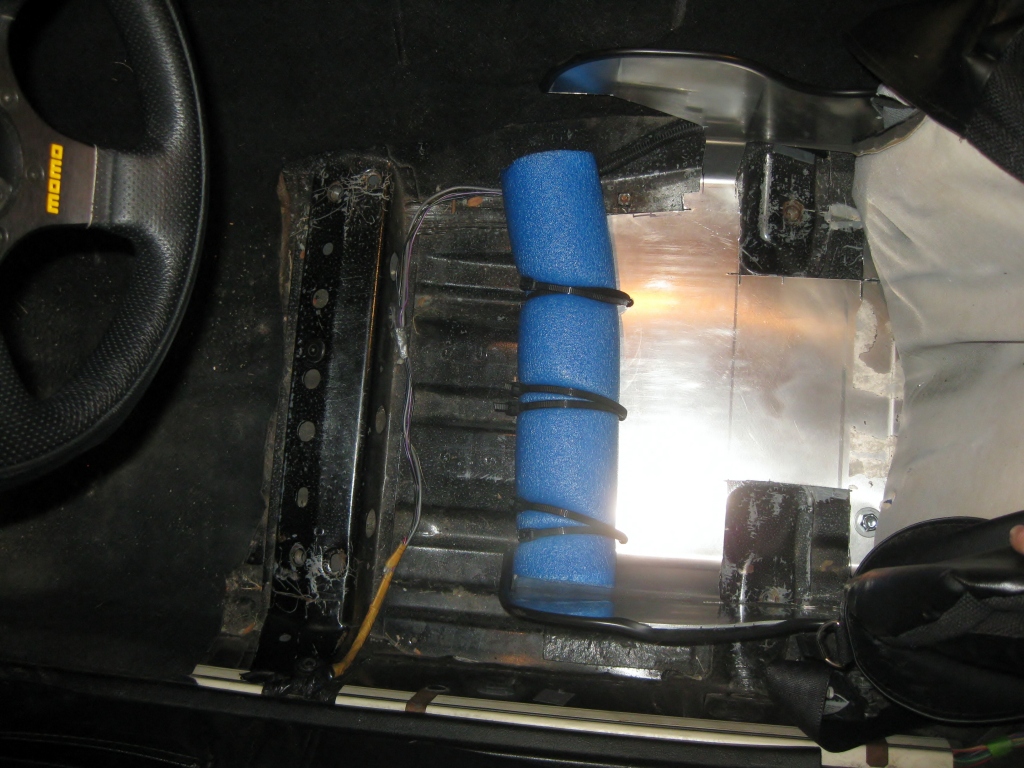

Bonus changes. This seat is super uncomfortable, its flat and makes your but go numb. To fix this I created my own "Sparco Seat Bump" Using a water noodle from Wal-Mart that is cut to my seat width and then zip-tied to the leading edge of the seat. It is covered by the kirkey seat cover so it looks less ghetto that it sounds. Makes a really big difference too!


Anyway, I've got the car still, and getting ready for another season, if this thread still has some interested people, post up here and I'll shoot some pics of my setup.

Later,
Adam
Any pics of the set up
Turbo Lag is offline   Reply With Quote
Old 02-20-2012, 09:47 PM   #25
Newb

Join Date: Feb 2012
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by Turbo Lag View Post
Any pics of the set up

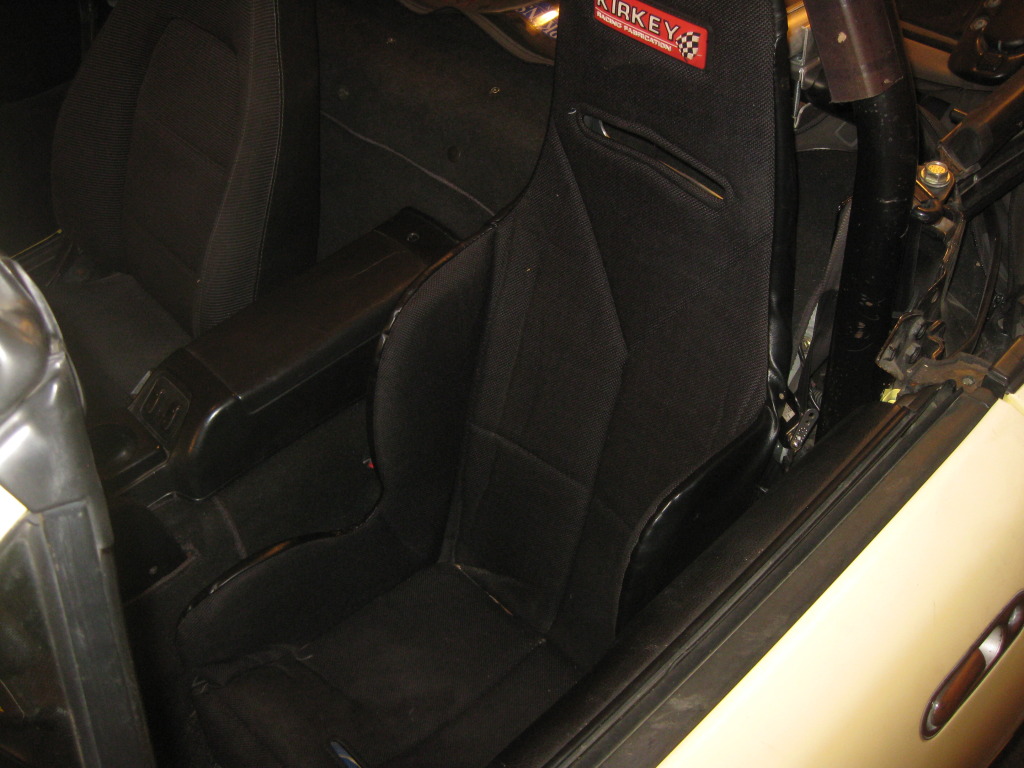

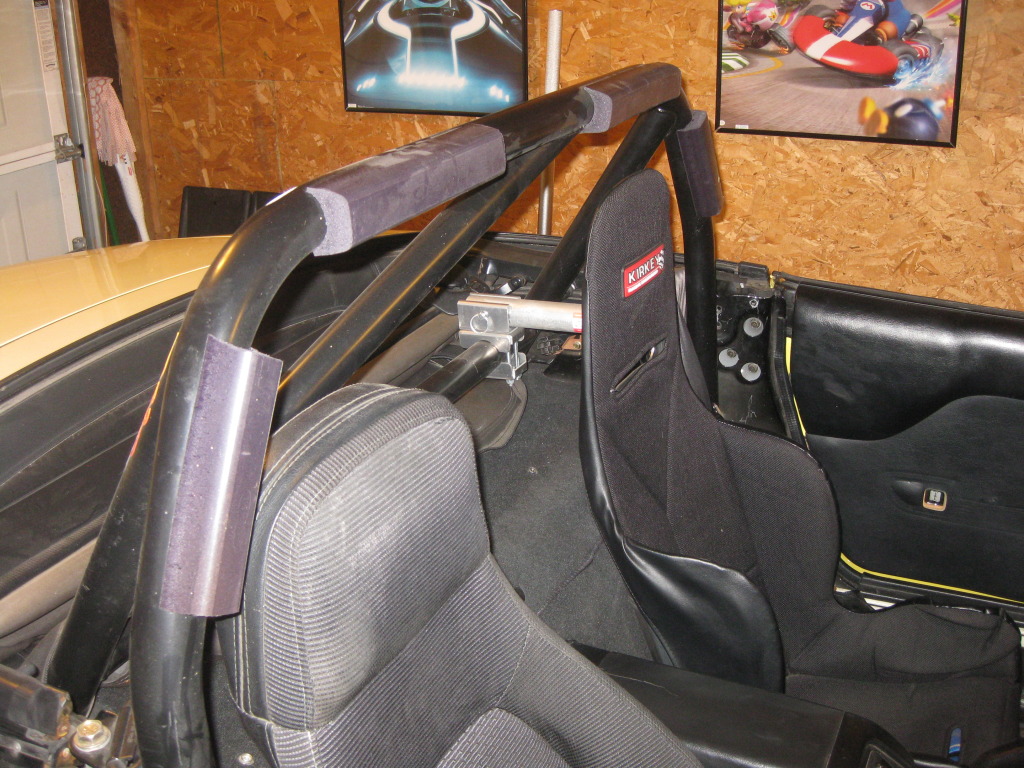

Here is my seat, Kirkey 20 degree Economy layback.

RacingFootage is offline   Reply With Quote
Old 02-20-2012, 10:07 PM   #26
Newb

Join Date: Feb 2012
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by Turbo Lag View Post
Any pics of the set up

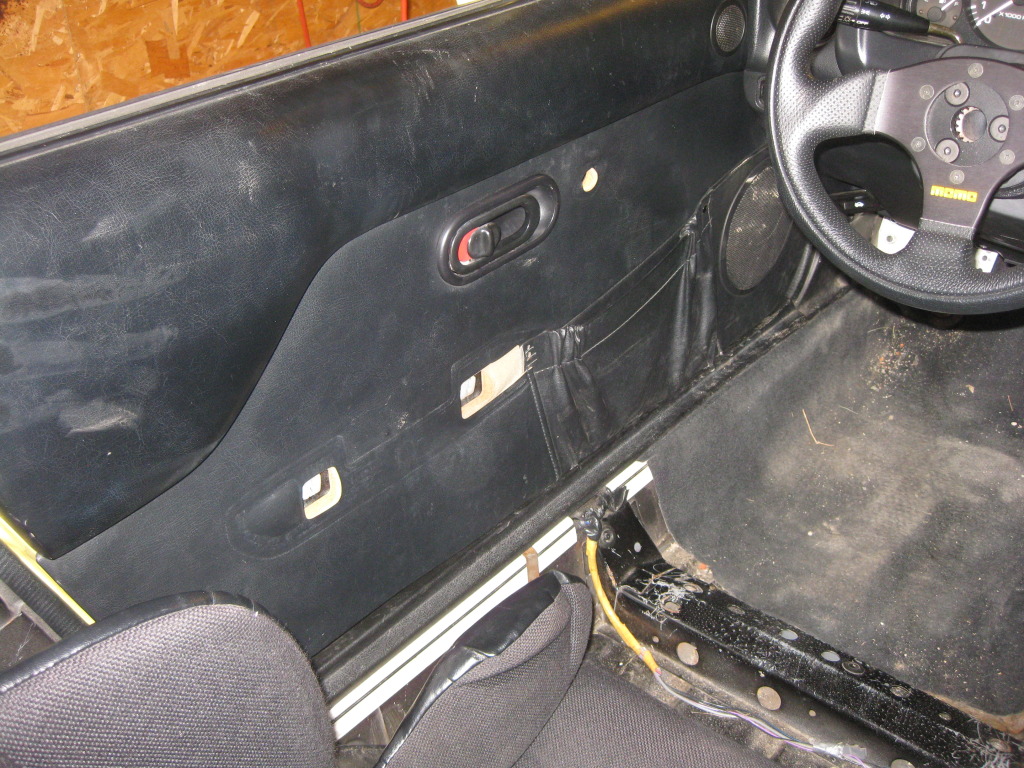

I also removed the Arm-rests to get even more room for my legs under the steering wheel

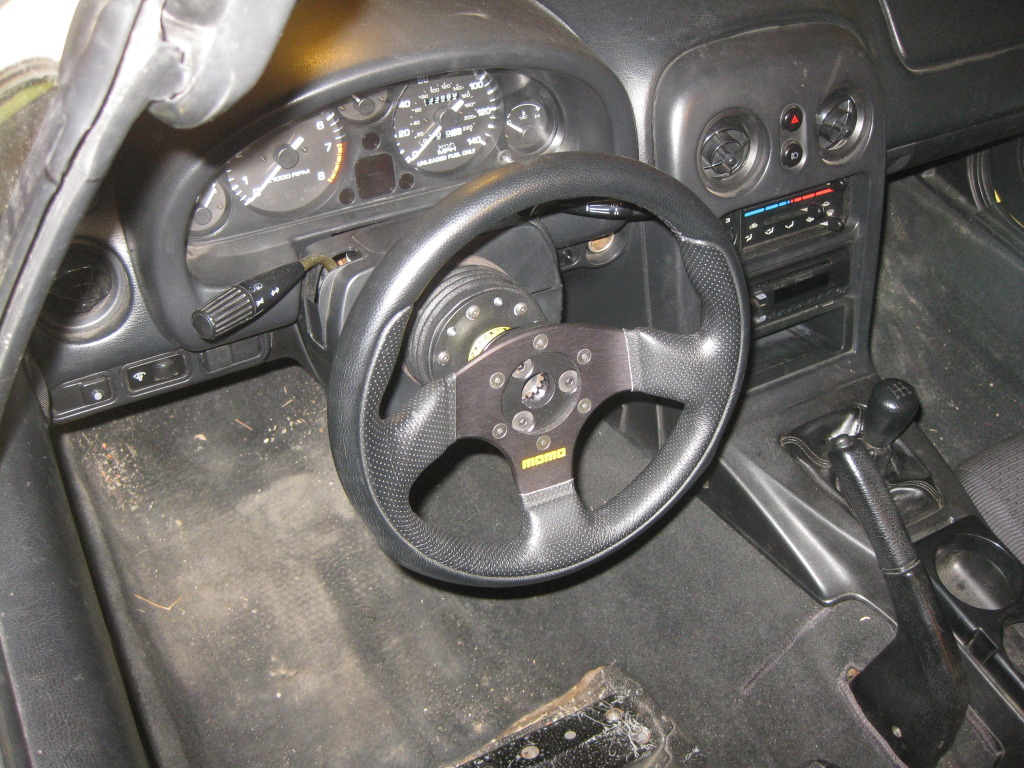

and for steering I run a 280 mm Momo team Wheel on an 80mm quick-release spacer.

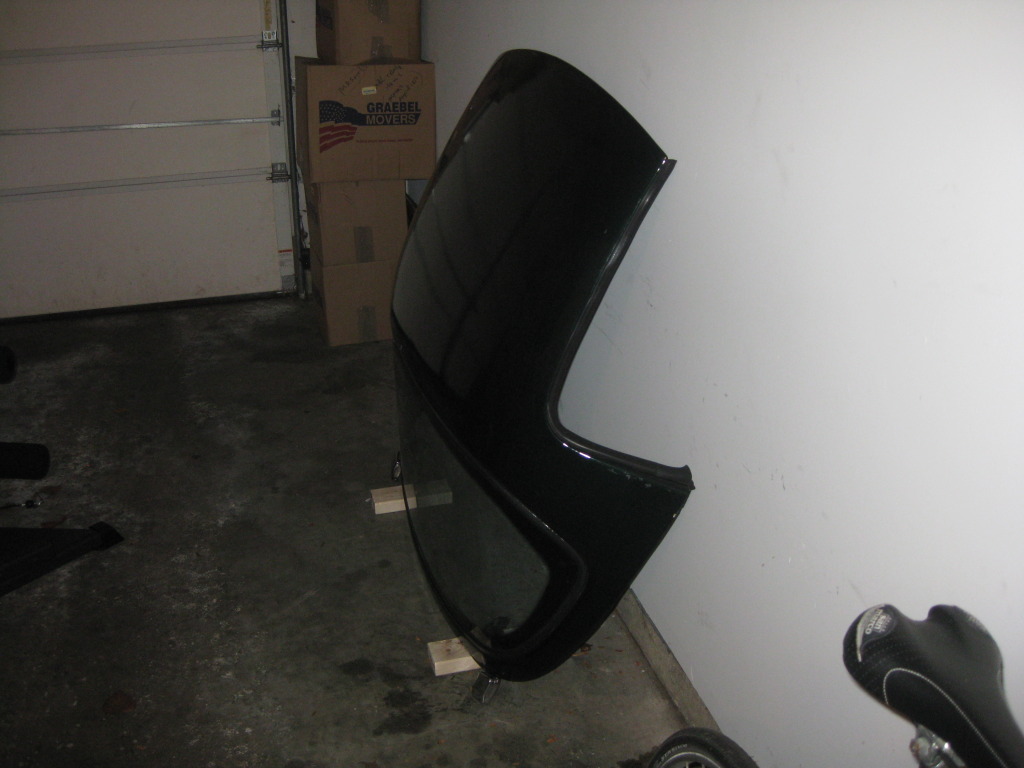

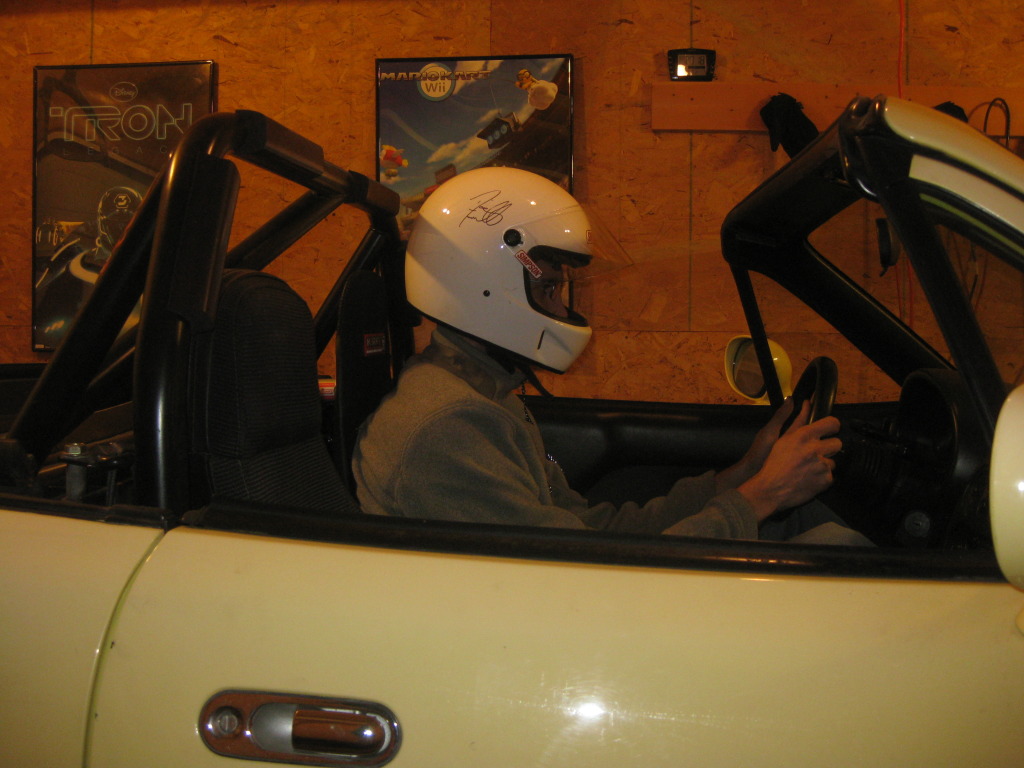

As you can see in the pics, I'm still a "bit" over. Thats where the hardtop, comes in. It keeps that hidden.

Attached Thumbnails
Roll Bars & Being a giant-img_0688.jpg   Roll Bars & Being a giant-img_0689.jpg   Roll Bars & Being a giant-img_0691.jpg   Roll Bars & Being a giant-img_0690.jpg   Roll Bars & Being a giant-img_0693.jpg

Roll Bars & Being a giant-img_0694.jpg   Roll Bars & Being a giant-img_0695.jpg   Roll Bars & Being a giant-img_0697.jpg   Roll Bars & Being a giant-img_0698.jpg   Roll Bars & Being a giant-img_0699.jpg

Roll Bars & Being a giant-img_0700.jpg
RacingFootage is offline   Reply With Quote
Old 02-20-2012, 10:35 PM   #27
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Nice. And ouch that seat looks like it hurts. There's no padding beyond your noodle in front and the thin layer of the cover? That covers just for looks, isn't it? I didn't think they had any padding.
curly is offline   Reply With Quote
Old 02-21-2012, 12:08 AM   #28
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

They are usually padded, but I guess that one might not be since he put a noodle there.

The kirkey padding as far as I know has a shape similar to what he is doing with the noodle.
Seefo is offline   Reply With Quote
Old 02-21-2012, 12:15 AM   #29
Newb

Join Date: Feb 2012
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Nice. And ouch that seat looks like it hurts. There's no padding beyond your noodle in front and the thin layer of the cover? That covers just for looks, isn't it? I didn't think they had any padding.
Its certainly an uncomfortable ride. But you know, on the track you're so focused you don't mind.

On the transits to the track, however , I use a thin pillow and its bearable. Thin because I like to keep my head below the roll bar while on the street.

Its a bit of a sacrifice, but to me its worth it to be able to drive a Miata.

You short guys don't know how good you have it !!!! ha!
RacingFootage is offline   Reply With Quote
