Default Turbo Miata Race Car - 302 rwHP

Finally, my Showroom Spec Miata has been turbo'd, tuned, new AFCO suspension and 275 hoosiers added ….. and it is everything I hoped it would be when we got drunk 3 years ago and decided to do this …….…..lets go Porsche killing

Build Specs:

1990 Spec Miata chassis
1994 1.8 engine
Mazdaspeed 6 speed transmission
949 racing twin disc racing clutch
Torsen 4.1 LSD
Wiseco pistons with Eagle H-beam connecting rods
Mazdaspeed crankshaft with ACL racing bearing
Supertec valve springs/retainers/keepers Stock valves
GT2871RS turbo
750cc Injector Dynamic injectors
Deatschwerks 300lph intank pump
Turbos-smart Comp-gate 40mm waste gate
Mocal 235 matrix 25 row oil cooler
AEM EMS v1 (30-1710 box)
AEM EBC solenoid
Monster mad max front splitter
Supermiata GTC 200 wing
repainted gloss black #302
TrackSpeed BBK 11.75 with DTC60s
Prothane complete bushing kit
Flyin' Miata AFCO suspension - 750/450
15 x 9" Konig Dial In wheels
275 Hoosier R6 with -3 degrees camber
2450 lbs inc driver and full tank o' gas

302 rwHP / 254 ft/lb on 93 gas at 11psi --- photo of dyno added below

……… enjoy the video………………………...


https://vimeo.com/99497249
Attached Thumbnails

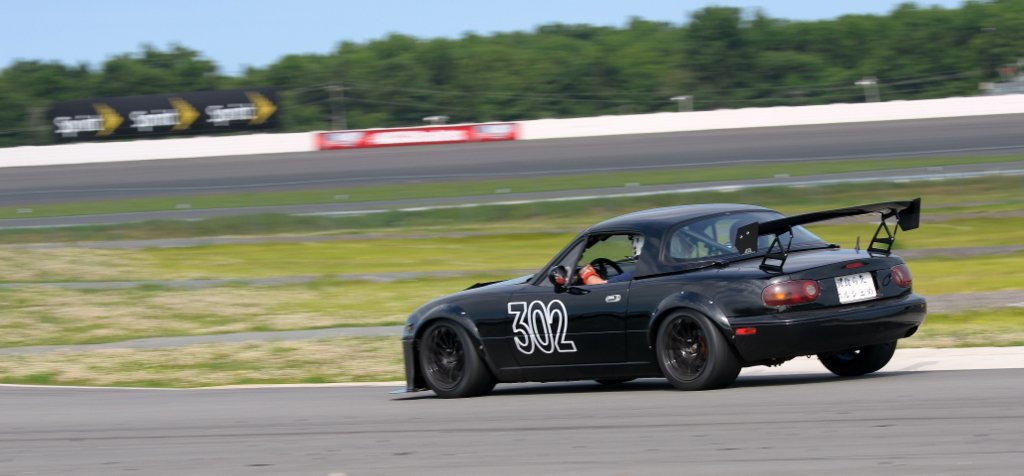

Turbo Miata Race Car - 302 rwHP-rrm_4407-001.jpg   Turbo Miata Race Car - 302 rwHP-rrm_4489.jpg

Last edited by SSMtobeturbo'd; 07-22-2014 at 04:24 PM.
SSMtobeturbo'd is offline   Reply With Quote
Old 07-09-2014, 10:36 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Which 15x9 Konigs? Did you need the 5mm spacer to clear the brakes?
Savington is offline   Reply With Quote
Old 07-09-2014, 10:39 PM   #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by Savington View Post
Which 15x9 Konigs? Did you need the 5mm spacer to clear the brakes?
x2 I must know!!!
soviet is offline   Reply With Quote
Old 07-09-2014, 10:40 PM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

double post no care

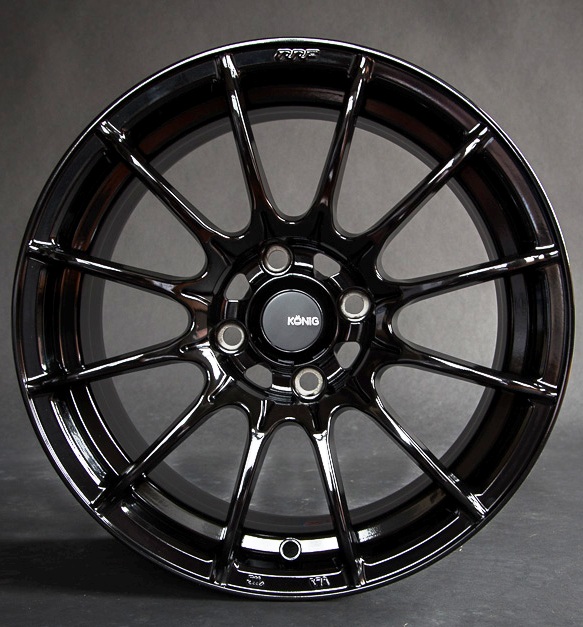

looks like Konig "Dial-In" is the only thing they have in 15x9
Konig "Dial In" 15x9 Gloss Black for Miata, 15x9
Attached Thumbnails
Turbo Miata Race Car - 302 rwHP-konig-dial-miata-wheels-gloss-black.jpg
soviet is offline   Reply With Quote
Old 07-09-2014, 10:41 PM   #5
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by Savington View Post
Which 15x9 Konigs? Did you need the 5mm spacer to clear the brakes?
Dial In's - no spacers
SSMtobeturbo'd is offline   Reply With Quote
Old 07-09-2014, 10:50 PM   #6
Junior Member
iTrader: (5)

Join Date: Mar 2010
Location: Houston
Posts: 370
Total Cats: 62
Default

I just got them too, in bronze, they're nice and light but like the Advantis Goodwin sells the spokes stick out :(
hankclaussen is offline   Reply With Quote
Old 07-09-2014, 11:00 PM   #7
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Cooling system not listed, hoping there is an oil cooler involved

Mean looking build, e-high-five!
ThePass is offline   Reply With Quote
Old 07-10-2014, 12:05 AM   #8
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Great power for 11psi and 93 oct.
k24madness is offline   Reply With Quote
Old 07-10-2014, 12:28 AM   #9
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

302 whp @ 11psi on stock size valves and stock head?
turbofan is offline   Reply With Quote
Old 07-10-2014, 01:31 AM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

I'm a little dubious of the dyno numbers as well, but nice build nonetheless.
Savington is offline   Reply With Quote
Old 07-10-2014, 01:58 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

yeah...ummm...nice car but 300whp on 11psi out of a 2871 on pump gas.....that's a bit optimistic to say the least
18psi is offline   Reply With Quote
Old 07-10-2014, 03:32 AM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Just FYI, I made 300whp at 14psi on E85 on the same turbo through a stock VVT head. I would expect a pump gas car to need another ~2psi or so to make the same power, especially through a '94 head.
Savington is offline   Reply With Quote
Old 07-10-2014, 06:59 AM   #13
Newb

Join Date: Nov 2011
Posts: 4
Total Cats: 0
Default

Stock sized valves - yup
Mild port work
Port matched intake and exhaust ports to manifolds

I know the video is grainy but if you can reference the boost gauge in the air vent it's an autometer 4303. The video shows just over 10psi.

It makes good power.

The spokes on the wheels do stick out but with the thick sidewalls/bead protection on the R6's the tires protect the spokes.

Big thanks to Andrew for some of the parts to make project happen
507Miata is offline   Reply With Quote
Old 07-10-2014, 08:27 AM   #14
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by ThePass View Post
Cooling system not listed, hoping there is an oil cooler involved

Mean looking build, e-high-five!
Mocal 235 matrix 25 row oil cooler
- build specs updated
SSMtobeturbo'd is offline   Reply With Quote
Old 07-10-2014, 08:35 AM   #15
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by 18psi View Post
yeah...ummm...nice car but 300whp on 11psi out of a 2871 on pump gas.....that's a bit optimistic to say the least
See reply from my main man 507 Miata who is the real brains in this operation.
The car was tuned at Evans Tuning in PA off E85 (which is tough to find near any race tracks in the east coast mid atlantic region) onto Premium gas. Those were the facts and figures I remember ……. but we are going back to ET in 3 weeks on the way to Watkins Glen for some partial throttle tuning so I'll confirm the figures then and get a dyno chart

Ultimately, the car is a bullet and I'm delighted with its track performance

…….. now just need to focus on the talentless nut behind the wheel…..
SSMtobeturbo'd is offline   Reply With Quote
Old 07-10-2014, 08:57 AM   #16
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by Savington View Post
Just FYI, I made 300whp at 14psi on E85 on the same turbo through a stock VVT head. I would expect a pump gas car to need another ~2psi or so to make the same power, especially through a '94 head.
attached is a photo of the dyno I took while car was getting tuned at Evans = shows 300+ rwHP in green and torque in blue. Torque is showing 250 ish (so must have been 254, not 284 as I thought) so I'll update the build specs to reflect this and will keep you all updated after next visit to Evans tuning...


- image too big - will resize and post soon ……. can't add to this post - see below

Last edited by SSMtobeturbo'd; 07-10-2014 at 09:15 AM.
SSMtobeturbo'd is offline   Reply With Quote
Old 07-10-2014, 09:14 AM   #17
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

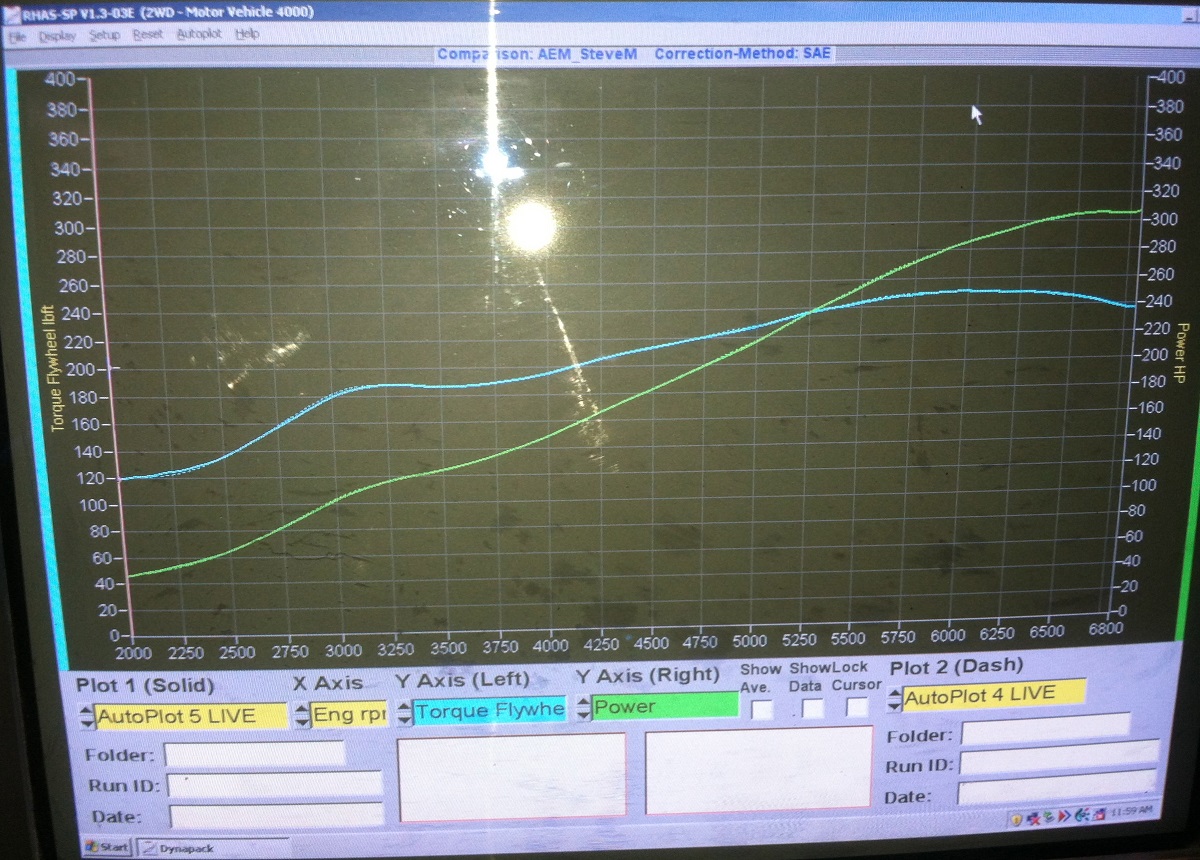

Dyno photo cropped to size
Attached Thumbnails
Turbo Miata Race Car - 302 rwHP-302-dyno-photo-resized-1200-copy.jpg
SSMtobeturbo'd is offline   Reply With Quote
Old 07-10-2014, 09:24 AM   #18
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

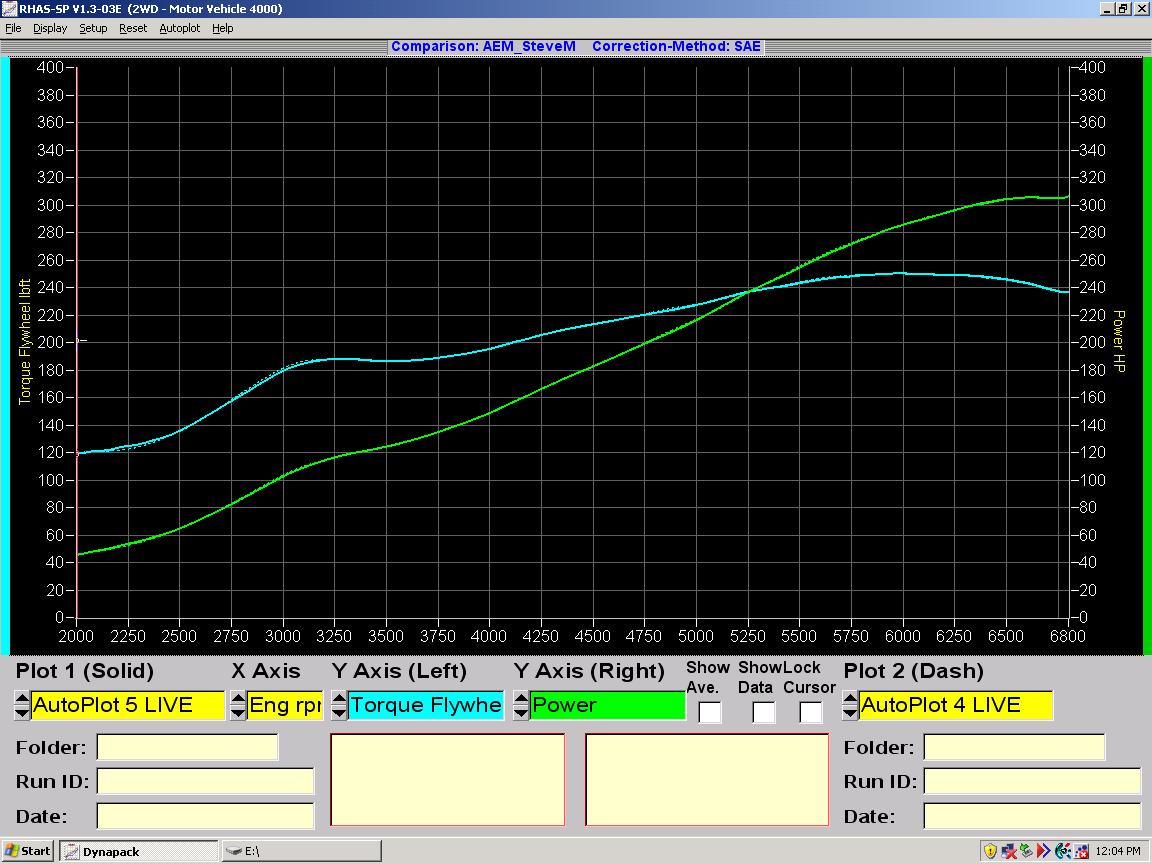

5 mins later - found the original dyno file
Attached Thumbnails
Turbo Miata Race Car - 302 rwHP-302-dyno-original-et.jpg
SSMtobeturbo'd is offline   Reply With Quote
Old 07-10-2014, 09:25 AM   #19
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Your dyno says 'flywheel tq', could that be 302bhp rather than whp?
thenuge26 is offline   Reply With Quote
Old 07-10-2014, 09:48 AM   #20
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Thats the weirdest dyno plot I've ever seen.
Looks like it spools by 3k and yet TQ peak is at 6k rpm??
soviet is offline   Reply With Quote
