Old 06-21-2015, 07:39 PM   #21
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Badness, I sent you a pm
deezums is offline   Reply With Quote
Old 06-22-2015, 02:30 AM   #22
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

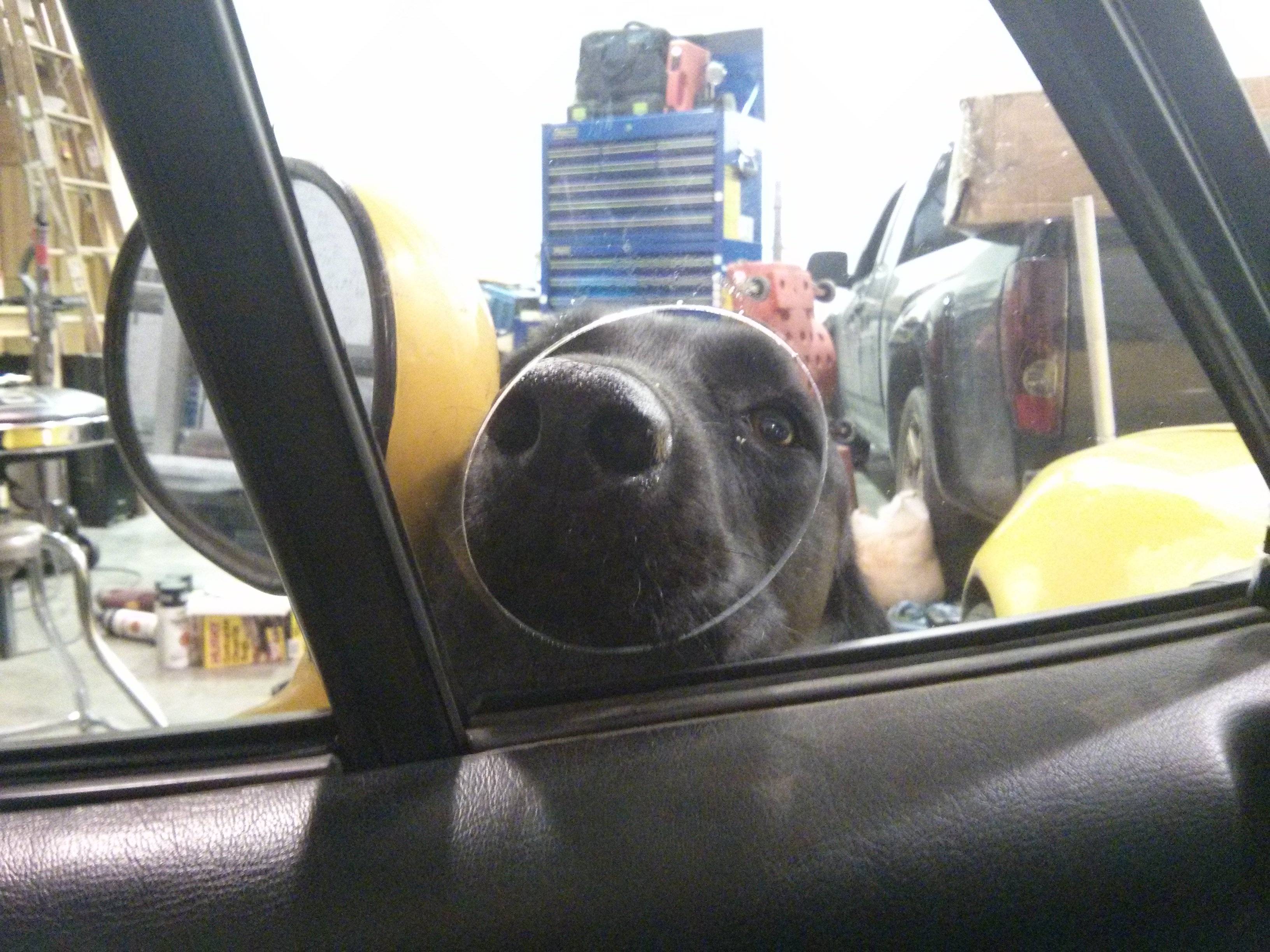

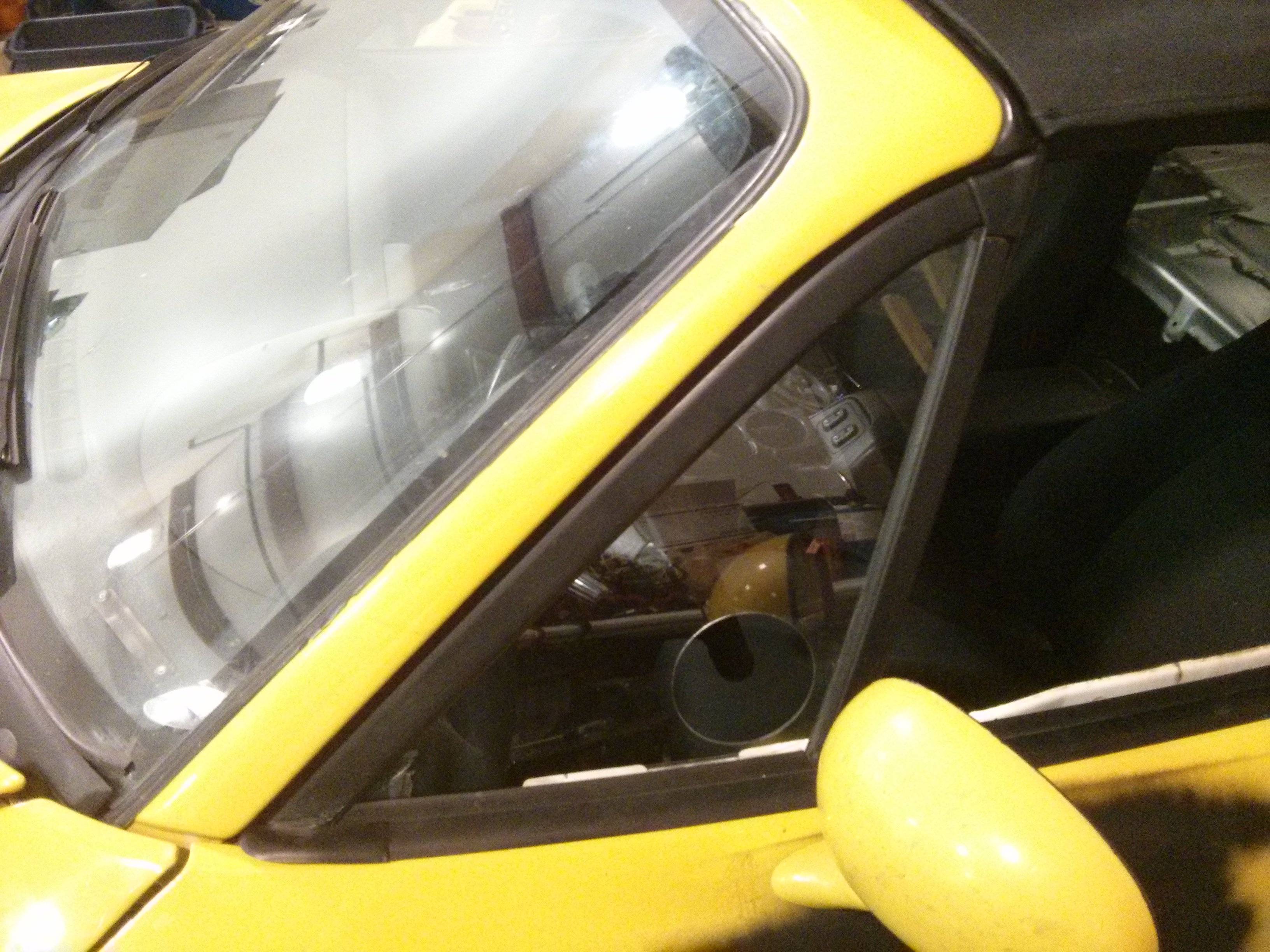

So I test fit a window even though my snapvents haven't shown up yet. They were supposedly delivered friday, I'm hoping my neighbors got them by mistake or something and I'll be able to get them tomorrow morning.

My profile seems about spot on, the vent placement seems pretty tight too. Close enough to the mirror to maybe get a extra buffer without loosing too much visibility.





I'm able to pull and install vent windows by pulling the front window track (two top screws, upper and lower 10mm) rolling the weatherstripping off the door, and pulling the outer lower window trim because it fights you when you try and slide the fat rubber nubs on the way in. If the window is down it won't fight you too much.
Attached Thumbnails
Vent window air inlet DIY-iygt7bj.jpg   Vent window air inlet DIY-qvni7gk.jpg
deezums is offline   Reply With Quote
Old 06-22-2015, 09:08 PM   #23
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

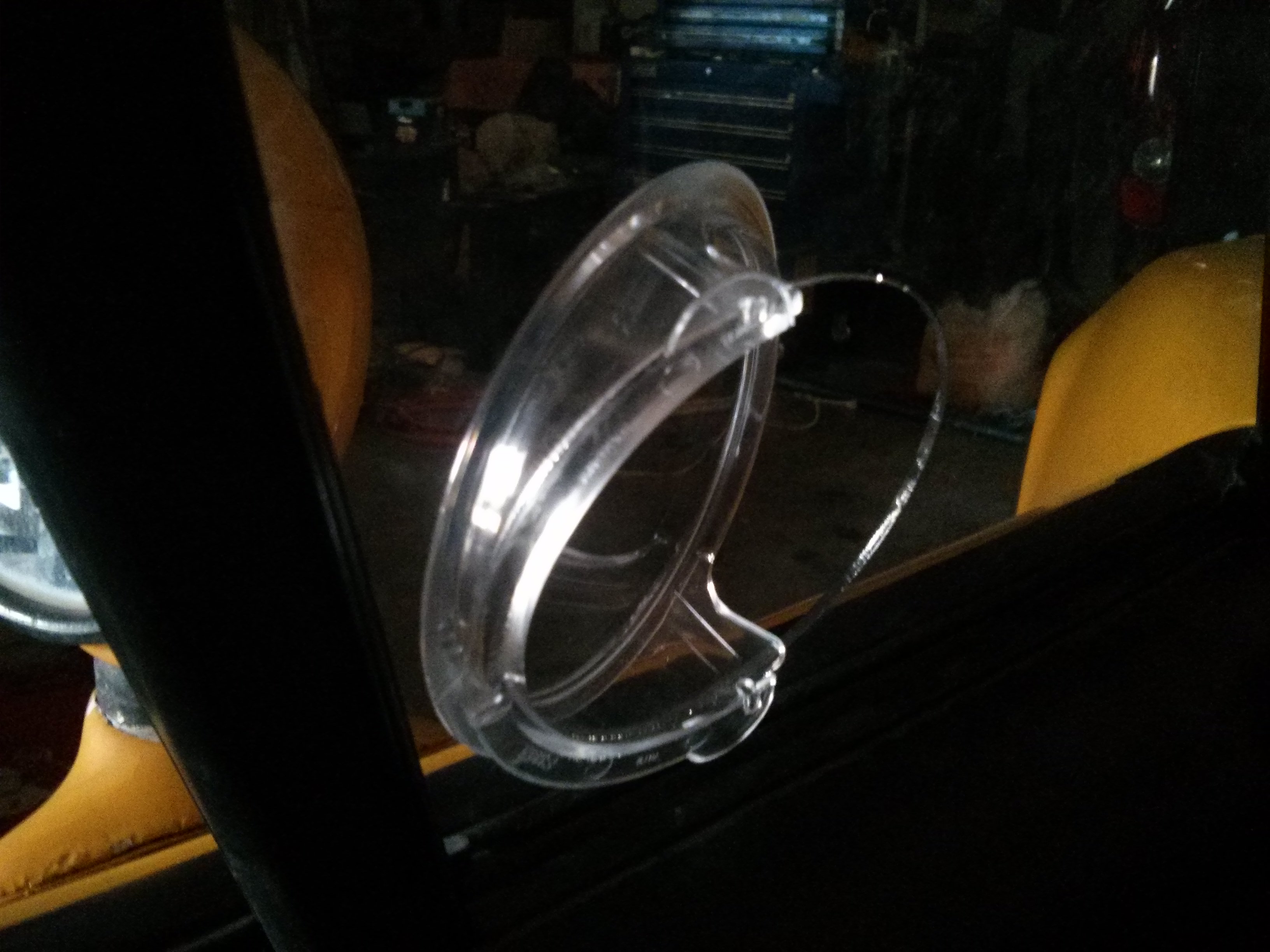

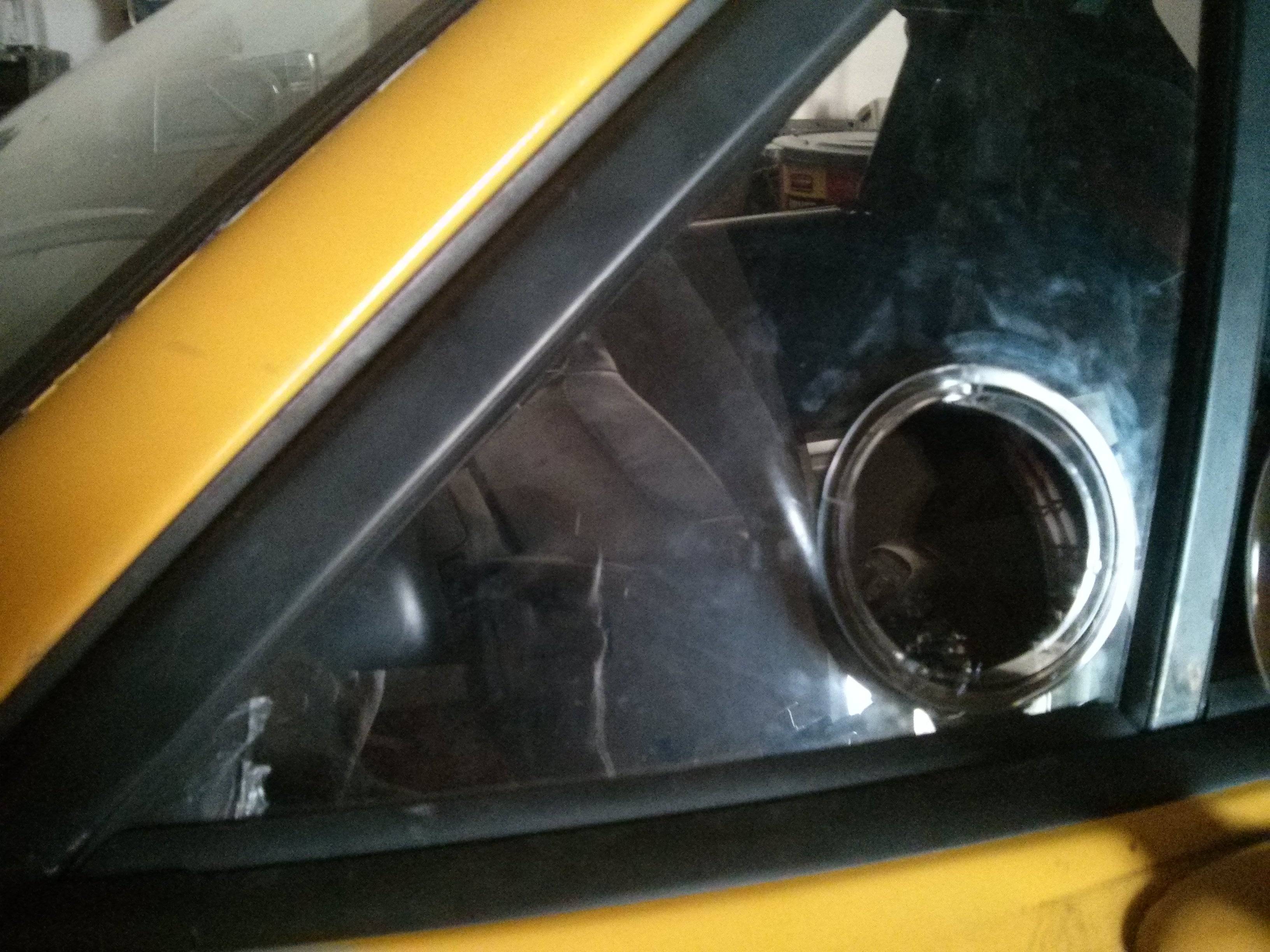

So these little guys toss a decent amount of air with no snapvent. I finally managed to find mine this afternoon, they were delivered a good 4 blocks east lol. I'm really liking this placement instead of a higher or forward position. It's really not blocking much, the mirror is kinda in the way as is.





I'm not sure how, but I nailed the fitmet size while blowing clean past it. I was using a crummy pair of calipers, but my laser overcut the hole a good 30 thousandths or so. These are a bit hard to turn, they aren't rattling loose any time soon. Any tighter and they would likely crack the acrylic window over time, I'll be cutting my next pair slightly larger.

I'm gonna cut my "final" pair of windows this afternoon, just because I have more acrylic material. Humming is working on getting a quote for lexan windows, which would obviously be much preferred!

If anyone wants a cheap temporary acrylic window hit me up, I've got enough for at least 4 or 5 more sets.
Attached Thumbnails
Vent window air inlet DIY-naobn06.jpg   Vent window air inlet DIY-ehaaozw.jpg
deezums is offline   Reply With Quote
Old 06-24-2015, 01:45 AM   #24
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

It's looking like the waterjet cut lexan windows would end up costing about the same as the project-g ones, for now I'm only going to mess with acrylic. Later I'll post my file on thingiverse or something, if you were determined you could print my pattern in much the same way as I made the file, then just trace and cut it yourself from home depot lexan. If you wanted naca ducts you could easily modify the template to your liking, too.



I've got a couple more pairs of acrylic windows for $25 shipped/pair if anyone else would like some. As you can see there's some scrap material left, anyone have any cool ideas? Keychains/timing tools, whatever...
Attached Thumbnails
Vent window air inlet DIY-kqqjknx.jpg
deezums is offline   Reply With Quote
Old 06-29-2015, 10:43 AM   #25
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Which window vents did you end up going with? The window fit perfect by the way. I also had a friend inquire about some. I believe he sent you a PM if you are still making them.
90civichhb is offline   Reply With Quote
Old 06-29-2015, 10:52 AM   #26
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

There's an eBay link farther up a bit for the snap vents. Also your friend pmed me and I totally forgot to tell him to pm deezums. I'll reply today.
aidandj is offline   Reply With Quote
Old 06-29-2015, 10:57 AM   #27
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

I'm an idiot and didn't realize there were two people in this thread making these. I think I just sent you some seller feedback by mistake. I found the link now. Didn't notice it was hot linked my first read through.
90civichhb is offline   Reply With Quote
Old 06-29-2015, 11:00 AM   #28
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yeah, I don't actually have access to a laser cutter anymore lol.
aidandj is offline   Reply With Quote
Old 06-30-2015, 08:56 PM   #29
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Can you elaborate on how you pull it deezums. I have my inner door panel off right now and there are about 4 million screws.</p>
aidandj is offline   Reply With Quote
Old 06-30-2015, 09:40 PM   #30
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

There's two screws that hold the front track, at the top of the door and at the bottom, then there's two screws at the top of the vent window under the weatherstripping. I pull all those then just slide the whole front track up and out, leave the window down in the door.
deezums is offline   Reply With Quote
Old 07-01-2015, 09:06 AM   #31
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,804
Total Cats: 494
Default

So who am I buying these from now?
Monk is offline   Reply With Quote
Old 07-01-2015, 02:47 PM   #32
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You could buy them from me if you want, but I don't have the actual snapvents so you need to order those on ebay.
deezums is offline   Reply With Quote
Old 07-01-2015, 02:48 PM   #33
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Be warned these are acrylic. So flimsy as **** and shatter when they break. But cheap.
aidandj is offline   Reply With Quote
Old 07-01-2015, 02:54 PM   #34
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Yeah, there is that still. The windows will bounce a bit as you snap the vent in and out, I don't think it's enough to ever pull the window from the rubber gasket though.

I test broke a few pieces and I wouldn't want any broken acrylic shards in my face, they can be rather sharp just not a lot of mass.
deezums is offline   Reply With Quote
Old 07-01-2015, 02:56 PM   #35
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by pdexta View Post
I've got Project G Vented Windows and LOVE them. They're a life saver with no AC. Given the time and effort to pull this off I feel like $80 is going to be tough to beat by building them yourself.

Or $55.

MiataRoadster vented wing windows - MiataRoadster - High-performance customer service...and parts for Roadsters

This is why i was confused about someone trying to reproduce things. Bill's prices are silly on some things. This is not one of them.
concealer404 is offline   Reply With Quote
Old 07-01-2015, 03:05 PM   #36
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Still $5 cheaper, bills site there dont quote shipping on windows so it could be even more than 5 bucks.
deezums is offline   Reply With Quote
Old 07-01-2015, 03:07 PM   #37
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

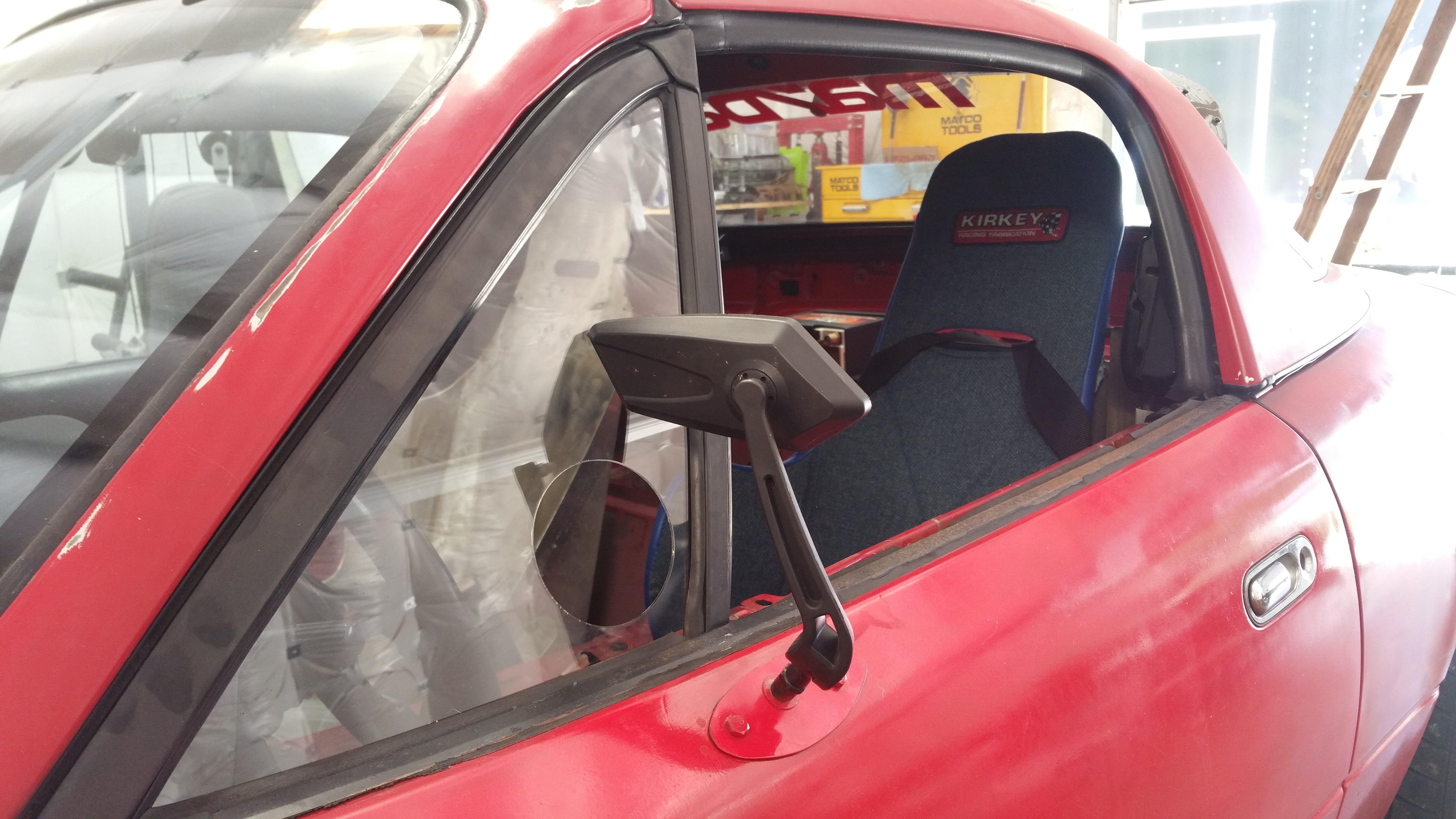

I think they turned out great! Vents should be here tomorrow.

Attached Thumbnails
Vent window air inlet DIY-fc4nd9j.jpg
90civichhb is offline   Reply With Quote
Old 07-01-2015, 03:11 PM   #38
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Lol. Had no idea bill had them for 55 for both. Thought it was 55 each.
aidandj is offline   Reply With Quote
Old 07-01-2015, 03:12 PM   #39
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

OK good, his are acrylic too. If they were lexan I would be jealous.
aidandj is offline   Reply With Quote
Old 07-01-2015, 03:21 PM   #40
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by deezums View Post
Still $5 cheaper, bills site there dont quote shipping on windows so it could be even more than 5 bucks.

For sure, i'm not saying what you guys are doing ISN'T cheaper and if you like tinkering, it's fun.

My shipping for AWR motor mounts, vent windows, and delrin diff mounts was $35. $20 of that was drop ship from AWR (had i known this, i would have ordered them somewhere else). So... $15 for windows and diff mounts.
concealer404 is offline   Reply With Quote
