Default whare do you mount you catch can?

I mounted it on the bracket for the accessory belt tensioner and broke two aluminum brackets due to vibration. time to re think how I'm mounting it.
psreynol is offline   Reply With Quote
Old 07-24-2012, 05:07 PM   #2
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

My horrible solution: It's ziptied to the radiator bracket.
MartinezA92 is offline   Reply With Quote
Old 07-24-2012, 05:32 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Fuse box bracket.
hustler is offline   Reply With Quote
Old 07-24-2012, 05:36 PM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

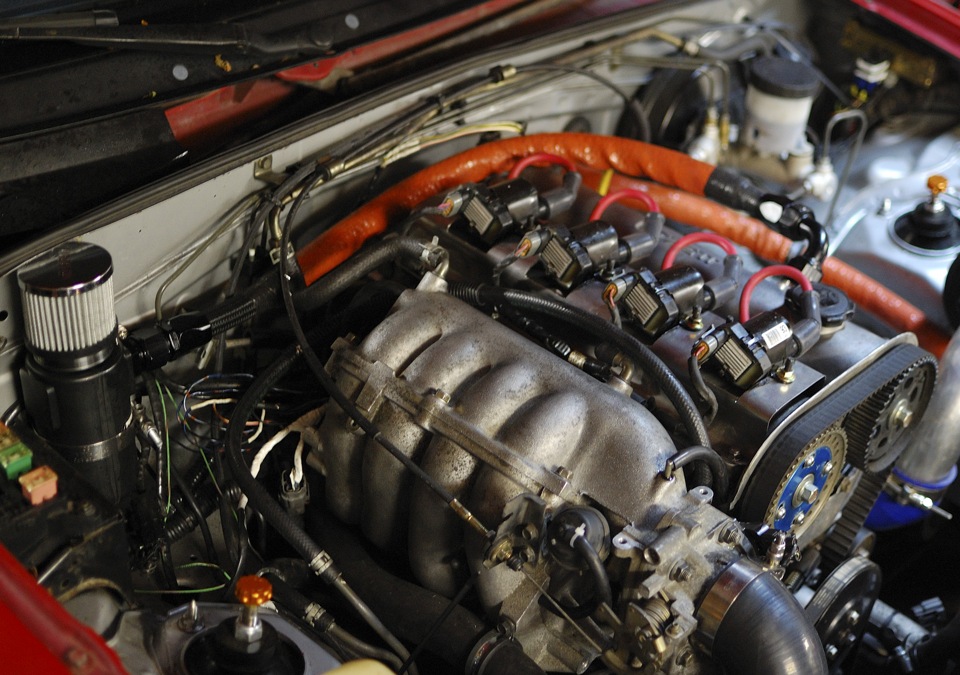

Attached Thumbnails
whare do you mount you catch can?-48cf0ddbb67a06b3-large.jpg
soviet is offline   Reply With Quote
Old 07-24-2012, 05:47 PM   #5
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Is the general consensus to mount it high enough that the lines off the cam cover aren't running a downward slope?

I mounted my overflow to the fuse box bracket so I was leaning towards the side of the frame rail, however, I'm concerned that running my lines down hill will guarantee gravity is going to fill the breather tank in no time.

-Zach
thasac is offline   Reply With Quote
Old 07-24-2012, 05:48 PM   #6
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 290
Total Cats: 1
Default

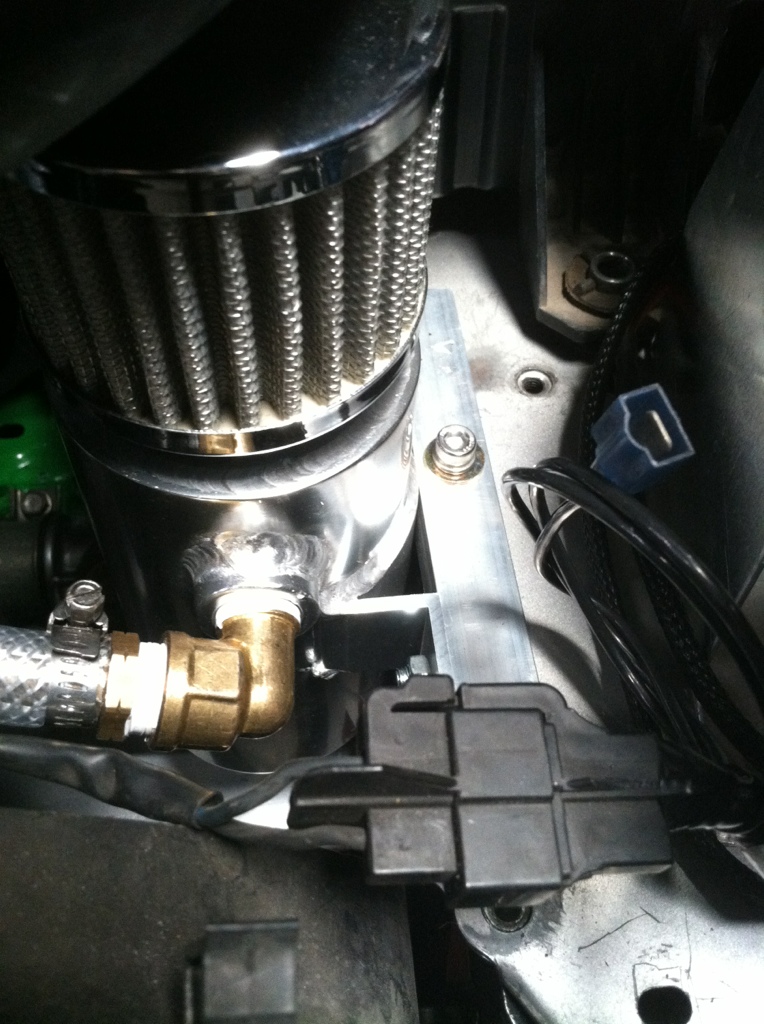

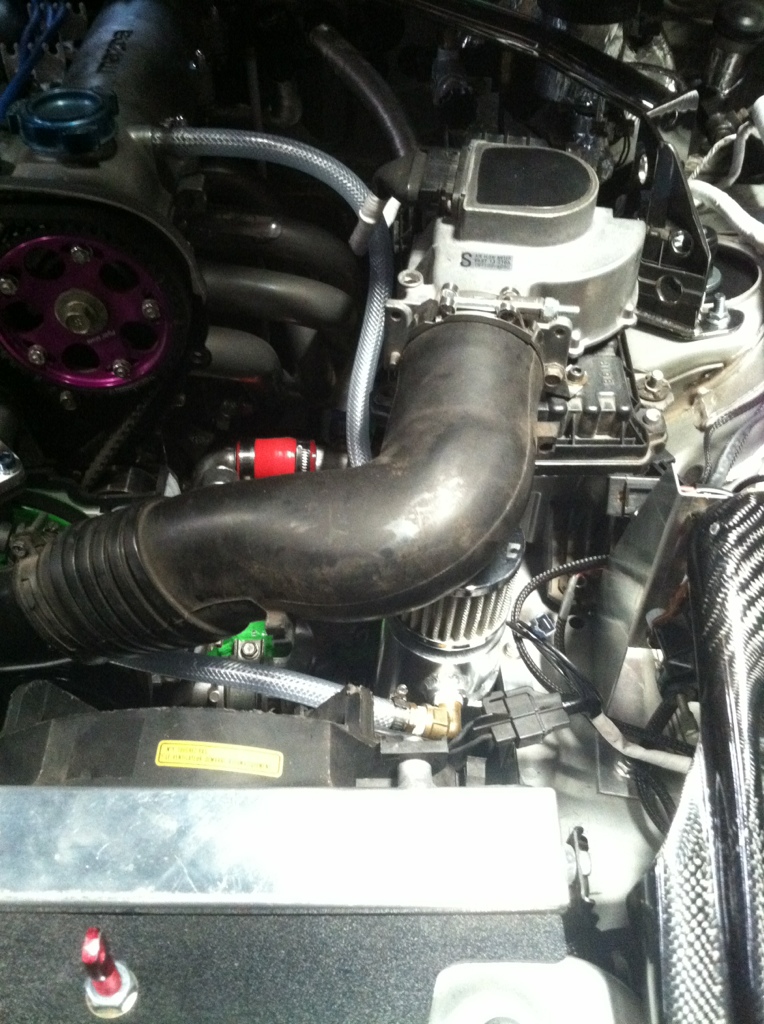

Drilled and tapped the flange edge, bolt and nut work too.
Attached Thumbnails
whare do you mount you catch can?-129f579b.jpg   whare do you mount you catch can?-edc33e48.jpg
brainzata is offline   Reply With Quote
Old 07-24-2012, 05:49 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 07-24-2012, 08:03 PM   #8
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

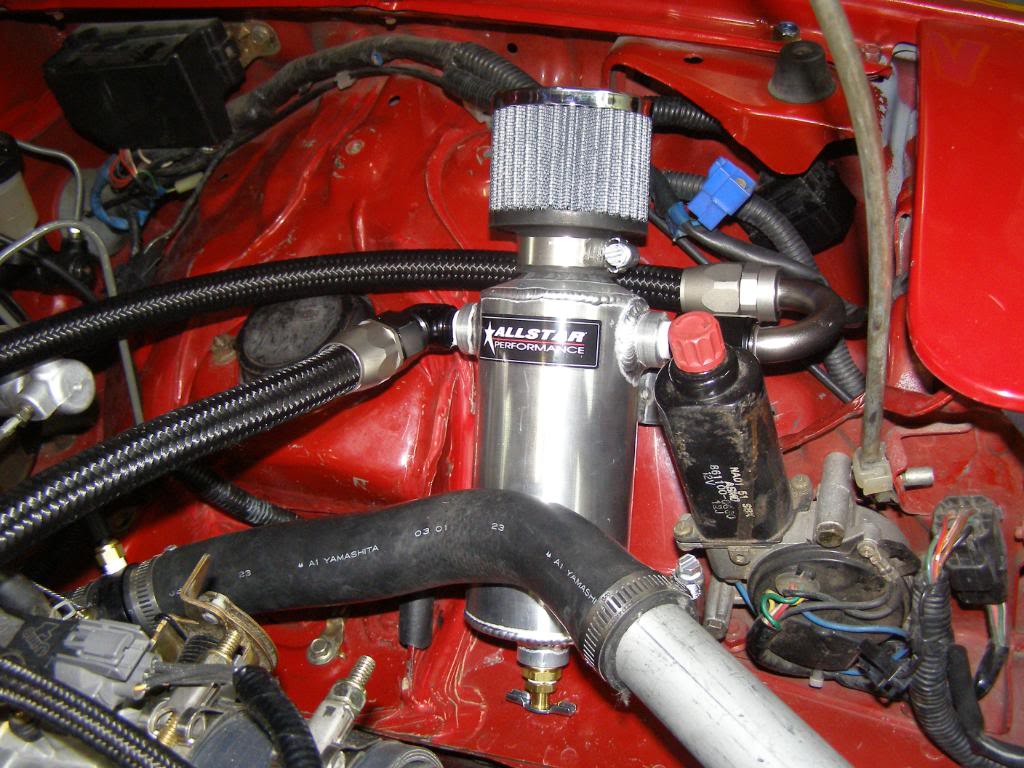

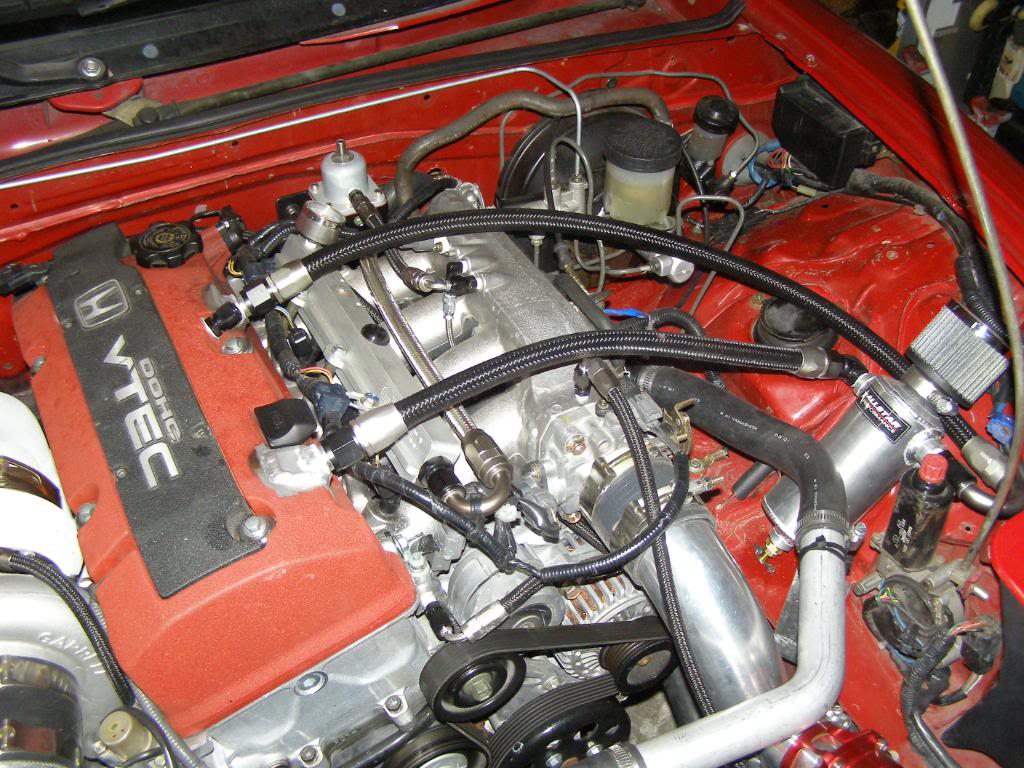

Attached Thumbnails
whare do you mount you catch can?-p1010015-5.jpg   whare do you mount you catch can?-201.jpg
hingstonwm is offline   Reply With Quote
Old 07-26-2012, 05:10 AM   #9
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

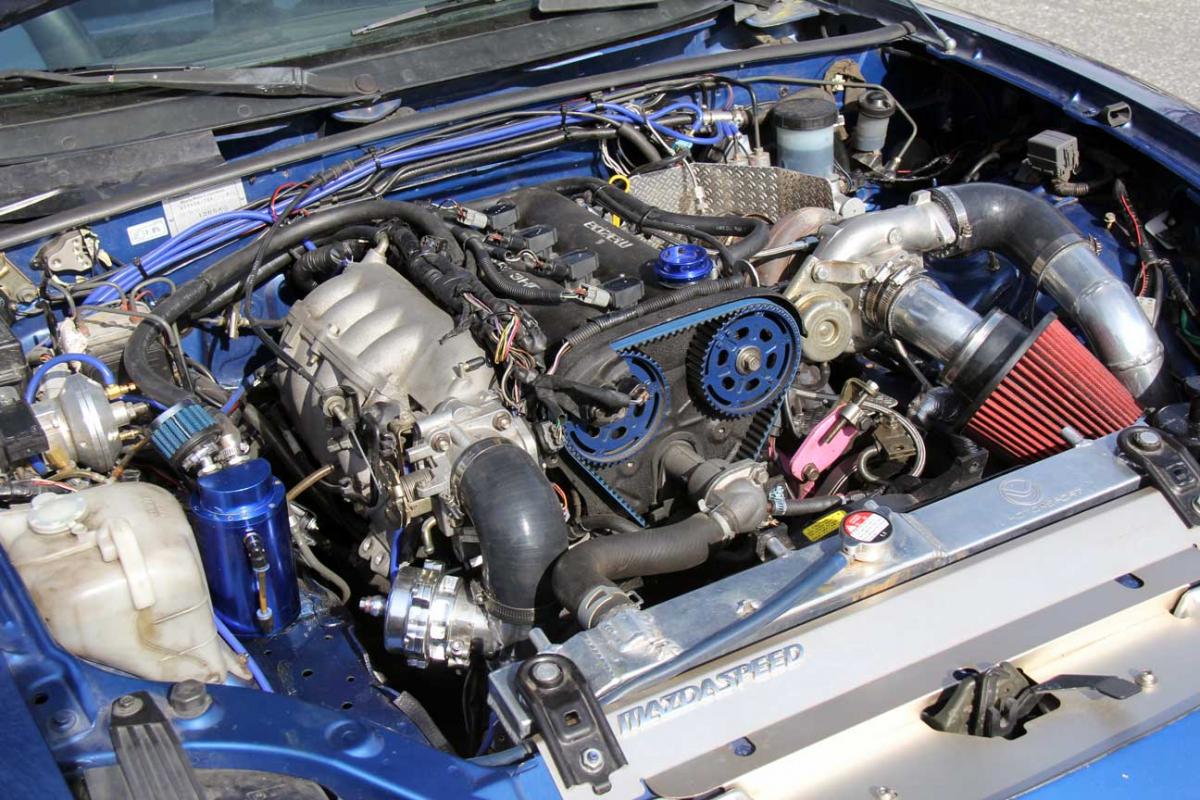

Mine is where the charcoal canister used to be. I’m using bioethanol (E85) and because of that I’m getting about 0.5litres (.52 quarts) of water in there every week. I have to make bigger catch can…
Attached Thumbnails
whare do you mount you catch can?-mt_img_4772.jpg
muoto is offline   Reply With Quote
Old 07-26-2012, 05:24 AM   #10
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Why does BioEthanol mean you collect water? Just curious.
richyvrlimited is offline   Reply With Quote
Old 07-26-2012, 05:45 AM   #11
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by richyvrlimited View Post
Why does BioEthanol mean you collect water? Just curious.
Well Im not sure if the Bio thing is the cause. All the local E85 cars here in Finland suffers the same "too much water in the catch can" -problem.

Google tells that this is common thing with E85:

one main byproduct of combustion is water. Hydrocarbons/alcohol burning in oxygen make carbon dioxide and water, or as the chemists would say:
HC + O2 -> CO2 + H2O
If you work through the equations, you actually make about a gallon of water per gallon of fuel burned. That always comes out as steam / vapor, though on a cold day or at start-up, you may see it dribbling from the tailpipe.


source: Catch cans or Breather cans? - E85Performance.net - Discussion Forum for All E85 Car Owners
muoto is offline   Reply With Quote
Old 07-26-2012, 05:30 PM   #12
Senior Member
Thread Starter

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

seems like you have space, perhaps you could use a $10 ebay catch can without baffles to connect to your existing catch can with a small pipe and petcock drain valve
psreynol is offline   Reply With Quote
Old 07-27-2012, 07:00 PM   #13
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by muoto View Post
Well Im not sure if the Bio thing is the cause. All the local E85 cars here in Finland suffers the same "too much water in the catch can" -problem.

Google tells that this is common thing with E85:

one main byproduct of combustion is water. Hydrocarbons/alcohol burning in oxygen make carbon dioxide and water, or as the chemists would say:
HC + O2 -> CO2 + H2O
If you work through the equations, you actually make about a gallon of water per gallon of fuel burned. That always comes out as steam / vapor, though on a cold day or at start-up, you may see it dribbling from the tailpipe.


source: Catch cans or Breather cans? - E85Performance.net - Discussion Forum for All E85 Car Owners
Normal fuel is octane, that combusts and produces water as well. Im thinking it might have to do with the extra oxygen atom in ethanol creating more water during combustion when compared to normal fuel. Or than ethanol can absorb water better than petrol.
Vilko is offline   Reply With Quote
Old 10-18-2012, 07:03 PM   #14
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by soviet View Post
Bumping this thread because I found out that with hardtop and windows up, I can smell my catch can inside the car. Going to relocate it as far away as possible from the blower motor air intake.
soviet is offline   Reply With Quote
