Default Broken Supercharger?

I recently completed my supercharger build and have noticed that at idle/cold start it will make a fairly loud knocking sound. The pulley is dented on the top and it looks like someone dropped it in the past. The supercharger has amount 1 cm of play either way but turns smooth after that. After searching online I found it may be the coupler but I'm not sure. Any advice on how I should deal with the problem?

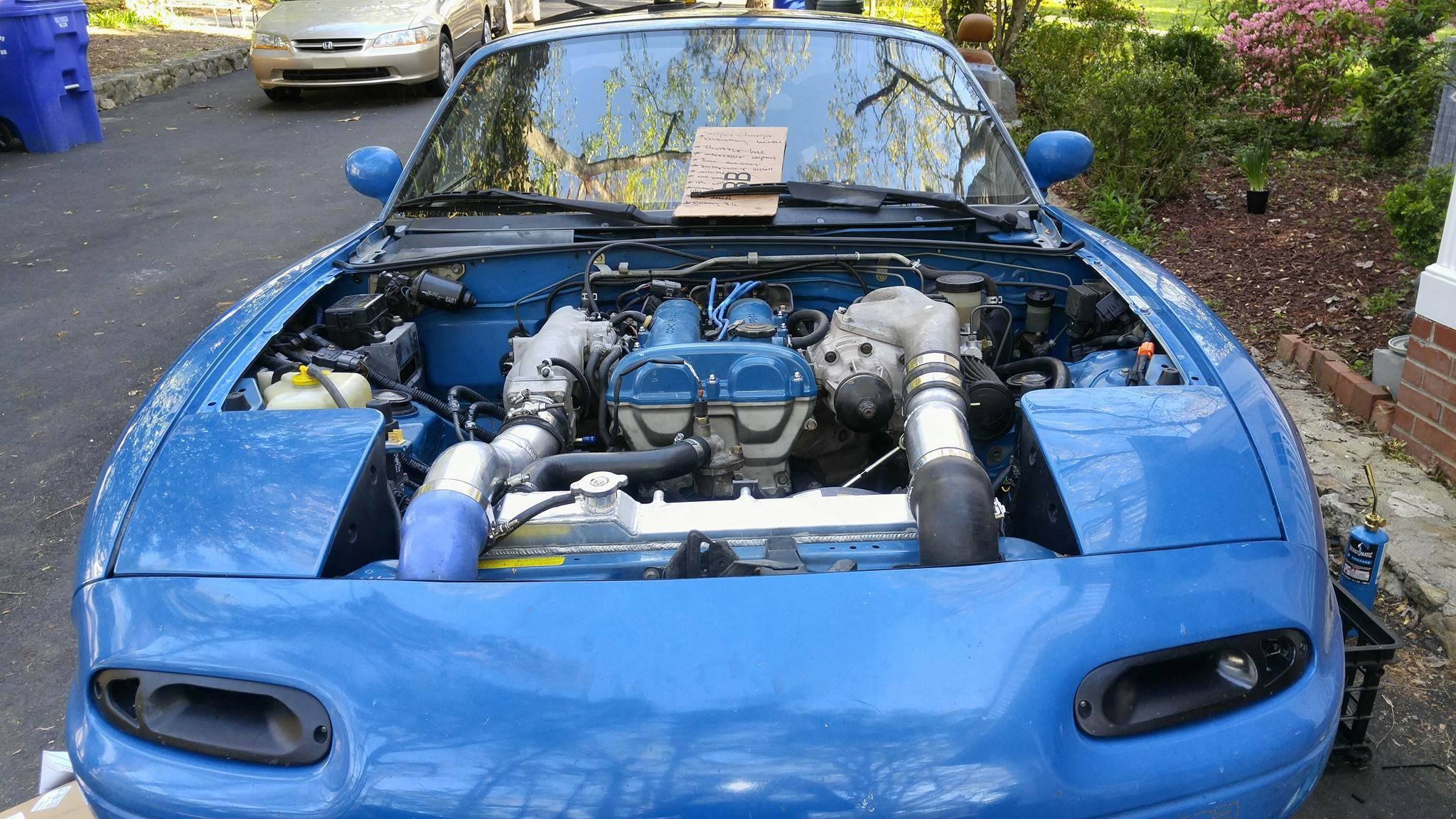

attached is a non helpful photo.
Attached Thumbnails
Broken Supercharger?-img_0974.jpg
Nima Golchin is offline   Reply With Quote
Old 04-05-2016, 02:52 PM   #2
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 443
Total Cats: 33
Default

replace the coupler, you will need to replace the oil as well.

If it was me, I would replace the snout bearings ...
Ted75zcar is offline   Reply With Quote
Old 04-05-2016, 05:21 PM   #3
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,539
Total Cats: 48
Default

HOLY MOLY 1 cm of play, and you installed and ran it? lol
thumpetto007 is offline   Reply With Quote
Old 04-05-2016, 07:04 PM   #4
Newb
Thread Starter

Join Date: Feb 2016
Posts: 10
Total Cats: 0
Default

I think 1 cm was an overstatement, probably a few mm of play, enough to wiggle it back a forth and hear a little click.
Nima Golchin is offline   Reply With Quote
Old 07-07-2016, 10:00 AM   #5
Newb

Join Date: Apr 2011
Posts: 10
Total Cats: 0
Default

So what all did you replace?
Tukata is offline   Reply With Quote
Old 08-07-2016, 11:25 PM   #6
PSS
Newb

Join Date: Jul 2015
Location: South Central TN
Posts: 15
Total Cats: 0
Default

I would have that looked at. There should be no play. When was the last time the bearings or oil was serviced? I had a lockup on my MP62 because I did not check those things.
PSS is offline   Reply With Quote
Old 01-15-2017, 04:41 PM   #7
Newb

Join Date: Jan 2017
Location: NC
Posts: 1
Total Cats: 0
Default

Rebuild the snout. Fairly easy and there are kits available to get rid of that cement mixer noise.
///Miata is offline   Reply With Quote
Old 02-08-2017, 06:24 PM   #8
Newb

Join Date: Nov 2016
Posts: 9
Total Cats: 0
Default

As little play as there should be, I had a noise similar to how you described it with mine, it turned out to be the tensioner pulley, one had failed and the aluminum pulley was slipping on the steel bearing outer race.
Ools is offline   Reply With Quote
