Default M62 and M45 clearance check. Owners please help

To ask a favor of those with access to installed units.

I'm going to start a build soon and need the height measurements of the hot side with the M62 and M45 kits on a NB engine.

Basically looking for:
how high above the valve cover vertically
Length that is above the valve cover.


To answer why- Exocet front clip supposedly interfears and I want to see if it's cost effective to engineer around it.
Tukata is offline   Reply With Quote
Old 04-11-2016, 09:02 PM   #2
Newb
Thread Starter

Join Date: Apr 2011
Posts: 10
Total Cats: 0
Default

Anyone?
Tukata is offline   Reply With Quote
Old 04-11-2016, 11:04 PM   #3
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Quote:
Originally Posted by Tukata View Post
Anyone?
Inwould measure, but the JRSC is off of the car. If you can find another miata, the outlet manifold height is usually adjusted to provide clerance from the hood. I adjusted mine to give ~0.5"
Ted75zcar is offline   Reply With Quote
Old 04-11-2016, 11:42 PM   #4
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

I'll try to snap some tomorrow.
cyotani is offline   Reply With Quote
Old 04-12-2016, 12:13 AM   #5
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I don't have a real good way to measure. If you think of something let me know. Here are some pics, hope it helps.

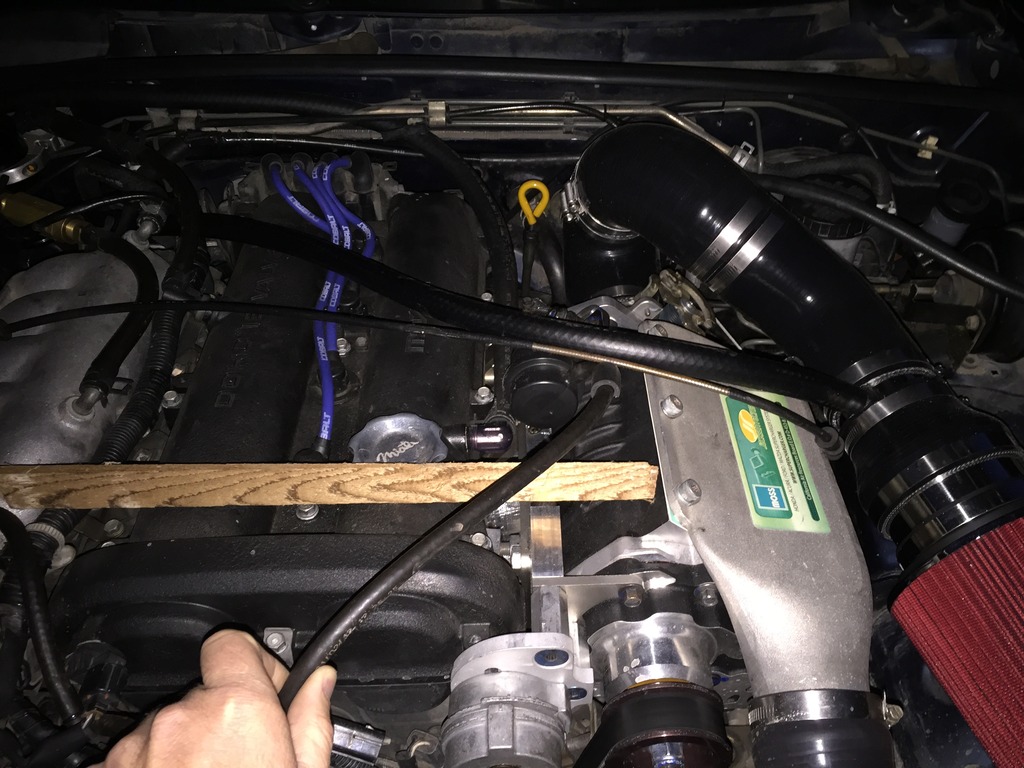

This is where I have the wood set for the next photo.

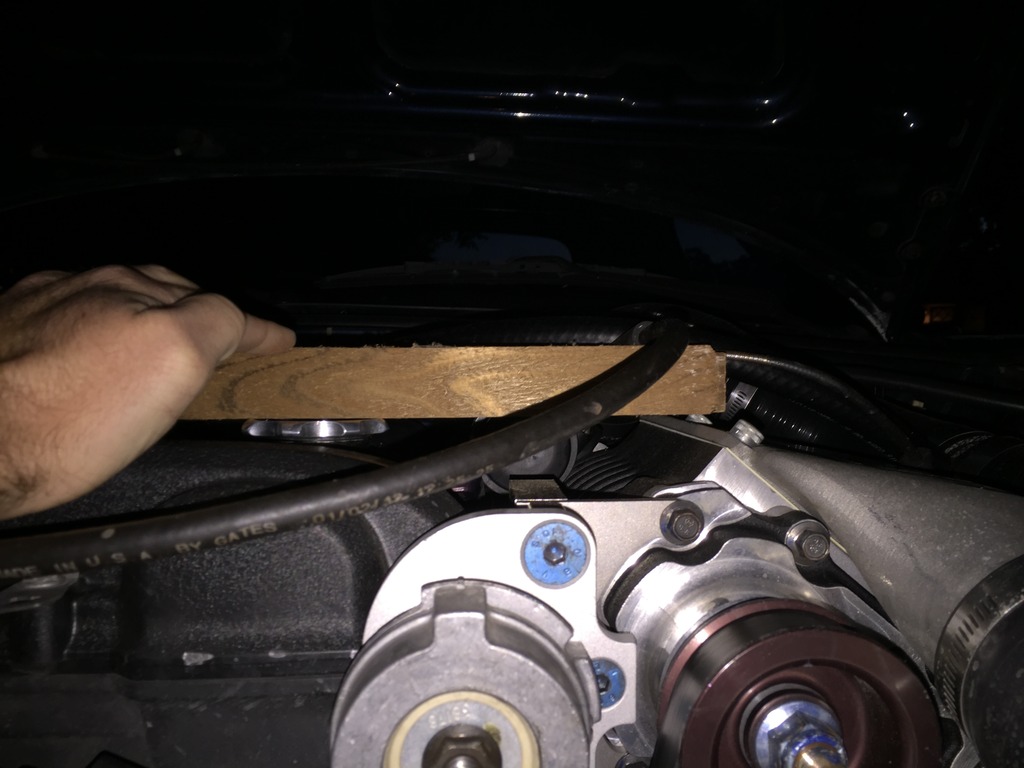

I tied to take this level with the bottom of the wood. So ballpark, the cap screws stick up probably 3/4" above the vc.

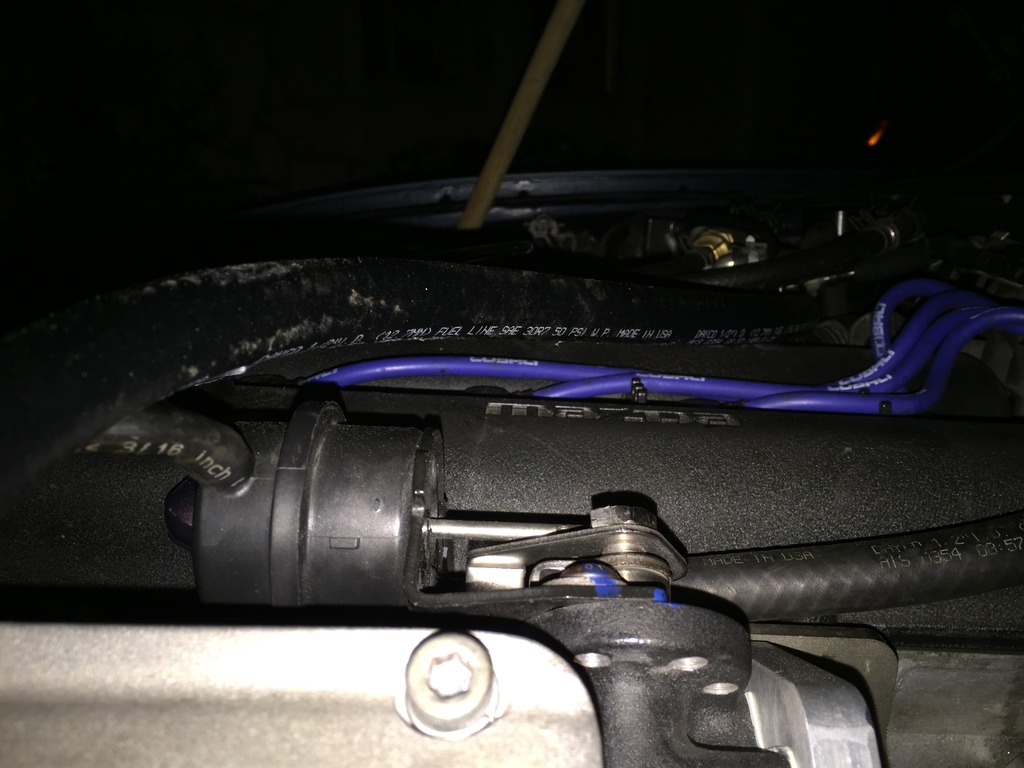

Here is one with the straight edge on the oil filler cap (aftermarket but shorter than stock). The blower is lower, but the bypass is well above.



As far as how far back; my blower is a little forward because 6 rib out front. A regular 4 rib set up would go back about in line with the front of the pcv. The high part anyway (outlet manifold flange where it bolts to blower). Mine is at the back of the "a" in Mazda on the vc.
Attached Thumbnails
M62 and M45 clearance check.  Owners please help-d7cfe958-ecaf-42bd-b37f-42286d326af0.jpg   M62 and M45 clearance check.  Owners please help-93cec057-c78e-40d1-8fd1-1ef01d2b8acc.jpg   M62 and M45 clearance check.  Owners please help-d0b03377-6a78-43f9-bcf4-9912ed9636f3.jpg   M62 and M45 clearance check.  Owners please help-868b1a9e-c146-49ed-b661-5f6e92b85bad_1.jpg
williams805 is offline   Reply With Quote
Old 04-16-2016, 10:30 AM   #6
Newb
Thread Starter

Join Date: Apr 2011
Posts: 10
Total Cats: 0
Default

Much appreciated. As I suspected the blower and bracket seem to be fine, but the inlet tube is what 1-1/2 to 2 inches above?
Tukata is offline   Reply With Quote
Old 04-16-2016, 12:20 PM   #7
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I'd say about 3/4" so make it 1" to be safe. The bypass however is in the 1.5"-2" range. I suppose you could get rid of it and wire it closed. It surely won't fit on the underside as the header is occuping that area.

If you're really hurting for clearance, you cold use button head cap screws for the out let manifold and grind down the edge of the manifold at a 45. This would probably gain you 1/8"-1/4".
williams805 is offline   Reply With Quote
Old 07-07-2016, 10:58 AM   #8
Newb
Thread Starter

Join Date: Apr 2011
Posts: 10
Total Cats: 0
Default

Thanks again for the help.
Im waiting on the nose to be finished and then I'll try a few measurements
