Default Motor mounts

Hey guys,
Have a jackson racing kit, and have had a lot of movement in my drive train. I replaced all of my bushings, and diff bushing with poli bushing. Car turns great, but still the car will yank to the right when I accelerate.

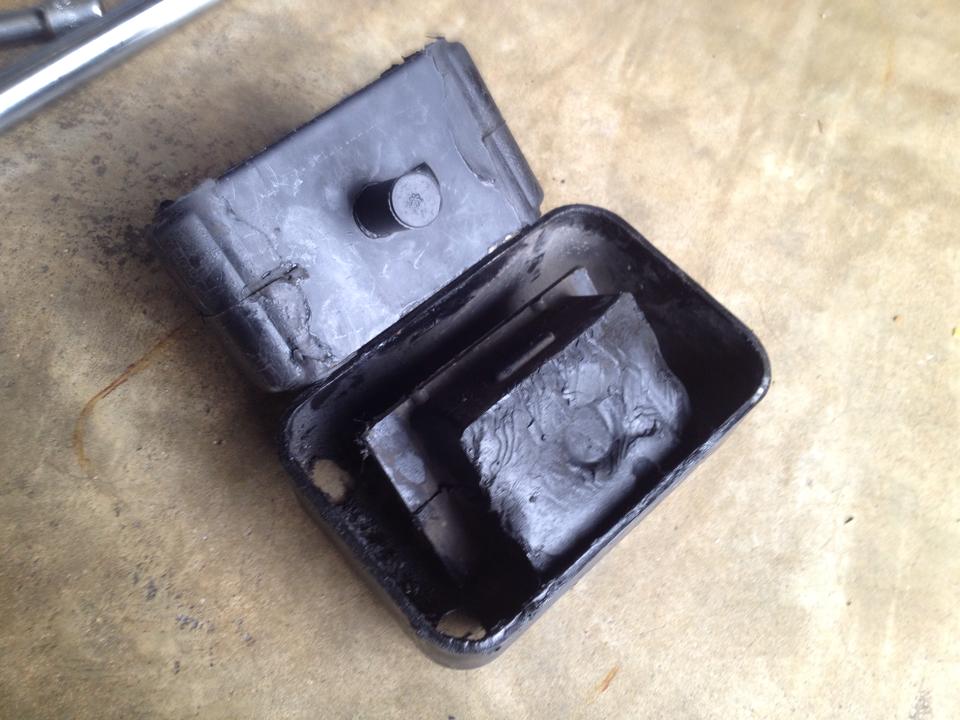

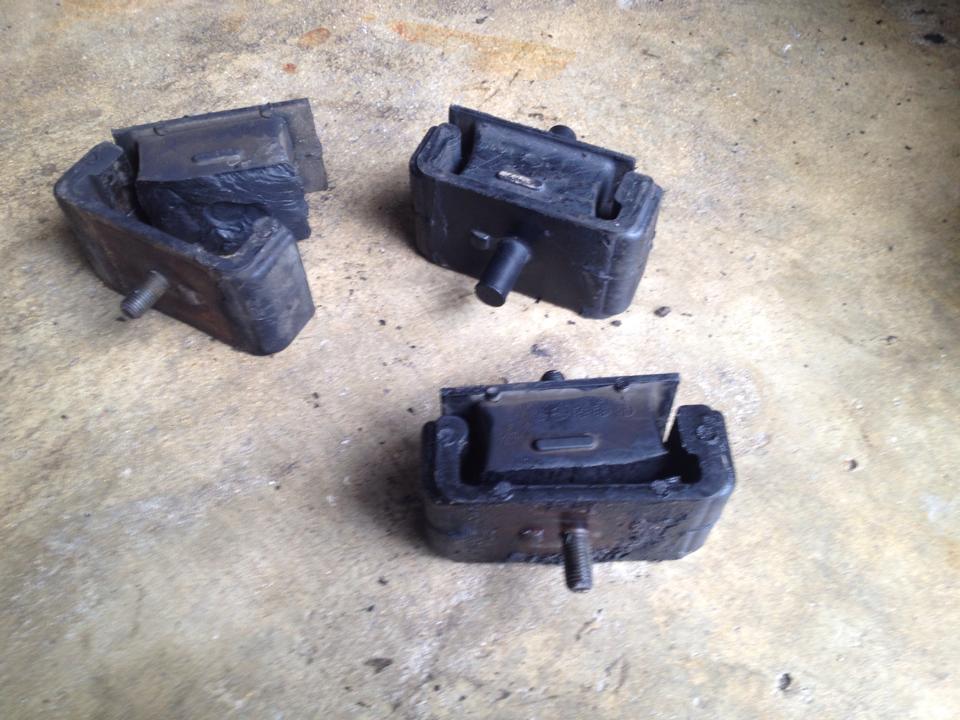

Anyways, today I got around to replacing my motor mounts and found the problem. Have any of you actually seen any mounts completely split? My mounts had nothing holding them together. Pictures below.

Kind of scary, when I think about how hard I have been driving the car. Surprisingly enough, the car didnt ideal rough or have any obvious signs the mounts were bad.



Attached Thumbnails
Motor mounts-kyatyfv.jpg   Motor mounts-jeqlhju.jpg
verch101 is offline   Reply With Quote
Old 03-23-2014, 02:11 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yup, completely normal and common problem when you ignore a maintenance item like motor mounts.
curly is offline   Reply With Quote
Old 03-23-2014, 02:18 AM   #3
Newb
Thread Starter
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Yup, completely normal and common problem when you ignore a maintenance item like motor mounts.
Well, still trying to go through everything since I purchased the car. Seems to be a lot of items neglected.
verch101 is offline   Reply With Quote
Old 03-23-2014, 08:15 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by curly View Post
Yup, completely normal and common problem when you ignore a maintenance item like motor mounts.
To be fair, it's only really a maintenance item on the NA/NB MX5. If you're not in the know that they're prone to failing then you're not going to know to check/change them.
richyvrlimited is offline   Reply With Quote
Old 03-23-2014, 01:20 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Motor mounts fail on pretty much any and all cars.

Hydraulic ones leak or collapse, rubber ones tear and disintegrate. There may be one or two that are beautifully engineered that last a long time, but for the most part no car is spared from the laws of physics, heat, vibration, and time.

My posts are very dry and bitter in this thread. The canadian in me would like to apologize for that.
curly is offline   Reply With Quote
Old 03-23-2014, 01:23 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Mazda was also sneaky and hid the motor mount behind a metal cover.




Attached Thumbnails
Motor mounts-engine_transmission_mounts_worn_leaking.jpg   Motor mounts-294670d1359142281-front-engine-mount-inspection-onbike1.jpg   Motor mounts-20121014_132731.jpg   Motor mounts-ccrp-1201-09%252b1987-ford-mustang-legend-ron-burgundy%252bmotor-mount.jpg
curly is offline   Reply With Quote
Old 03-25-2014, 03:17 PM   #7
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 67
Total Cats: 4
Default

What did you guys replace your mounts with? I went with the Mazdaspeed ones. I found it a pretty mediocre compromise, at least for a daily driver.

They were just hard enough to add a little more NVH on a daily driver. At speed they're fine, but just driving around town, it can get a little fatiguing. It could be exaggerated by the stiffer suspension and bracing through.

Some of the transmission "yank" is reduced, but not enough to make 2-3 shifting more confident/faster. 11psi on a hotside, 6-rib MP62, if that makes any difference. Maybe I need one of those MiataRoadster short shifters, dunno.

Instead of getting a little of the best of both worlds, I feel I got neither. If my shifts still have to be slower, I might as well have gone with the OEM ones again and at least got some "quiet" back. Sorry for bringing up some "wine and cheese" complaints up in here...
RunninOnEmpty is offline   Reply With Quote
Old 03-25-2014, 03:25 PM   #8
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I recently had my Mazdaspeed mounts (out of my MSM with ~50k) on it and they were not broken but cracked already.

Luckily I had Mazdacomp mounts kicking around from my last engine build I could use. Symbolized by the white bar on the side of the mount. My Mazdaspeed mount looked like any other miata mount.
Preluding is offline   Reply With Quote
Old 03-25-2014, 04:42 PM   #9
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

I used Mazdacomp mounts to replace my stockers. I immediately noticed NVH when I started the car versus worn (not torn) stock, but I also have poly diff bushings. My shifts feel great, even with a touchy 3rd synchro. Have you rebuilt your shifter yet? Running FMCFSMTF/Redline MTF?

And on general motor mounts, if they have rubber they need to be replaced eventually. Period. We had a RWD Caprice come in to work one day that "was making a clunking noise." Both left and right motor mount inserts were *gone*, and the engine was clunking the intake manifold on the hood. Big dent.
TheScaryOne is offline   Reply With Quote
Old 03-26-2014, 01:33 AM   #10
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 67
Total Cats: 4
Default

Thanks, I'll try to find a Miata owner who has MazdaComps for a test ride before I take the plunge. From Preluding's experience, seems like that day will come pretty fast anyway.
RunninOnEmpty is offline   Reply With Quote
Old 03-26-2014, 01:20 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If you're put off by the NVH of mazdaspeed or mazda comp mounts, you probably don't belong on this forum.

Try Miata.net.
curly is offline   Reply With Quote
Old 03-26-2014, 01:23 PM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

If you're put off by the horrible performance compromise of Mazda comp mounts, you probably DO belong on this forum.

Man i hate those ******* mounts.
concealer404 is offline   Reply With Quote
Old 03-26-2014, 01:25 PM   #13
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

I'm not put off. I just said I noticed it immediately vs. stock.

Don't think I'd like the poly mounts on my DD, although I might try putting one on one side like is suggested here just to see how it feels.
TheScaryOne is offline   Reply With Quote
Old 03-26-2014, 03:43 PM   #14
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I'm going to leave this right here(this is how it should have come from the factory):
SuperMiata Race Motor Mounts 90-05 Miata
Preluding is offline   Reply With Quote
Old 03-26-2014, 03:57 PM   #15
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Note to self: Call Emilio to see what he has in development before spending money on ANYTHING. I bought my Mazdacomps probably six months before those came out.
TheScaryOne is offline   Reply With Quote
Old 03-26-2014, 03:58 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

Quote:
Originally Posted by TheScaryOne View Post
Note to self: Call Emilio to see what he has in development before spending money on ANYTHING. I bought my Mazdacomps probably six months before those came out.

Those style of mounts have been available for years and years. AWR first, probably.
concealer404 is offline   Reply With Quote
Old 03-26-2014, 04:23 PM   #17
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,510
Total Cats: 142
Default

Quote:
Originally Posted by Preluding View Post
I'm going to leave this right here(this is how it should have come from the factory):
SuperMiata Race Motor Mounts 90-05 Miata

LOL

"NOTES:
We do not recommend these mounts for street use. The increased NVH will be too much for just about any driver."
good2go is offline   Reply With Quote
Old 03-26-2014, 04:38 PM   #18
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

When is 949 going to release the engine mount equivalent of tecan coilovers? I'm all about that smoooooooth ride.
Tekel is offline   Reply With Quote
Old 03-26-2014, 08:58 PM   #19
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

For me it is all about what you expect from your car and how much power you are putting out.

My Miata had comp mounts and full poly and it rode very smooth. Then again, in my head, I didn't need it to be a perfect daily driver comfort level of smooth so I wasn't in the mindset to notice it.

Now in my Jetta, if it had been bad, I would have noticed straight away. I want the Jetta to be luxury levels of smooth because highway bitch.

Gotta pick comfort vs performance, you always compromise if you are looking for both.
Jeffbucc is offline   Reply With Quote
Old 03-26-2014, 10:11 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Putting a poly mount on one side accomplishes NOTHING. I could HARDLY tell the difference between one mount and two. Either be a moron and run two poly mounts or be smart and run two mazda comp mounts.
curly is offline   Reply With Quote
