Default MP45 JRSC kit is about to make me go bald. PLSHALP

Background: Ive got an old JRSC kit with a 62.5 mm pulley, the TDR idler pulley bracket with raised edge pulleys, ac and ps in a 97 otherwise stock engined car. Im running mspnp and have an lc1 for wideband duties.

Issue: Ive never once made above 1 lb of boost. Ive searched for vac leaks, ran the car without the bypass valve, and have an obnoxiously tight belt on the car. Nothing works. My boost gauge and ecu both agree with the engine pressure so I know that that isnt the issue. The car felt almost like stock, just missing a little bit on the top end up until a couple days ago. The car sat for a couple days due to rain and people needing rides to work, and when I got back in it to go to work yesterday it felt like a completely different car in the worst way. At WOT I see between 10 and 7 in hg, and at idle I get around 20 in hg. I went through and tightened all the hose connections, checked the sparkplugs (they werent terrible) and put on a new belt and tightened it more. No luck, its still doing the same thing.

What in the world is going on?

Tl;Dr car has made no boost since installing mp45, sat for two days and now it maxes out at 7 in hg. all the common issues have been troubleshot.

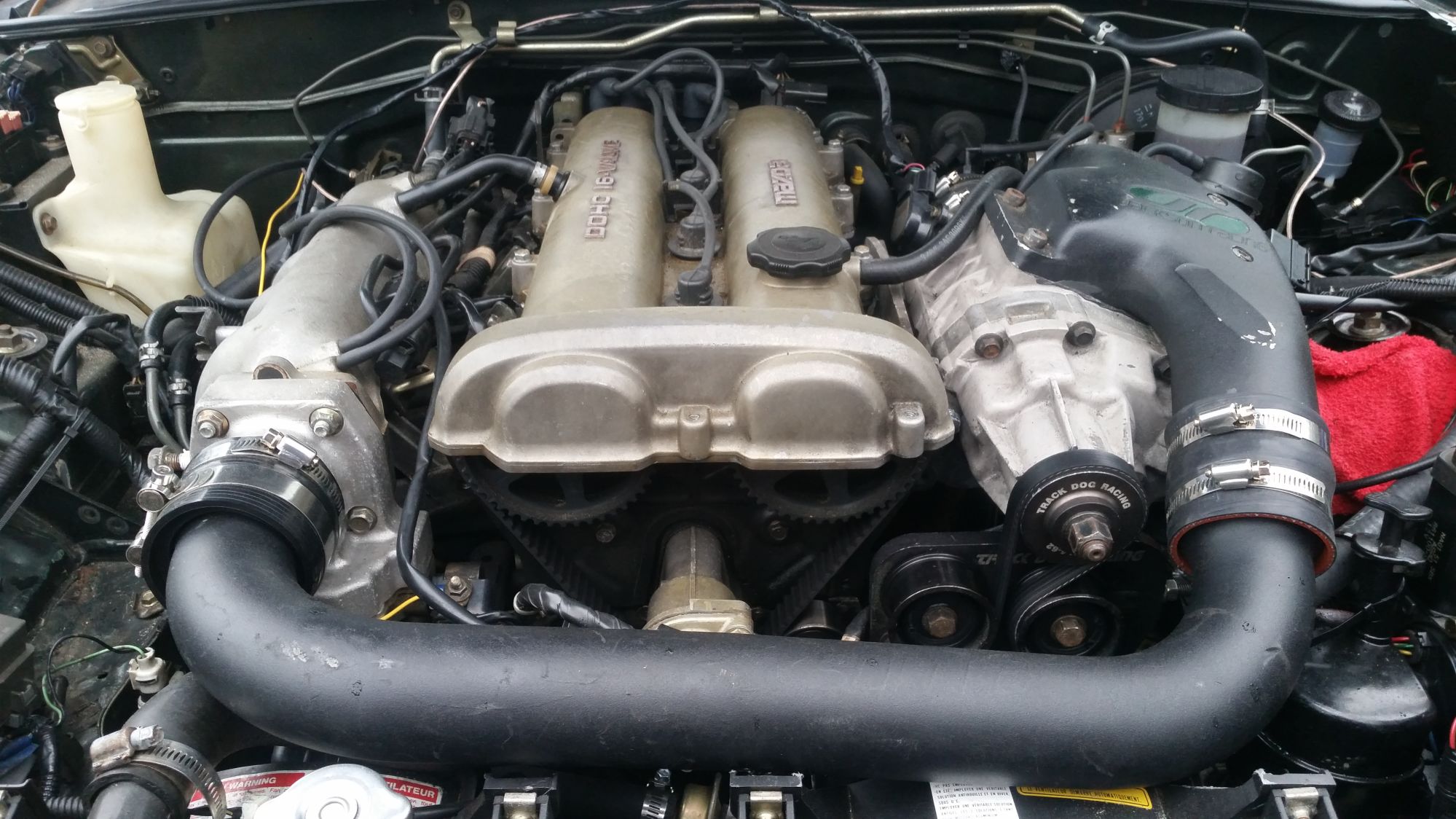

Attached Thumbnails
MP45 JRSC kit is about to make me go bald. PLSHALP-80-20160317_182011_1__5b3dc5f0cc165f31ae157189f7c438822d5cb5c0.jpg
Cold Drink is offline   Reply With Quote
Old 03-25-2016, 11:15 PM   #2
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Bypass stuck open. Has to be.
Stealth97 is offline   Reply With Quote
Old 03-26-2016, 08:55 AM   #3
Newb
Thread Starter

Join Date: Jan 2016
Location: Kingsland, Ga
Posts: 19
Total Cats: -1
Default

Quote:
Originally Posted by Stealth97 View Post
Bypass stuck open. Has to be.
Ive capped the sensing line on the bypass on both sides and ran it like that and got no difference.
Cold Drink is offline   Reply With Quote
Old 03-26-2016, 12:49 PM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Check the rotors are spinning.

I think the 45 is the same as my 62 in that the nose pulley drives the rotors by a flexible coupler. I've seen the coupler break.
BarbyCar is offline   Reply With Quote
Old 03-26-2016, 12:52 PM   #5
Newb
Thread Starter

Join Date: Jan 2016
Location: Kingsland, Ga
Posts: 19
Total Cats: -1
Default

Before i installed it i checked it, they do spin and they are also pretty free spinning. Also i can hear the supercharger whine if i have the bypass sensing line capped (bypass gagged shut) and im pretty sure i feel it as a load on the engine at higher rpm
Cold Drink is offline   Reply With Quote
Old 03-26-2016, 11:42 PM   #6
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

The bypass butterfly valve is definitely closed? I could see that getting stuck open.
x_25 is offline   Reply With Quote
Old 03-27-2016, 01:35 AM   #7
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Do you have a check valve in the idle control valve line? It runs (essentially) in parallel with the bypass.
Ted75zcar is offline   Reply With Quote
Old 03-27-2016, 11:50 AM   #8
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Additionally, depending on how you have the MS setup, the intake idle control valve can have an inversion on the low end of pulse widths (mine does). If your idle closed pw is too low, the MS will actually open the valve when it thinks it is closing it. This needs to be tuned, presumably on a case-by-case basis.
Ted75zcar is offline   Reply With Quote
Old 03-27-2016, 11:55 AM   #9
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Oh, and run a compression test (with fingers crossed).
Ted75zcar is offline   Reply With Quote
Old 03-27-2016, 01:32 PM   #10
Newb
Thread Starter

Join Date: Jan 2016
Location: Kingsland, Ga
Posts: 19
Total Cats: -1
Default

I do have the check valve in, if i blow as hard as i can on the checking side there is a very slight leak by, could that cause a significant leak? I will certainly have to look at the tuning of the icv, because i didnt realize this was a thing (new to tuning)
Cold Drink is offline   Reply With Quote
Old 03-27-2016, 01:33 PM   #11
Newb
Thread Starter

Join Date: Jan 2016
Location: Kingsland, Ga
Posts: 19
Total Cats: -1
Default

How could i check to see if the idle pulse widths are inverted like you were saying?
Cold Drink is offline   Reply With Quote
Old 03-27-2016, 02:01 PM   #12
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

You may be able to get a psi or so by blowing, so if you can get it to leak there it might be prudent to simply pull the trigger in a new one from TDR. You can build a tester fairly easily with some hose and a compressor if you have the means.

There is a fair amount of info on the idle control valve tuning out there, so I will not go into detail, but in summary:

Warm engine to normal operating temp
Use the idle control test feature in tuner studio to vary the pulse widths
Map where the idle hits the lowest rpm when decreasing the pw. Start at like 35-40 or so and work down. If you continue reducing the pw past this point (on an na6 at least) it will start to open again and increase the idle.

You can find the fully open point using the same technique, but by increasing the pw

On my car I seem to remember it being closed in the high 20s low 30s and fully open in the 90s. Dont hold me to that, I did it several years ago.

Oh, and compression test before buying anything. My hypothesis dies not address the WOT manifold pressure you reported. Hope that is an instrumentation issue or you may be pilling the head :(

Last edited by Ted75zcar; 03-27-2016 at 02:03 PM. Reason: Potato post fumble fingers
Ted75zcar is offline   Reply With Quote
Old 03-27-2016, 02:55 PM   #13
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 388
Total Cats: 41
Default

Nevermind
leboeuf is offline   Reply With Quote
Old 04-20-2016, 07:48 AM   #14
Newb

Join Date: Jun 2014
Location: Norway
Posts: 44
Total Cats: 0
Default

Did you find out what was wrong?
helly is offline   Reply With Quote
Old 04-21-2016, 07:42 AM   #15
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

If the bypass is actually opening and closing with vacuum, you have a major leak in your charge pipes or blower discharge manifold. My first guess is a faulty bypass valve / torn diaphragm not actuating the bypass valve butterfly.
