Old 09-30-2010, 12:48 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by leatherface24 View Post
Ask Doppelbanger what he did with his old setup. IIRC it worked good
Dumped it off and bought a turbo?
hustler is offline   Reply With Quote
Old 09-30-2010, 12:55 PM   #22
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
Dumped it off and bought a turbo?
Clever

leatherface24 is offline   Reply With Quote
Old 09-30-2010, 02:29 PM   #23
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by hustler View Post
I think the single t-body w/a TiAL Q is the most simple to build and maintain. It is the way.
just going to have to start trying things and see what works and what doesn't, i know just about all the things said will work but some will work better then others and some will make the hair drier ware out faster.
jeff_man is offline   Reply With Quote
Old 09-30-2010, 04:56 PM   #24
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by craigo View Post
i run duals. Throttle response is oem.
+1
richyvrlimited is offline   Reply With Quote
Old 09-30-2010, 05:03 PM   #25
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by CRAIGO View Post
I run duals. Throttle response is OEM.
detailed pics or gtfo
jeff_man is offline   Reply With Quote
Old 09-30-2010, 07:21 PM   #26
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

i talked to a eaton tech, you can adjust the bypass to no close all the way with a set screw.
jeff_man is offline   Reply With Quote
Old 10-01-2010, 01:21 AM   #27
Junior Member
iTrader: (1)

Join Date: Jan 2008
Location: Oahu, Hawaii
Posts: 87
Total Cats: 1
Default

Another +1 for dual throttle bodies. They have made the car a pleasure to drive again, although at the moment the interior is partially ripped out, the soft top is off and I only have the Kirky drivers seat installed along with a hardtop + lexan window. It is hella-loud without a throttlebody on the SC intake side. I am currently at 8psi with no blow-off valve and have not had any problems so far. Idle and throttle response are perfect.
EvoRoadster is offline   Reply With Quote
Old 10-01-2010, 11:53 AM   #28
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by jeff_man View Post
detailed pics or gtfo
https://www.miataturbo.net/supercharger-discussion-38/supercharger-dual-throttle-project-42026/

Probably more panty twist in there than you want to read but it shows how I went from not happy with duals to very happy with duals. Stuff that works and stuff that doesn't.
BarbyCar is offline   Reply With Quote
Old 10-01-2010, 11:59 AM   #29
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by BarbyCar View Post
https://www.miataturbo.net/showthread.php?t=42026

Probably more panty twist in there than you want to read but it shows how I went from not happy with duals to very happy with duals. Stuff that works and stuff that doesn't.
there are 0 pic of the set up and i read that months ago and was not impressed with it.
jeff_man is offline   Reply With Quote
Old 10-01-2010, 12:06 PM   #30
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

Since you asked so politely I'll post some detailed pics for you but I'll make you wait a few days

Do you want pics of everything or just the second throttle? I'm unsure as to why you even want the pics. It's pretty simple stuff.
CRAIGO is offline   Reply With Quote
Old 10-01-2010, 12:15 PM   #31
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by CRAIGO View Post
Since you asked so politely I'll post some detailed pics for you but I'll make you wait a few days

Do you want pics of everything or just the second throttle? I'm unsure as to why you even want the pics. It's pretty simple stuff.
i want everything, especially how both bodies are being controlled with 1 peddle cable. figure the body on the intake is set up like stock but the one of the blower is cracked open a more to get more air into the pipes.
jeff_man is offline   Reply With Quote
Old 10-01-2010, 12:23 PM   #32
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Quote:
Originally Posted by jeff_man View Post
there are 0 pic of the set up and i read that months ago and was not impressed with it.
Early pics linked from thread post #29. I wasn't impressed with it either which is why it progressed from there.

Godless Commie put up a bunch more pics from his at https://www.miataturbo.net/supercharger-discussion-38/dual-throttle-setup-no-more-idle-issues-47978/ but you probably weren't impressed with that either.
BarbyCar is offline   Reply With Quote
Old 10-01-2010, 03:12 PM   #33
Junior Member
iTrader: (1)

Join Date: Jan 2008
Location: Oahu, Hawaii
Posts: 87
Total Cats: 1
Default

Quote:
Originally Posted by jeff_man View Post
i want everything, especially how both bodies are being controlled with 1 peddle cable. figure the body on the intake is set up like stock but the one of the blower is cracked open a more to get more air into the pipes.
Godless Commie's setup is one of the more complicated ones I've seen but you are correct, the 2nd TB is adjusted until it is slightly cracked open in relation to the one in the stock location. It did take me a few days of making slight adjustments to the 2nd TBs cable length and idle screw but I have not had to touch it since. On my setup a 2nd throttle cable, throttle body and a pulley-wheel siamesed to the primary TB pulley wheel were all I needed. If you are that interested in seeing it I will put up a few pics later today.
EvoRoadster is offline   Reply With Quote
Old 10-01-2010, 04:26 PM   #34
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

the problem i have with 2 tb is..... bov sound cool, will cost more, i don't like extra moving parts. i also really want to get a non 2 tb system working, i think there is a need for a easy add bov and mod your bypass system.

i'm going to try first putting my tb on the intake and putting my dumby on the blower then run the vac line to the blower bypass to a nipple on the intake after the tb rather then the nipple on the blower. on paper that seems that's all you should have to do if you don't care about the sound.
jeff_man is offline   Reply With Quote
Old 10-01-2010, 04:35 PM   #35
Junior Member
iTrader: (1)

Join Date: Jan 2008
Location: Oahu, Hawaii
Posts: 87
Total Cats: 1
Default

I do agree with your keep it simple ethos and it sounds like an interesting approach, looking forward to hear about your results.
EvoRoadster is offline   Reply With Quote
Old 10-01-2010, 04:56 PM   #36
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by EvoRoadster View Post
I do agree with your keep it simple ethos and it sounds like an interesting approach, looking forward to hear about your results.
the only reason i can think of for having a tb on the blower is sound level and with the tb on the intake you will no longer have the correct vac at the nipple on the blower to operate the bypass.
jeff_man is offline   Reply With Quote
Old 10-01-2010, 06:16 PM   #37
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

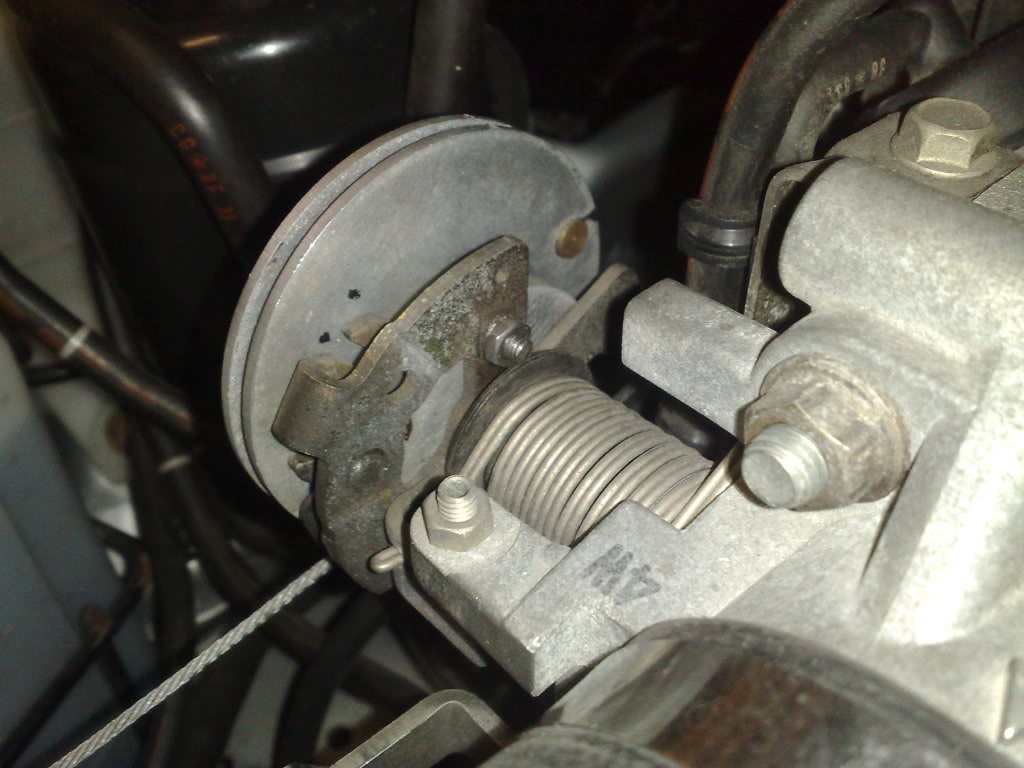

Here are the photos.

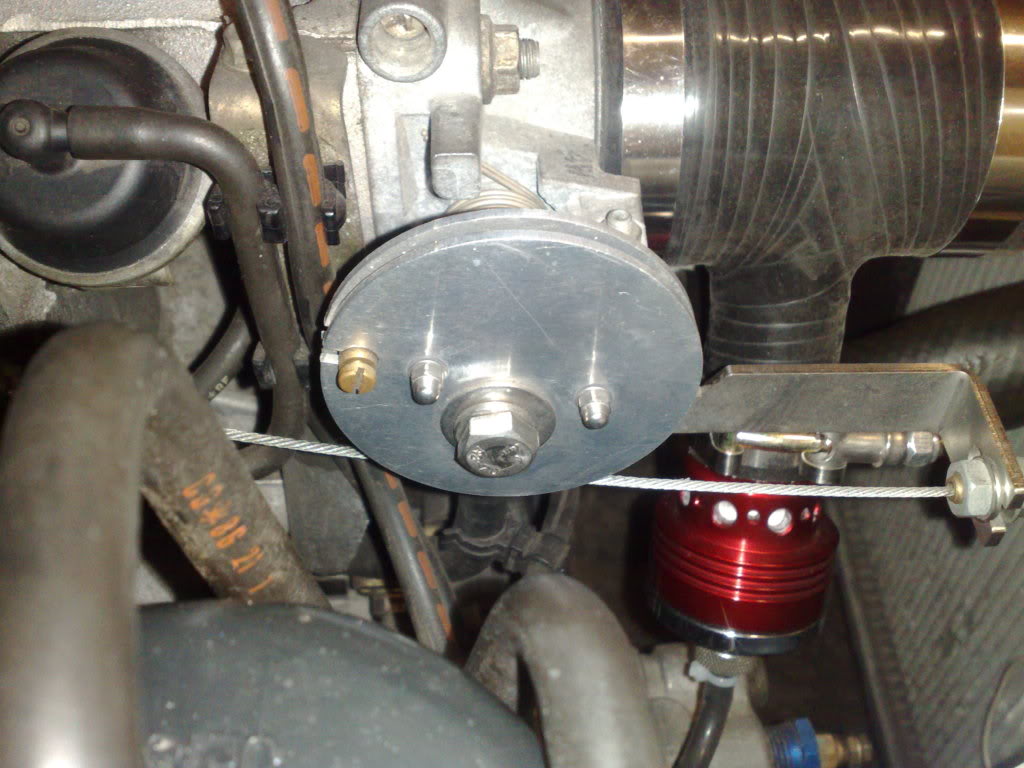

Top view of dual throttle cable run, cable support that houses the tension adjustment and adjustable VTA BOV.


Tapped and bolted into the side of the OEM throttle.
Name:  011020101268.jpg
Views: 2
Size:  132.7 KB

Name:  011020101279.jpg
Views: 2
Size:  114.0 KB

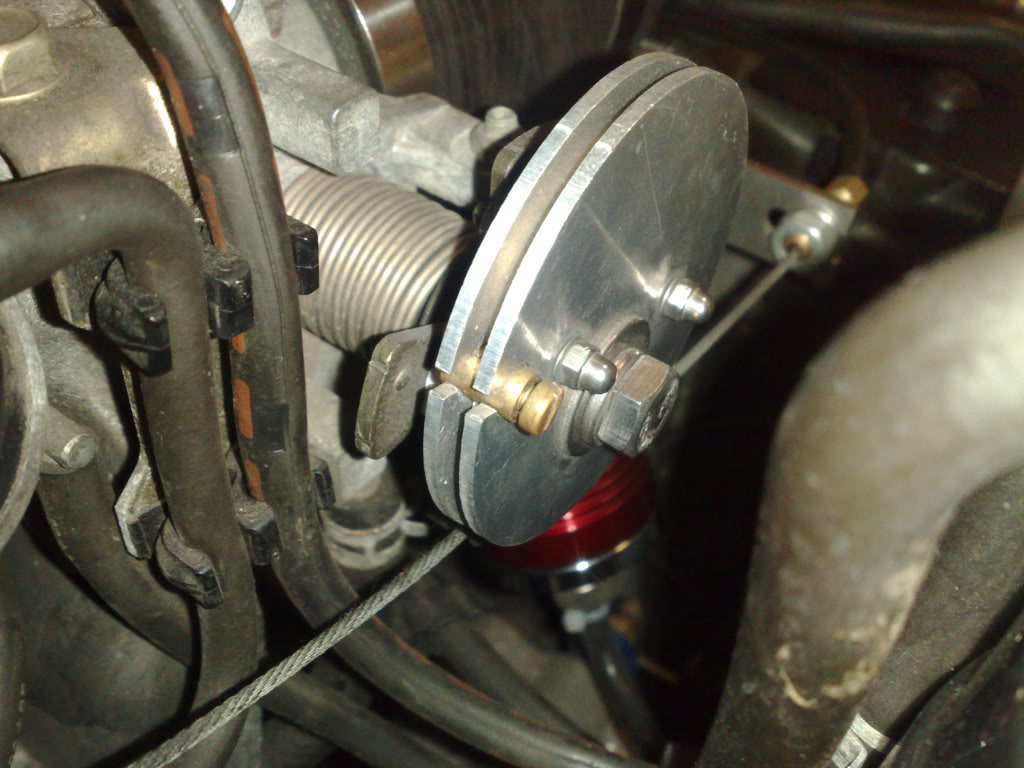

The gold nut is the lock for the dual throttle cable
Name:  011020101270.jpg
Views: 2
Size:  121.9 KB

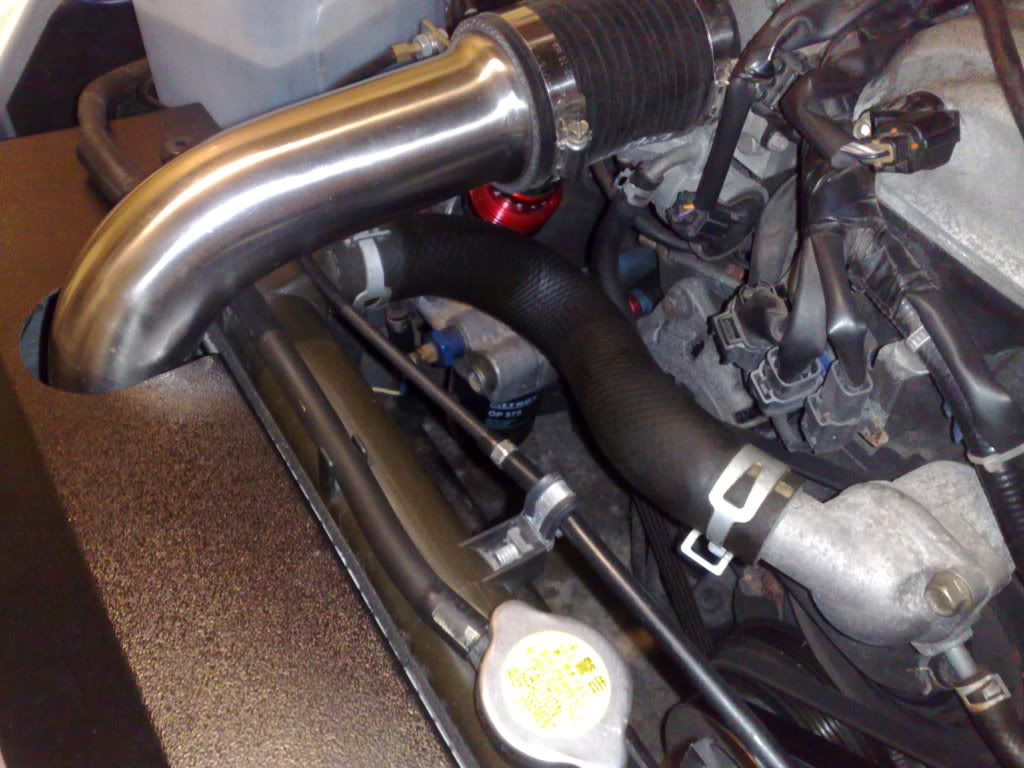

Cable run at front of bay
Name:  011020101275.jpg
Views: 2
Size:  150.7 KB

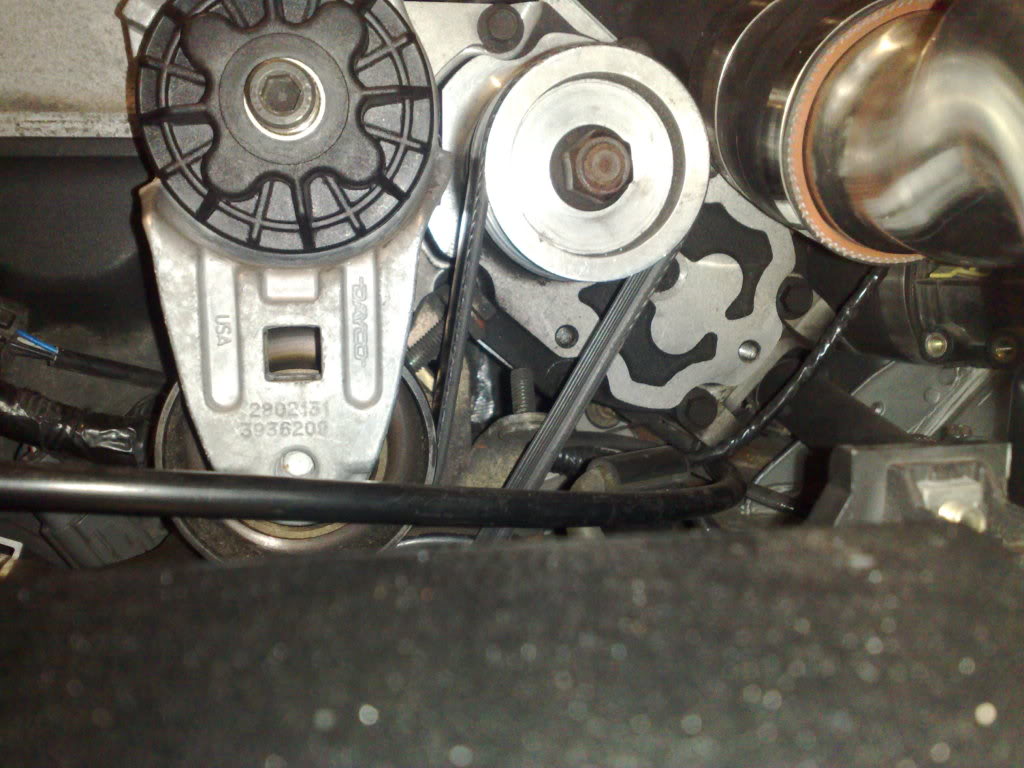

Cable run under charger unit
Name:  011020101276.jpg
Views: 2
Size:  137.0 KB

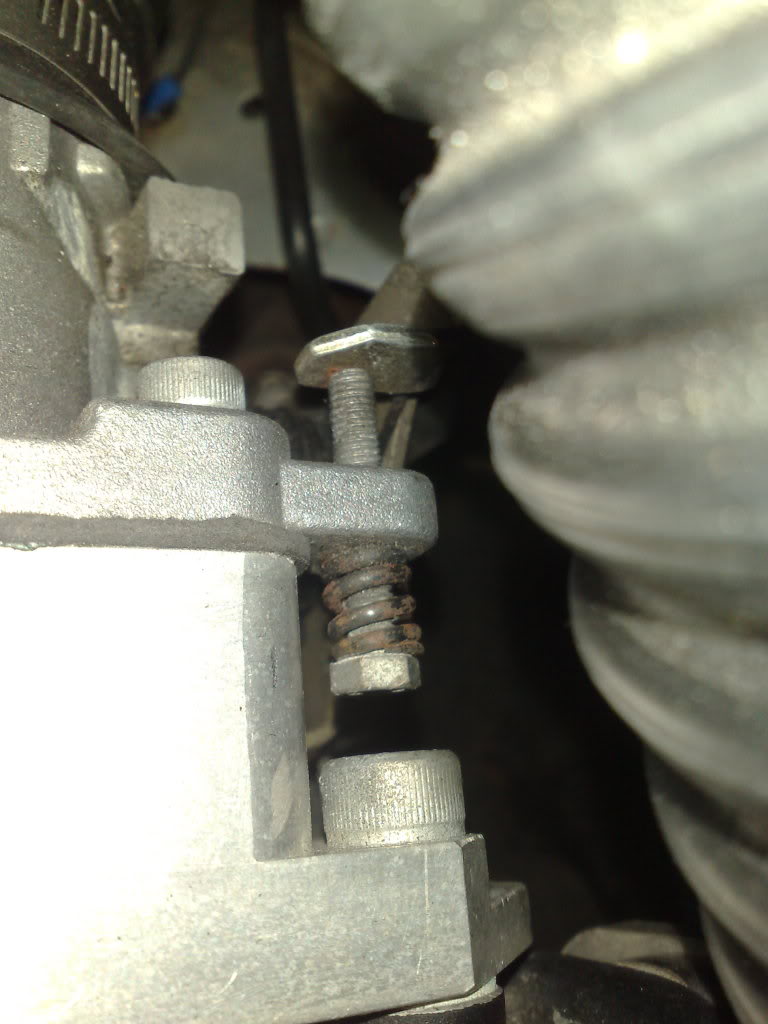

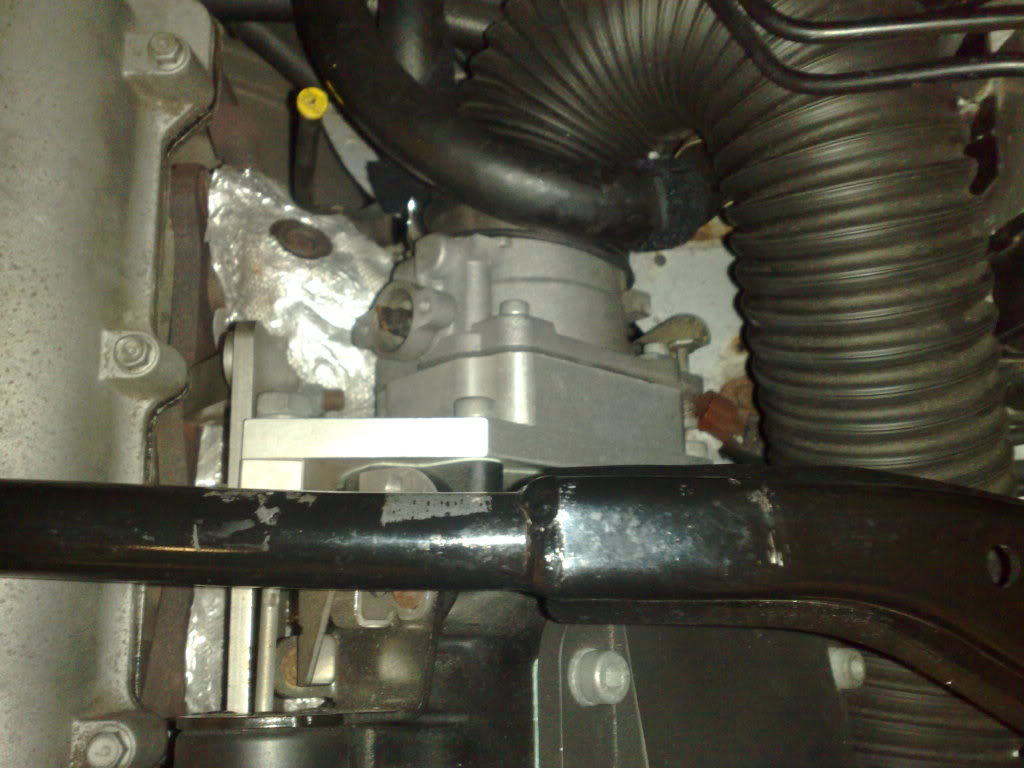

Second throttle on charger inlet and throttle adjustment screw
Name:  011020101282.jpg
Views: 2
Size:  116.1 KB
Name:  011020101278.jpg
Views: 2
Size:  94.9 KB

It's easy enough to balance them. You need to make sure that WOT on the intake manifold TB is WOT at the charger inlet. Idle the engine, crack the charger throttle until you hear it start to howl and then lightly back off the adjustment screw until the howl stops. Finally, ensure that the tiniest amount of throttle input is mirrored at the charger throttle.

The adjustable BOV is really quiet which is nice. I added mine as I know of an owner with the same set-up as me on a Mk1. He has sheared off all 4 of his crank pulley bolts TWICE leaving crank pulleys all over the road. He's added a BOV and it's been fine since. Think off all that air rushing back against the charger outlet when you let off the accelerator. It's not going to stall the charger (like a turbo would) but it will act as a negative force against the rotation of the crank, supercharger belt and ultimately the 4 crank pulley bolts. Don't look at a BOV as an extra component to fail on track, look at it terms of added reliability.
CRAIGO is offline   Reply With Quote
Old 10-01-2010, 06:28 PM   #38
Junior Member
iTrader: (1)

Join Date: Jan 2008
Location: Oahu, Hawaii
Posts: 87
Total Cats: 1
Default

Quote:
Originally Posted by jeff_man View Post
the only reason i can think of for having a tb on the blower is sound level and with the tb on the intake you will no longer have the correct vac at the nipple on the blower to operate the bypass.
Correct which is why you need to source vacuum for the bypass from another location. I found that out the hard way. On first run-up the blower got super hot due to no vacuum to the bypass.

I am however in the process of sourcing a silicone connector and BOV to relieve pressure during throttle lift. Any recommendations for type of BOV and source?
EvoRoadster is offline   Reply With Quote
Old 10-01-2010, 06:44 PM   #39
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

I got mine from ebay UK. It does what is should do.

The Tee, clip and BOV were around 35 all in and all brand new.
CRAIGO is offline   Reply With Quote
Old 10-01-2010, 07:36 PM   #40
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

http://www.tialsport.com/prod_bv.htm

tial is pricey but worth it. comes with vband pipe and clamp to weld to your intake pipe.
jeff_man is offline   Reply With Quote
