Vacuum hoses question JRSC 1.6


Old 03-12-2017, 10:02 AM
  #1
Newb
Thread Starter

Join Date: Nov 2016
Posts: 22
Total Cats: -3
Default Vacuum hoses question JRSC 1.6

Hi there. I almost finished installing a m45 (Jackson racing) supercharger on my 1.6 1990 miata.
One thing that puzzles me, is that there is 3 nuts for vacuum lines on the supercharger adapter plate (between the Throttle body and the actual supercharger). 1 is used to connect to the bypass valve. The second one I read somewhere was meant to be connected to the air intake after the air filter but before the Throttle body. Is this correct, and if so, how does vacuum build up in the adapter plate (post throttle body) if a vacuum line is run to before the throttle body?
The third one I am clueless about. Do i simply block this?

Also, does it matter which of the three vacuum nuts I use for each implementation?

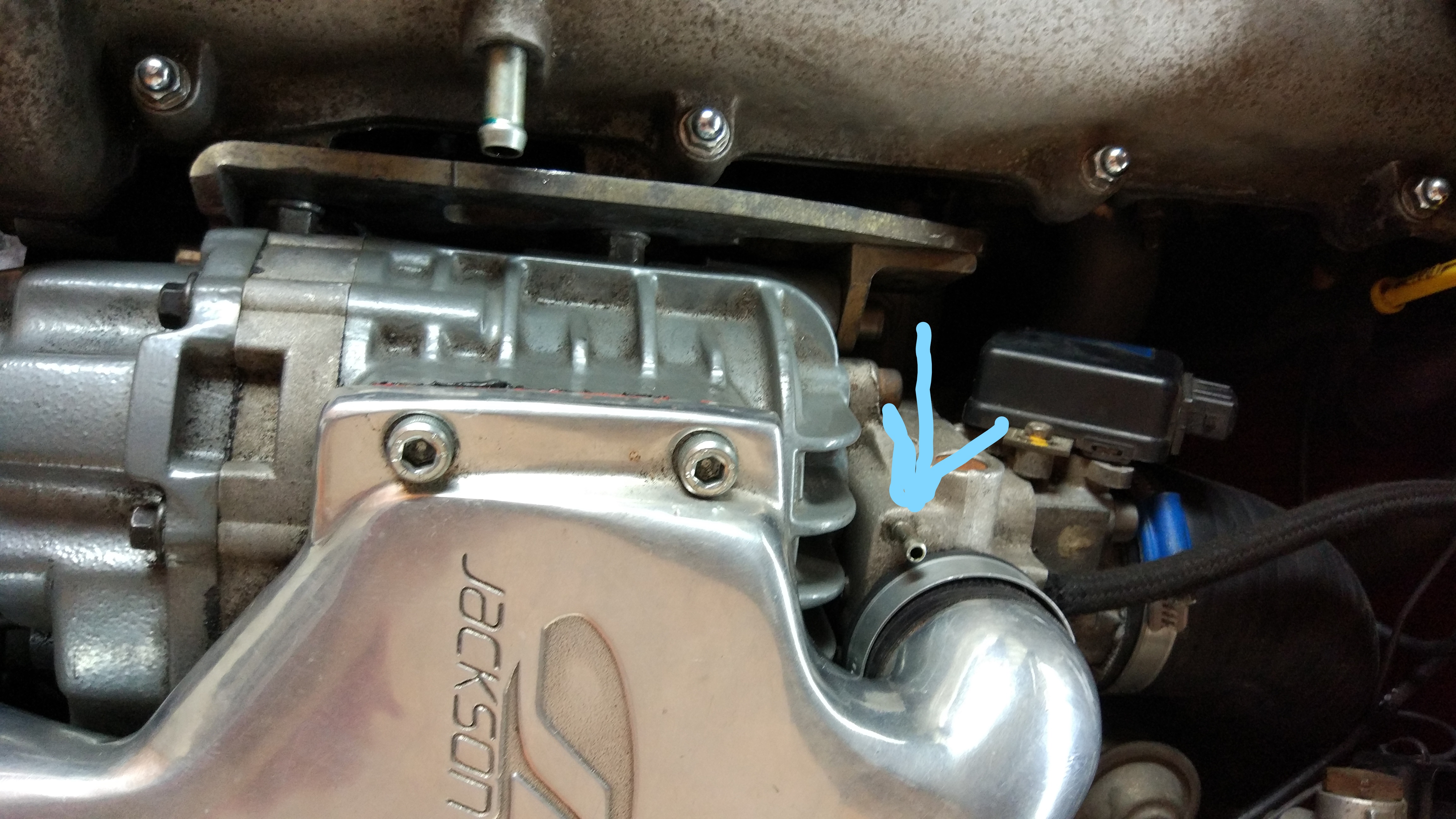

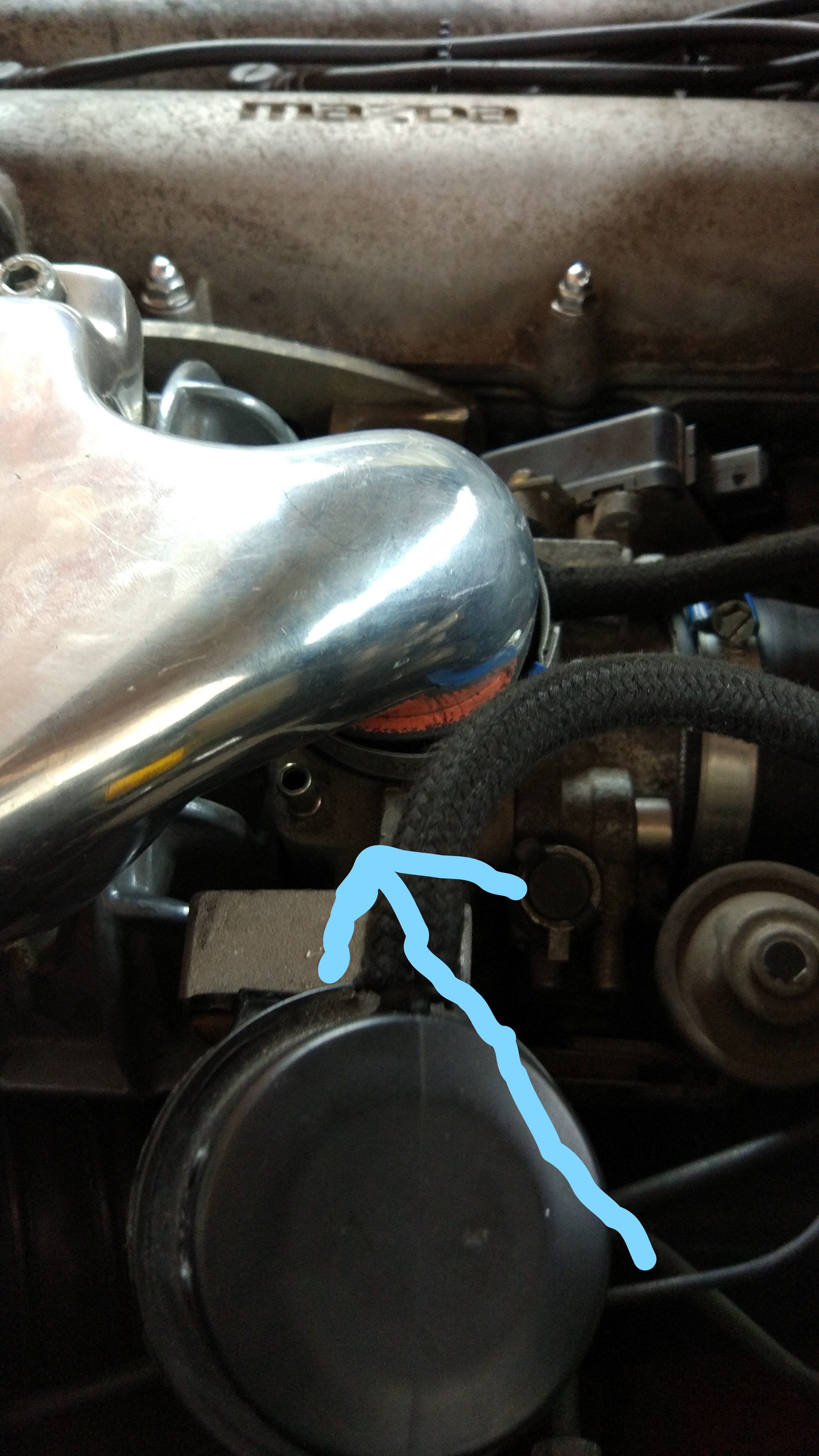

If it matters, I am running megasquirt (AFM removed) with no AFPR and no power steering, no AC and no cruise control. On the picture attached, the two (so far) unused nuts are seen.
Any help is greatly appreciated.
Kind regards Søren.
Attached Thumbnails Vacuum hoses question JRSC 1.6-1.jpg   Vacuum hoses question JRSC 1.6-2.jpg
Søren Ekner Bobek is offline
Old 03-12-2017, 10:50 PM
  #2
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 831
Total Cats: 62
Default

You only need to run a vacuum line to the bypass valve and the ms (run the ms line from the im next to where the tb used to be), plug the other two, and get a better camera so we can actually see what you are tryingto show 😬
HHammerly is offline
Old 03-14-2017, 10:03 AM
  #3
Newb
Thread Starter

Join Date: Nov 2016
Posts: 22
Total Cats: -3
Default

Okay thanks a lot. I have done that now, and the car is alive
