Old 04-10-2014, 07:03 PM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Correct. All 94-05 are the same, torsen or otherwise, except for the MSM that uses the larger inner spline (same as the s2k), and larger shaft.
Leafy is offline   Reply With Quote
Old 04-10-2014, 11:16 PM   #22
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

Quote:
Originally Posted by Leafy View Post
Correct. All 94-05 are the same, torsen or otherwise, except for the MSM that uses the larger inner spline (same as the s2k), and larger shaft.
You mean the axle tubes, right ?
Does that mean that the 2 piece axles are the same length as the one piece items ?
Boris is offline   Reply With Quote
Old 04-10-2014, 11:59 PM   #23
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Boris View Post
You mean the axle tubes, right ?
Not sure what you mean by "axle tube."

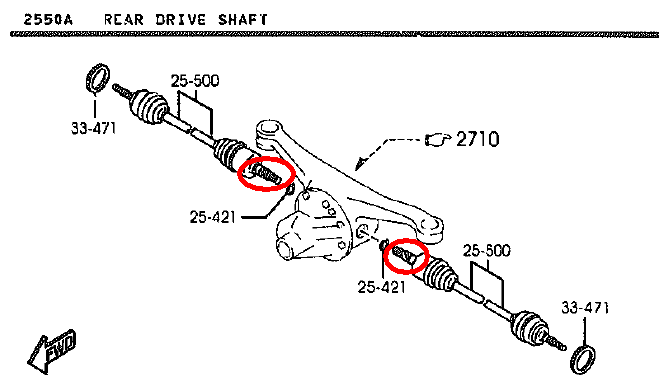

The important difference between an MSM axle and a non-MSM NB axle, for our purposes, is that the section circled in red below is larger in diameter on the MSM axle, as is the opening in the differential which receives it.



Thus, an MSM axle will not fit into a non-MSM diff, while trying to insert a non-MSM axle into an MSM
diff is like tossing a hot dog down a hallway.


Quote:
Does that mean that the 2 piece axles are the same length as the one piece items ?
Yes, the two-piece '94-'95 axles are the same length overall as the one-piece '95.5-'05 axles.
Attached Thumbnails
Axle differences-axle.gif
Joe Perez is offline   Reply With Quote
Old 04-11-2014, 11:41 AM   #24
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
Yes, the two-piece '94-'95 axles are the same length overall as the one-piece '95.5-'05 axles.
And, for uber-clarity, can be interchanged.
hornetball is offline   Reply With Quote
Old 04-11-2014, 02:47 PM   #25
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

Quote:
Originally Posted by Joe Perez View Post
Not sure what you mean by "axle tube."

I meant the actual shaft. No CVJoints, no stub axles, nothing.
Right now I know for a fact that the 1.6 shafts are longer than the 1.8's but all joints interchange.

Have no intentions of swapping to one piece setups as I am up to my eyeballs in 1.6 parts but it's nice to know that the local autoparts barn has replacements cheap.
Boris is offline   Reply With Quote
Old 04-12-2014, 01:19 PM   #26
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

Quote:
Originally Posted by Leafy View Post
Advanced Autoparts now sells brand new, not re-manned, 99+ ABS axles for $80 a side. They will fit any car with a 94+ diff. I have one sitting in a box the with the axle nut and socket for the axle nut in the kit of spares for when I blow out an axle at the launch.
I love you.

They're 136 shipped with their 15% (d43) coupon and free shipping.
.one lane is offline   Reply With Quote
Old 04-12-2014, 02:27 PM   #27
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Leafy View Post
Advanced Autoparts now sells brand new, not re-manned, 99+ ABS axles for $80 a side. They will fit any car with a 94+ diff. I have one sitting in a box the with the axle nut and socket for the axle nut in the kit of spares for when I blow out an axle at the launch.
Give this mothertrucker a million props.
blaen99 is offline   Reply With Quote
Old 05-26-2015, 12:38 PM   #28
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Slight necro, is advanced auto still the best place to get replacement axles?</p>
aidandj is offline   Reply With Quote
Old 05-26-2015, 01:54 PM   #29
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

Quote:
Originally Posted by aidandj View Post
<p>Slight necro, is advanced auto still the best place to get replacement axles?</p>
I just checked and yeah they are still $80. Then 35% off with WD521 coupon from retailmenot.com and you're looking at $110 for 2 axles or $52 for one.
soviet is offline   Reply With Quote
Old 05-26-2015, 02:34 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Holy **** thats awesome.
aidandj is offline   Reply With Quote
Old 06-02-2015, 05:36 PM   #31
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Advanced Auto Parts is out of stock in warehouse and stores :(</p>
aidandj is offline   Reply With Quote
Old 06-05-2015, 10:38 PM   #32
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 235
Total Cats: 26
Default

I got a '99 axle at O'Reilly's Monday. The keep them at their warehouse, 1 day to the local store. You can probably order one off their web-site, if they don't have stores local, but the core charge is $70.
EricJ is offline   Reply With Quote
Old 06-05-2015, 10:45 PM   #33
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

1 piece? How much? Think I could use my siexed in the hub axle as a core lol?
aidandj is offline   Reply With Quote
Old 06-07-2015, 09:21 PM   #34
Junior Member

Join Date: Mar 2013
Location: Flower Mound, TX
Posts: 235
Total Cats: 26
Default

EricJ is offline   Reply With Quote
Old 06-07-2015, 09:23 PM   #35
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Thank you</p><p><img src="http://cimg0.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1026x770/80-147272633_4x3_5months_spoonlandings1_b01f738d82b32 e9427fc87cb4bd7f773cfb9ed18.jpg" title="" /><br /><br />&nbsp;</p>
aidandj is offline   Reply With Quote
Old 06-08-2015, 12:11 PM   #36
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

I will warn you guys about Advance's Axles (and hell AutoZones, too), they were complete **** for me on the cars before my Miata days. Granted they were all FWD. But they were all at normal ride heights (no "hella slammed yo" Civics). And 85% of the driving was daily, normal driving. One set the boots ripped in about 4k miles, the next set "clunked" and had play within 15k miles, and the third and final set didn't fit the axle seal perfectly and always leaked. and ALL three sets were out of balance, which caused shaking at highway speed. I sourced a used OEM set with low miles for around $100 and bought them, never had issues for another 50k until I sold the car.

After all the time/money I spent on those cheap Chinese axles, I wish I had just paid $150-$200 a piece for an OEM unit from the get go that would last 150k.
NBoost is offline   Reply With Quote
Old 06-08-2015, 12:22 PM   #37
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Dealership Mazda axles are Mexican rebuilds.
Leafy is offline   Reply With Quote
Old 06-12-2015, 03:49 AM   #38
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Advanced Auto are advertised as new axles not re-builds. probably cheap ones. Curious if they are better or worse than stock.

Orielly, Autozone, and Napa are all re-bulds. I can say If They want my Cores back there aint a single part on them that should be re-used. About the only thing left that isn't obviously **** is the center shaft section that is if it hasn't twisted off yet after a year of use in my car. Like rebuilt calipers it’s probably a bit hit and miss as to the severity of their prior life.

I’m pretty sure ones from Mazda are also re-builds. Probably from the same places as the others. I know Mazda doesn’t sell new calipers they are all re-builds.
bbundy is offline   Reply With Quote
Old 06-12-2015, 03:51 AM   #39
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Bob what axles do you run?
<br />Is there anywhere to get new 2 piece axles?
aidandj is offline   Reply With Quote
Old 06-12-2015, 02:49 PM   #40
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by aidandj View Post
Bob what axles do you run?
<br />Is there anywhere to get new 2 piece axles?
I've been using 1 piece 95 + salvage yard axles. Within a year of use the ***** are imbedded into the cups and races and there are surface cracks where the high contact pressure is and they start developing a lot of slop with a significant on center detent. Iíve been just replacing them often.

With changes I made this year for focused autocross I have a bit more torque and I think the gearing changes with a 4.778 rear and the Quaife transmission followed by a few pro-solos with drag race launches on high grip concrete Iíve upped the loading on them quite a bit. I have now twisted one of the shafts in two. ~340 ft-lbs of torque at between 4500 to 6500 rpm.

Not sure I want to upgrade to $800+ dollar options designed to meet the torque level Iím putting through them as the axles seem to be a good point to keep a fusable link in the system. They are relatively cheap and very easy to replace.
bbundy is offline   Reply With Quote
