Default Axle thread repair

Hi,
I was in the process of doing my torsen swap, when I noticed that the threads on the new rear axle I got had been messed up in the removal process. They're not completely messed up, just enough that I can't get the nut started. I was thinking I could run a die of the right size and pitch over the threads in an attempt to save the axle. Does anyone know what size and pitch the threads are on the axle? Any other ideas to save the threads?
Morshu is offline   Reply With Quote
Old 01-23-2013, 05:22 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

I don't know the pitch but you might be able to take a little of the end of the shaft off with a grinder if you are careful.
sixshooter is offline   Reply With Quote
Old 01-23-2013, 05:33 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

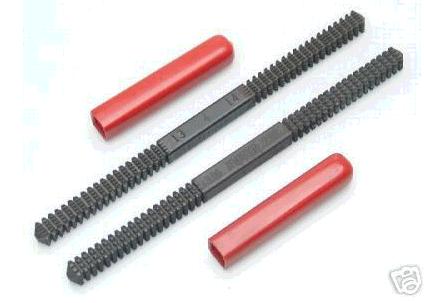

Grab a thread file like this one:


It has 8 different thread pitches on it, and costs less than a die, which only has one size. Obviously takes a little more effort to clean up a thread, but I'd rather have 8 thread pitches with unlimited diameters than have to pay for a full set of dies.
Attached Thumbnails
Axle thread repair-files2.jpg
curly is offline   Reply With Quote
Old 01-23-2013, 05:35 PM   #4
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Pics of the axle and or threads.

As stated above, you could hit it with an angle grinder at about 45 degrees all the way around. If not a grinder, a file will work just as well just takes longer.
Miater is offline   Reply With Quote
Old 01-23-2013, 07:50 PM   #5
Junior Member
Thread Starter

Join Date: Nov 2012
Location: SF Bay Area
Posts: 59
Total Cats: 0
Default

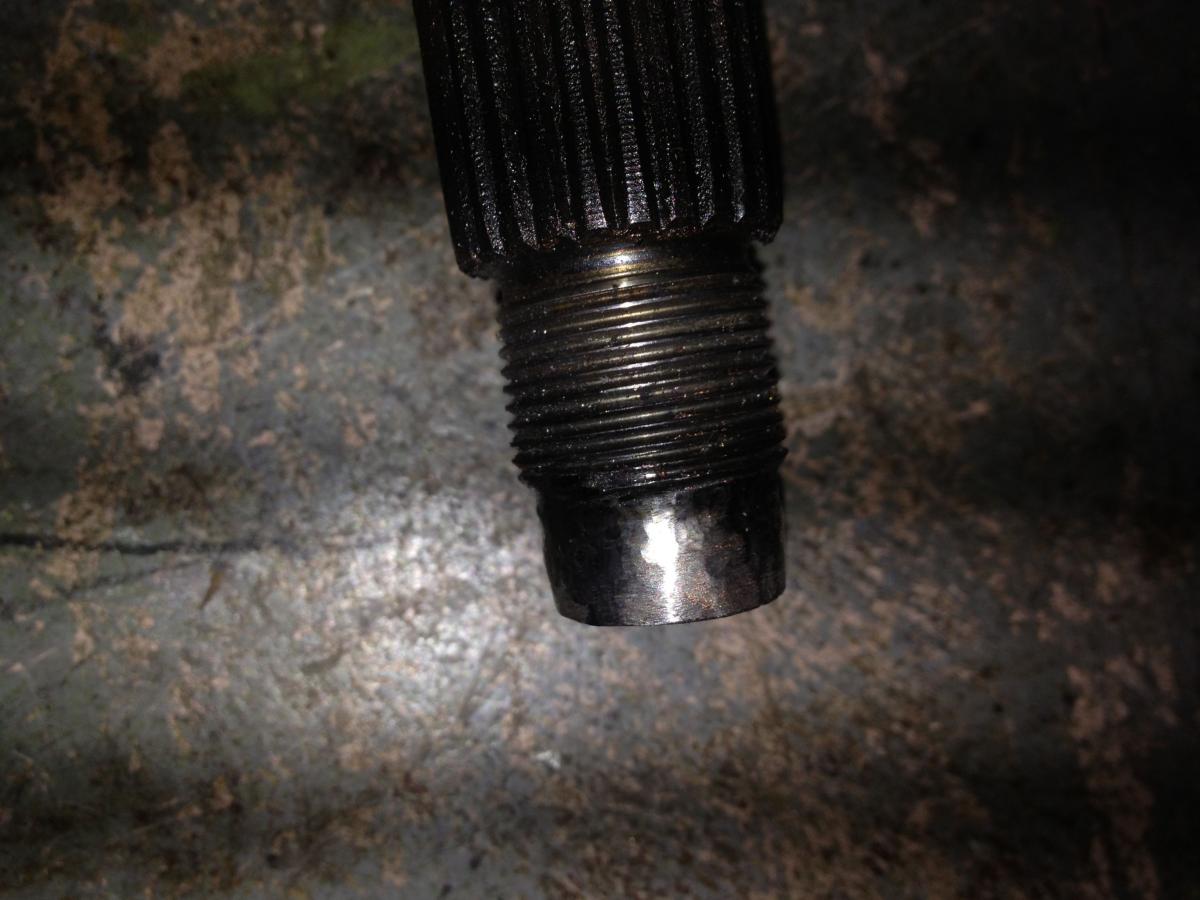

Here are some pics (from my phone, not the best)


Looks like the guy I got the axles from mushroomed the axle and tried to grind it down to its original shape. In the process, he hit the threads, making it impossible to start the nut.
The biggest thing is getting the nut started. The threads are only messed up at the beginning. I thought about a thread file but I decided that a die would be a better solution to help cut a new starting thread that matches up with the rest of them. If no one knows the pitch, then I guess I'll get a thread file.
Attached Thumbnails
Axle thread repair-em8t95g.jpg   Axle thread repair-xlcgjsw.jpg
Morshu is offline   Reply With Quote
Old 01-23-2013, 10:39 PM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

You can repair a thread sometimes with a triangular file.
sixshooter is offline   Reply With Quote
Old 01-23-2013, 10:43 PM   #7
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Quote:
Originally Posted by curly View Post
Grab a thread file like this one:
^This, or if not available use a small narrow file.

TorqueZombie is offline   Reply With Quote
Old 01-24-2013, 01:36 AM   #8
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Morshu View Post
The threads are only messed up at the beginning. I thought about a thread file but I decided that a die would be a better solution to help cut a new starting thread that matches up with the rest of them. If no one knows the pitch, then I guess I'll get a thread file.
The main advantage of the thread file in your case is that the file will fall into the good threads and follow them, only taking damaged material away where needed. If you get a die it has to thread on, just like your nut (which won't start) so while it will grab and start cutting a thread it might not start exactly where needed and you can bugger up the whole thing.
Stein is offline   Reply With Quote
Old 01-24-2013, 02:14 PM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

They also sell dies that are hinged so you can clamp it onto the good section of thread and back it out. They're expensive though.
Leafy is offline   Reply With Quote
Old 02-08-2013, 04:25 AM   #10
Newb

Join Date: Feb 2013
Posts: 15
Total Cats: 0
Default

the axle still looks savable. much rather use the thread file, they're always handy to have around.
frankist is offline   Reply With Quote
