Diff carrier mount spacer and sleeve


Old 03-03-2019, 11:42 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default Diff carrier mount spacer and sleeve

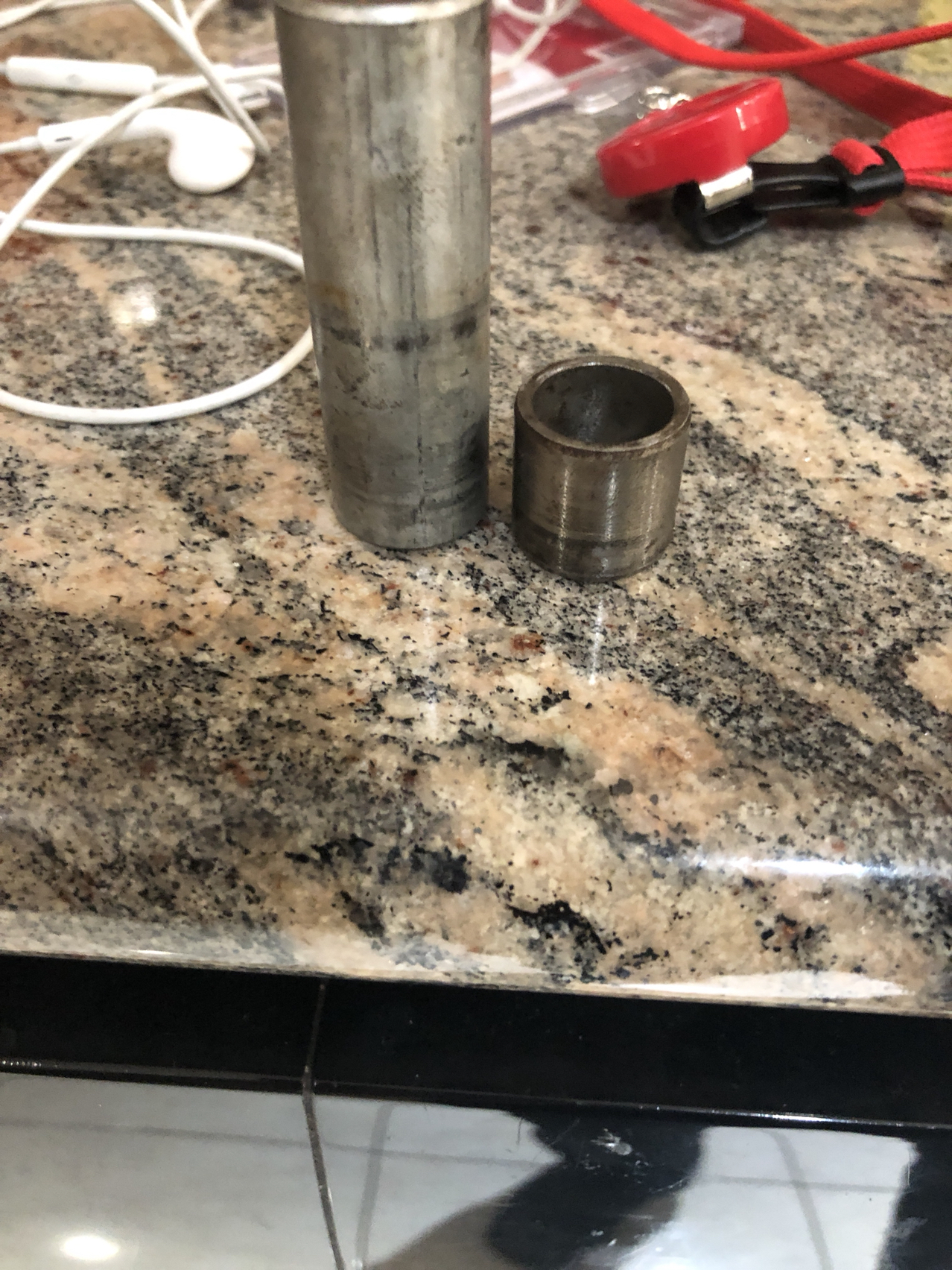

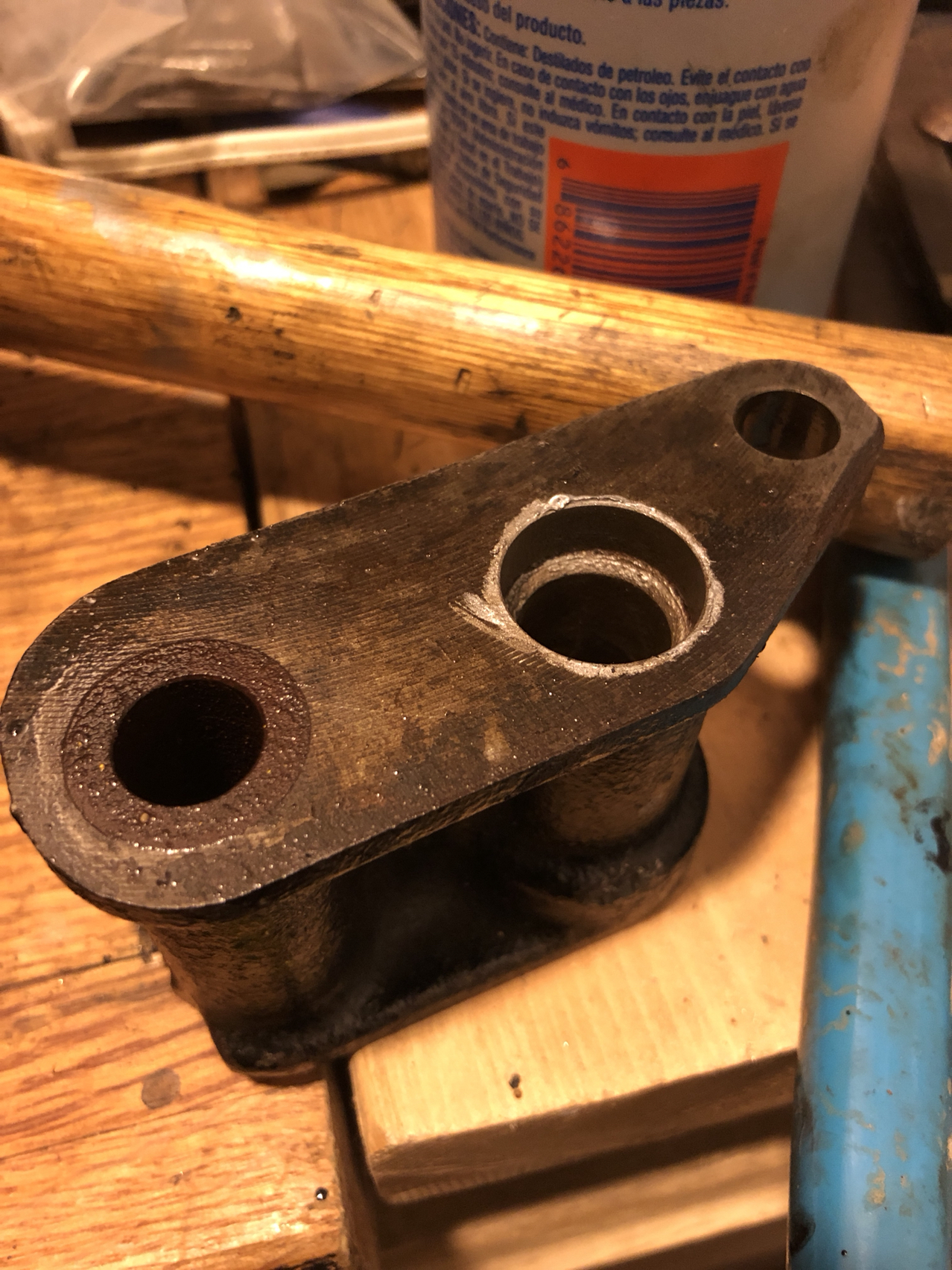

I was cleaning up my differential carrier and decided to remove the spacer and sleeve - so I tapped the sleeve down instead of Up

I then saw a small sleeve also pop out.

Just want to make sure the small one sits at the buttom and just provides the guide for the spacer. The reamer bolt sleeve is above and will drive into the PPF spacer on top.

Help me confirm the small sleeve and where it goes. I can't find any diagrams nor is this small sleeve listed in the FSM
Attached Thumbnails Diff carrier mount spacer and sleeve-photo372.jpg   Diff carrier mount spacer and sleeve-photo158.jpg
