Default Discuss Pre-production of frame rails

I have The First Piece Of the Pre-production version of an NA/NB frame Rail set.

Its Made of Mild steel,and Is for Fit up Only.The Final Parts Will Be Very similar in design,and Be Made Of 16g 304 Stainless Steel
.


I've Made a few changes to the Original designs,enough to make it its own.
First I've Added more Mounting points,more bolt holes spread the Twisting and Flexing forces across a greater area of the Floor pan.


Secondly,a central stiffening crease to add further rigidity.As you may see,it Is in inward crease so that there should be no loss of Ground clearance.



Additionally,there are "tripler"washer Plates,to effectively triple the the thickness of the frame rail at the mounting points.




And finally all of the out side edges,triangular cutouts and transitions have radii,to add strength,halt Crack propagation and to Make the Parts a little safer to Handle.



The As installed Pieces will be secured with a minimum of 15 3/8-16 bolts,with either lock nuts or locking patches on the Bolts.
After they are installed,the donor car will be tested in accordance with recognized methods to Verify the increases in torsional and flexural stiffness.
So, I will not Make Any claims to any theoretical design improvements,I will let the test results do that.

So,It has taken a long time for me to get these made,But I Am Very Pleased with How they Turned Out,and would Welcome constructive discussion as to the merits or demerits of what I've Shown.
The Final parts are slated to Be In the $140 range,and Would Include 2 rails,30 Nuts and bolts,and 60 washer Plates.This is an estimate Based upon the manufacture of 20 sets,if More are Made,the cost will drop and the end user price will drop as well.
Thanks For Looking.
Rev.G-

Last edited by Reverend Greg; 04-17-2015 at 05:40 AM. Reason: spelling,pictures and format
Reverend Greg is offline   Reply With Quote
Old 04-17-2015, 08:43 AM   #2
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

I hate buying something and then having to go to the store to buy items to complete the install. As long as you're supplying some of the hardware, supply it all. Include lock washers for the nut side as well. Even if you have to up the price slightly, I'm sure the end user will appreciate not having to run to the store after opening the box.
guttedmiata is offline   Reply With Quote
Old 04-17-2015, 09:02 AM   #3
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 322
Total Cats: 53
Default

Why not use M8 hardware?

It kinda sucks to mix SAE and metric fastners on a car.
adamiata is offline   Reply With Quote
Old 04-17-2015, 09:59 AM   #4
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

^^ This.

I might be in for a set although TBO, the 'other' thread makes me somewhat dubious.
bahurd is offline   Reply With Quote
Old 04-17-2015, 11:08 AM   #5
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Some thoughts.

1. Bumping an old thread started by an unhappy customer in order to announce your return is...bold. Is bold the right word?

2. I counted 26 bolts holes on one side of one rail. You mention supplying 30 totals nuts/bolts, so that would be 15 per rail? Either 7 or 8 per side? Are all the additional bolt holes just added lightness?

3. I'm a little confused about this "tripler" idea. Are you marketing the use of washers top and bottom as a unique feature?
mgeoffriau is offline   Reply With Quote
Old 04-17-2015, 11:19 AM   #6
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by mgeoffriau View Post
Some thoughts.

I counted 26 bolts holes on one side of one rail.
On one side (the side without the 'curved' end) there looks to be an additional 2 holes so (26 + 28) * 2 rails = 108 holes - bolts
bahurd is offline   Reply With Quote
Old 04-17-2015, 11:58 AM   #7
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

In turn,
Bumping a Thread like That iS Bold,maybe Even Stupid.But,I was only having Fun. I've Been Back For sometime.
That Guy received everything He Paid for..Promptly.Most Of that rancor was 2 people being internet brave,also stupid.
Istarted this thread trying to Leave all of that Behind,Might be a lost Cause But I'm going to Give it a Shot.Why,Because this site Is Where the People are,not going to Lie.Would Like To Make enough to Put Me Back In a Miata.
Could We please try and mark it up to One guy feeling slighted,and another not used to people questioning an extraordinarily difficult portion of his Life?
Thanks.
Ok,

1.Lock washers are glaring omission on my part,point made and taken,Thanks.

2.The only reason Ive contemplated using SAE bolts Is for the cost.Im trying to Supply the Lowest cost possible ,so that more people can afford them.The price is estimated off of Only 20 sets.Im Sure "other"Brands Never order so few.I wanted to Get an estimate On 100 sets but time is Money.But the end cost would be lower still.I agree 1000%not mixing the Bolts,its kind of a pet peeve of mine.Again good Point.

3.The extra holes are for More bolts(Or Rivets).The weight reduction isn't worth the Laser time.15 per rail is the Minimum,So far.The Test fitting is in about 5 hours,so the final number of Holes Most Likely will change.I'm Supplying the Minimum number of bolts,at least 30.The Holes are spaced at 3.75x the Diameter of the holes,so no loss of strength there.If Some wished to fill all of the Bolt Holes with Bolts,I was going to Supply all of the extra hard ware,at no additional cost(only the difference in shipping cost),but on request only.I think few will though.The washer PLates are Different than a standard round washer,at 1" long and 3/4" wide they spread out clamping force 3x farther than a round washer.Also the Hole In the Middle is smaller,so the the Bolt Head has less Chance Of Pulling through.I will Post a Pic(Of Course)of that detail Later today.
Greg
Reverend Greg is offline   Reply With Quote
Old 04-17-2015, 12:43 PM   #8
Junior Member
iTrader: (2)

Join Date: Sep 2014
Location: PHX, Arizona
Posts: 227
Total Cats: 13
Default

Quote:
Originally Posted by Reverend Greg View Post
In turn,
Bumping a Thread like That iS Bold,maybe Even Stupid.But,I was only having Fun. I've Been Back For sometime.
That Guy received everything He Paid for..Promptly.Most Of that rancor was 2 people being internet brave,also stupid.
Istarted this thread trying to Leave all of that Behind,Might be a lost Cause But I'm going to Give it a Shot.Why,Because this site Is Where the People are,not going to Lie.Would Like To Make enough to Put Me Back In a Miata.
Could We please try and mark it up to One guy feeling slighted,and another not used to people questioning an extraordinarily difficult portion of his Life?
Thanks.
Ok,

1.Lock washers are glaring omission on my part,point made and taken,Thanks.

2.The only reason Ive contemplated using SAE bolts Is for the cost.Im trying to Supply the Lowest cost possible ,so that more people can afford them.The price is estimated off of Only 20 sets.Im Sure "other"Brands Never order so few.I wanted to Get an estimate On 100 sets but time is Money.But the end cost would be lower still.I agree 1000%not mixing the Bolts,its kind of a pet peeve of mine.Again good Point.

3.The extra holes are for More bolts(Or Rivets).The weight reduction isn't worth the Laser time.15 per rail is the Minimum,So far.The Test fitting is in about 5 hours,so the final number of Holes Most Likely will change.I'm Supplying the Minimum number of bolts,at least 30.The Holes are spaced at 3.75x the Diameter of the holes,so no loss of strength there.If Some wished to fill all of the Bolt Holes with Bolts,I was going to Supply all of the extra hard ware,at no additional cost(only the difference in shipping cost),but on request only.I think few will though.The washer PLates are Different than a standard round washer,at 1" long and 3/4" wide they spread out clamping force 3x farther than a round washer.Also the Hole In the Middle is smaller,so the the Bolt Head has less Chance Of Pulling through.I will Post a Pic(Of Course)of that detail Later today.
Greg
Your grammar, capitalization, and punctuation REALLY hurts my brain/eyes to read.

The load spreads from the bolt head down and out, but not out very far. Washers that are way larger than the head don't buy you anything really. Just get the correct size washer from the chart and save yourself the laser money.
humming is offline   Reply With Quote
Old 04-17-2015, 12:47 PM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Are you planning on selling enough of these to make money to put you in a Miata after you pay the advertising vendor fees?
concealer404 is offline   Reply With Quote
Old 04-17-2015, 01:32 PM   #10
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Got to cut corners everywhere, we charge by the character, spaces are expensive.
Leafy is offline   Reply With Quote
Old 04-17-2015, 01:38 PM   #11
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Yeah.My Typing is bad.Who would have thought I have An English degree from Southern Illinois University.After a few conversations with some engineer friends of Mine,This method does Have Merit.As I have said,Testing will eventually bear this Out.
The Plan is to make enough to Pay the fees On sites I truly frequent,been paying on one for a Month.But,I've seen Nothing about fee's and the like on this site.Nor,do other"My shop made these" sale threads point to that.Besides,I have sold or offered you anything.
Rev.G-

Last edited by Reverend Greg; 04-17-2015 at 01:48 PM.
Reverend Greg is offline   Reply With Quote
Old 04-17-2015, 01:42 PM   #12
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,687
Total Cats: 560
Default

Note to self: avoid sending the kid to Southern Illinois University.
rleete is offline   Reply With Quote
Old 04-17-2015, 01:45 PM   #13
Junior Member

Join Date: Oct 2011
Location: Montreal, QC
Posts: 194
Total Cats: 28
Default

Other than the $19 savings, what advantage will these offer over the established brand, which had the idea first, is proven - complete with documented gains in stiffness - is compatible with additional butterfly bracing, comes with high quality hardware without needing to be reminded about it from the customer, and is backed by a company which offers excellent customer service, established shipping network, and top tier spelling and capitalization?

Edit: Why do I get negative propped for asking a question? Is it from the competition, angry that I pointed out the $19 savings this product offers?
TalkingPie is offline   Reply With Quote
Old 04-17-2015, 02:04 PM   #14
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

The Initial estimated price Is less.Real world pricing has yet to be established.My hard ware will be sourced from McMaster-Carr.Any claims to advantages are theoretical at this point,as I have said several times,testing will bear this Out.I've had estimates ranging from 8% to 14% increase in torsional stiffness.And a commensurate increase in flexural stiffness.The weight reduction will be documented once the full production parts are made.
Reverend Greg is offline   Reply With Quote
Old 04-17-2015, 05:52 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

There are quite a few frame rail solutions out there. I think the only thing that will make another one better is if it was CHEAP. Like <100$ cheap.
aidandj is offline   Reply With Quote
Old 04-17-2015, 10:26 PM   #16
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Quote:
Originally Posted by Reverend Greg View Post

Secondly,a central stiffening crease to add further rigidity.As you may see,it Is in inward crease so that there should be no loss of Ground clearance.

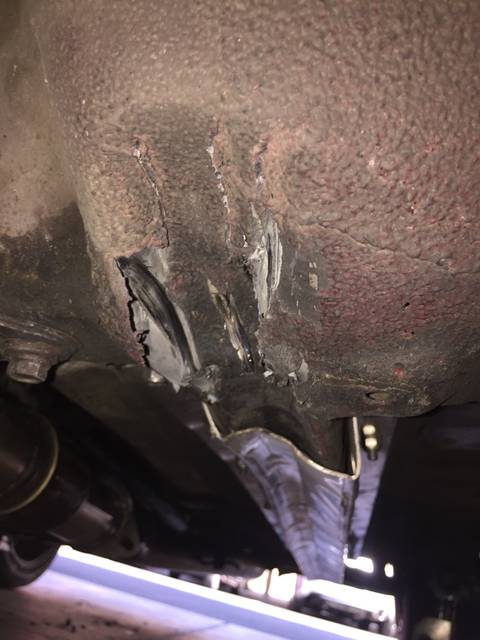

Psh, all you need for that is a rouge crankshaft pulley.

Just kidding. I'll be interested to see if this feature changes anything, and I'm looking forward to your objective testing of products side by side.
Attached Thumbnails
Discuss Pre-production of frame rails-a0kinsnl.jpg
petrolmed is offline   Reply With Quote
Old 04-17-2015, 10:42 PM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by aidandj View Post
There are quite a few frame rail solutions out there. I think the only thing that will make another one better is if it was CHEAP. Like <100$ cheap.
And you do that by making it from 409 stainless or painted plain carbon steel and ordering like 4000 of them from china. Its a ******* undercar brace, it doesnt need to be stainless the subframes arent.
Leafy is offline   Reply With Quote
Old 04-18-2015, 12:59 PM   #18
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Like **** I'm going to drill a hundred holes in my car to accomplish less than what Hard Dog door bars do with another six. This is a worse version of a product in a sea of already pointless products.
albumleaf is offline   Reply With Quote
Old 04-18-2015, 02:37 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Leafy View Post
And you do that by making it from 409 stainless or painted plain carbon steel and ordering like 4000 of them from china. Its a ******* undercar brace, it doesnt need to be stainless the subframes arent.
Psh, I have no idea how to do it. I'm just saying I'm not going to buy a new unproven set of these unless they are ebay cheap. And I think a lot of people are the same way.
aidandj is offline   Reply With Quote
Old 04-18-2015, 03:39 PM   #20
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by albumleaf View Post
Like **** I'm going to drill a hundred holes in my car to accomplish less than what Hard Dog door bars do with another six. This is a worse version of a product in a sea of already pointless products.
To be honest,this has Been the most helpful comment of the thread. After the test fitting last night,and some constructive criticism,a few changes are being made. Primarily to reduce the Number of Holes to 10. And to make it clear,these are not for sale on this site. I hadn't seen the section regarding vendors fees,and That is truly my worst mistake. When the rails are Done,If Kenso24 posts pictures,thats when you can see the final product.
Reverend Greg is offline   Reply With Quote
