Default Energy Suspension Poly Diff Bushings are awful hard, is there anything softer?

Installed Energy Suspension poly diff bushings last week and holy cow am I getting a lot of diff noise inside the car now. I can hear the ring and pinion bouncing on each other every single time I get on or off the throttle and then when I shift the whole diff sounds like it's bouncing/rattling around for a second or so.

The previous owner installed a KAAZ differential which I've read is noisy but it was WAY quieter with the stock bushings.


I do like that the poly bushings have reduced the movement in the shifter though so I'm wondering if there are any poly rear diff bushings out there that are a lower durometer so they're a bit more forgiving than these but will suck up more of the noise coming from the diff. So far it's looking like my best option is to go with the Mazda Comp bushings but if there's something poly out there that's a bit harder than them I think I'd give them a shot.
Ciotti is offline   Reply With Quote
Old 06-13-2012, 01:14 PM   #2
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I ran poly bushings for a few months and got tired of the constant whine right at the speeds that I cruise to and from work. I just put the factory bushings back in. I was debating on getting the mazda comp diff bushings, but it sucks that they are about $50 a peice where the polys are about $50 a pair. Everything else I have found is in the delrin or solid mount catagory.

Last edited by Rallas; 06-14-2012 at 08:39 AM.
Rallas is offline   Reply With Quote
Old 06-13-2012, 02:11 PM   #3
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Try the MMR bushings.

Attached Thumbnails
Energy Suspension Poly Diff Bushings are awful hard, is there anything softer?-618px-trollface_hd.png
kotomile is offline   Reply With Quote
Old 06-13-2012, 03:16 PM   #4
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

My delrin bushings are awesome.
viperormiata is offline   Reply With Quote
Old 06-13-2012, 03:38 PM   #5
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
1999 STR Miata: Tein Flex, Racing Beat header, exhaust, 1.125" sway bar, and braces, Carbing STB, KAAZ diff, 949 15x9's & 225 RS3's
Uhm, and those other changes to your car are for comfort? Behave manly.
Laur3ns is offline   Reply With Quote
Old 06-13-2012, 04:32 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Charleston, SC
Posts: 52
Total Cats: 1
Default

Quote:
Originally Posted by relte View Post
I ran poly bushings for a few months and got tired of the constant wide right at the speeds that I cruise to and from work. I just put the factory bushings back in. I was debating on getting the mazda comp diff bushings, but it sucks that they are about $50 a peice where the polys are about $50 a pair. Everything else I have found is in the delrin or solid mount catagory.
The constant wide right? I'm assuming that's a mistype but I can't figure out what you were trying to say.



Quote:
Originally Posted by Spookyfish View Post
Uhm, and those other changes to your car are for comfort? Behave manly.
None of those other changes make it sound like it's falling apart though and I'm keeping the build as mild as I can because once my Cobra is back together this car will become my girlfriend's weekend toy.
Ciotti is offline   Reply With Quote
Old 06-13-2012, 04:50 PM   #7
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

They bushings are not that bad. I have them all the way around (The full set). I would say it is the suspension. My harsh ride is from the rebound on my revalved shocks. But even still it does not feel like it fall apart. And that is on crappy Houston streets.
Pitlab77 is offline   Reply With Quote
Old 06-13-2012, 06:33 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Charleston, SC
Posts: 52
Total Cats: 1
Default

So you're saying the poly diff bushings are transmitting more of the suspension noise? I don't think that's the case because I'm getting all of the clunking and rattling on shifts and when coming on/off the throttle not when the suspension is going through it's movement or when hitting bumps.
Ciotti is offline   Reply With Quote
Old 06-13-2012, 06:39 PM   #9
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I just went from the MMR mounts to poly, and I like the poly better.

With that said, I have one diff mount I can sell you- ran it about 2500 miles in my car. The other one tore when I was removing it to powdercoat the diff and as stated, it was cheaper to buy a pair of poly than a replacement.
mighty mouse is offline   Reply With Quote
Old 06-13-2012, 07:12 PM   #10
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

Quote:
Originally Posted by Ciotti View Post
None of those other changes make it sound like it's falling apart though and I'm keeping the build as mild as I can because once my Cobra is back together this car will become my girlfriend's weekend toy.
My car doesn't have any original bushings and it doesn't sound like it's falling apart. It does feel like one, solid piece though. It's not the bushings.
You're doing something wrong? Maybe its your KAAZ diff?
soviet is offline   Reply With Quote
Old 06-13-2012, 07:35 PM   #11
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Quote:
Originally Posted by soviet View Post
My car doesn't have any original bushings and it doesn't sound like it's falling apart. It does feel like one, solid piece though. It's not the bushings.
You're doing something wrong? Maybe its your KAAZ diff?
yup
jacob300zx is offline   Reply With Quote
Old 06-13-2012, 07:53 PM   #12
Junior Member
Thread Starter

Join Date: Jan 2012
Location: Charleston, SC
Posts: 52
Total Cats: 1
Default

I've definitely read that the KAAZ diff is noisy and I could hear it very faintly every once in a while with the stock bushings if I dipped the clutch just at the wrong moment when pulling into a parking spot but now with the poly it's so much louder and I can hear it on every single shift.

I ordered some KAAZ diff fluid yesterday and I'm going to take a gander at how much play there is in the driveshaft when I'm putting it in to see what I can find.
Ciotti is offline   Reply With Quote
Old 06-14-2012, 08:40 AM   #13
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Sorry, meant to say "constant whine".
Rallas is offline   Reply With Quote
Old 06-14-2012, 10:12 AM   #14
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

What about RX7 bushings? They ones I pulled out of the TII housing seemed fairly stiff with more material in them then the Miata units.
chpmnsws6 is offline   Reply With Quote
Old 06-14-2012, 11:29 AM   #15
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Quote:
Originally Posted by chpmnsws6 View Post
What about RX7 bushings? They ones I pulled out of the TII housing seemed fairly stiff with more material in them then the Miata units.
Those bushings are too tall. You won't be able to bolt up the rear end.
viperormiata is offline   Reply With Quote
Old 07-16-2012, 05:23 PM   #16
Newb

Join Date: Sep 2011
Location: Sweden, Írebro
Posts: 34
Total Cats: 2
Default

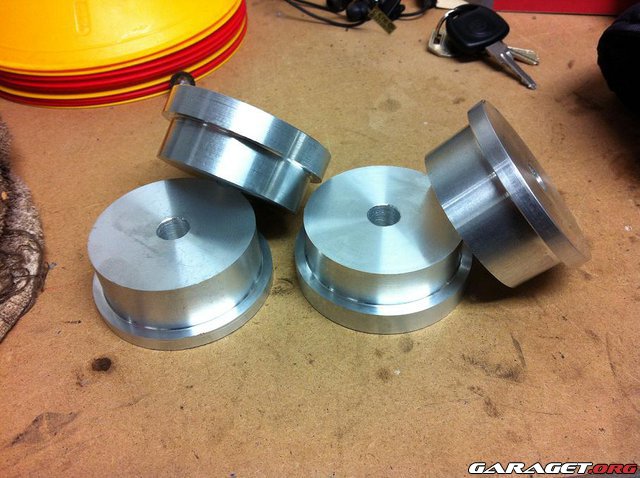

Im running custom "hardcore" diff bushings.


NO noise. No whining. No vibrations and stuff.


This is what i use:



Solid bushes for teh win. No egay Sh**
Attached Thumbnails
Energy Suspension Poly Diff Bushings are awful hard, is there anything softer?-247712-2543581.jpg
myrando is offline   Reply With Quote
Old 07-16-2012, 05:37 PM   #17
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

My ES Poly has been great. One person's loud/noisy/"too much" is different from another's though.

Also, get TORCO oil for your diff. It is way cheaper and recommended for KAAZ by KAAZ if you cant afford KAAZ.
TURNS101 is offline   Reply With Quote
Old 07-16-2012, 05:42 PM   #18
Newb

Join Date: Sep 2011
Location: Sweden, Írebro
Posts: 34
Total Cats: 2
Default

Quote:
Originally Posted by TURNS101 View Post
My ES Poly has been great. One person's loud/noisy/"too much" is different from another's though.

Also, get TORCO oil for your diff. It is way cheaper and recommended for KAAZ by KAAZ if you cant afford KAAZ.
Dident notice any diffrent sound when going from stock to solid. But the car feels sooo mutch better when shifting fast.
myrando is offline   Reply With Quote
