Default Failed competition clutch

Posting this to see if others have had a similar issue ever and to ask questions so I can see if there is anything I did wrong so as never to repeat.

The clutch was broken in and then had some dyno sessions. Second session of a HPDE weekend and the clutch just let go. No signs of diminishing power, no undue shuttering, etc. Just no longer engaged out on track.

The clutch is a Competition Clutch, 2100. The car is making about 190ft/lbs. The plan is to send the clutch back to the manufacturer and see if they will honor a 90 day warranty that has elapsed.

The clutch was installed by AR Auto Services at the start of March this year.

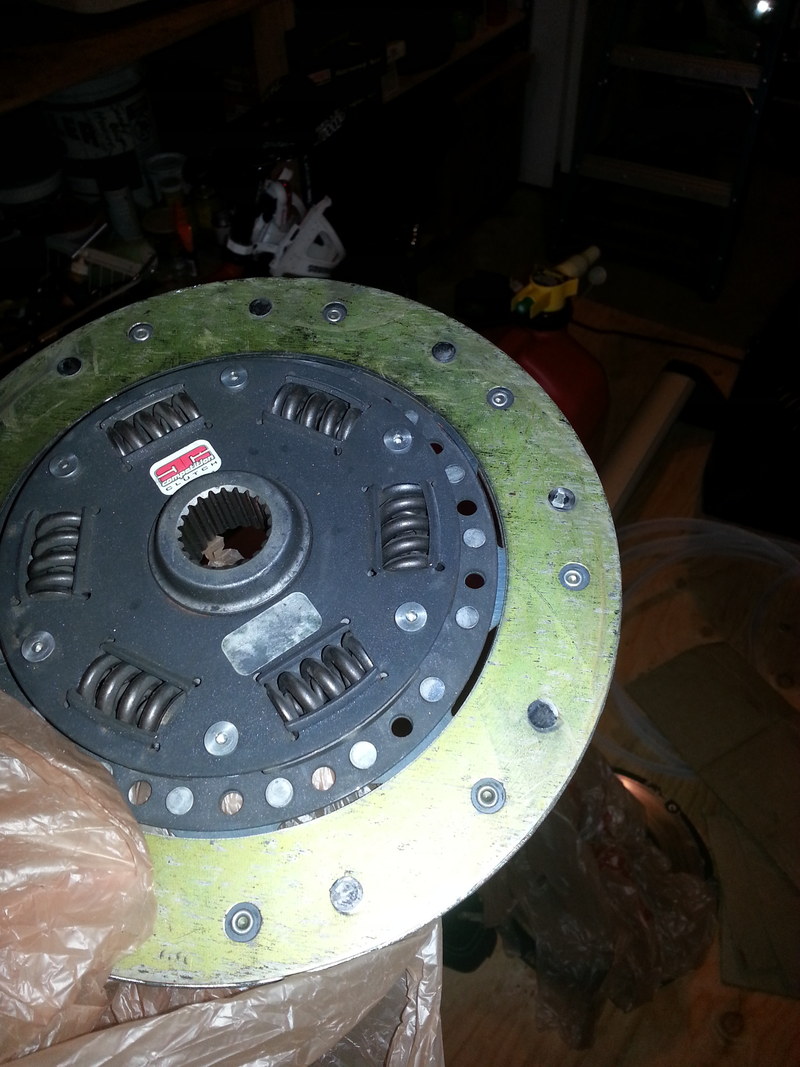

Name:  20150903_070841_zpslxfpsww2.jpg
Views: 16
Size:  173.3 KB
Attached Thumbnails

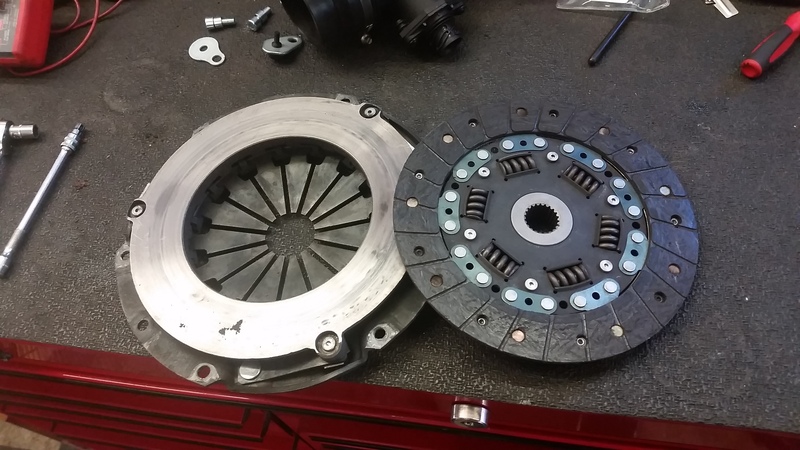

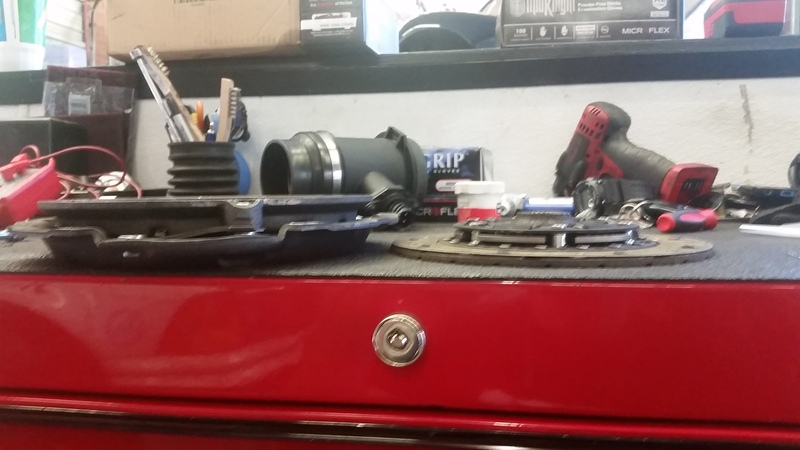

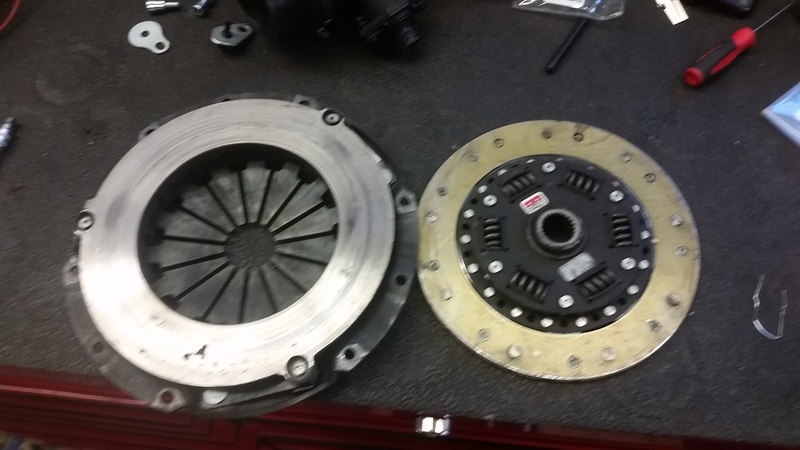

Failed competition clutch-20150819_095604_zpsz6wbzab2.jpg   Failed competition clutch-20150819_095541_zps0ev7hz3z.jpg   Failed competition clutch-20150819_095551_zps1tcu0v5b.jpg

Last edited by tazswing; 09-04-2015 at 02:08 PM.
tazswing is offline   Reply With Quote
Old 08-22-2015, 06:49 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

It's not a popular clutch here, if I'm not mistaken. Loved the feel of it though, and while it worked it had no issues controlling the power. So who knows, any FM or ACT clutch could of done the same thing.

However my inclination would be to run a proven setup like FM2 or a ACT HD.
curly is offline   Reply With Quote
Old 08-22-2015, 06:55 PM   #3
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

<p>
Quote:
Originally Posted by curly View Post
It's not a popular clutch here, if I'm not mistaken. Loved the feel of it though, and while it worked it had no issues controlling the power. So who knows, any FM or ACT clutch could of done the same thing. However my inclination would be to run a proven setup like FM2 or a ACT HD.
</p><p>I mean, the FM2 is still a comp clutch :P</p>
Schuyler is offline   Reply With Quote
Old 08-22-2015, 07:52 PM   #4
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by Schuyler View Post
<p></p><p>I mean, the FM2 is still a comp clutch :P</p>
That was my understanding as well (edit, though it appears to be made to "FM specs" but still a CC clutch).

Also, FM site states: "The Level 1 will hold as much torque as the ACT HD."

Last edited by tazswing; 08-22-2015 at 08:05 PM.
tazswing is offline   Reply With Quote
Old 08-22-2015, 08:09 PM   #5
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

It's a strange failure. I was shocked when I pulled it out.
greddygalant is offline   Reply With Quote
Old 08-22-2015, 08:16 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by greddygalant View Post
It's a strange failure. I was shocked when I pulled it out.
Based on the side that is intact, does it look like I did a poor job with the break-in?
tazswing is offline   Reply With Quote
Old 08-31-2015, 04:12 AM   #7
Newb

Join Date: Aug 2015
Location: Lansing,IL
Posts: 8
Total Cats: 0
Default

I've had similar problems with competition clutch, my spring popped out of the disk on my s2000
ino20 is offline   Reply With Quote
Old 08-31-2015, 11:11 AM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by tazswing View Post
Based on the side that is intact, does it look like I did a poor job with the break-in?
I meant to respond to this when you posted, but forgot. This has nothing to do with break-in, it's a failed component, I've successfully broken a few clutches in on the dyno, you didn't do any worse than that.
curly is offline   Reply With Quote
Old 08-31-2015, 11:30 AM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Heard anything about a warranty? Interested to hear how the customer support is.</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 11:45 AM   #10
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by aidandj View Post
<p>Heard anything about a warranty? Interested to hear how the customer support is.</p>
I faxed them the paper work needed to generate a return form and have not heard back from them. Everyone I talk to so far over there sounds like they are having a terrible day.

I will follow-up tomorrow by phone since I don't have time during their business hours today.

In the mean time I think I will be very happy with the ACT HD that AR Auto put in for me. I really should learn how to do a clutch.
tazswing is offline   Reply With Quote
Old 08-31-2015, 11:46 AM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>It sucks without a lift. I bought some 6 ton jackstands so I can get the car like 2 feet in the air. After a couple throwout bearing failures I've got it down to about an evening.</p>
aidandj is offline   Reply With Quote
Old 08-31-2015, 11:48 AM   #12
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

ok, fixed.

Quote:
Originally Posted by tazswing View Post
In the mean time I think I will be very happy with the ACT HD that AR Auto put in for me. I really should put a damn lift in my garage.
tazswing is offline   Reply With Quote
Old 09-04-2015, 03:32 AM   #13
Junior Member

Join Date: Sep 2011
Posts: 64
Total Cats: 0
Default

andrew, why are you breaking things?
lightw8 is offline   Reply With Quote
Old 09-04-2015, 12:22 PM   #14
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by lightw8 View Post
andrew, why are you breaking things?
Says the man who bent his wheel, in the winter, driving an AWD car!


But in other news, I sent back the clutch minus the throw out bearing and pilot bearing...which might be enough for them to not even look at it since the "warranty" return states those parts need to be sent back as well.

more photos later today.
tazswing is offline   Reply With Quote
Old 09-04-2015, 02:09 PM   #15
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

I added two new photos to be examined by folks.
tazswing is offline   Reply With Quote
Old 09-04-2015, 02:35 PM   #16
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

I bought a used ACT XT in 2007 or so, been shoving lots of boost through it ever since. It's never blinked. I would not hesitate to buy an ACT clutch.
patsmx5 is online now   Reply With Quote
Old 09-04-2015, 02:40 PM   #17
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by patsmx5 View Post
I bought a used ACT XT in 2007 or so, been shoving lots of boost through it ever since. It's never blinked. I would not hesitate to buy an ACT clutch.
Yeah, so the story goes. Too bad the ACT-HD in my car now is not the one from the start. Lesson learned.
tazswing is offline   Reply With Quote
Old 09-23-2015, 05:09 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default An answer

"Hello Andrew,

Thank you for sending your clutch in for inspection. It looks like one of the rivets wasn’t pressed in correctly which almost never happens. We will be happy to warranty this clutch kit for you. Are you looking for a replacement kit? If so please confirm what address you would like it sent to.

Thanks,


Clifton V.
Warranty/Tech/Returns
Competition Clutch, Inc
Phone: 1-800-809-6598
Fax: 678-623-3311
http://www.competitionclutch.com/
Facebook – Twitter – Foursquare"
tazswing is offline   Reply With Quote
Old 09-23-2015, 06:06 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Did they offer a refund?</p>
aidandj is offline   Reply With Quote
Old 09-23-2015, 06:10 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by aidandj View Post
<p>Did they offer a refund?</p>
Yes, but not directly. I am now chatting with Fab9 Tuning who sold me the clutch since it sounds like CC reimburses Fab9 who reimburses me.

"I want my two dollars!!"
tazswing is offline   Reply With Quote
