Default Just swapped a 1.8 rear end

Hello. I recently installed a 1.8 rear end from a base 94. Is the driveshaft supposed to go in a certain way? I basically just removed the 1.6 driveshaft and popped the 1.8 driveshaft in and bolted it up to the 1.8 diff. Looks like it isn't "all the way" in there.. Then again I've read about the 1.8 driveshafts being shorter. Also, did I have to reuse the 1.6 ppf? I used the 1.8 diff, driveshaft, brakes, subframe, half shafts, axles, ppf, lower & upper control arms. Vehicle is still on jackstands. Please let me know as soon as possible. I don't want to experience any vibrations or binding issues.
AdoboMiata is offline   Reply With Quote
Old 08-09-2013, 09:51 PM   #2
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Yes. I used my existing ppf, new shaft, new dif, new axles. that was it.
krissetsfire is offline   Reply With Quote
Old 08-13-2013, 09:54 AM   #3
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

If the driveshaft was in all the way you wouldnt be able to remove it.
Leafy is offline   Reply With Quote
Old 08-15-2013, 02:28 PM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Thank you for your input. Another question. I left the car in first gear, driveshaft locks, but the wheels still could move freely (car is still on stands). Is this normal? On neutral driveshaft and wheels move freely (which is normal).
AdoboMiata is offline   Reply With Quote
Old 08-15-2013, 02:30 PM   #5
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

1 wheel should move freely while the other one rotates the opposite direction if you have the car in gear, unless you have a clutch type lsd.
Leafy is offline   Reply With Quote
Old 08-15-2013, 03:48 PM   #6
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

I don't think it's LSD. It moves in opposite directions.
AdoboMiata is offline   Reply With Quote
Old 08-15-2013, 03:59 PM   #7
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by AdoboMiata View Post
I don't think it's LSD. It moves in opposite directions.
Both open and Torsen do this.

To positively identify a Torsen, look in the filler hole with a good, strong penlight. If you see spider gears, it's open.

Another way is to pull the halfshaft or stub shaft and look into the hole. If there is a spider gear axle in there, it's open.

Do a search for "Miata Differential Spotter's Guide" or similar. There's a good writeup out there with lots of pics.
hornetball is offline   Reply With Quote
Old 08-15-2013, 04:05 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

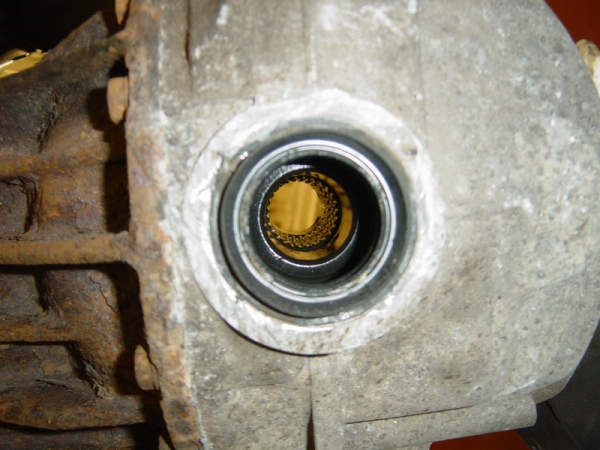

Another way to tell if it's a torsen is to look into the hole that the axle slides into. If you can see straight through to the other side, it's a torsen.

Attached Thumbnails
Just swapped a 1.8 rear end-torsen_s.jpg
Fireindc is offline   Reply With Quote
Old 08-15-2013, 04:07 PM   #9
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by hornetball View Post
Another way is to pull the halfshaft or stub shaft and look into the hole. If there is a spider gear axle in there, it's open.
Quote:
Originally Posted by Fireindc View Post
Another way to tell if it's a torsen is to look into the hole that the axle slides into. If you can see straight through to the other side, it's a torsen.
I thought that is what I said. But, pic = 1000 words.
hornetball is offline   Reply With Quote
Old 08-15-2013, 04:19 PM   #10
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by hornetball View Post
I thought that is what I said. But, pic = 1000 words.
My bad, I only read the first method you mentioned and decided to chime in with the method that has helped me in the past.

Reading comprehension fail.
