Old 04-26-2012, 08:24 AM   #41
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

This project looks like it will be fun to watch. Can I assume this has become a sort of build thread?
skidude is offline   Reply With Quote
Old 04-26-2012, 10:19 AM   #42
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

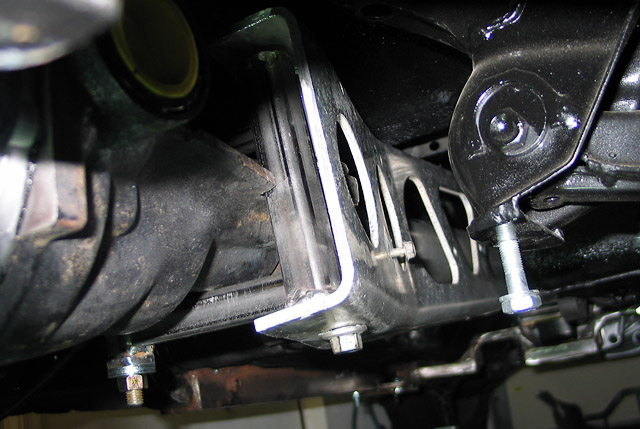

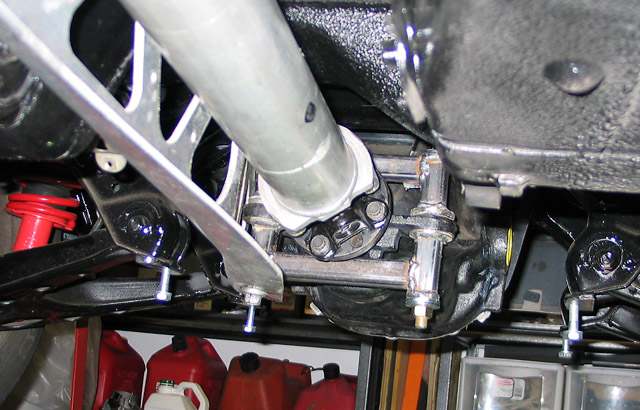

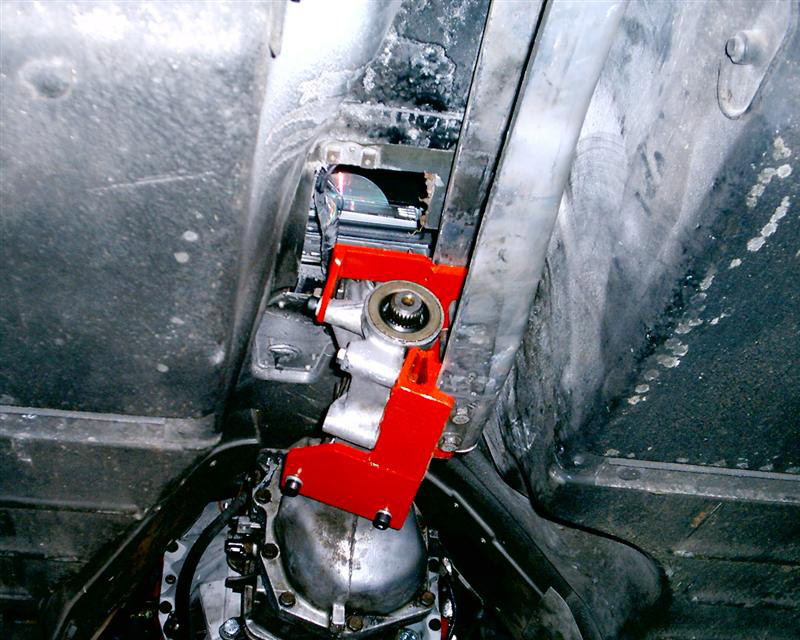

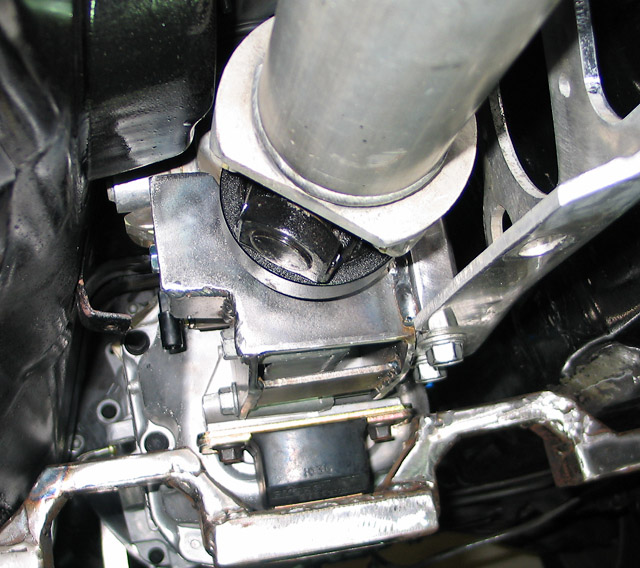

I've seen the ppf kept in a variety of trans/diff installs- it's all about using existing bosses on the trans diff to build a structure, then doing the same on the ppf, getting everything in position and tacking the two adjacent structures together. Couple of examples attached.
Attached Thumbnails
making an FC turbo II trans adapter or bell housing.-ppftransadapter1.jpg   making an FC turbo II trans adapter or bell housing.-ppftransadapter2.jpg   making an FC turbo II trans adapter or bell housing.-ppfadapter02.jpg   making an FC turbo II trans adapter or bell housing.-ppfadapter05.jpg
m2cupcar is offline   Reply With Quote
Old 04-26-2012, 11:35 AM   #43
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

The FD PPF is entirely different from the Miata PPF. You would have to build your own. The FD PPF is also on the left side of the car, where the Miata PPF is on the right side, so you would never be able to fit an exhaust between the FD PPF and the floor on a Miata.
vehicular is offline   Reply With Quote
Old 04-26-2012, 12:37 PM   #44
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

my point being it does not matter what is what- it can be adapted as needed

Last edited by m2cupcar; 04-27-2012 at 09:35 AM.
m2cupcar is offline   Reply With Quote
Old 04-27-2012, 04:02 AM   #45
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Not shooting you down, just clarifying.
vehicular is offline   Reply With Quote
Old 08-30-2012, 10:59 PM   #46
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

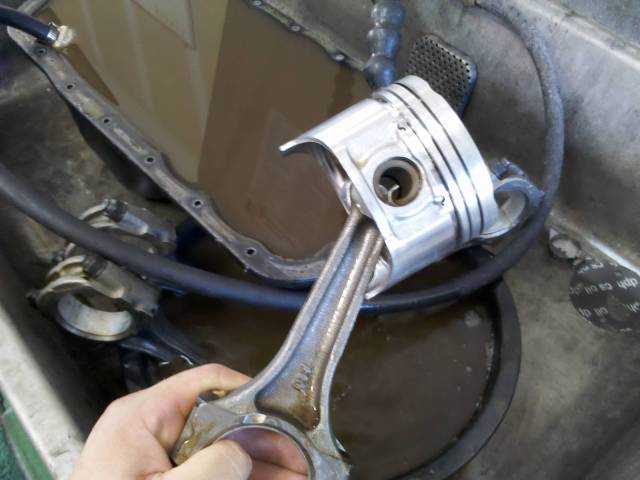

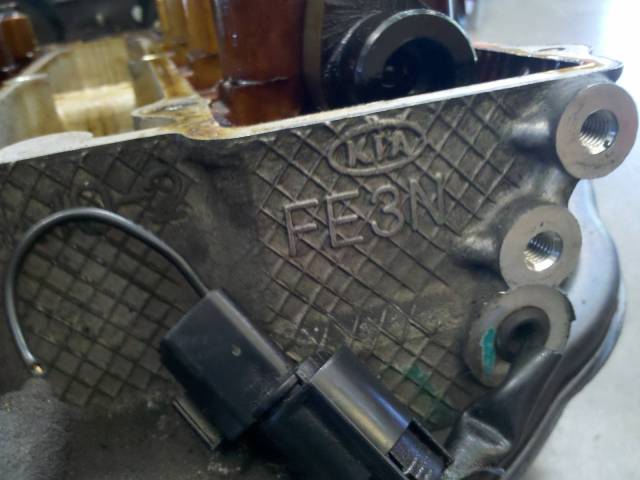

finally more updates. ive chosen and purchased my engine. i went with a 2002 kia sportage FE3N. i scored it off craigslist for $100 for the engine, head, covers, intake and exhaust manifolds, and clutch with flywheel. unknown mileage and the guy said it had no compression. first thing was to do a leakage test. all the valves do not seat due to deposits but over all the head looked clean inside. i got the motor pulled apart and the bearings, crank, rods, cams, lifters look almost brand new less some "score like" discoloration in cyl 3 that is so light that you cant feel it with a razor blade and some very light scuffing on the piston skirts.

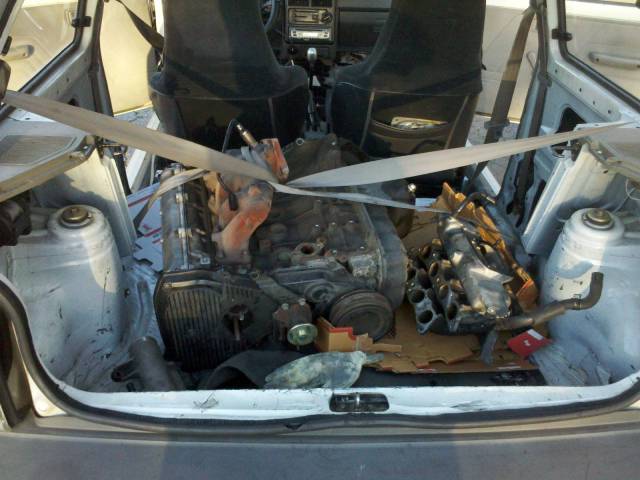

everything gets transported in the racecar



so shiny


also getting this:
Attached Thumbnails
making an FC turbo II trans adapter or bell housing.-img_20120829_184147.jpg   making an FC turbo II trans adapter or bell housing.-img_20120830_121247.jpg   making an FC turbo II trans adapter or bell housing.-img_20120830_162600.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-31-2012, 09:32 AM   #47
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

So is this getting any internal work? Any head work?
Also, you better get new rings before slapping it back together, I'll kill you if you re-use these.
18psi is offline   Reply With Quote
Old 08-31-2012, 11:30 AM   #48
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

im having everything gone through. new timing belt/water pump, bearings, rings, gasket match the head ports, probably cc and polish the combustion chambers and unshroud the valves. no one makes forged pistons so i think im just gonna try to get these coated.
fastivab6tg25mr is offline   Reply With Quote
Old 08-31-2012, 11:46 AM   #49
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Cool beans.
I don't see the need to coat these if you'll be running on e85 though.
Unless you plan to stay on 91 ****.
18psi is offline   Reply With Quote
Old 08-31-2012, 02:43 PM   #50
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

KIA POWER!
seriously, soon your front subframe will drive off on its own.
soviet is offline   Reply With Quote
Old 08-31-2012, 02:51 PM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

This is going in his Spitfire
18psi is offline   Reply With Quote
Old 08-31-2012, 04:07 PM   #52
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

This thread is relevant to my interests. I have a 1973 triumph gt6 and will be following your build.

Cant wait to see how you tackle the frame work, take a ton of pics so I can copy you please.
Fireindc is offline   Reply With Quote
Old 08-31-2012, 04:34 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

He's having some pro build him a custom frame. He wants to do wheel stands on the street.

This thing will be nuts
18psi is offline   Reply With Quote
Old 08-31-2012, 05:58 PM   #54
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Holy Crap! Sub'd!


Quote:
Originally Posted by djp0623 View Post
Which one of those transmissions is cheap??? If I spend money on an adapter plate, it's going to adapt a trans that is easily, and cheaply picked up at the salvage lot.

It would be nice to have a trans that you know you could beat the crap out of it all down long and not worry. I still baby my six speed.
FWIW, if the TKO500/600 fits that adapter the Tremec 3550 or standard T5 should also. Where you'll run into an issue is the input shafts, but trans are readily available, can be super cheap, take more abuse than a BP could issue (even with me driving it) and have 3 different ratios. I've got 5 of them in my shed and have been lusting for someone to make an adapter plate.........
elesjuan is offline   Reply With Quote
Old 08-31-2012, 06:56 PM   #55
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Quote:
Originally Posted by fastivab6tg25mr View Post

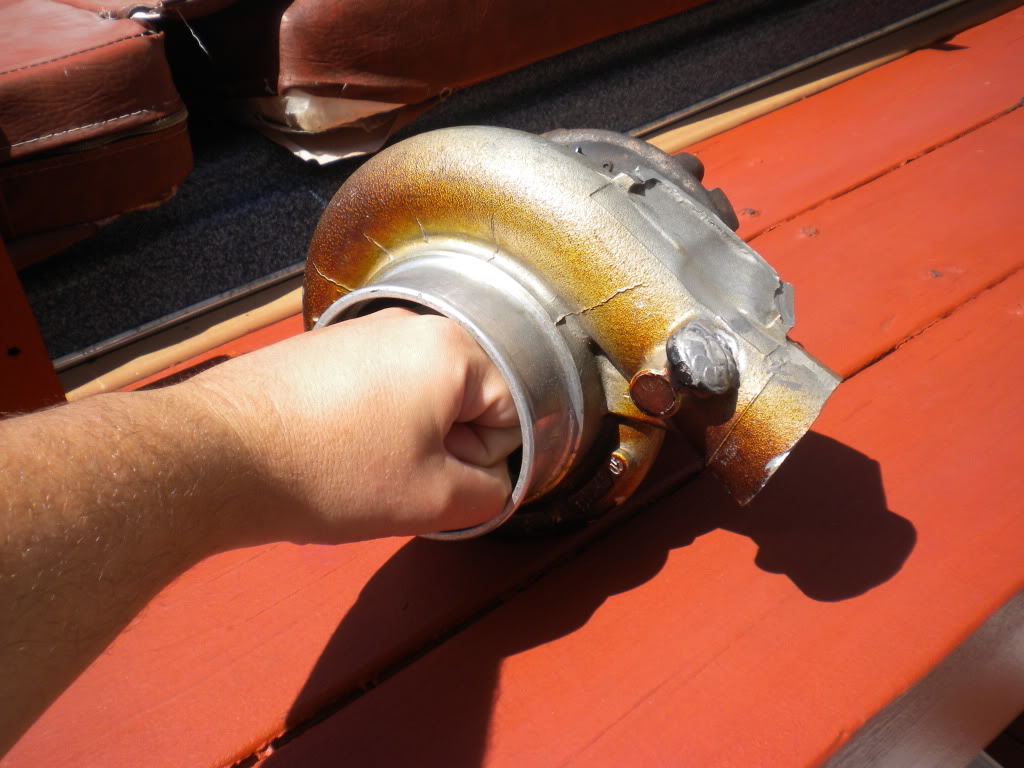

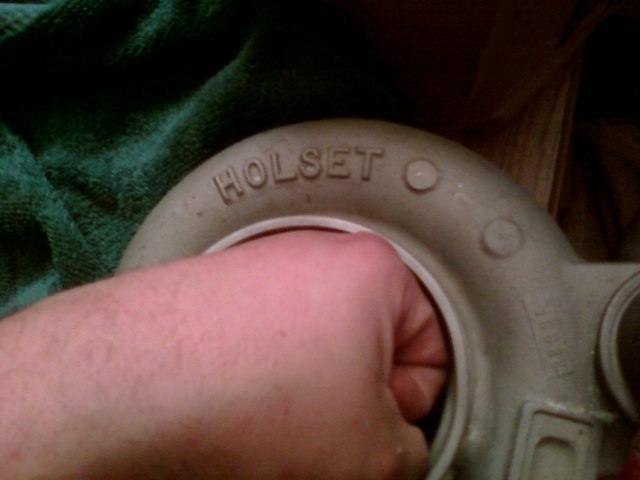

also getting this:
Hello, brother.

Attached Thumbnails
making an FC turbo II trans adapter or bell housing.-fistingaholset.jpg   making an FC turbo II trans adapter or bell housing.-dscn1402.jpg
viperormiata is offline   Reply With Quote
Old 08-31-2012, 11:09 PM   #56
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Quote:
Originally Posted by 18psi View Post
He's having some pro build him a custom frame. He wants to do wheel stands on the street.

This thing will be nuts
he has too much going on to help me... been looking for a decent tube bender
fastivab6tg25mr is offline   Reply With Quote
Old 09-01-2012, 02:05 AM   #57
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

fail

aids

just do a miata
18psi is offline   Reply With Quote
Old 09-01-2012, 03:27 AM   #58
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

There's no doubt it would be easier to do a miata, and it would probably handle the power better, corner better, brake better, etc. But think about the steeze of this badass triumph. In for triumph success.
Fireindc is offline   Reply With Quote
Old 09-01-2012, 11:56 AM   #59
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Quote:
Originally Posted by Fireindc View Post
There's no doubt it would be easier to do a miata, and it would probably handle the power better, corner better, brake better, etc. But think about the steeze of this badass triumph. In for triumph success.
how so? im using miata front and rear subframes and suspension. im taking inspiration from corycords build.

also if i made a miata id have to smog it
fastivab6tg25mr is offline   Reply With Quote
Old 09-02-2012, 03:55 AM   #60
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

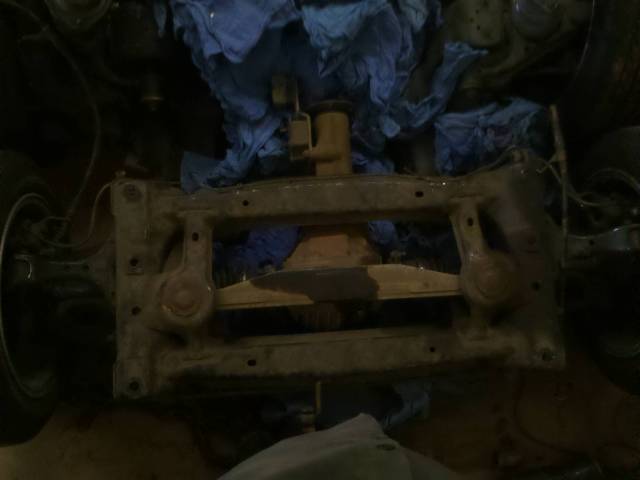

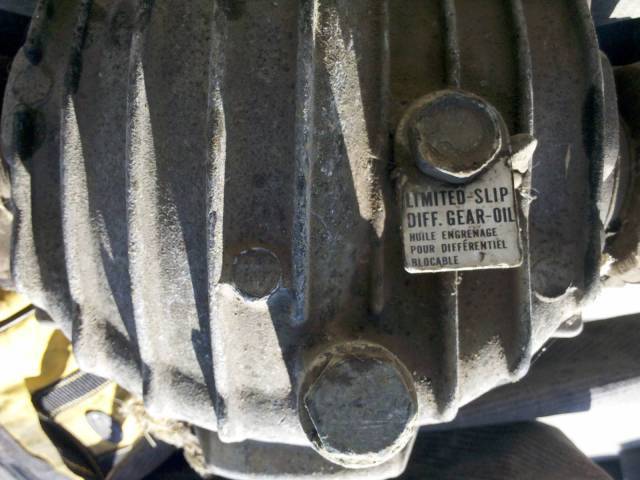

took advantage of the 1/2 price at pick n pull. picked up an N/A RX7 lsd. from what im reading it should be a clutch type with 4.30 gearing

since im going to have to custom make a drive shaft anyways is there any advantage to swapping out the pinion housings for the miata one?


the pinion housing sticks out a little bit...
Attached Thumbnails
making an FC turbo II trans adapter or bell housing.-fclsd.jpg   making an FC turbo II trans adapter or bell housing.-fclsdinstalled.jpg
fastivab6tg25mr is offline   Reply With Quote
