Default Miata, S13, FC RX-7 OuterTie Rod Interchangability.

So miata tie rod ends are expensive, and have some bump steer when even slightly lowered.
The LE oem mazda ones that reduce bump steer are even more expensive.

So I had a plan, be cheap like a drifter and use non OEM parts... from different cars. :lol:
Several of the parts were donated to this cause. Thanks to the people that gave me stuff.

Disclaimer... I have not tried this on the car yet... but I plan to try the s13 rod ends soon.


So first off, a comparison.

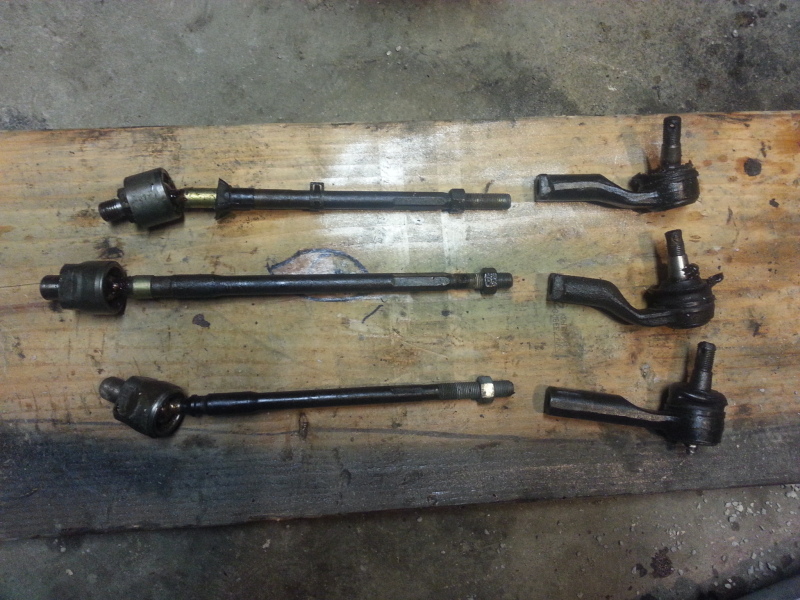

Top to bottom:
FC RX7 power steering
Miata (NA 94) power steering
240sx s13.

And they all fit the others. ( ends swapped one up, inners in same order )
The inners do not swap between racks, they all have different inner threads.


They angle the outer tie rod for steering feel or something.
The LE/fc tie rods are supposed to reduce bump steer on slightly lowered cars. But I am going to try the dirt cheap S13 rod ends.

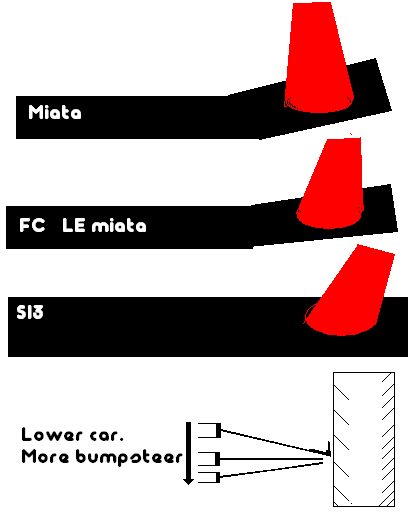

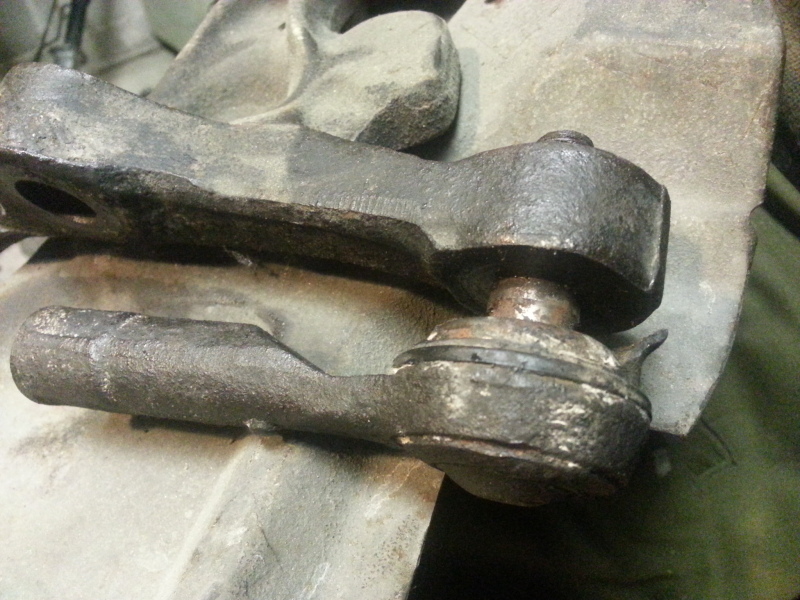

The stock miata one (left) have a large angle, the fc one (right) has less and looks oddly like the LE miata tie rods ends that are really expensive....

But for slammed cars, the s13 is straight, and all fit fine in the NA miata hub.



As for price, the s13 is winner too.
Cheapest outers on rockauto:
Miata 1995 $35
Rx-7 1989 $25
S13 1989 $7 :lol:

The LE oem mazda part are $60+ each, and are the same looking angle as the RX-7 FC outers.
Attached Thumbnails
Miata, S13, FC RX-7 OuterTie Rod Interchangability.-243nqdi.jpg   Miata, S13, FC RX-7 OuterTie Rod Interchangability.-2ldisle.jpg   Miata, S13, FC RX-7 OuterTie Rod Interchangability.-29m8xt4.png   Miata, S13, FC RX-7 OuterTie Rod Interchangability.-28urclw.jpg   Miata, S13, FC RX-7 OuterTie Rod Interchangability.-28lx2q9.jpg


Last edited by AkaZero; 11-05-2012 at 03:06 AM. Reason: correcting wrongs.
AkaZero is offline   Reply With Quote
Old 11-05-2012, 02:53 AM   #2
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Bumpsteer is NOT a function of the angle between the tie rod end joint housing and the tie rod, but of the height offset between the axis of the tie rod and the axes of the control arms as determined by the location of the tie rod axis relative to the pin taper where the tie rod end seats into the steering arm.
vehicular is offline   Reply With Quote
Old 11-05-2012, 03:03 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Not sure what you call full lock forced steering caused by bumps then.... "the other bump steer"

Not a suspension engineer. Just a drifter, and we be cheap. I like $25 tie rods over $60 tie rods that are basically the same.

I'll just remove my wrong bump steer info.
AkaZero is offline   Reply With Quote
Old 11-05-2012, 03:08 AM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

It's still bump steer, you're just not describing the fix for it. Changing the length of the pin between the pivot ball and the taper is what changes bump steer. Changing the angle of the pad that the joint rides in... changes the angle of the pad. Effectively nothing else. Go read Milliken's Race Car Vehicle Dynamics. Try this thread again later.
vehicular is offline   Reply With Quote
Old 11-05-2012, 03:33 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Doing some googling. On bump steer aka "reactive toe"
Learn something new everyday, but the more you know about cars, the less you understand about cars.
AkaZero is offline   Reply With Quote
Old 11-05-2012, 09:32 PM   #6
Newb
iTrader: (1)

Join Date: Oct 2012
Posts: 21
Total Cats: 0
Default

haha thats the truth
Slidinmiata is offline   Reply With Quote
Old 11-06-2012, 05:48 PM   #7
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Wont you run into binding issues at full lock with the ball joint being strait rather then angled?
Sokool is offline   Reply With Quote
Old 11-10-2012, 09:42 AM   #8
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

I thought this would help. Because if the wheels moves 1 inch up over a bump when the tie rod is perfectly horizontal at rest the tie rod end would move in slightly, turning the wheel. But if the tie rod was at 45 degrees 1 inch movement would move the tie rod end heaps further in, turning the wheel more. Does this apply more to changes in toe in cornering and braking? Can someone correct me here?

Im just doing thought experiments at 1am in the morning, so Im probably not getting a full grasp of the situation...
Vilko is offline   Reply With Quote
Old 03-05-2013, 03:47 PM   #9
Newb

Join Date: Aug 2011
Location: pittsburgh area
Posts: 31
Total Cats: 0
Default

Does anyone know what the thread size of the end that goes into the rack is?
Google was not my friend today and was with holding this information from me.
KPNITCLAC is offline   Reply With Quote
Old 02-17-2015, 01:55 PM   #10
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by vehicular View Post
Bumpsteer is NOT a function of the angle between the tie rod end joint housing and the tie rod, but of the height offset between the axis of the tie rod and the axes of the control arms as determined by the location of the tie rod axis relative to the pin taper where the tie rod end seats into the steering arm.
This ^

The joggle differences in the cast part in those comparison pictures don’t change the kinematics of the suspension one bit. the Joggle is just for centering the range of angular movement needed of the ball joint as the suspension articulates. without some joggle you might run out of range of motion and start bending the tie rod if you have too much rebound travel by exceeding its range of motion. This could be a problem with just using a common rod end with an ajustable stud.

What matters for suspension kinimatics is where the center of the ball on the stud part ends up relative to the arm when it’s tightened in place on the knuckle, Is it longer or shorter.
bbundy is offline   Reply With Quote
Old 02-17-2015, 02:00 PM   #11
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by KPNITCLAC View Post
Does anyone know what the thread size of the end that goes into the rack is?
Google was not my friend today and was with holding this information from me.
I have personally seen 3 different thread sizes on OEM miata racks even the input splines are different NA to NB. Im not sure if all NB's are the same. Might need some parts book searching to figure out change dates.
bbundy is offline   Reply With Quote
Old 02-21-2015, 12:04 PM   #12
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

An easy way to understand this is to insatall the different joints and measure from the mounting surface on the knukle, to the center of the ball joint. Until that measurement increases in height, nothing will change. Like it was stated before, the angle of the joint is there to allow total movement without binding the joint itself.
ryansmoneypit is offline   Reply With Quote
Old 07-21-2015, 02:55 PM   #13
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Sorry to dig this up, but I need to get my car aligned and figured I might as well replace my tie rod ends with busted ball joints first.

Can anyone dumb this down for me? Did AkaZero just show us that $40 FC tie rod ends are the same as $130 LE/R-pkg tie rod ends? Can I just cheap out and get random autoparts store brand or do I need to get OEM stuff?
pdexta is offline   Reply With Quote
Old 07-21-2015, 03:12 PM   #14
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I just replaced mine when i depowered my rack. I used the cheap ones. they were comparable to my stockers.
krissetsfire is offline   Reply With Quote
Old 07-21-2015, 06:43 PM   #15
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Looking at the car on the ground it certainly looks like the S13 tie rod ends will resolve the bumpsteer issue (as far as I understand it anyway). I went ahead and ordered some so hopefully they work out. I'll try to take some before and after measurements for the angle on the tie rods.
pdexta is offline   Reply With Quote
Old 07-23-2015, 05:36 PM   #16
Newb

Join Date: Jun 2015
Posts: 17
Total Cats: -1
Default

I kinda feel like the s13 tie rods will bind. The knuckle on my miata is at a downward facing angle. I think the tie rod needs a matching angle to avoid binding.

Im really interested in the FC tie rod. It looks like the le one. Has anyone tried it since the original post?


Quote:
Originally Posted by krissetsfire View Post
I just replaced mine when i depowered my rack. I used the cheap ones. they were comparable to my stockers.
Which cheap ones did you use? Just cheap miata ones? Or one of the optio s listed here?
Mazdated is offline   Reply With Quote
Old 07-25-2015, 12:35 PM   #17
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

S13 tie rods arrived and went on. They physically fit but steering is obviously screwed up, very darty and unstable. I wouldn't leave the neighborhood on them. I measured the height of the end of the tie rod and it was actually 1/16th higher (worse) with the with the S13 ends vs stock. Going back to the regular miata tie rod ends, it was worth a shot.

I'm still interested in the RX7 ends, but not willing to keep swapping them out to see if it works.
pdexta is offline   Reply With Quote
Old 07-25-2015, 12:42 PM   #18
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

I think you will have a toe adjustment limit problem with the FC ends.
Ted75zcar is offline   Reply With Quote
Old 07-26-2015, 08:04 PM   #19
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Thanks for testing this for everyone though. I was interested since getting R/LE tie rod ends are pretty pricey.
90civichhb is offline   Reply With Quote
Old 07-26-2015, 08:19 PM   #20
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

The '94 LE power rack ends DID NOT work on my '91 manual rack. I could not get tje toe right with my MOMO wheel. Ran out of thread on the rod.

Just an FYI
Ted75zcar is offline   Reply With Quote
