Default More hp = cracked ppf

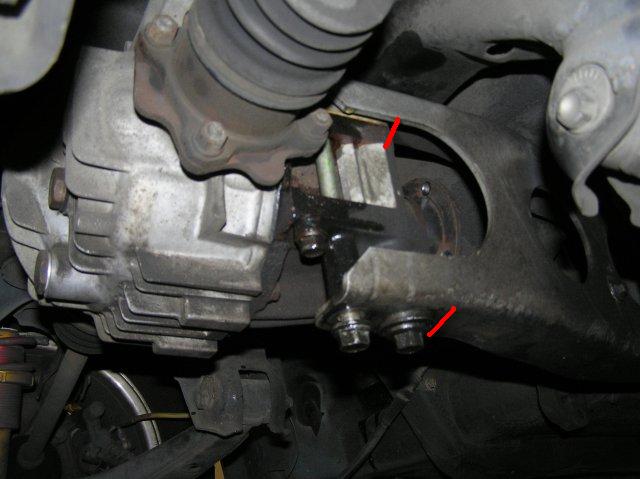

Well I had my car on the lift today to check my new diff that I put in a month ago. As I was looking at everything I saw my ppf was cracked on the top and bottom right at the first diff bolt. So now im wondering if i could some how delete the ppf and make mounts that bolt to the body. Any ideal would be great for deleting the ppf.
Attached Thumbnails
More hp = cracked ppf-crack.jpg
miatamike203 is offline   Reply With Quote
Old 06-13-2010, 10:12 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If you're going to go through the trouble of deleting the PPF, might as well stuff something more serious in there.
Personally, I do not like the concept of removing the PPF on a street type car; it's one of the key components that gives the car strength in an accident.
Ben is offline   Reply With Quote
Old 06-13-2010, 10:24 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

damn..looks like someone is making big boy power

...or wheelhopping like a madman
18psi is offline   Reply With Quote
Old 06-13-2010, 10:41 PM   #4
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by Ben View Post
If you're going to go through the trouble of deleting the PPF, might as well stuff something more serious in there.
Personally, I do not like the concept of removing the PPF on a street type car; it's one of the key components that gives the car strength in an accident.
Floating the drivetrain vs bolting it to the chassis makes it stronger?

I'd like to hear some thoughts behind this.
Splitime is offline   Reply With Quote
Old 06-14-2010, 12:02 AM   #5
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

^ what he said!!!
miatamike203 is offline   Reply With Quote
Old 06-14-2010, 12:04 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I don't think you guys grasp the idea behind "crumple zones."
Savington is offline   Reply With Quote
Old 06-14-2010, 12:05 AM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by Savington View Post
I don't think you guys grasp the idea behind "crumple zones."
Um... PPF isnt exactly part of that system.
Splitime is offline   Reply With Quote
Old 06-14-2010, 12:13 AM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

its essentialy a 3rd frame rail imo. I would weld reinforce of reegineer the ppf before i dumped it though. Unless you go through the same trouble as most v8 swap guys then it likely wont be as strong etc.
magnamx-5 is offline   Reply With Quote
Old 06-14-2010, 12:16 AM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by Splitime View Post
Um... PPF isnt exactly part of that system.
...yes it is. Float the drivetrain and it moves freely in the car during an accident - that PPF will twist up like a pretzel under any sort of serious accident force. Bolt the diff and (more importantly) the tranny to the car, and all of a sudden you've added a massive brace to the core of the chassis and essentially fucked the crumple zones.
Savington is offline   Reply With Quote
Old 06-14-2010, 12:30 AM   #10
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Hey sav, I know the pics in this post are down, but one of our MSM'rs broke his pretty bad. What they did and you might not see it, is basically "box" it in in the rear. broken ppf MSM You know how it only attatches on one side, well, they added an extra brace on the other side of the PPF and welded it all together, gusseted everything up, it looks like a pretty legit fix. The shop which did it is listed on the 2nd page, and I'll keep digging to find more info on it. I think this would be the ticket.

Another thought is the RX-8 uses a steel PPF, and although none of the attatchment points are going to be of much use on the NA/NB, something custom might be possible and its in the right range of dimensions. What would be nice is the RX-8 PPF and RX-8 diff fit in the NC maita and all you've gotta do is cut out a section and splice it.. ok, useless to know, but interesting.

Gl with the fix, I don't think removing the ppf or drastically modifying the design is the way to go, Mazda had a pretty good reason for doing what they did, even if it can't handle the power, I'd try to make it so.
chance91 is offline   Reply With Quote
Old 06-14-2010, 12:32 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
...yes it is. Float the drivetrain and it moves freely in the car during an accident - that PPF will twist up like a pretzel under any sort of serious accident force. Bolt the diff and (more importantly) the tranny to the car, and all of a sudden you've added a massive brace to the core of the chassis and essentially fucked the crumple zones.
I thought the crumple zones were outside of the passenger compartment.
hustler is offline   Reply With Quote
Old 06-14-2010, 12:32 AM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

last i checked all our ppfs where steel.
magnamx-5 is offline   Reply With Quote
Old 06-14-2010, 12:55 AM   #13
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by magnamx-5 View Post
last i checked all our ppfs where steel.
nope there all aluminum
miatamike203 is offline   Reply With Quote
Old 06-14-2010, 01:17 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

definitely not steel
18psi is offline   Reply With Quote
Old 06-14-2010, 01:25 AM   #15
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

dumbass
stranges12712 is offline   Reply With Quote
Old 06-14-2010, 02:05 AM   #16
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
I thought the crumple zones were outside of the passenger compartment.
You bring up a good point, in my mind. We need "intelligent" crumple zones that actually crumple around the passenger compartment if the accident was caused by driver of said vehicle in accident because of some gross amount of stupidity, I.E. not signaling while changing lanes while not looking and crashing right into someone else at 90mph. ECU corrects things in the chassis, moves a few hydraulic things, and BAM, whole car crushes around driver.

Darwin wins.
chance91 is offline   Reply With Quote
Old 06-14-2010, 09:32 AM   #17
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

on your next PPF, make sure you attach all the bolts BEFORE tightening them so you dont have a torque load on the PPF because you attached and tightened the diff bolts before you mated the PPF to the tranny.

Or hell, with 349 hp, get a good shop to tig some reinforcements on there for you
fooger03 is offline   Reply With Quote
Old 06-14-2010, 10:46 AM   #18
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Its funny how we talk about crumple zones because any form of chassis bracing like fm butterfly brace will make it harder for a car to crumple same as if you put a cage in too.
miatamike203 is offline   Reply With Quote
Old 06-14-2010, 10:54 AM   #19
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Also the bolts where tightened after the had all been threaded in by hand.
miatamike203 is offline   Reply With Quote
Old 06-14-2010, 11:42 AM   #20
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Pinion angle?
