Default Moving rear subframe back one inch

I want to move the rear subframe back one inch to help with high speed stability and to clear a 26 inch tire. I am curious if anyone else has done this. Just looking for input before I dive in.
Attached Thumbnails

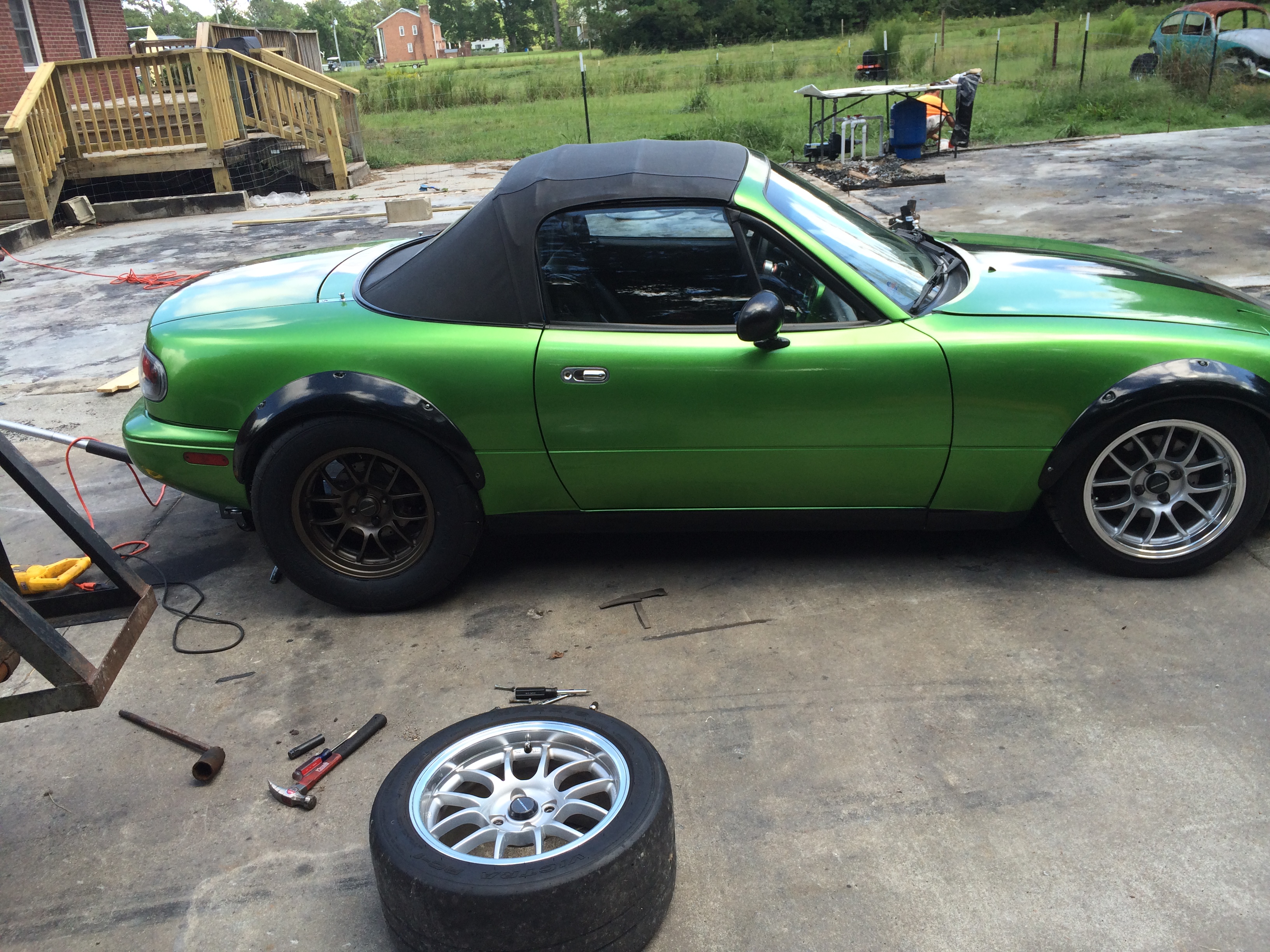

Moving rear subframe back one inch-image.jpeg
themetalman is offline   Reply With Quote
Old 09-18-2016, 01:01 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,418
Total Cats: 81
Default

Seems like an awful amount of work and expense for something that you will probably not be happy with.

I would stay with a little smaller tire
olderguy is online now   Reply With Quote
Old 09-18-2016, 01:03 PM   #3
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

I don't think it would be that much work, its all of 6 bolts holding the subframe in. The coilovers have pillow ***** up top so I shouldn't have to move the shock towers.
themetalman is offline   Reply With Quote
Old 09-18-2016, 01:29 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,418
Total Cats: 81
Default

What will a special longer drive shaft cost?
olderguy is online now   Reply With Quote
Old 09-18-2016, 01:45 PM   #5
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

I'll just make a one inch spacer to go between the driveshaft and diff
themetalman is offline   Reply With Quote
Old 09-18-2016, 01:58 PM   #6
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,801
Total Cats: 337
Default

You'll need to do something about the front-to-rear brake hard line, and I'm not sure if there's an extra inch in the parking brake cable. You might also see some tire rubbing from moving the tire that far backwards.

--Ian
codrus is offline   Reply With Quote
Old 09-18-2016, 02:14 PM   #7
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

Brake line will be easy enough, that's just cut, flare, and splice in what I need. I think I have enough adjustment for the parking brake cable. I'll measure to make sure it's one inch, I can just center the wheel in the wheel well and be good.
themetalman is offline   Reply With Quote
Old 09-18-2016, 02:25 PM   #8
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,686
Total Cats: 27
Default

Oh boy.
MartinezA92 is offline   Reply With Quote
Old 09-18-2016, 03:02 PM   #9
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

Another reason to move the frame back is NHRA rules, it is against the rules to have a swapped car with a wheel base less than 90 inches. I don't want to get hit with something silly like that.
themetalman is offline   Reply With Quote
Old 09-18-2016, 05:05 PM   #10
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

I have contemplated doing the same thing to clear a big tire. There is an awful lot of work involved, but it would make a better drag car if you can pull it off.
miata2fast is offline   Reply With Quote
Old 09-18-2016, 05:15 PM   #11
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,661
Total Cats: 235
Default

Quote:
Originally Posted by themetalman View Post
I want to move the rear subframe back one inch to help with high speed stability and to clear a 26 inch tire. I am curious if anyone else has done this. Just looking for input before I dive in.
I have never seen or heard of anyone doing this. Good luck, I'm interested to see what is involved to pull it off.
patsmx5 is offline   Reply With Quote
Old 09-18-2016, 05:41 PM   #12
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

Ive already have hundreds, if not thousands of hours into this car, once winter hits I will probably tackle it.
themetalman is offline   Reply With Quote
Old 09-18-2016, 06:31 PM   #13
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Tell us more about it.
miata2fast is offline   Reply With Quote
Old 09-18-2016, 06:37 PM   #14
Newb
Thread Starter

Join Date: Feb 2013
Posts: 31
Total Cats: 5
Default

The car? It is a LS swap. Has a LS6 with a nice cam, T56 from a Fbody, 8.8 rear from a 04 cobra. Here is a before and after of the car, we pretty much gutted the entire car and built it back up.


themetalman is offline   Reply With Quote
Old 09-18-2016, 06:44 PM   #15
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Me likey!
miata2fast is offline   Reply With Quote
Old 09-19-2016, 02:26 PM   #16
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,049
Total Cats: 43
Default

Nice! At thhis point though, why not build a custom rear suspension for drag racing if that is what you are doing with it?
x_25 is offline   Reply With Quote
Old 09-19-2016, 03:09 PM   #17
Junior Member

Join Date: Jan 2009
Posts: 171
Total Cats: 28
Default

Take a look at the clearance between the coilover and the axle, I haven't looked in a while but it might be close when you lean the shock forward an inch.
unk577 is offline   Reply With Quote
Old 09-19-2016, 03:24 PM   #18
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,768
Total Cats: 123
Default

Awesome car. Have you taken it to the strip yet? Any timeslips as it sits?
pdexta is offline   Reply With Quote
Old 09-22-2016, 11:24 PM   #19
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 663
Total Cats: -35
Default

very nice. do you have a build thread somewhere? sorry can't help with the rear sub issue. but perhaps you can mod the sub frame to move the rear diff back a few inches? I would think building some new mounts on the sub-frame might be easier but no idea really. good look with the sick build!
psreynol is offline   Reply With Quote
Old 09-23-2016, 07:59 AM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,190
Total Cats: 266
Default

What's your plan? Move the mounting holes 1" forward and close up the old holes? fwiw- I got a custom drive shaft made from two for $115 at a local 4x4 driveline shop. Not expensive IMO.
m2cupcar is offline   Reply With Quote
