Old 07-02-2011, 03:25 AM   #21
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Could you please provide part numbers for the rotors and 4-pot calipers? Thanks.
2manyhobyz is offline   Reply With Quote
Old 07-02-2011, 03:41 AM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

http://trackspeedengineering.com/sto...bbk-p-100.html

Individual part numbers can be found in savington's thread about the above 11.75" BBK
curly is offline   Reply With Quote
Old 07-02-2011, 08:01 AM   #23
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by 2manyhobyz View Post
Could you please provide part numbers for the rotors and 4-pot calipers? Thanks.
FYI, our price point was determined by finding the cheapest price on each individual component and adding it all up. Unless you're planning on engineering and machining the brackets yourself, it's slightly cheaper and much less hassle to just order the kit from us
Savington is offline   Reply With Quote
Old 07-02-2011, 01:28 PM   #24
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

It looks like all the R&D has been done and this is a well designed, thoroughly tested set up. Buy the best and cry once.
You guys are awesome.
2manyhobyz is offline   Reply With Quote
Old 07-02-2011, 04:08 PM   #25
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Giggity

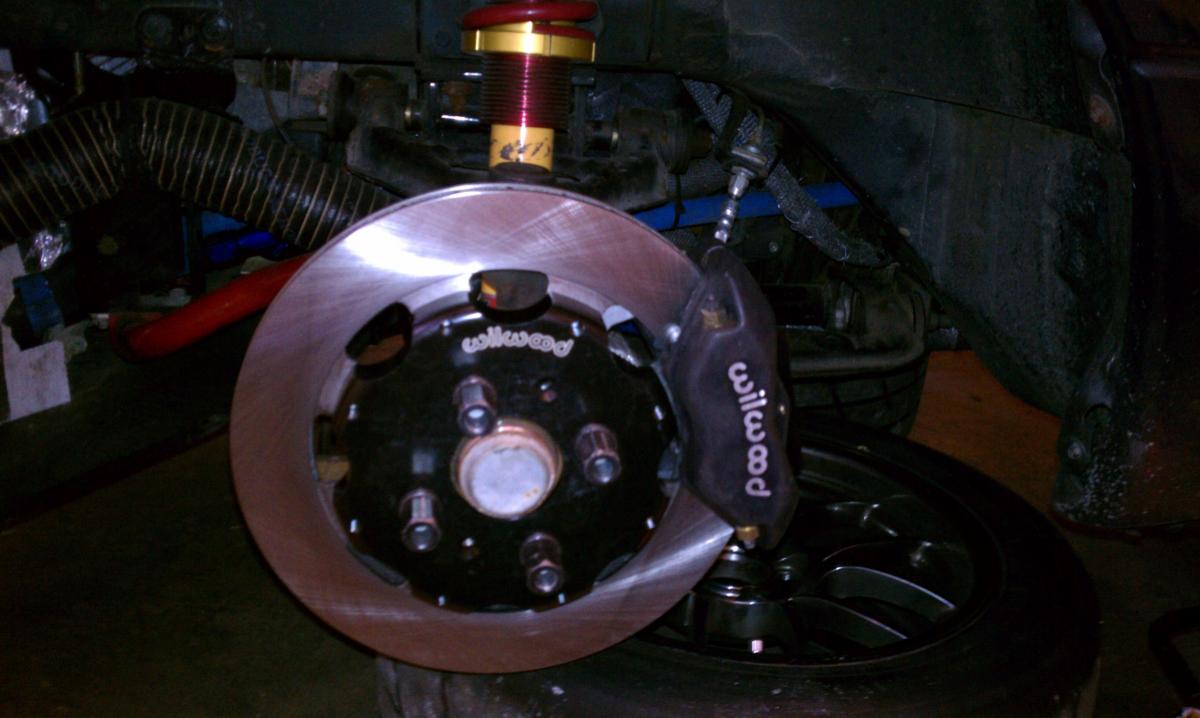

Attached Thumbnails
My continuing big brake saga-imag0462.jpg
ZX-Tex is offline   Reply With Quote
Old 07-02-2011, 04:36 PM   #26
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Is it bad that this arouses me a little?
Oscar is offline   Reply With Quote
Old 07-03-2011, 01:24 AM   #27
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by ZX-Tex View Post
Giggity
Any install tips? Easy peasy? Just bolt old bracket off, new one on, add new lines, bleed, fini?
Faeflora is offline   Reply With Quote
Old 07-03-2011, 02:16 AM   #28
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

One tip. Drink a beer during installation because it is easy to the point where, even though it is a brake system upon which your life depends, the onset of inebriation does not increase the risk associated with debilitated installation beyond the gain of the delightful taste of fermentation.

OK, admittedly I did not drink the beer until the job was complete. But indeed it was quite easy to install. Really easy. Paying for the components is the most painful part. And that pain at least in my case cannot be reduced much further beyond that which is experienced here.
ZX-Tex is offline   Reply With Quote
Old 07-03-2011, 02:45 AM   #29
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Unbolt old ****. Bolt on new ****. Install lines. Bleed. Bleed some more... Keep bleeding. Then you're done.

It really is that easy.
falcon is offline   Reply With Quote
Old 07-03-2011, 02:49 AM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by falcon View Post
Unbolt old ****. Bolt on new ****. Install lines. Bleed. Bleed some more... Keep bleeding. Then you're done.

It really is that easy.
Or reverse bleed once and nguyen at lyphe.
hustler is offline   Reply With Quote
Old 07-03-2011, 02:51 AM   #31
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by falcon View Post
Unbolt old ****. Bolt on new ****. Install lines. Bleed. Bleed some more... Keep bleeding. Then you're done.

It really is that easy.
Bleed from the heart?
Faeflora is offline   Reply With Quote
Old 07-03-2011, 04:11 AM   #32
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Super f'in easy, even easier than stock brakes, since you can access and see the bolts easily, and you don't have to fight to slide the caliper over the pads, you just slide the pads in once you're finished.
curly is offline   Reply With Quote
Old 07-03-2011, 01:04 PM   #33
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Tex, are those Koni Sports, with GC?
dstn2bdoa is offline   Reply With Quote
Old 07-03-2011, 04:28 PM   #34
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Just returned from the shop trying out new brake duct ideas.
I already have big 3" scoops in the bumper from which I will run 3" ducting that will end near the roll bar end-links as I have no 3" duct plate. In between there will be a 12v marine blower which moves volumes of air so it will cool at speed as well as pit-in.
Laur3ns is offline   Reply With Quote
Old 07-03-2011, 06:12 PM   #35
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Koni Races with GC adjusters and Eibach springs.
ZX-Tex is offline   Reply With Quote
Old 07-04-2011, 03:44 AM   #36
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by Savington View Post
FYI, our price point was determined by finding the cheapest price on each individual component and adding it all up. Unless you're planning on engineering and machining the brackets yourself, it's slightly cheaper and much less hassle to just order the kit from us
What do you use to fasten the rotors to the hats? Wilwood-supplied, aircraft grade, or Home Depot special?

--Ian
codrus is offline   Reply With Quote
Old 07-04-2011, 11:53 AM   #37
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by codrus View Post
What do you use to fasten the rotors to the hats? Wilwood-supplied, aircraft grade, or Home Depot special?

--Ian
Wilwood equivalent. Grade 5, predrilled heads, sourced from a real hardware supplier (i.e. not Home Depot).
Savington is offline   Reply With Quote
Old 07-04-2011, 12:56 PM   #38
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I have the stuff to safety wire bolts. But having pre-drilled bolts (drilling is the PIA part) and the hats already wired was a nice time saver.
ZX-Tex is offline   Reply With Quote
Old 07-04-2011, 01:39 PM   #39
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by Faeflora View Post
Any install tips? Easy peasy? Just bolt old bracket off, new one on, add new lines, bleed, fini?
And don't cross thread a hole in the brackets
dgmorr is offline   Reply With Quote
Old 07-04-2011, 01:39 PM   #40
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by Savington View Post
Wilwood equivalent. Grade 5, predrilled heads, sourced from a real hardware supplier (i.e. not Home Depot).
At work we use only AN hardware on brake hats with AN washers, jet nuts (MS-21042), and loctite, no safety wire. Never seen one get loose in 6 years... it's the only way I'd do it personally.
Rennkafer is offline   Reply With Quote
