Hi guys so I got her aligned twice already and still out of whack. She is lowered (11.75") on a Tokico Illumina shocks and Springs combo and has 15x8 +20 rims with 195/50/15. She is upgraded for spirited driving only. I just have replaced all eccentric bolts from the 949 Racing (mazda replacement bolts). An I was told I have to get a different camber bolt that has more adjustment? Here is the alignment results.

1st:

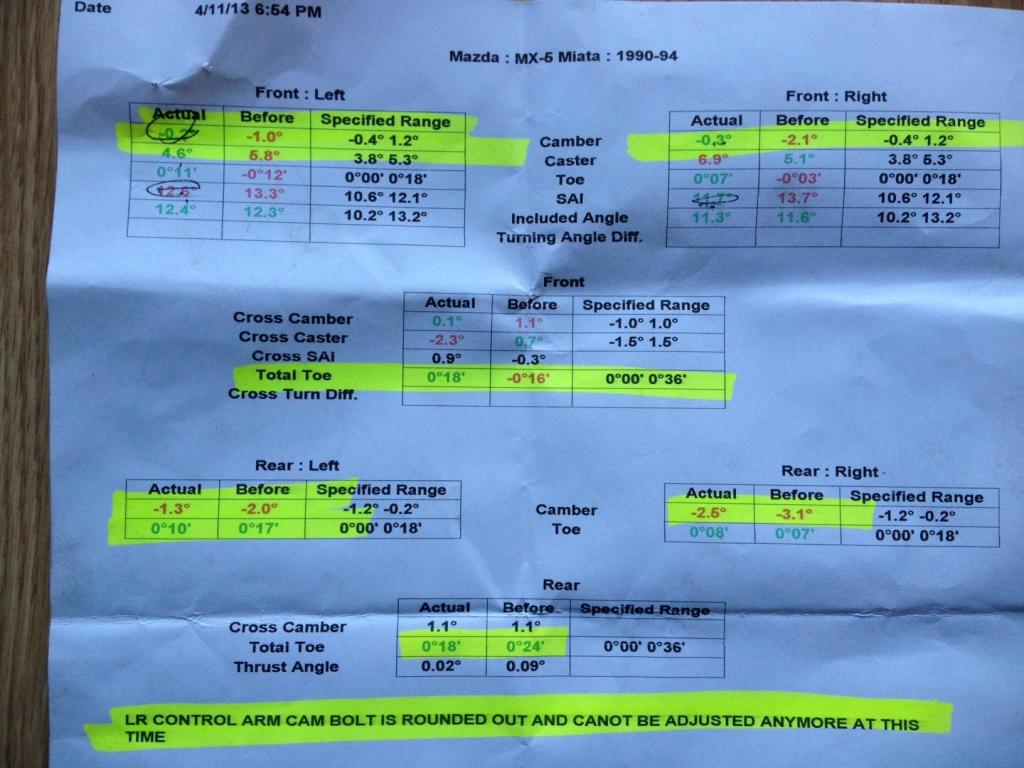

2nd:

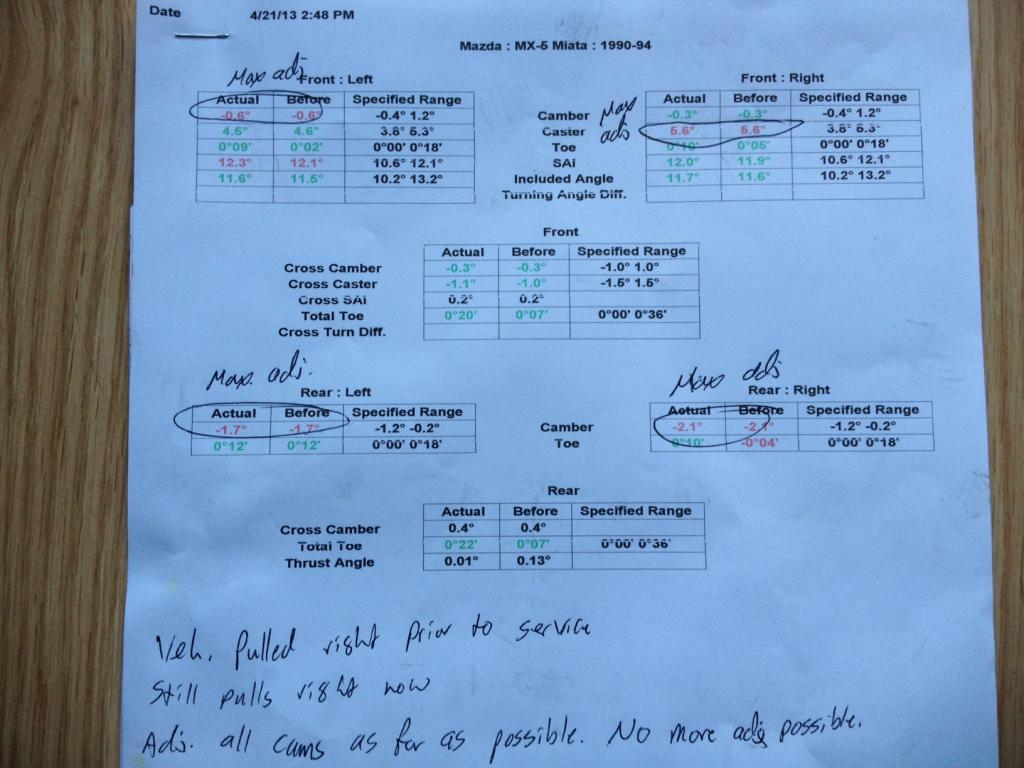

What options do I have to get the best compromise to factory settings?

1. Adjustable upper control arms?

2. Offset bushings?

3. Find another alignment shop?

4. Dead end?

Thank you in advance.
Attached Thumbnails
Needing options on alignment spec on a lowered NA-bbe70343-cac4-40c3-a3e7-08e9f8b36d08_zpse5db36cc.jpg   Needing options on alignment spec on a lowered NA-securedownload-1_zpsd3d06c97.jpeg

Last edited by mx54life; 04-21-2013 at 10:29 PM.
mx54life is offline   Reply With Quote
Old 04-21-2013, 10:21 PM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Current rideheight measured at the pinchwelds? Checked control arms to see if they're straight? I could easily get >-3* on both rear wheels at a more than sensible rideheight. Do the 949 bolts allow for more camber or are they mazda replacements?
Oscar is offline   Reply With Quote
Old 04-21-2013, 10:26 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

Quote:
Originally Posted by Oscar View Post
Current rideheight measured at the pinchwelds? Checked control arms to see if they're straight? I could easily get >-3* on both rear wheels at a more than sensible rideheight. Do the 949 bolts allow for more camber or are they mazda replacements?
Current ride height measured at the pinch welds = 5.25 inches. The camber bolts are the mazda replacement ones.

Last edited by mx54life; 04-22-2013 at 12:13 AM.
mx54life is offline   Reply With Quote
Old 04-21-2013, 11:52 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by mx54life View Post
11.75 inches (edge of the fender to the center of the rim). The camber bolts are the mazda replacement ones.
We don't measure like that on this forum.
hustler is offline   Reply With Quote
Old 04-22-2013, 12:12 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

Quote:
Originally Posted by hustler View Post
We don't measure like that on this forum.
Pardon my lack of knowledge.

Current ride height measured from the pinch welds = 5.25 inches Sir!
mx54life is offline   Reply With Quote
Old 04-22-2013, 09:10 AM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by mx54life View Post
Pardon my lack of knowledge.

Current ride height measured from the pinch welds = 5.25 inches Sir!
That's pretty high, I'm not surprised you can't get the camber you want. Get the car down another inch.
hustler is offline   Reply With Quote
Old 04-22-2013, 01:50 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

Quote:
Originally Posted by hustler View Post
That's pretty high, I'm not surprised you can't get the camber you want. Get the car down another inch.
Thanks, just so I get this right you're saying that with my current ride height being at least 1" lower than factory height as I compared it to my other miata side-by-side and the eccentric bolt is maxed out, if I lower it by one more inch they can adjust the eccentric bolt more? I'm a bit confuse as how can that be? If this is the answer it would be great as I want to get a coilover anyways but was just holding off till I get this issue sorted out.

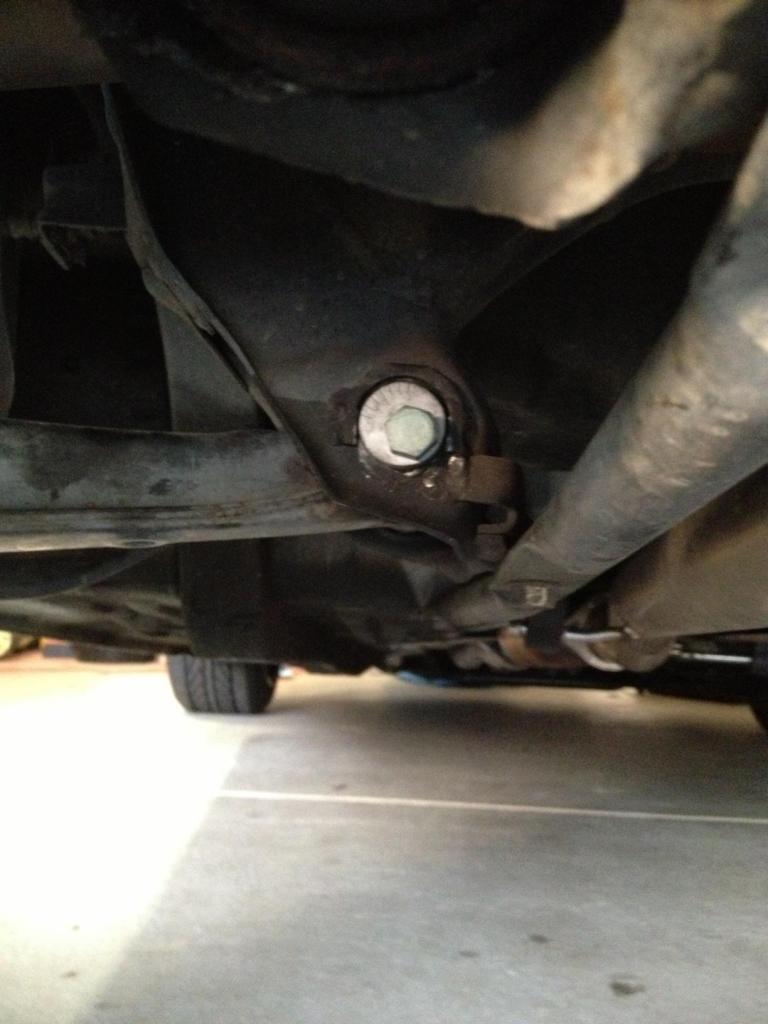

Here is a pic of one of the eccentric bolt maxed out. I checked all of the eight are similarly set.
