Pilot bearing for track abuse


Old 05-21-2018, 09:13 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default Pilot bearing for track abuse

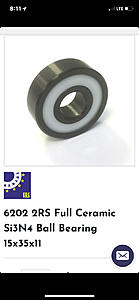

Anyone had any luck with a ceramic pilot bearing being claimed as a long lasting for high speed and high temps.

https://www.bearings-online.co.uk/it...AaAijXEALw_wcB
Attached Thumbnails Pilot bearing for track abuse-photo685.jpg
stevos555 is offline
Old 05-21-2018, 11:41 PM
  #2
Junior Member

Dietcoke's Avatar

Join Date: May 2015
Location: Richmond Hill, GA
Posts: 167
Total Cats: -58
Default

Seems like a poor replacement for the nothing-wrong-with-it steel pilot bearing.

I"d be worried more about that cage melting, then anything, really.
Dietcoke is offline
Old 05-22-2018, 12:23 AM
  #3
Junior Member
Thread Starter

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

What brand is recommended. There are multiple choices - rubber gasket sealed or metal cover sealed. All fall under 6202 style. What's been a go to pilot and throw out bearing?

6202zz is double shield (metal)
6202rs is the plastic sealed.
9.95 for Nachi 6202-2N (rs)
koyo 6202RS 11.45
NSK 6202zz $6.80
NTN 6202ZZ $14.61
stevos555 is offline
Old 05-22-2018, 03:17 AM
  #4
Junior Member

Join Date: Aug 2017
Location: Lansing, MI
Posts: 173
Total Cats: -14
Default

Originally Posted by stevos555 View Post
What brand is recommended. There are multiple choices - rubber gasket sealed or metal cover sealed. All fall under 6202 style. What's been a go to pilot and throw out bearing?

6202zz is double shield (metal)
6202rs is the plastic sealed.
9.95 for Nachi 6202-2N (rs)
koyo 6202RS 11.45
NSK 6202zz $6.80
NTN 6202ZZ $14.61

...whatever comes with the clutch/flywheel kit of your choice?
WigglingWaffles is offline
Old 05-22-2018, 07:54 AM
  #5
Junior Member
Thread Starter

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

thanks
stevos555 is offline
Old 05-22-2018, 08:09 AM
  #6
Junior Member
Thread Starter

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

The Properties of Silicon Nitride (Si3N4)

Very low density (3.21 g/cm3)
Very high fracture toughness (7 MPam1/2)
Good flexural strength (850 MPa)
Very good thermal shock resistance: High thermal stress parameters (569 K)
Maximum operating temperature in an oxidizing atmosphere: 1,300C
Maximum operating temperature in a neutral atmosphere: 1,600C
stevos555 is offline
Old 05-22-2018, 12:01 PM
  #7
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,536
Total Cats: 1,083
Default

The cage is made of PEEK. If you melt that, it'll be the least of your concerns at that point.

OP you are trying to solve a problem that doesn't exist? Most of us just install a quality bearing from timken, SKF, koyo, etc. which usually comes in the clutch kit, and dont think twice about it. Pilot bearing failure isn't common on our cars.

I wouldn't use a metal shield, as those are just a shield, not a seal.
hi_im_sean is offline
