Old 08-03-2009, 11:16 AM   #21
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

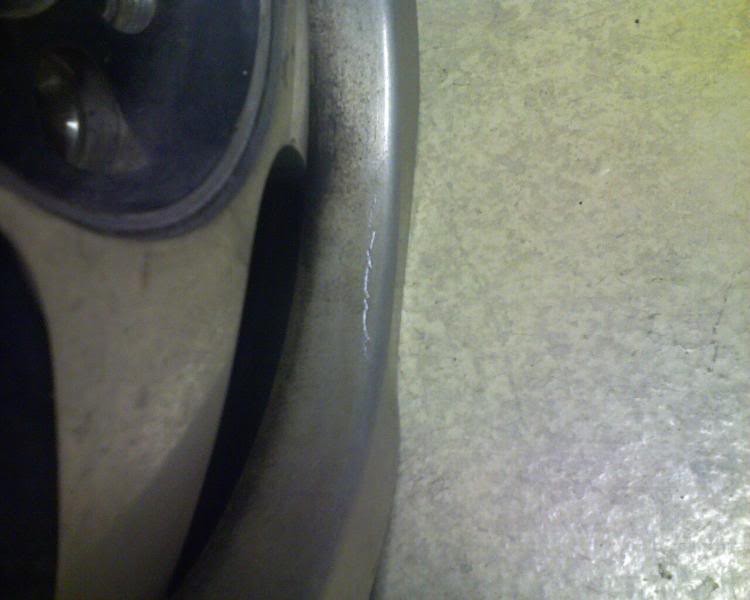

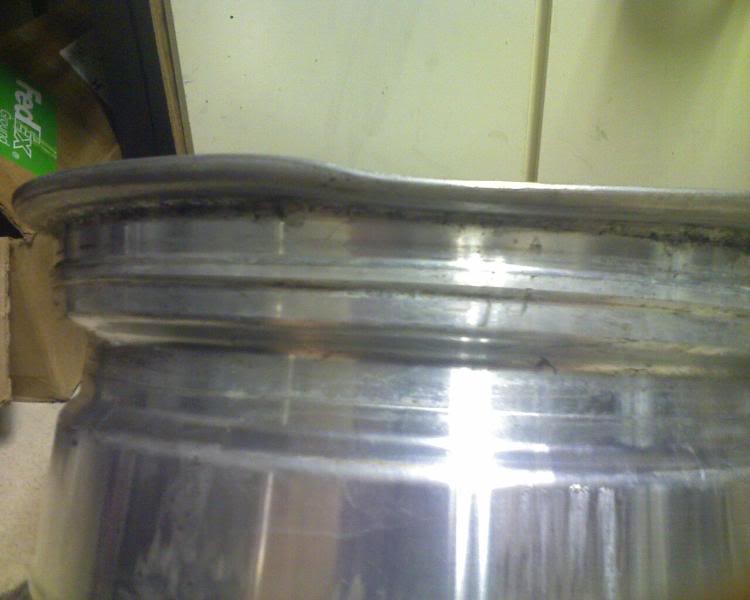

Itís been a while since the last update I started taking things apart last weekend and I just donít get through. I stated disassembling the caliper so that I could remove the rotor and inspect the hub for damage. However surprise was that the caliper bolt was already striped I have tried locking wrenches, also an impact gun with many sockets, and last I tried to file edges on the bolt to try and make a head to fit a 9mm instead of a 10mm and nothing the F-ing bolt wont move!!!!. So then I thought I could remove the entire brake assembly and hub by unbolting it from the A arm, but just my luck the gun stripped the last nut that connect the shaft to the differential. It hat been really frustrating trying to take thing apart, I really donít know where to go from this. Please advice here are some pictures of the wheel that was damaged and some shots of the caliper bolt and the shaft nut.



Name:  Photo_070109_002.jpg
Views: 1
Size:  37.2 KB

Name:  Photo_070109_003.jpg
Views: 1
Size:  36.4 KB

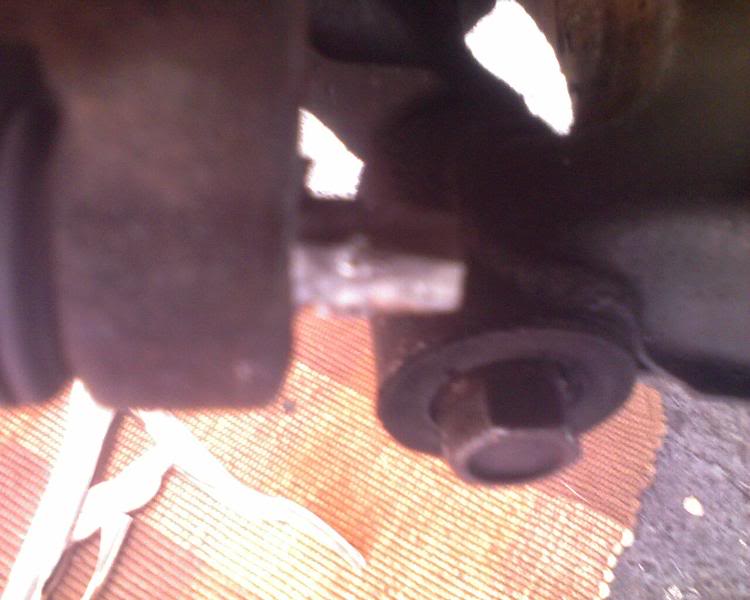

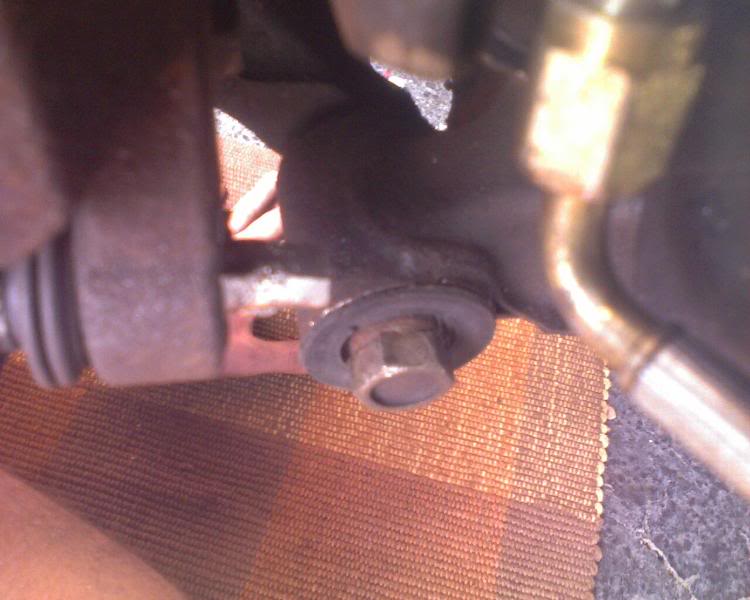

Caliper Bolt
Name:  Photo_080209_001.jpg
Views: 1
Size:  44.0 KB

Name:  Photo_080209_003.jpg
Views: 2
Size:  49.8 KB

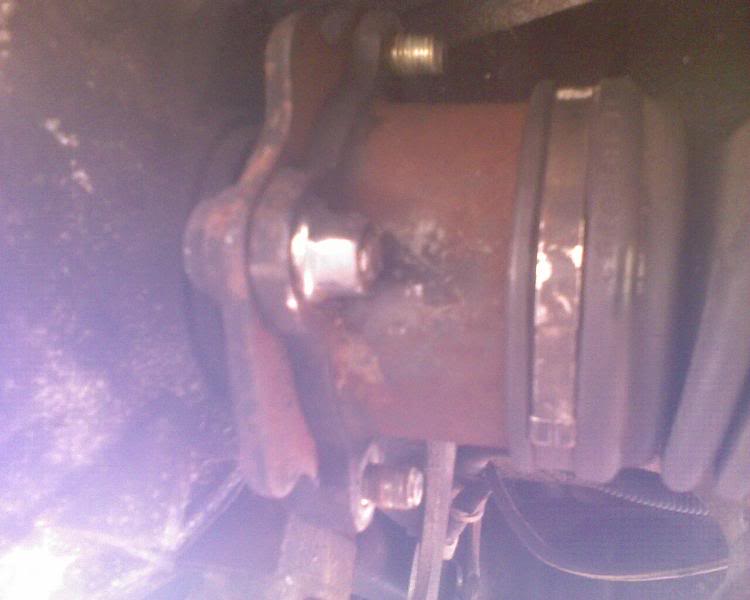

Shaft Nut
Name:  Photo_080209_002.jpg
Views: 1
Size:  33.5 KB
buffon01 is offline   Reply With Quote
Old 08-03-2009, 11:29 AM   #22
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Do you still need a control arm?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-03-2009, 02:29 PM   #23
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Yeah....Ill try to pick it up this weekend...I read somewhere you had differential swaps, are any around still??


Also any ideas how to remove that bolt and nut???

Last edited by levnubhin; 08-03-2009 at 03:21 PM.
buffon01 is offline   Reply With Quote
Old 08-03-2009, 03:21 PM   #24
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by buffon01 View Post
Yeah....Ill try to pick it up this weekend...I read somewhere you had differential swaps, are any around still??


Also any ideas how to remove that bolt and nut???


We have a couple open diff's. Have you tried hammering a smaller 12pt socket on it?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-03-2009, 03:48 PM   #25
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by levnubhin View Post
We have a couple open diff's. Have you tried hammering a smaller 12pt socket on it?
Not a 12pt specifically, but others yes. Ill give it a shot and see where that goes. I was considering torching the bolt.
buffon01 is offline   Reply With Quote
Old 08-05-2009, 02:10 PM   #26
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

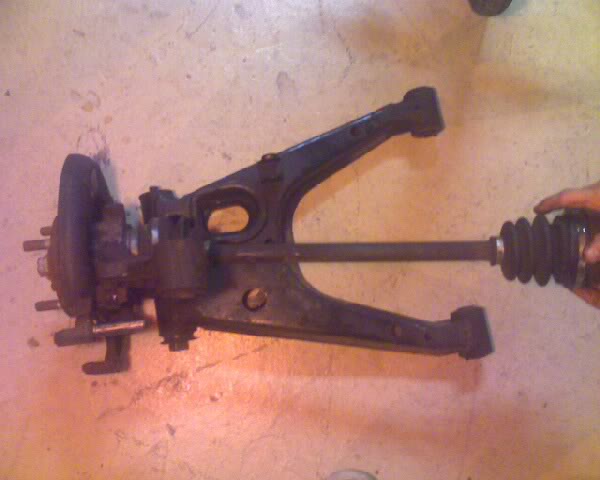

Update, both the nut and the caliper bolt came out with some hits from a hammer and a chisel. After the caliper was out I removed the rotor just to find that the lower mounting bolt that holds the suspension arm to the the hub (dont know name) seems to have absorve the hit and bent, so the A arm along with the axle had to come out.

Here's picture

Name:  Aarm.jpg
Views: 1
Size:  30.2 KB

I already have a donor for the arm, now I need the axle, hub...ect.
buffon01 is offline   Reply With Quote
