Default Rear End Vibration

Last week I took a left hand turn pretty hard on my crappy stock wheels/tires and the back end stepped out a bit. I heard a pop/clunk sound from the rearend and backed off it.

Since then I've gotten a vibration in 1st and 2nd gear at low rpms (2000-4500) under moderate load, like accelerating from a traffic light. I can hear and feel the vibration, and it definitely seems to be coming from the back end of the car. It doesn't happen at WOT and doesn't happen in higher gears. It's particularly bad accelerating through left turns (nothing crazy or spinning tires, just regular driving).

I've checked over the coilovers and diff, everything appears to be tightly bolted down, as is the driveshaft. I don't get any vibration or whine at cruise or acceleration in higher gears. Transmission shifts fine. I've swapped wheels and it still does the same thing. It doesn't feel like I have any slop in the wheels/wheel bearings.

Any thoughts on what it might be? Anything I should check or try to eliminate as an issue? I'd appreciate any help or suggestions you may have.
pdexta is offline   Reply With Quote
Old 08-14-2012, 08:12 PM   #2
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I think I've found the culprit to my vibration. I cracked my PPF! There's a crack across it where it bolts to the diff. I'm guessing I just need to replace it at this point or would there be any hope for welding it?
pdexta is offline   Reply With Quote
Old 08-14-2012, 08:29 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Cracked PPF? Holy crap. Pics?
Fireindc is offline   Reply With Quote
Old 08-14-2012, 09:16 PM   #4
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Attached Thumbnails

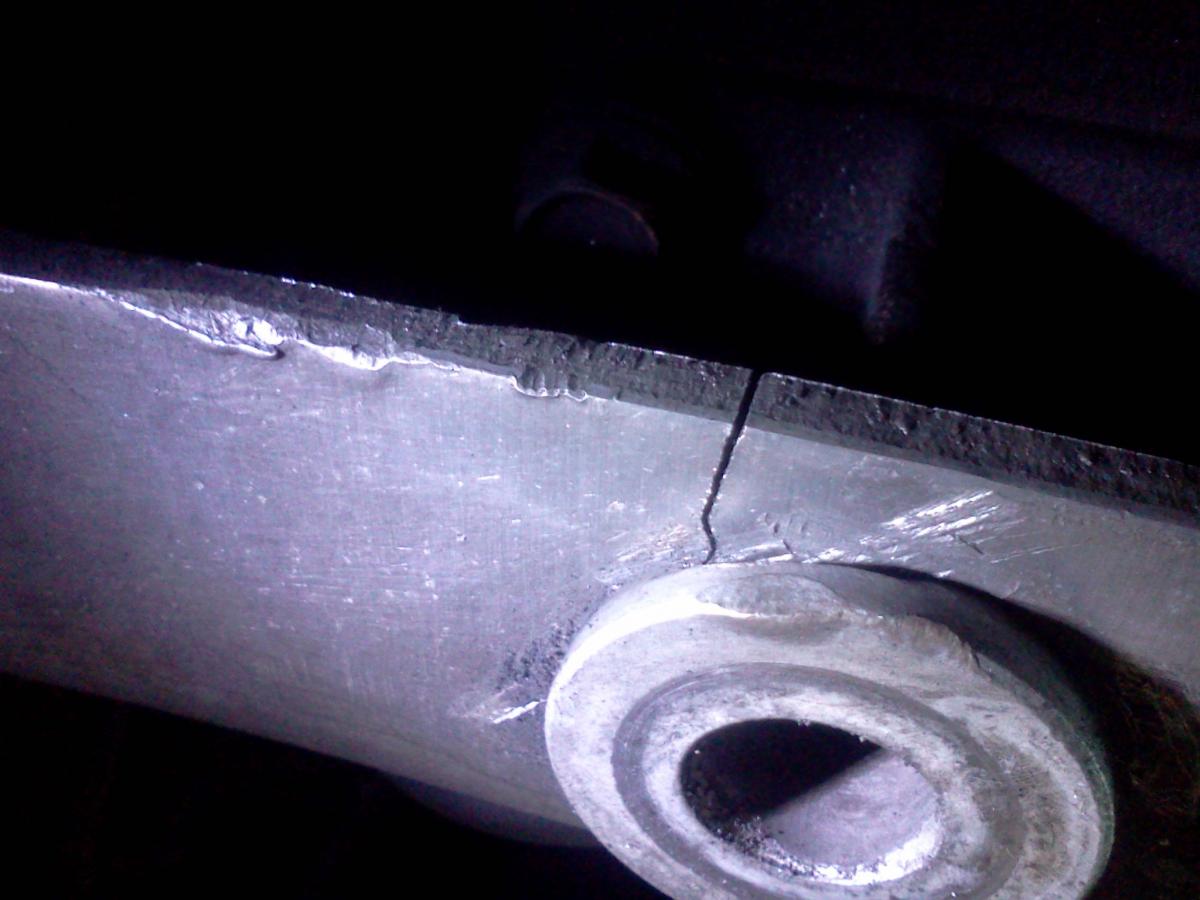

Rear End Vibration-ppf1.jpg
pdexta is offline   Reply With Quote
Old 08-14-2012, 10:14 PM   #5
Junior Member

Join Date: Mar 2011
Location: Ballina Australia
Posts: 86
Total Cats: 2
Default

the thread title is the greatest inuendo ever
spaztikcamel is offline   Reply With Quote
Old 08-14-2012, 10:38 PM   #6
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Weld it!
RyanRaduechel is offline   Reply With Quote
Old 08-15-2012, 02:44 AM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

This thread title turbed me on.

No don't weld it damn it. Buy a used one it is like $3.

Also, I cracked my PPF too. Right in the middle bisch
Faeflora is offline   Reply With Quote
Old 08-15-2012, 08:06 AM   #8
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by Faeflora View Post
Also, I cracked my PPF too. Right in the middle bisch
I felt pretty special when I found the crack, but I've read several other instances of it happening so I guess it's nothing impressive. I talked to a welder friend and he said he'd want to have it pulled out in order to weld it, if it's got to come out anyway, I'm definitely putting a new (to me) one in.
pdexta is offline   Reply With Quote
Old 08-15-2012, 09:00 AM   #9
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

was it a very loud and audible vibration??
rhysmate is offline   Reply With Quote
Old 08-15-2012, 09:27 AM   #10
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by rhysmate View Post
was it a very loud and audible vibration??
It's only noticible when accelerating in 1st and 2nd gear at low rpms. I can hear it and definitely feel it, but the 2 passengers I've had in the car didn't even notice.
pdexta is offline   Reply With Quote
Old 08-15-2012, 09:32 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Dopple managed to crack his too iirc.

Glad you found the issue.
18psi is offline   Reply With Quote
Old 08-15-2012, 11:32 AM   #12
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

not my issue then :( nice one finding the problem.. funny how a small crack can cause vibrations
rhysmate is offline   Reply With Quote
