Old 05-10-2009, 11:36 PM   #21
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by soflarick View Post
...a good test for inner tie rods is to push them up (without outers intact) and see if the arms droop. If they droop, it's time to replace, if they don't, they are still functional.
Quote:
Originally Posted by kotomile View Post
...the old ends are toast, but the inners *seem* fine. They can hold the ends up in the air indefinitely, I'm guessing that's a good thing.
I kinda fail at remembering advice given to me, thanks soflarick!
kotomile is offline   Reply With Quote
Old 05-11-2009, 12:03 AM   #22
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Got a part number for those boots? Mine are mangled too and in need of replacing.
rccote is offline   Reply With Quote
Old 05-11-2009, 12:42 AM   #23
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by rccote View Post
Got a part number for those boots? Mine are mangled too and in need of replacing.
After seeing the inside of my rack, better replace them sooner rather than later. No part number, I just went to Napa and asked for steering rack boots. They ordered me a "boot kit", which apparently only meant one freaking boot. So after I ordered the second boot kit I had both sides. So, FYI - "boot kit" is only one.
kotomile is offline   Reply With Quote
Old 05-17-2009, 11:14 AM   #24
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Update time, I got everything reassembled and lo, there is still play and it somehow feels grittier than before. I've hit up ebay for a good condition used rack (good condition as in the boots look intact...) and that should arrive in a few days.
kotomile is offline   Reply With Quote
Old 05-20-2009, 10:21 AM   #25
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Rack is here, it's from a '97 and the boots hadn't split, so it looks fantastic on the inside. I'm going to try to depower it and throw it in today after class..

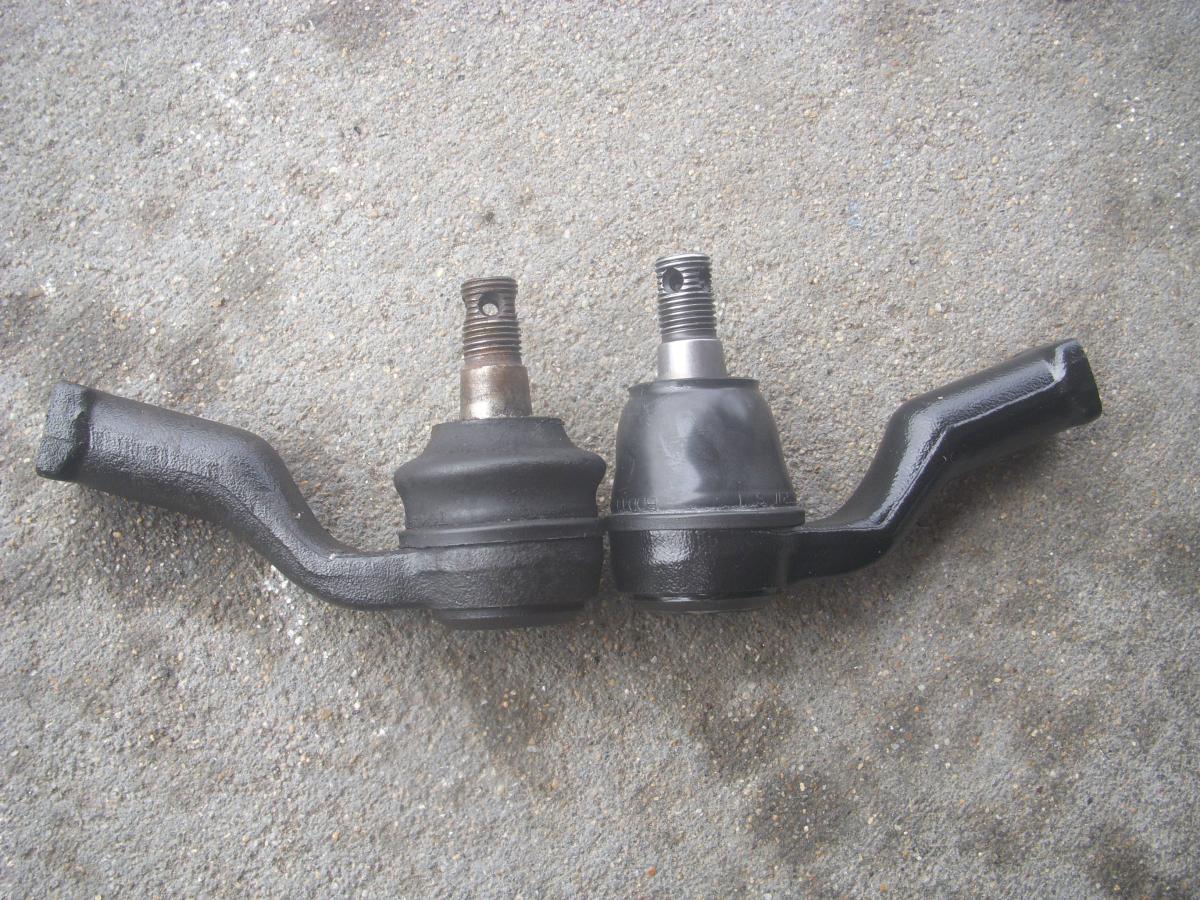

Edit - also, I'd installed these "R package" outers, but look at this comparison shot... Is there just that little difference or did I get the wrong part?
Attached Thumbnails
replacing inner tie rods-dscn2508.jpg
kotomile is offline   Reply With Quote
Old 05-20-2009, 01:45 PM   #26
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I dont have R package, but I would think the difference isnt that huge.. In the tie rod end. I hear the difference is noticeable while driving.

I have custom knuckles though. So I have a decent amount of correction there too.

OH, btw, if i woere you i would get spacers to put in there now while you have the rack off.. the you will really fix that bump steer..

Good luck..
TURNS101 is offline   Reply With Quote
Old 05-20-2009, 01:59 PM   #27
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I might raise the car .5" before I get it aligned, that will help with bumpsteer too.
kotomile is offline   Reply With Quote
Old 05-22-2009, 01:24 PM   #28
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Would would say rack spacers before raising the car
TURNS101 is offline   Reply With Quote
Old 05-22-2009, 05:45 PM   #29
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Just got the rack in yesterday, helluva difference. Went from a rack that felt like it was filled with sand to a mint rack for the price of one tie rod. Steering wheel's a bit off center but I'll fix that later today or tomorrow. Been thinking about setting the toe with a few pieces of string and a measuring tape. Never done it this way before, but I was an alignment tech at one point in time so it shouldn't be too difficult, especially for just toe.

Jeff, where does one get rack spacers, and are there any unwanted side effects like squirreliness?
kotomile is offline   Reply With Quote
Old 06-02-2009, 01:47 AM   #30
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Sorry i didnt see this for so long. No neg side effect. Just less bump steer. Just make sure if you did it it ok with whatever sactioning body you drive with.

I am not sure if anyone makes them in bulk. ctdriftna over on rd.com can make them for you.. Oh, he is here too
TURNS101 is offline   Reply With Quote
