Default Solution to excessive rear camber

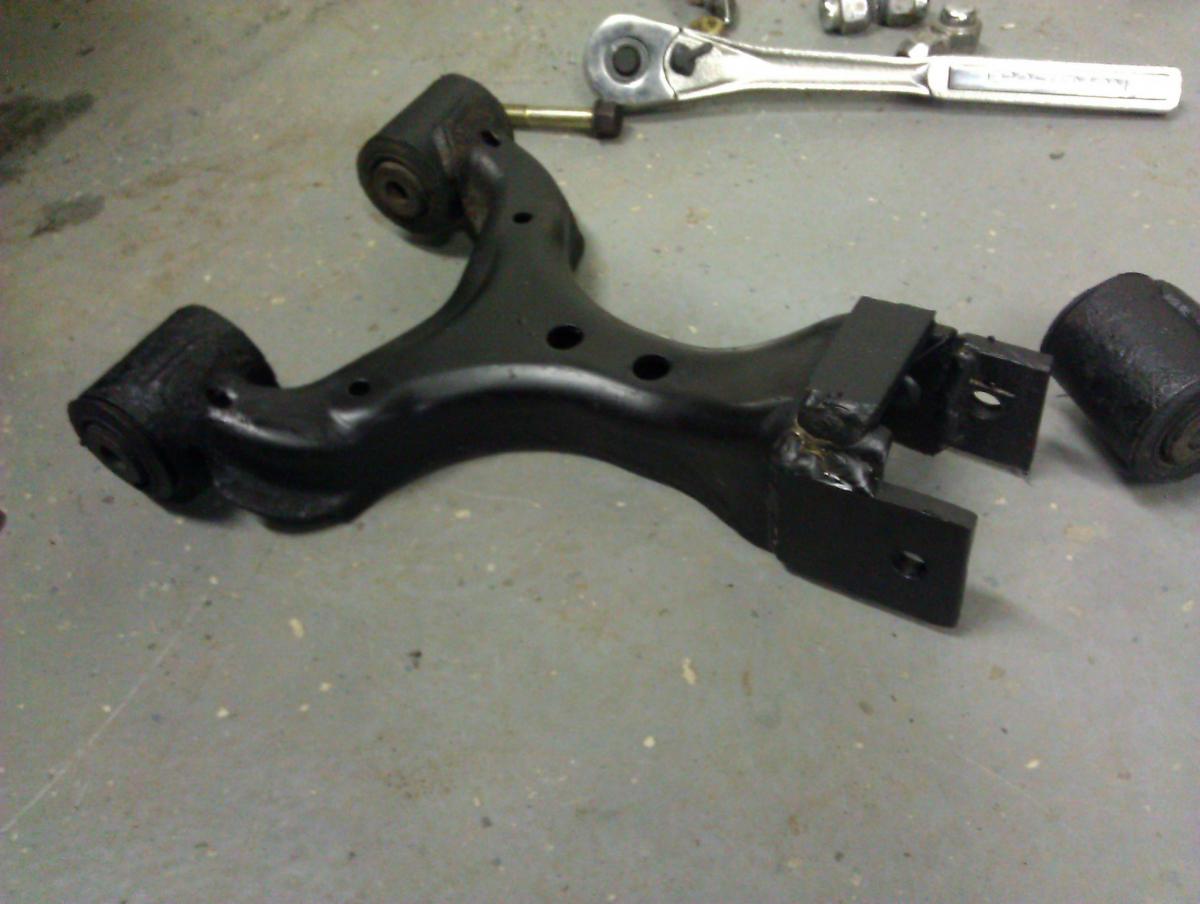

With all the lowered miatas, I haven't seen too many people tackle this problem. I know megan sells adjustables, but they are kind of pricey. This is what I did with mine, dirty, but it works, got it aligned within a decent range, so now I do not have mad camber wear.

btw, if you are planning on doing this, do not go off of that pic for reference, i filled/redrilled mine since, as it was too far on the positive camber side.
Attached Thumbnails
Solution to excessive rear camber-controlarm.jpg
kero is offline   Reply With Quote
Old 04-30-2013, 02:24 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,316
Total Cats: 1,913
Default

I'm curious to know how much negative camber you consider to be "too much", and how much you had to lower the car to get there (including undersize wheel/tire OD, if applicable.)

For reasonable street ride heights using reasonably-sized tires, I have never seen a Miata have any difficulty in attaining -1.5 to -2.0 in the rear, which I consider to be an entirely appropriate range of camber.

For Miatas running rubber-band tires on 13" wheels which can't even drive over a particle of sand on a marble floor without scraping a framerail on it, I would have much greater concerns than the rear camber angle.
Joe Perez is offline   Reply With Quote
Old 04-30-2013, 02:43 AM   #3
Junior Member
Thread Starter

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

Mine was probably at about -3 or -4 if I had to guess, with the camber all the way to the positive side. Stance GR+ coils, probably a bit lower than most around here. 15x8 running on 195/50/15s

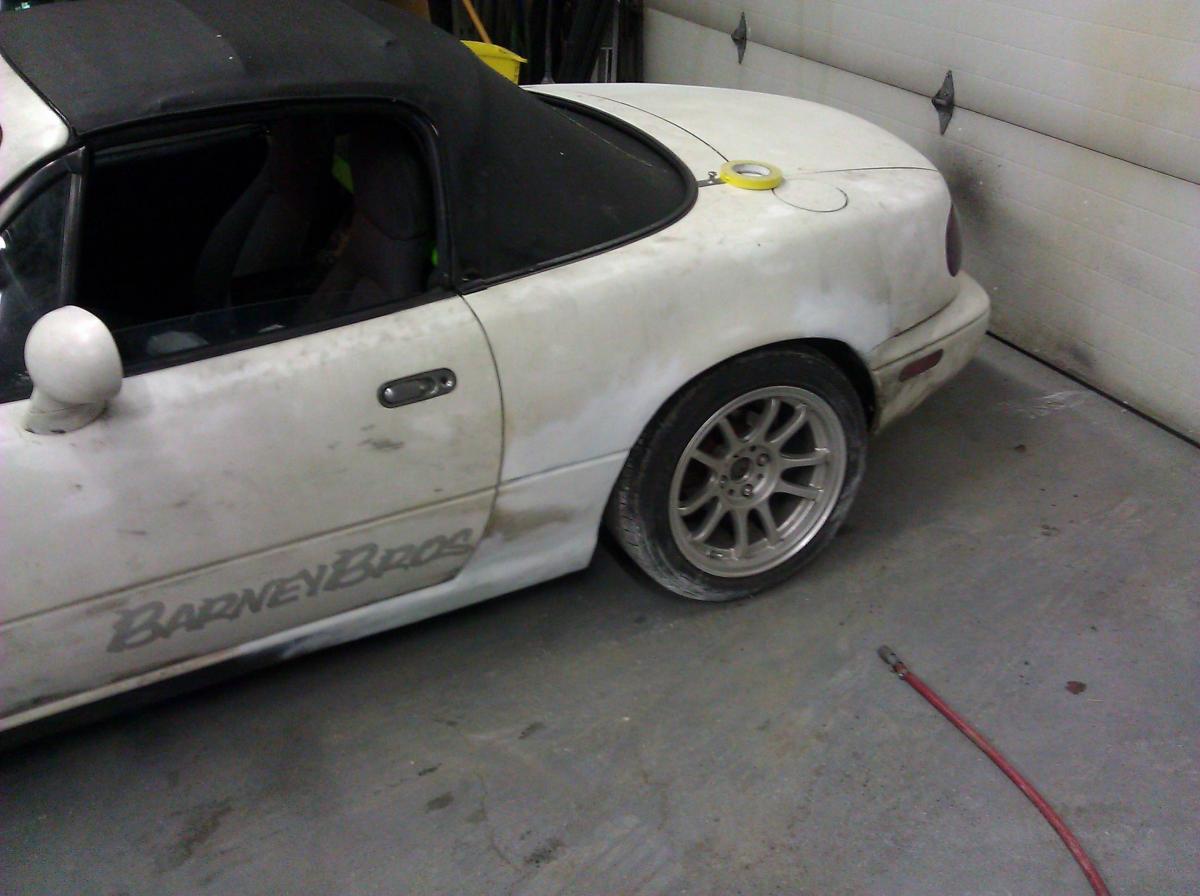

Shitty old pic for reference:
Attached Thumbnails
Solution to excessive rear camber-ps0cuta.jpg
kero is offline   Reply With Quote
Old 04-30-2013, 02:59 AM   #4
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

How about lifting that rice mobile up?
triple88a is offline   Reply With Quote
Old 04-30-2013, 05:49 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

What, the 205 tire was too expensive for you?
curly is offline   Reply With Quote
Old 04-30-2013, 06:54 AM   #6
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by curly View Post
What, the 205 tire was too expensive for you?





Dann
nitrodann is offline   Reply With Quote
Old 04-30-2013, 09:40 AM   #7
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,648
Total Cats: 1,559
Default

ISC Racing offset Delrin bushing. You only need one on each side. They are normally used to increase camber in race cars but will reduce camber if oriented in the opposite manner. $59 each side for rear.
sixshooter is offline   Reply With Quote
Old 04-30-2013, 10:32 AM   #8
Junior Member
Thread Starter

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

I bought the wheels used, thats why they came with 195s
kero is offline   Reply With Quote
Old 04-30-2013, 01:35 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by nitrodann View Post




Dann

Right? I'll never be taken seriously again.
curly is offline   Reply With Quote
