Some coilover packages include upper mounts which use a spherical bearing to receive the shock rod, as opposed to a rubber bushing. Manufacturers commonly refer to these as "pillowball" mounts, and they can also be purchased as standalone items from certain vendors such as FM.

Various claims are made that these devices improve the response of the shock absorber, contribute to NVH, etc.

Discuss.
Joe Perez is offline   Reply With Quote
Old 07-21-2015, 12:05 PM   #2
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

Do you want squishy rubber or not? On a street car, squishy rubber is a comfortable thing.
Ryephile is offline   Reply With Quote
Old 07-21-2015, 12:45 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Yes.

Is it significant in a miata? Meh.

Having run fancy coilovers with rubber and pillow *****, I didn't really notice a significant degradation in the ride quality.

BUT
if you do swap out NB2 shocks, make sure you get the little clear plastic gaskets that go between the body and shock top to prevent the squeaks.
y8s is offline   Reply With Quote
Old 07-21-2015, 02:23 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by Joe Perez View Post
these devices improve the response of the shock absorber
Yes. As the lower control arm cycles, the angle between the shock and the upper shock mount must change slightly. A spherical bearing allows this angle to change without applying any substantial side load to the shock shaft. A rubber bushing will apply a side load which increases stiction in the shock and thus reduces response.

Quote:
contribute to NVH
The same metal bearing that allows ideal articulation of the shock will transmit more force to the chassis, which will increase NVH
Savington is offline   Reply With Quote
Old 07-24-2015, 07:54 PM   #5
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 523
Total Cats: 18
Default

Quote:
Originally Posted by Savington View Post
Yes. As the lower control arm cycles, the angle between the shock and the upper shock mount must change slightly. A spherical bearing allows this angle to change without applying any substantial side load to the shock shaft. A rubber bushing will apply a side load which increases stiction in the shock and thus reduces response.
Splitting hairs with you as I know you know; just want to let others know that may not know. The bearing itself means nothing if you don't isolate the spring from the pillow ball with a separate upper spring cup.



Quote:
The same metal bearing that allows ideal articulation of the shock will transmit more force to the chassis, which will increase NVH
Bose noise cancelling earbuds. Its amazing what you don't feel when you don't hear it.
hector is offline   Reply With Quote
Old 07-24-2015, 09:32 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

I love the word stiction.
aidandj is offline   Reply With Quote
Old 07-25-2015, 08:05 AM   #7
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 149
Total Cats: 6
Default

I only have one direct comparison, meaning same car, same basic set-up, only the mount style was changed.

Had a guy running Ohlins on his NC for trackdays. Eventually his spherical bearings started making NVH noise over bumps that was pretty noticeable. Sounded like the struts were loose in their top mounts going over bumps. The bearings had some play in their races.

Ohlins sent us new spherical bearings, but they were even louder. Sent them back, tried the next set they sent us. Still loud. Ohlins said that's the best it was going to get, the bearings were within spec. It was weird, because the first set was quiet for a good while.

The owner still drove the car on the road, and didn't like the extra noise, so we adapted his original squishy rubber mounts.

Driving it around the back roads, I could tell no difference. Owner says he can feel no difference on track. I'm sure the difference is small, but demonstrable.

Race car = pillowball

Street car = personal preference of NVH vs. performance.
sharkythesharkdogg is offline   Reply With Quote
Old 07-25-2015, 11:45 PM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

My car is still on nb mounts. Billet uppers is another one of those things where the theory guy in my head is yelling about it being better and the right way to go, but the guy who actually makes **** and does things is pretty sure that I have an enormous list of other stuff to spend that money and/or time on to make the car faster. If I was going to buy a new shock setup now would I drop he extra money on it? Probably. But I'm not going to go out of my way to put a set on my current xidas.

Sharky, you need to have your friend measure those sphericals and then buy the same size from NHBB. NHBB sells the only sphericals with actual thrust load testing done on them, aurora only gives you a rule of thumb based on the radial load rating, NHBB gives you an axial load rating on some of them.
Leafy is offline   Reply With Quote
Old 07-26-2015, 01:20 AM   #9
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I'd like to see numbers as to how much of an arc the shock travels in compression.
wannafbody is offline   Reply With Quote
Old 08-02-2015, 04:39 PM   #10
Junior Member
iTrader: (1)

Join Date: Feb 2015
Location: Farmington Hills, MI
Posts: 120
Total Cats: 14
Default

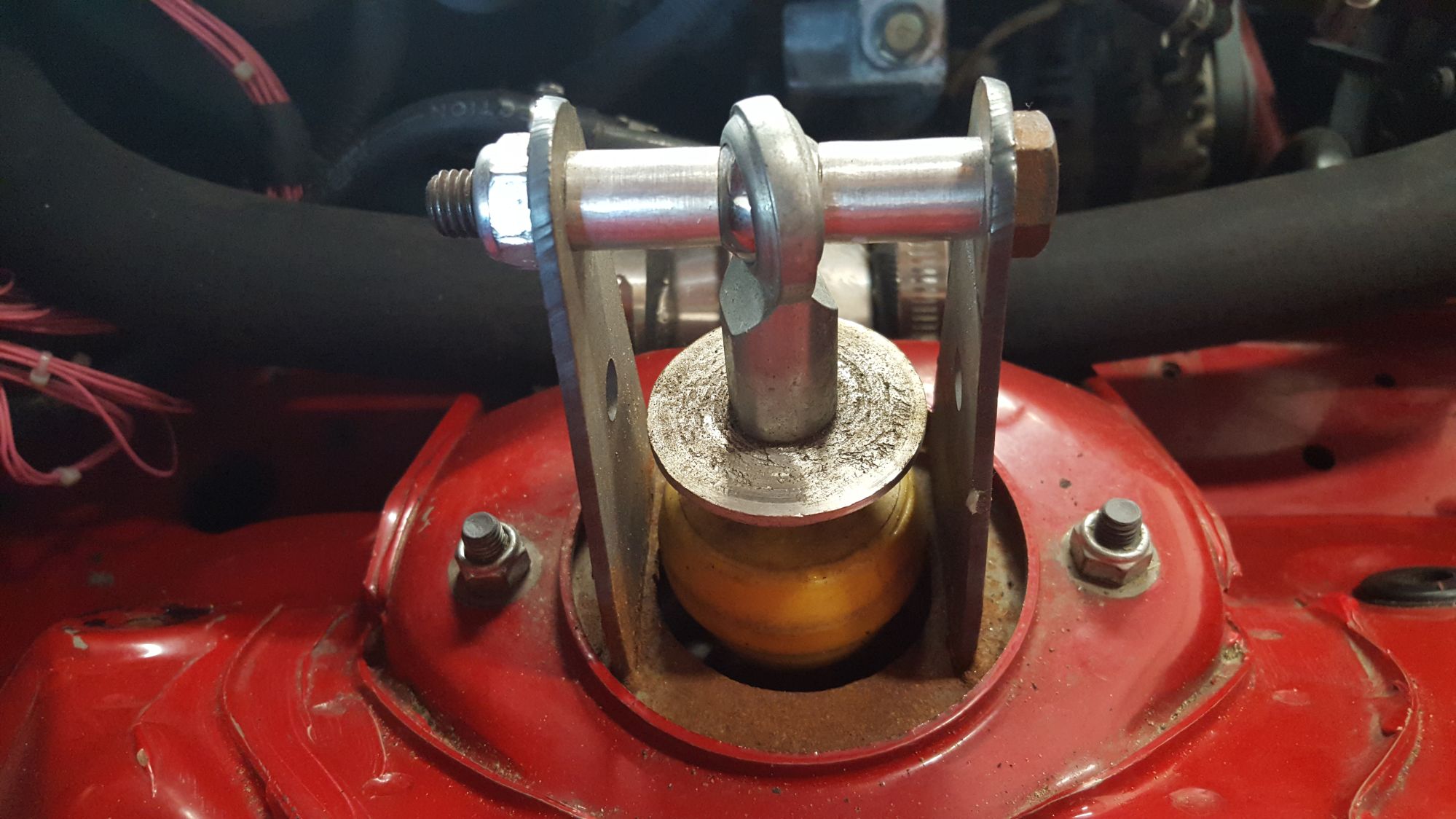

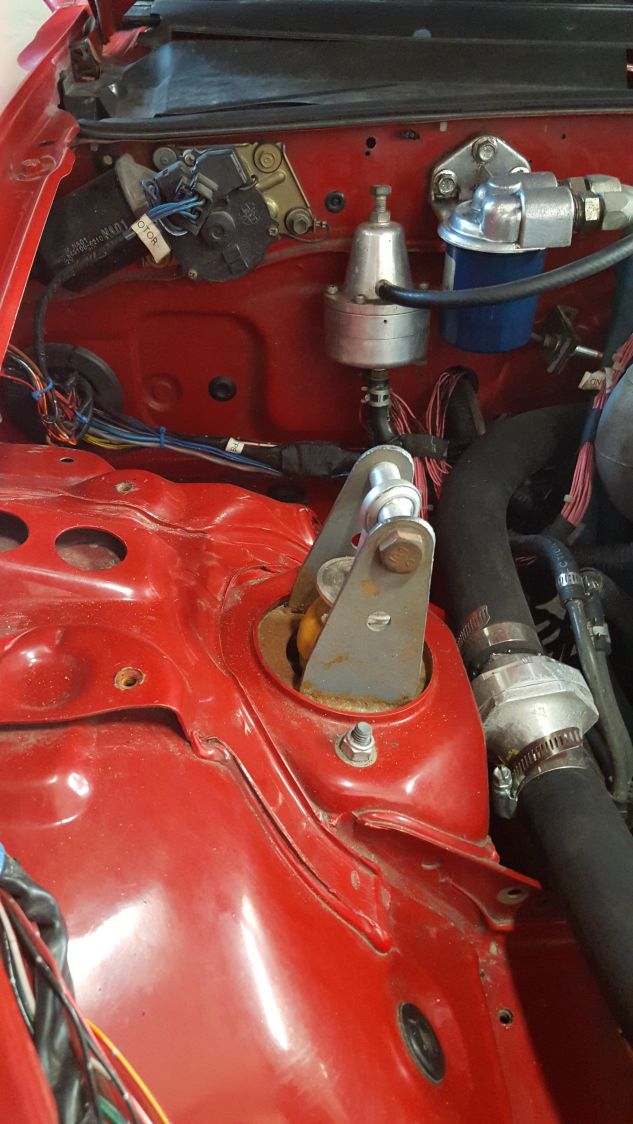

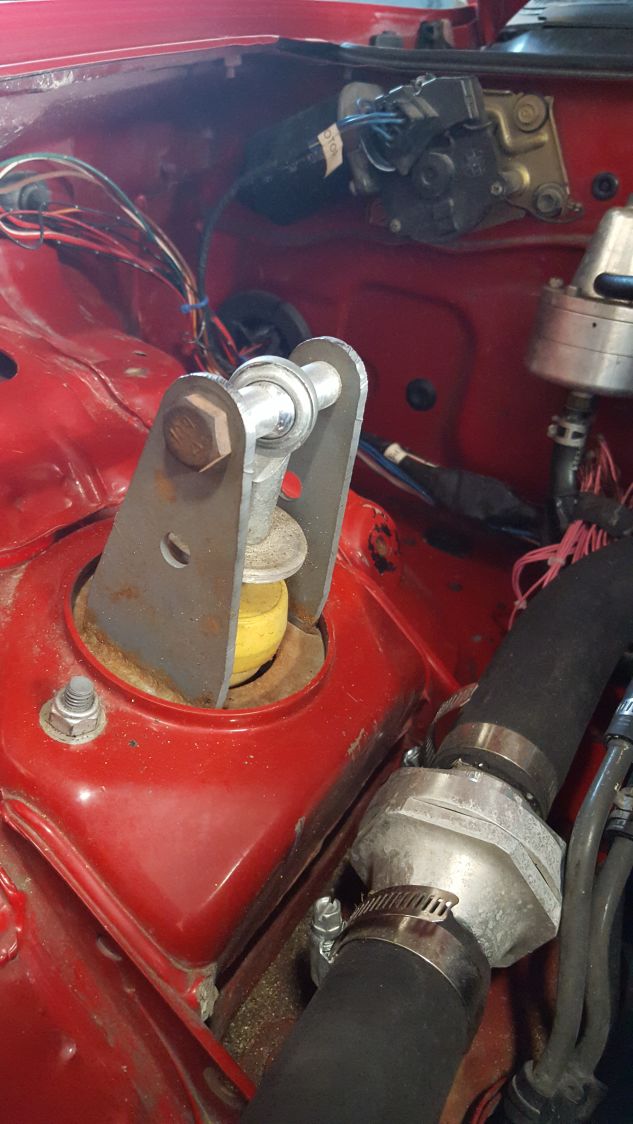

When I first got me NA it was running stock squishy upper mounts with lowering springs and stock bilsteins. I was shooting for a more race prep type setup and went with ebay coilover sleeves on the bilsteins with some 2.5" QA1 springs (450 front 350 rear). The stock mounts don't work well with this setup so I designed a top hat that would accept a 2.5" spring and a spherical on top of the damper. Below are some pictures. The tabs have two holes for ride height adjustment (untested bc lazy in winter) but this keeps the piston in the center of the damper for full range of travel. As far as NVH goes this setup is far more rigid than before and "response" is improved, but I actually notice a lot less noise. This could be from my lack of bottoming out over everything, but after this setup I will never go back to what I was running before. For those wondering I have put ~10,000 miles on these with no issues.






Attached Thumbnails
Spherical bearings-80-20150802_153132_f708fa7f71212dc9275b22a0a603a495dc6207fa.jpg   Spherical bearings-80-20150802_153120_ac8f419777bc4f2818e898f9773b24b41bd5388e.jpg   Spherical bearings-80-20150802_153114_6e9a30b08cfb3624c13f7cc897dcac34af483fda.jpg
rollie is offline   Reply With Quote
Old 08-03-2015, 03:54 PM   #11
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

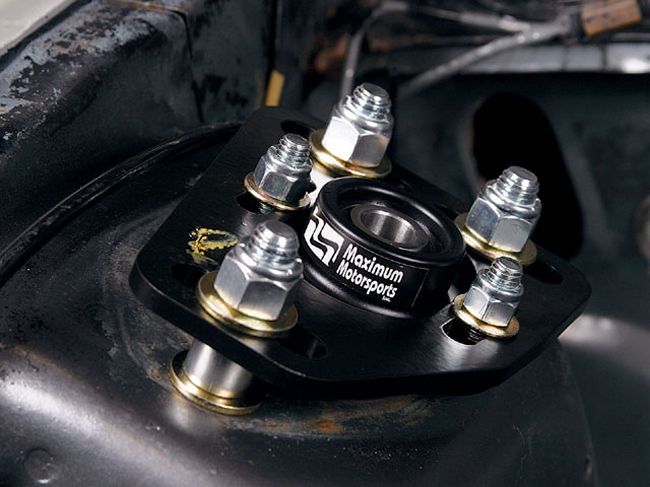

Curious. Mustangs use caster/camber plates that have the top of the strut through the spherical bearing.

Example pic below, no strut installed, to show bearing clearly.

Attached Thumbnails
Spherical bearings-80-m5lp_0710_14_z_2bgt_500_engine_swap_2bunbolting_old_struts_c81fc2114feba850eed51dd1e6dc0cda3e.jpg
huesmann is offline   Reply With Quote
Old 08-03-2015, 04:06 PM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by y8s View Post
BUT
if you do swap out NB2 shocks, make sure you get the little clear plastic gaskets that go between the body and shock top to prevent the squeaks.


FAWK.
concealer404 is offline   Reply With Quote
Old 08-03-2015, 04:23 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by concealer404 View Post
FAWK.
It's not a hard (re)install. jack car, remove 2 nuts from each corner, let it hang loose, wipe off the top of the mount and underside of the body/frame, and jam your hand up in there with the gasket.
y8s is offline   Reply With Quote
Old 08-03-2015, 04:27 PM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

I don't know if i have them anymore. I'll have to check.
concealer404 is offline   Reply With Quote
Old 08-04-2015, 12:13 AM   #15
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

We had those mounts on our mustang. They were nice. Not sure but the steering felt less jerky after. Was under the idea that with the bearing we were not turning the shaft in the shock anymore.
TorqueZombie is offline   Reply With Quote
Old 08-04-2015, 11:59 AM   #16
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,061
Total Cats: 48
Default

Quote:
Originally Posted by concealer404 View Post
I don't know if i have them anymore. I'll have to check.
I have been running without two of them for a year and a half with NA top hats, and now a few weeks with none and NB top hats. No noise from them.
x_25 is offline   Reply With Quote
Old 08-04-2015, 01:04 PM   #17
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by TorqueZombie View Post
We had those mounts on our mustang. They were nice. Not sure but the steering felt less jerky after. Was under the idea that with the bearing we were not turning the shaft in the shock anymore.
Why would the shaft rotate inside the shock when the steering is turned? Do Mustangs have MacPherson strut front suspension?
Joe Perez is offline   Reply With Quote
Old 08-04-2015, 01:09 PM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Yup.
concealer404 is offline   Reply With Quote
Old 08-04-2015, 01:12 PM   #19
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Interesting...

Given how enormous and expensive the Mustang has gotten over the years, I find it difficult to imagine that packaging constraints or cost dictated the change to strut suspension as opposed to the traditional double A-arm.
Joe Perez is offline   Reply With Quote
Old 08-04-2015, 01:59 PM   #20
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

The Mustang chassis was based on the Ford Fairmont platform, introduced in 1978. The only SLA suspension ever available was expensive aftermarket kits.
huesmann is offline   Reply With Quote
