Old 07-21-2011, 04:23 PM   #41
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

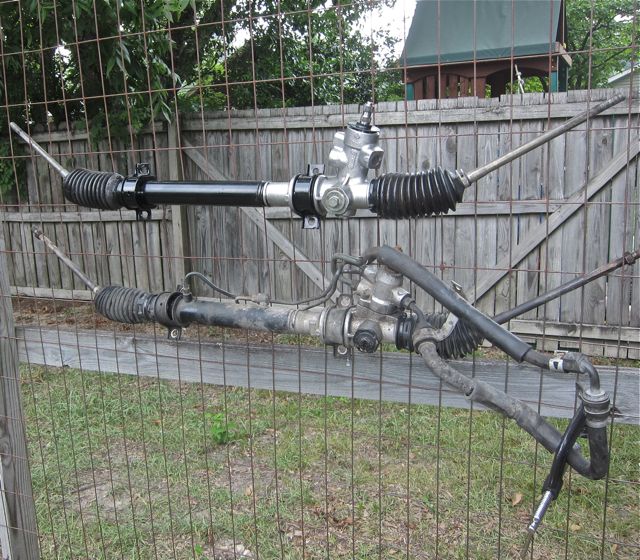

Two styles of rack in the pic. One has the later two-piece casting, the other is wearing a one piece bathing suit. See how much cleaner de-nippling (ouch) and hydraulic port filling looks?

https://www.miataturbo.net/attachmen...1&d=1311276137
Attached Thumbnails
Thoughts on de-powering the rack?-tworacks.jpg

Last edited by sjmarcy; 07-21-2011 at 05:04 PM.
sjmarcy is offline   Reply With Quote
Old 07-21-2011, 05:03 PM   #42
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

You can make it a lot cleaner if you take out the hydraulic lines and just put some silicone hose on the ends of the hard lines.
Faeflora is offline   Reply With Quote
Old 07-21-2011, 05:07 PM   #43
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
You can make it a lot cleaner if you take out the hydraulic lines and just put some silicone hose on the ends of the hard lines.
That sounds really complicated.
sjmarcy is offline   Reply With Quote
Old 07-21-2011, 07:22 PM   #44
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Define "over-loaded". Actually, don't. If you're so dense that you think I added 100lb/ft instead of something reasonable then you're beyond hope. This also reduced the slop.

Fab up a steering damper for me, for free.

I added a little pre-load because I like the way Porsches steer more than BMW feel. Maybe you can ask Porsche about their suspension problems.
Wow. Kinda sensitive today, aren't you, hustler.

Well, I don't give a rat's *** how you set up your steering rack, but I'm pretty sure your bodge isn't how Porsche get's their superior feel; I suspect they probably do it with tight tolerances and excellent design. But like I said earlier, if it works for you.
Thucydides is offline   Reply With Quote
Old 07-21-2011, 09:39 PM   #45
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Thucydides View Post
Wow. Kinda sensitive today, aren't you, hustler.

Well, I don't give a rat's *** how you set up your steering rack, but I'm pretty sure your bodge isn't how Porsche get's their superior feel; I suspect they probably do it with tight tolerances and excellent design. But like I said earlier, if it works for you.
Right, Porsche is not getting their feel via friction or damping. It comes in the design stage. Which is why I focused on the uprights. From them comes all else.

For Trey I'd want to know more about the white knuckle experience. More details. What is going on at what times, what types of turns and what else is going on at the same time. This may help come up with some ideas if there are any left you haven't yet tried.
sjmarcy is offline   Reply With Quote
Old 07-21-2011, 09:55 PM   #46
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

My view on converting racks from power to manual is that only ONE rack/pinion seal is necessary. This is the one that lives at the steering input spline end of the pinion shaft. All of the other sealing is taken care of by your accordion boots which need to be in good condition.

So I remove the cylindrical spool valve with it's four o-rings. The other seals in the aluminum casting. The seal at the center of the rack that everyone removes. The one inside the cylindrical insert support that gets steel-ring retained into the passenger side end of the black rack housing tube. And the one that lives in the housing near where the black steel housing connects to the aluminum casting. Any other seals that do not touch the rack or pinion can stay. They have no effect on the steering. For instance, there is an o-ring on the outside of the cylindrical insert that can stay, not that it will do much of anything.

When you depower a rack like this, you can operate it with two fingers on the input shaft on an uninstalled rack. Unless you are a he-man like Trey, in which case you can just Chuck Norris think about it and it will move.

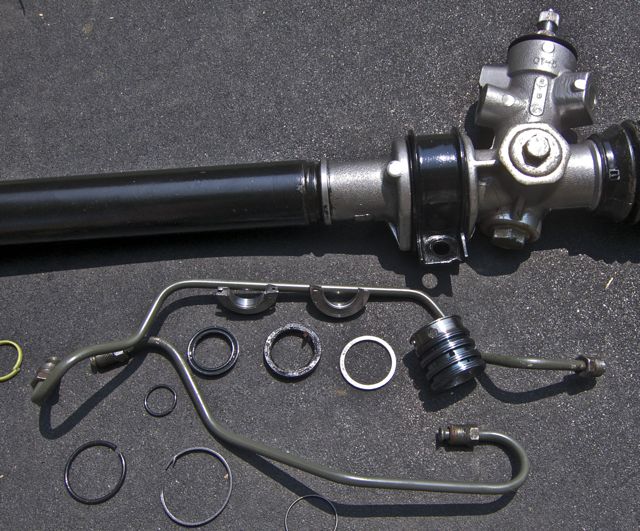

Here are most of the seals and crap I pulled on a recent conversion. There may be a few more. Again the idea is to wind up with one seal touching the moving bits, the steering input seal.

https://www.miataturbo.net/attachmen...1&d=1311296064
Attached Thumbnails
Thoughts on de-powering the rack?-rack3.jpg
sjmarcy is offline   Reply With Quote
Old 07-21-2011, 11:39 PM   #47
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

I used to remove the seals at either end of the rack too, and greased the end of the rack where it goes through the big aluminum carrier, but I've since changed my mind about that.

I now leave in the seals in the aluminum carrier, and the other seal that keeps the hydraulic fluid within the rack cylinder just before the toothed section. The reason is that I now use hydraulic fluid (HF) to lubricate the carrier instead of grease because there's less friction that way. The shaft through the aluminum carrier is already designed to be lubed by HF, and with HF being roughly the viscosity of water, there's no significant friction at the seals using HF. After doing four racks I really can't tell the difference in friction between the ones with grease and no seals, and the ones with seals and HF, but I can feel the difference sliding the shaft through the aluminum carrier.

By far the greatest source of friction is at the pre-load at the lash adjuster. The factory has a specification for setting the adjuster, the intent of which is to maximize gear tooth contact while minimizing lash, friction, and wear - but you can do better (or worse) by feel.

Last edited by Thucydides; 07-21-2011 at 11:58 PM.
Thucydides is offline   Reply With Quote
Old 07-21-2011, 11:51 PM   #48
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by Thucydides View Post
I used to remove the seals at either end of the rack too, and greased the end of the rack where it goes through the big aluminum carrier, but I've since changed my mind about that.

I now leave in the seals in the aluminum carrier, and the other seal that keeps the hydraulic fluid within the rack cylinder just before the toothed section. The reason is that I now use hydraulic fluid (HF) to lubricate the carrier instead of grease because there's less friction that way. The shaft through the aluminum carrier is already designed to be lubed by HF, and with HF being roughly the viscosity of water, there's no significant friction at the seals using HF. After doing four racks I really can't tell the difference in friction between the ones with grease and no seals, and the ones with seals and HF, but I can feel the difference sliding the shaft through the aluminum carrier.

By far the greatest source of friction is at the pre-load at the lash adjuster, which I'm from now on going to call the Porsche Feel Duplicator (PFD); this should not to be confused with the more common use of the acronym, "Pretty ******* Dumb". The factory has a specification for setting the PFD, the intent of which is to maximize gear tooth contact while minimizing lash, friction, and wear - but you can do better (or worse) by feel.
Except that the seal at the carrier is all the way inboard and the rack to carrier locating bore is outboard of that seal. I'd grease the outboard zone. From what I have experienced, and amongst the numerous rack variations out there (someone told me more than 10 types exist?!!) grease seems to be fine. Note that grease also comes in different thicknesses.

For seals you decide to leave in place, there is also another option. Most tend to use a circular spring to pull the seal lip closer to the item being sealed. You can remove that and still achieve a good seal, but you'll have to check that it is working properly. If I have the time, when I redo a rack I like to mirror polish the OD. That can't hurt and the seals may like it too.

In the end do what seems right to you, there are many good solutions here.
sjmarcy is offline   Reply With Quote
Old 07-22-2011, 12:03 AM   #49
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Great ideas. I'll borrow a few for my next rack.
Thucydides is offline   Reply With Quote
Old 07-22-2011, 12:07 AM   #50
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Quote:
Originally Posted by sjmarcy View Post
Except that the seal at the carrier is all the way inboard and the rack to carrier locating bore is outboard of that seal. I'd grease the outboard zone.
That's interesting. I don't recall any grease on any of the racks I've disassembled. I guess the carrier locating bore get's lubed by whatever wisp of HF get's carried on the rack past the seal in normal operation? In any case, a bit of high quality grease sure couldn't hurt there.
Thucydides is offline   Reply With Quote
Old 07-22-2011, 12:39 AM   #51
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by sjmarcy View Post
For Trey I'd want to know more about the white knuckle experience. More details. What is going on at what times, what types of turns and what else is going on at the same time. This may help come up with some ideas if there are any left you haven't yet tried.
The added resistence makes it easier to hold steering angle, lessening the sawing-action over bumps. When it was really loose with the 45in/lb w/ "45*back" it felt like I could race the car with two fingers on the wheel, making me exacerbate minor surface change based corrections. I was going over bumps and surface changes and it really felt like the wheel was getting jerked out of my hand. So I made a little protractor on the jam nut and cut that 45* in half and it magically changed the feel of the rack. The wheel feels heavier at speed and jerks less. I can still push the rack in and out by hand, but it feels better on the track.

I'm pretty strong and I've been specifically working on strengthening my rotators and it's made a difference. A year ago I was moving my hands around the wheel to make it easier, today I'm "up to snuff" and can leave my hands on the wheel and turn the steering wheel 180* without pain and with enough strength to not saw back and forth over the bumps.

I should also note that I did this mod after a huge kayaking trip where I floated 45-miles in 3 days on class-4 rapids, so that may have affected my initial feelings on the rack.
hustler is offline   Reply With Quote
Old 07-22-2011, 12:40 AM   #52
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Thucydides View Post
Wow. Kinda sensitive today, aren't you, hustler.
lol, sorry. This is what I get for listening to scary-voice heavy metal at work while I push papers around.
hustler is offline   Reply With Quote
Old 07-22-2011, 09:05 AM   #53
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by sjmarcy View Post
A nice thing about the small Loti is their initial turn-in…the next time you drive one pay close attention to it. They have their issues, but there is absolutely zero whippy steering feel at speed.
I still take them out with great vengence with my looped rack:
http://youtu.be/tyCXO9-o784?t=15m45s
Laur3ns is offline   Reply With Quote
Old 07-22-2011, 11:26 AM   #54
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
The added resistence makes it easier to hold steering angle, lessening the sawing-action over bumps. When it was really loose with the 45in/lb w/ "45*back" it felt like I could race the car with two fingers on the wheel, making me exacerbate minor surface change based corrections. I was going over bumps and surface changes and it really felt like the wheel was getting jerked out of my hand. So I made a little protractor on the jam nut and cut that 45* in half and it magically changed the feel of the rack. The wheel feels heavier at speed and jerks less. I can still push the rack in and out by hand, but it feels better on the track.

I'm pretty strong and I've been specifically working on strengthening my rotators and it's made a difference. A year ago I was moving my hands around the wheel to make it easier, today I'm "up to snuff" and can leave my hands on the wheel and turn the steering wheel 180* without pain and with enough strength to not saw back and forth over the bumps.

I should also note that I did this mod after a huge kayaking trip where I floated 45-miles in 3 days on class-4 rapids, so that may have affected my initial feelings on the rack.

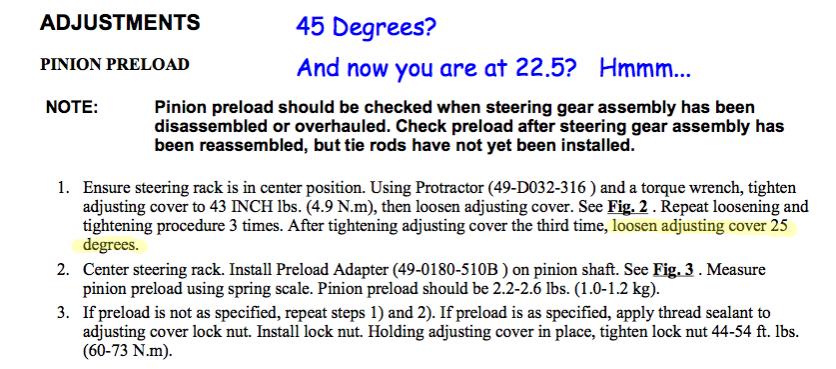

Maybe your "Deliverance" experience made you squeal like a pig when you steer? ;-) At least some of the racks desire 25 degrees as their baseline, confirmed by testing twist at the input spline:

https://www.miataturbo.net/attachmen...1&d=1311344651
Attached Thumbnails
Thoughts on de-powering the rack?-strongarm.jpg
sjmarcy is offline   Reply With Quote
Old 07-22-2011, 11:48 AM   #55
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
lol, sorry. This is what I get for listening to scary-voice heavy metal at work while I push papers around.
Yeah; sorry I mocked your Porsche Feel Duplicator (PDF). Happy Friday, Hustler.
Thucydides is offline   Reply With Quote
Old 07-22-2011, 12:59 PM   #56
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Who wants to build me a rack!
Faeflora is offline   Reply With Quote
Old 07-22-2011, 08:25 PM   #57
Newb

Join Date: Jan 2009
Posts: 16
Total Cats: 0
Default

It's really not difficult. In addition to the flyinmiata write up, I also read the miatabusa site. I welded my own pinion making three tack welds each at 120 degrees around the perimeter then filled in between them 1 at a time, allowing it to cool between. I also cut off the line fittings on the rack body and welded them closed. I removed the recommended seals in the write-ups. I also replaced the boots. Got em at car quest for around $15 for the pair. The improvement is worth it.

I also installed the 93LE/R package endlinks to help with bump steer. I may end up shimming the rack up a little in the future to help even more.

I keep reading about the dropped spindle and re-designed uprights. What is changed and how is it an improvement?
jcnormar is offline   Reply With Quote
Old 07-22-2011, 10:26 PM   #58
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Faeflora View Post
Who wants to build me a rack!
I wonder how much $$$ FM could make by pulling all the good PS racks out of the cars in the "salvage" lot, depowering them, and reselling them to us lazy bastards?

I know I would seriously consider buying one.










You hear that Keith?!
EO2K is offline   Reply With Quote
Old 07-22-2011, 10:31 PM   #59
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by EO2K View Post
I wonder how much $$$ FM could make by pulling all the good PS racks out of the cars in the "salvage" lot, depowering them, and reselling them to us lazy bastards?

I know I would seriously consider buying one.

You hear that Keith?!
PM me a price you think is fair and I'll start exchanging them.
hustler is offline   Reply With Quote
Old 07-23-2011, 05:29 AM   #60
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I'd buy a welded depowered NB steering rack for USD 200
