Default What breaks on the 1.6 rear end?

I know the 1.8 rear swap is probably the way to go, but what breaks in the 1.6? Axles, ring and pinion, diff? Just wondering....
generalfred is offline   Reply With Quote
Old 09-19-2012, 05:58 PM   #2
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

Or does it all go boom?
generalfred is offline   Reply With Quote
Old 09-19-2012, 06:00 PM   #3
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

R&p
Bond is offline   Reply With Quote
Old 09-19-2012, 06:04 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Typically the teeth on the pinion gear and the ring gear fracture / shatter / shear / whatever the correct ME term for broken gear teeth is.
Joe Perez is offline   Reply With Quote
Old 09-19-2012, 07:13 PM   #5
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

Ok. Thanks. I was looking to upgrade the rear end, but I'd still like to keep my 4.11. Seems that most 1.8's are Geared much taller. The dollars all start to add up if you do it right. I was considering, perhaps hardened gears? I mean, I'd end up buying gears and an LSD For the 1.8 anyway... thoughts?
generalfred is offline   Reply With Quote
Old 09-19-2012, 07:18 PM   #6
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

None of it's cheap. I'll do the right thing and start with a 1.8. Thanks for the info.
generalfred is offline   Reply With Quote
Old 09-19-2012, 07:57 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Sounds like you got it figured out. Firsty, you can get a 4.1 1.8 rear. Iirc they come in 4.3, 4.1, 3.9, and the ever rare 3.6.
Fireindc is offline   Reply With Quote
Old 09-19-2012, 08:00 PM   #8
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

Yeah, 1.8 has more options.... Gears, lsd's etc... Overall, a cheaper, more solid build.
generalfred is offline   Reply With Quote
Old 09-19-2012, 08:43 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

You actually have a 4.3 rear end if you have a 1.6

You can get another 4.3 out of a '99-'03.

And why would you think hardened gears would help when they're already shattering?
curly is offline   Reply With Quote
Old 09-19-2012, 08:51 PM   #10
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

That would be nice. I passed up a 1.8 diff carrier stub shafts and axels for $275 Shipped a few weeks ago. Now that I'm looking, I'm kicking myself.... That was a good deal. Just have to keep looking. Now that I know a 4.3 is what I need, I'll just have be ready when one pops up. Are these fairly common? How would you know by looking at it? As of now, I'd have to take thier word for it. Thanks.
generalfred is offline   Reply With Quote
Old 09-19-2012, 08:59 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Yeah, most people know what car it's coming out of, or count the rotations of the axles per rotation of the driveshaft.
curly is offline   Reply With Quote
Old 09-19-2012, 09:03 PM   #12
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

Ahhhh. Ok.
generalfred is offline   Reply With Quote
Old 09-19-2012, 11:08 PM   #13
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

I just swapped a 4.1 into my car, replacing the 4.3. I can't tell a difference in acceleration or any other aspect related to gearing. I guess I see fewer revs on the highway but it's not that obvious. I wouldn't sweat it too much if you are going to be turbo'd in the future.
matthewdesigns is offline   Reply With Quote
Old 09-20-2012, 08:50 AM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

IRRC the 4.3 only came in open diff cars so if you want one you need to buy a 1.8 diff with a torsen and also an open diff from an auto NB to get the 4.3 and swap the R&P.
Leafy is offline   Reply With Quote
Old 09-20-2012, 09:42 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by Leafy View Post
IRRC the 4.3 only came in open diff cars so if you want one you need to buy a 1.8 diff with a torsen and also an open diff from an auto NB to get the 4.3 and swap the R&P.
You could get a 4.3 Torsen as an option from 1999 to 2002. (03 cars got the TF and I believe all 04-05 cars were 4.10s)
Savington is offline   Reply With Quote
Old 09-20-2012, 10:30 PM   #16
Newb
Thread Starter

Join Date: Jul 2011
Location: Westminster, CO.
Posts: 22
Total Cats: -5
Default

It's good to know the gearing isn't too much of an issue, although, I do like my current setup. I'll probably look for an open diff with a 4.3 just to get it on the car. Thanks for steering me in the right direction.
generalfred is offline   Reply With Quote
Old 11-28-2012, 02:56 AM   #17
Newb

Join Date: Nov 2012
Location: sydney australia
Posts: 6
Total Cats: 0
Default

i recently noticed a "woo-woo-woo..." sound that happened when my car was rolling in neutral and was amplified when engine braking in gear. The sound disappeared however when accelerating in gear which was strange, never the less i jacked my car up and found an oil leak permeating from where the pinion seal was on the diff. I think the reasoning the sound got worse is because of the amount of oil that leaked over time.

I took it to a mechanic i trust today and he told me that my car has the 1.6 LSD (the seller must have provided a fake copy of a reciept for a 1.8NB LSD, an enticing factor when i bought it a couple of weeks ago).

The mechanic also told me (without looking into the diff) that with the amount its going to cost in labor that i may as well buy a 4.1 diff and axles used in the 1.8 instead of replacing the seals on my current 1.6 LSD. i like the LSD, especially fun in the wet but my car does have a 1996 1.8L engine in it.

is the mild power difference between the engines enough to warrant the spending on a new diff and axles when i can simply replace the seals for $130 + 3ish hours of labour if the current gears in the diff are in good condition?

this is the closest thread i could find to match my question, if someone finds another thread with my predicament id be happy to read it if linked below.

Last edited by mx089; 11-28-2012 at 06:00 AM. Reason: dont know why i put the exclamation mark
mx089 is offline   Reply With Quote
Old 11-28-2012, 03:09 AM   #18
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by mx089 View Post
i recently noticed a "woo-woo-woo..." sound that happened when my car was rolling in neutral and was amplified when engine braking in gear. The sound disappeared however when accelerating in gear which was strange, never the less i jacked my car up and found an oil leak permeating from where the pinion seal was on the diff. I think the reasoning the sound got worse is because of the amount of oil that leaked over time.

I took it to a mechanic i trust today and he told me that my car has the 1.6 LSD (the seller must have provided a fake copy of a reciept for a 1.8NB LSD, an enticing factor when i bought it a couple of weeks ago).

The mechanic also told me (without looking into the diff!) that with the amount its going to cost in labor that i may as well buy a 4.1 diff and axles used in the 1.8 instead of replacing the seals on my current 1.6 LSD. i like the LSD, especially fun in the wet but my car does have a 1996 1.8L engine in it.

is the mild power difference between the engines enough to warrant the spending on a new diff and axles when i can simply replace the seals for $130 + 3ish hours of labour if the current gears in the diff are in good condition?

this is the closest thread i could find to match my question, if someone finds another thread with my predicament id be happy to read it if linked below.
I have seen 1.6 differentials break with only the output of a 1.6 engine. I would replace with a 1.8 if you are SURE you have a 1.6 in there.
olderguy is online now   Reply With Quote
Old 11-28-2012, 03:28 AM   #19
Newb

Join Date: Nov 2012
Location: sydney australia
Posts: 6
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
I have seen 1.6 differentials break with only the output of a 1.6 engine. I would replace with a 1.8 if you are SURE you have a 1.6 in there.
thanks for the response olderguy

I'm not very good at distinguishing if it is a 1.6 or 1.8 diff however they said it was a 1.6 diff because it was smaller than the 1.8. I thought a model number imprinted on the diff would be a better determinant than the size however i didnt look into it because i was at work when the mechanic called. I thought the size of the diff would be a better indication to the gearing inside but im mechanically noob so i just took their word for it.

is there a tell i should look out for?
mx089 is offline   Reply With Quote
Old 11-28-2012, 03:33 AM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

The 1.6 VLSD is easily identified externally, as the stub axles have a unique flange where they mate with the CV joints:

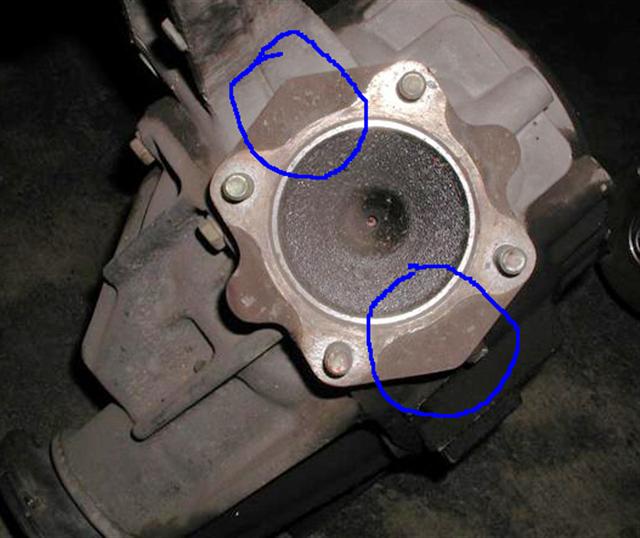

Left:

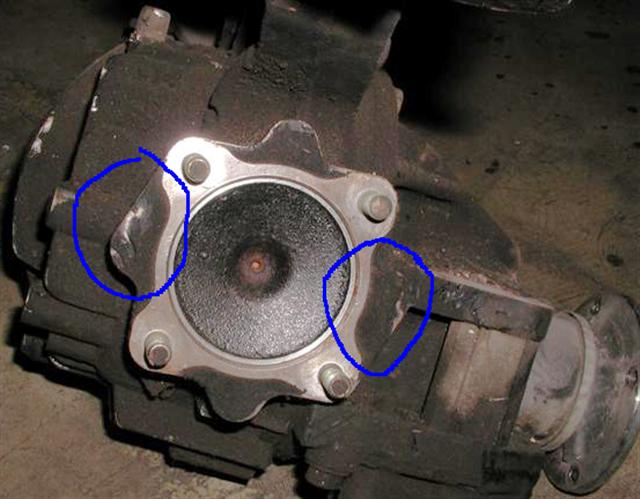

Right:

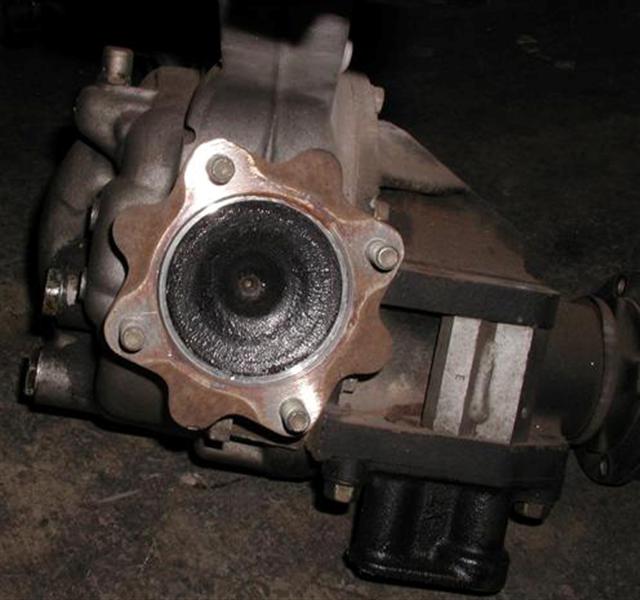

The 1.6 open diff has star-shaped stub axle flanges on both sides:

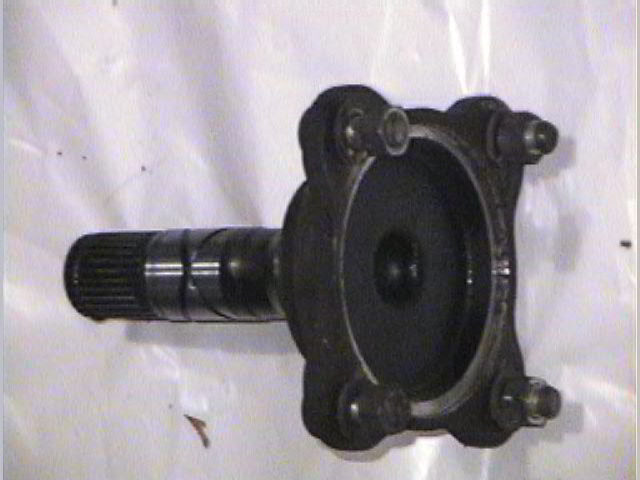

The stub axles on the 1.8 diff (open or Torsen) don't have the extra four ****:

Attached Thumbnails
What breaks on the 1.6 rear end?-08.jpg   What breaks on the 1.6 rear end?-09.jpg   What breaks on the 1.6 rear end?-11.jpg   What breaks on the 1.6 rear end?-stub.jpg
Joe Perez is offline   Reply With Quote
