Default Wheres the problem, Operator error

i purchased some second hand agx shocks with sleeves and 450lb/350lb springs. installed them on the car as the came in the box and something just doesn't look right.
Measured center of the hub to edge of fender, 13 3/4in in the front and 12 1/2 in the back. there are no threads left to adjust down. so where is the problem?
Attached Thumbnails

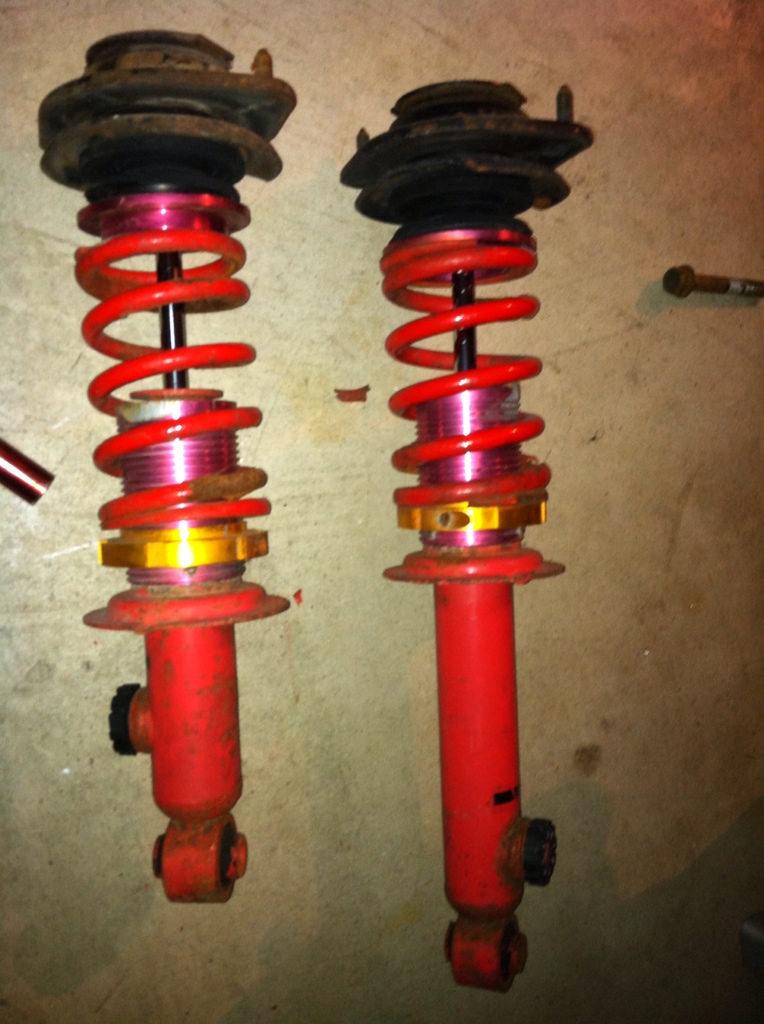

Wheres the problem, Operator error-56b29ca7-de48-4a13-afa2-b84afca190dc-58423-00005c18d803a474.jpg
redturbomiata is offline   Reply With Quote
Old 08-14-2012, 10:03 AM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Here's your problem...


fooger03 is offline   Reply With Quote
Old 08-14-2012, 12:22 PM   #3
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Did you reverse the shocks?
2ndGearRubber is offline   Reply With Quote
Old 08-14-2012, 12:34 PM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

not according to the way the old ones came off, long shock in the front shorter in the back. for some reason i feel like the springs are reversed?
redturbomiata is offline   Reply With Quote
Old 08-14-2012, 02:01 PM   #5
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Possible
2ndGearRubber is offline   Reply With Quote
Old 08-14-2012, 02:28 PM   #6
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

Lower spring seats need to be removed. IIRC the top spring seats have to be modified too. Probably still needs bumpstops cut.
Alta_Racer is offline   Reply With Quote
Old 08-14-2012, 03:49 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I have the same setup as the above and see your problem. You are running the coilover collars on top of the shocks spring perch. This is incorrect. That spring perch should be removed ( you can hammer it off, or pry it off ), and then there is a small aluminum collar that replaces that for the coilover to slide down over, and thus the coilover sits about an inch lower than they currently are.

Hope that makes sense.. Personally I had this problem a few years back and didn't have the little aluminum collars that I'm talking about. I ended up taking the 2 parts to a machine shot to have the perches made.
Fireindc is offline   Reply With Quote
Old 08-14-2012, 08:17 PM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Best way to remove without damaging the shock?
redturbomiata is offline   Reply With Quote
Old 08-14-2012, 08:24 PM   #9
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

They should come off with very little effort. I believe i just tapped them on opposite sides until they broke loose, then I pulled them off by hand.

I know there's a writeup on this somewhere online, I had the same issue when I went to install mine and was left clueless, then found some kind of article iirc.
Fireindc is offline   Reply With Quote
Old 08-14-2012, 10:08 PM   #10
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Quote:
Originally Posted by redturbomiata View Post
Best way to remove without damaging the shock?
Smack 'em with a hammer. They're just pressed on and tacked.
rleete is online now   Reply With Quote
