Default Why are these extension housing bolts sheared?

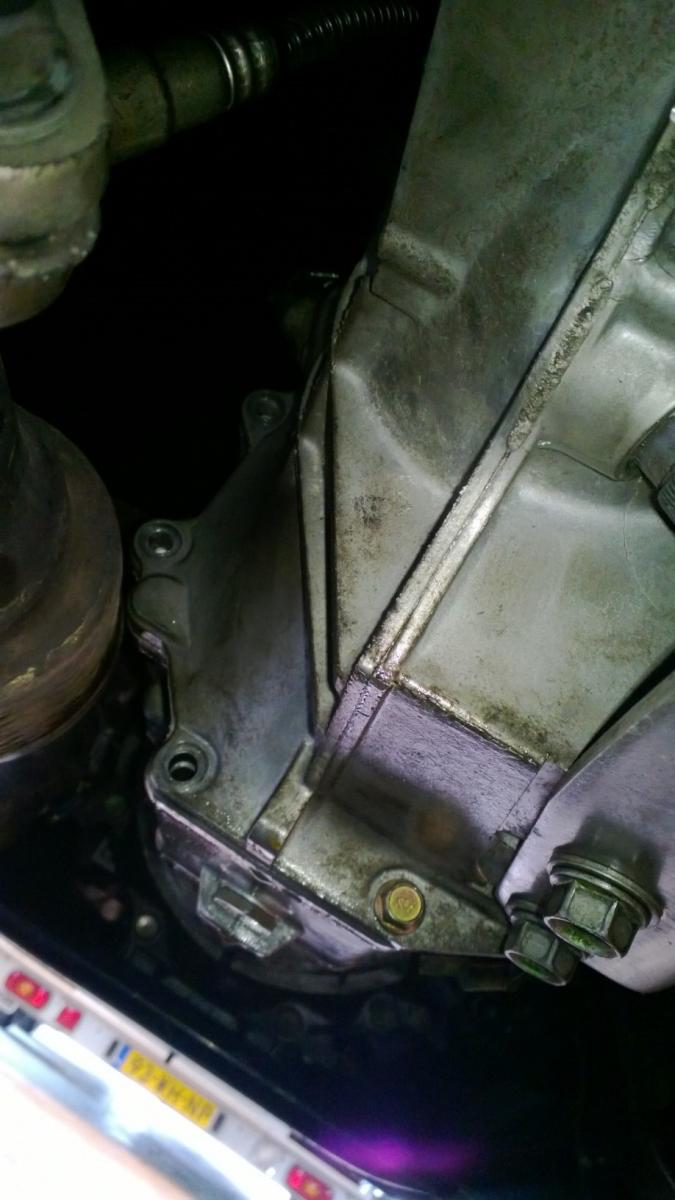

This is my beloved Quaife box:

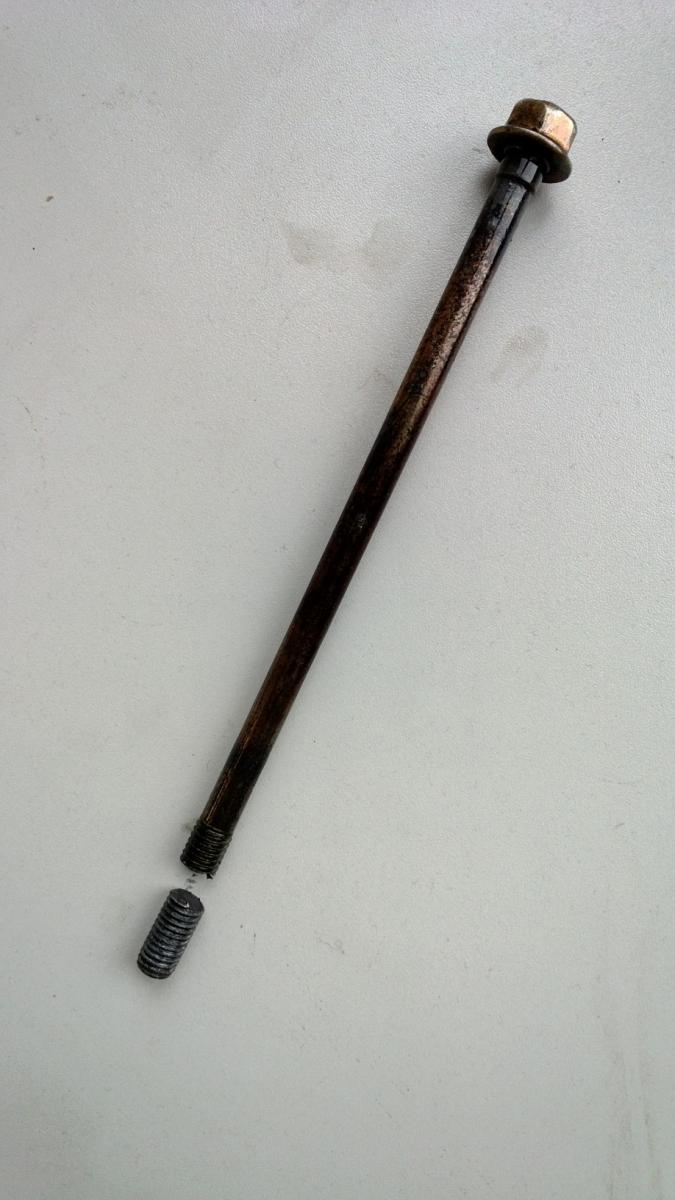

So, upon finding some oil at the bottom of the transmission - I quickly found some extension housing bolts missing.

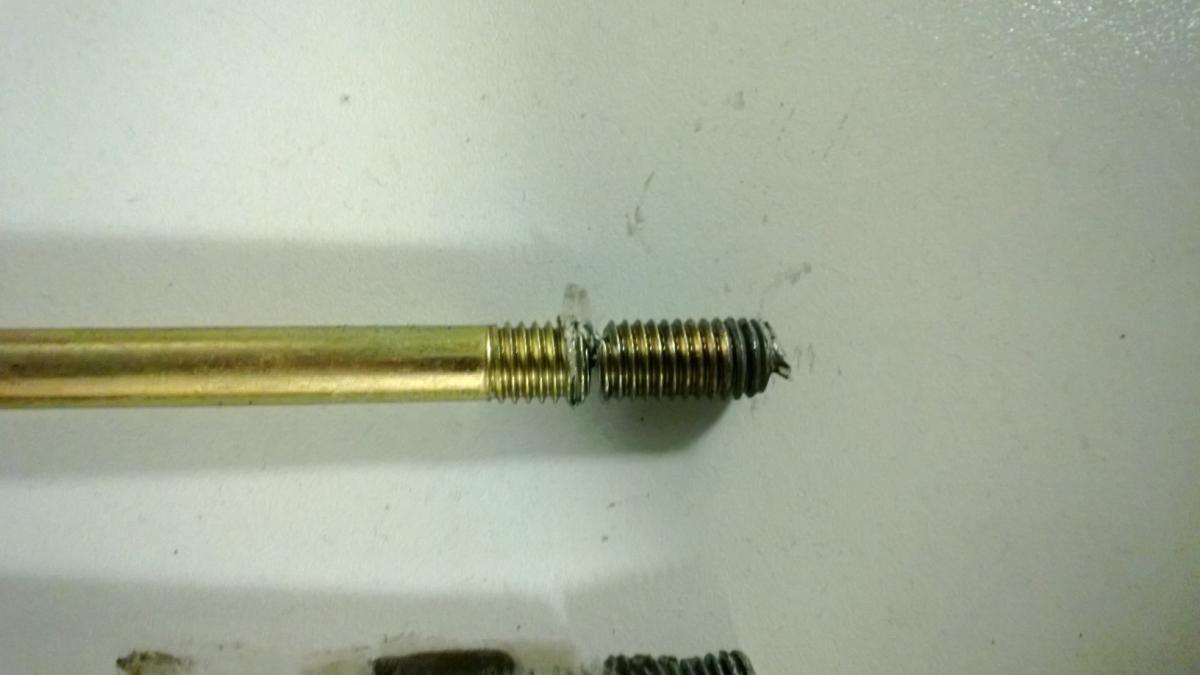

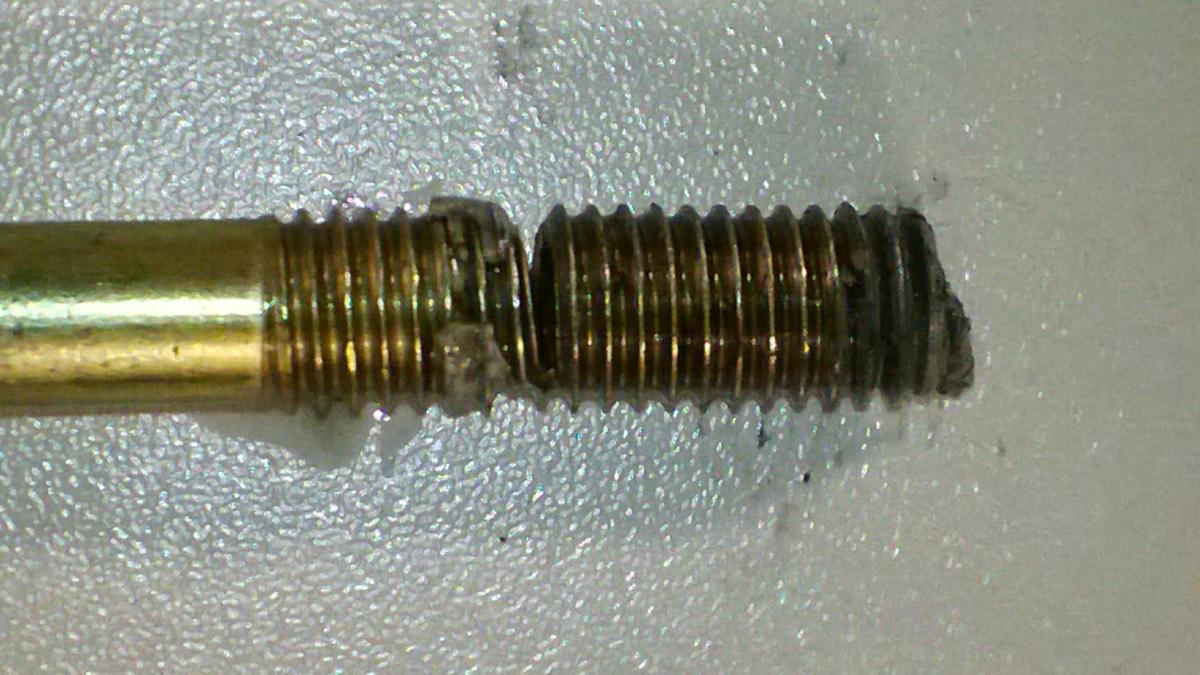

Upon further inspection, most sheared and left 2/3" thread in the housing. I think only 2 are somewhat 'OK', 4 I've removed so far. The other two are impossible to reach, or are not fully through - making it hard (impossible?) to remove the thread remains.

Did they shear because
a) they were reused, which should not be done?
b) they were overtorqued
c) my car makes to much torque (PPF, and such)
d) bad carma?
Attached Thumbnails
Why are these extension housing bolts sheared?-wp_20130502_004.jpg   Why are these extension housing bolts sheared?-wp_20130502_009.jpg   Why are these extension housing bolts sheared?-wp_20130502_010.jpg   Why are these extension housing bolts sheared?-wp_20130502_014.jpg
Laur3ns is offline   Reply With Quote
Old 05-02-2013, 05:47 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

A) Like most other bolts, you should be able to reuse them a couple times.
B) I see no necking, i doubt it's from over torquing.
C) We've seen a million other failures from power, I don't think I've ever seen this failure.
D) I vote this one.

You said they were reused, was the gearbox taken apart recently? I'd vote first for missing dowel pins and/or UNDERtorqued bolts. This let it twist under acceleration, and shear the bolts.
curly is offline   Reply With Quote
Old 05-02-2013, 05:56 PM   #3
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Hmmm....I can only speculate here. Does the housing have dowel pins that help align the trans properly? Are they possibly missing?

Does one housing twist enough that it could have hammered the bolts enough to shear them? Perhaps they were not tightened properly.

That is my best conjecture.

Edit: Curly is faster than me.
miata2fast is offline   Reply With Quote
Old 05-02-2013, 07:49 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm not sure but I'm fairly certain that miserable, POS company Quaife is behind this.
hustler is offline   Reply With Quote
Old 05-03-2013, 07:42 AM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
I'm not sure but I'm fairly certain that miserable, POS company Quaife is behind this.
Right... helpful
Laur3ns is offline   Reply With Quote
Old 05-03-2013, 10:03 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Are they the OE case bolts? A high grade bolt would fail like that from over torquing. Whereas say a grade 5 would stretch.
m2cupcar is offline   Reply With Quote
Old 05-03-2013, 10:27 AM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by m2cupcar View Post
Are they the OE case bolts? A high grade bolt would fail like that from over torquing. Whereas say a grade 5 would stretch.
Don't these bolt thread into aluminum? I would finger the aluminum threads failing before a high grade bolt reached failure. I'm also having trouble placing these, do they hole the tail shaft housing on?
Leafy is offline   Reply With Quote
Old 05-03-2013, 10:35 AM   #8
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Yea, OEM grade 8 bolts. They go into the alu, which is still fine.

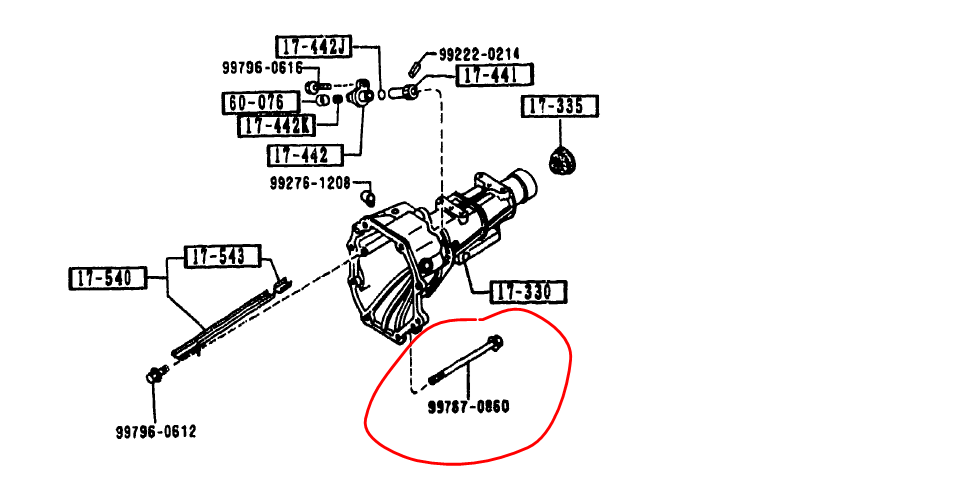

These are the bolts:
(you're looking only at the back half of the transmission, not the bell house)
Attached Thumbnails
Why are these extension housing bolts sheared?-extension-housing-bolts.png
Laur3ns is offline   Reply With Quote
Old 05-03-2013, 10:38 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Can you get a shot point down the length, like so we can see the face where the break was? From the last picture it almost looks like they were loose and sheared.
Leafy is offline   Reply With Quote
Old 05-03-2013, 11:30 AM   #10
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Leafy View Post
Can you get a shot point down the length, like so we can see the face where the break was? From the last picture it almost looks like they were loose and sheared.

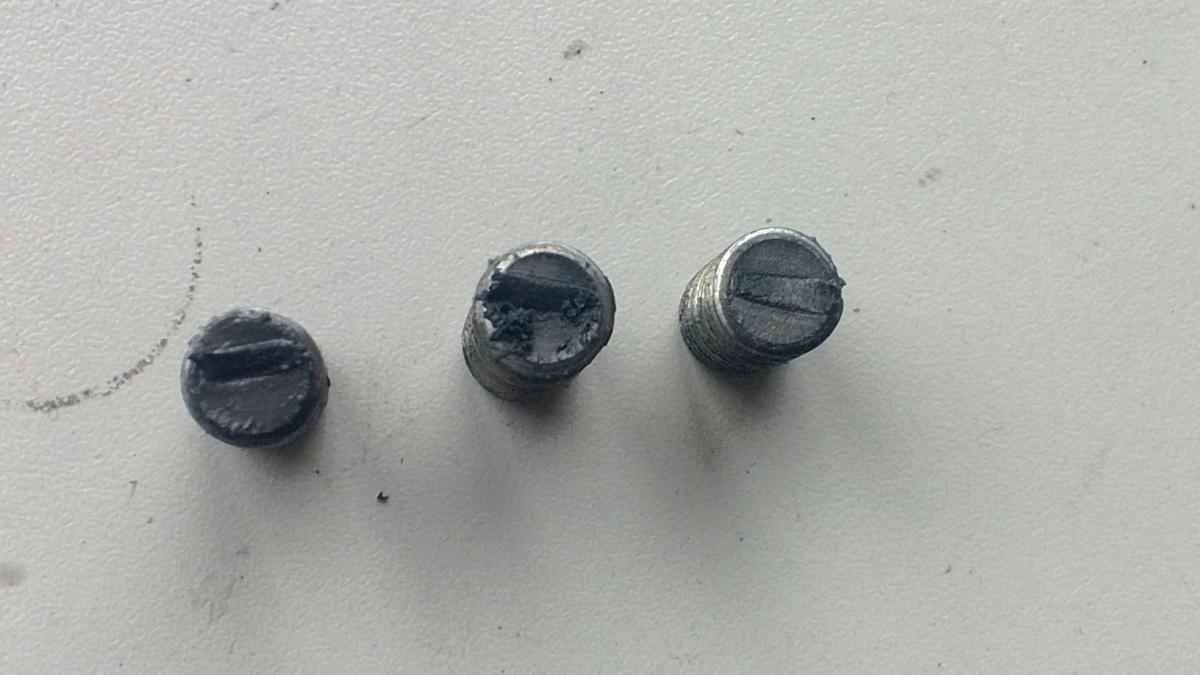

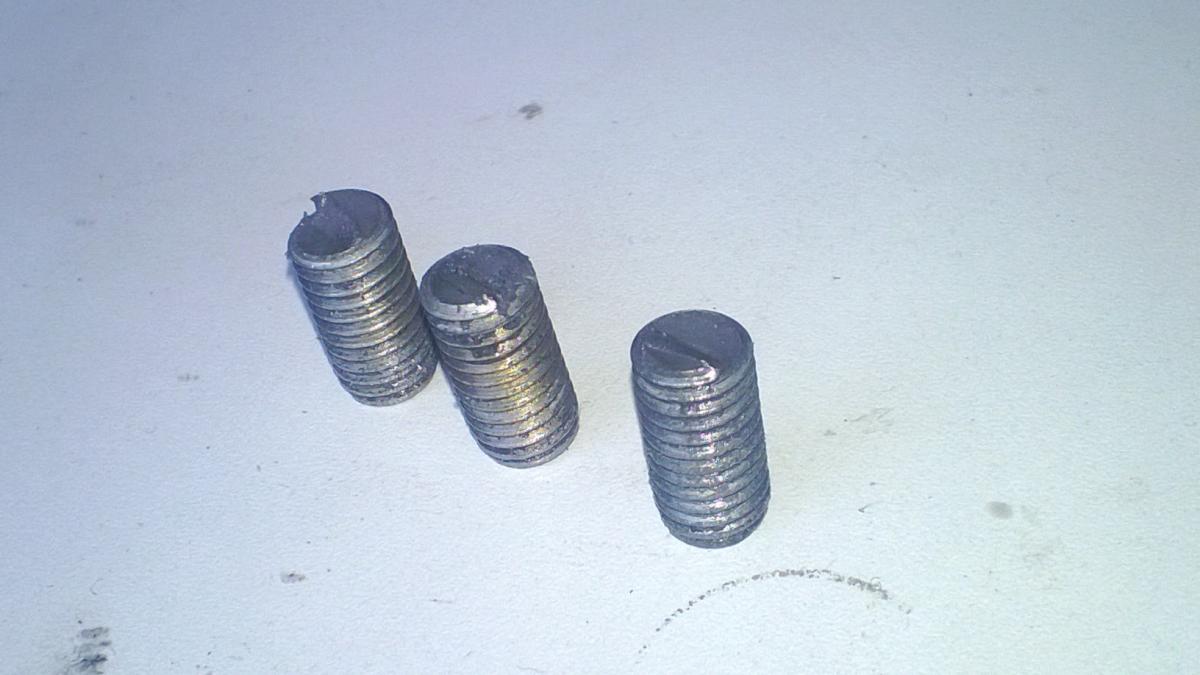

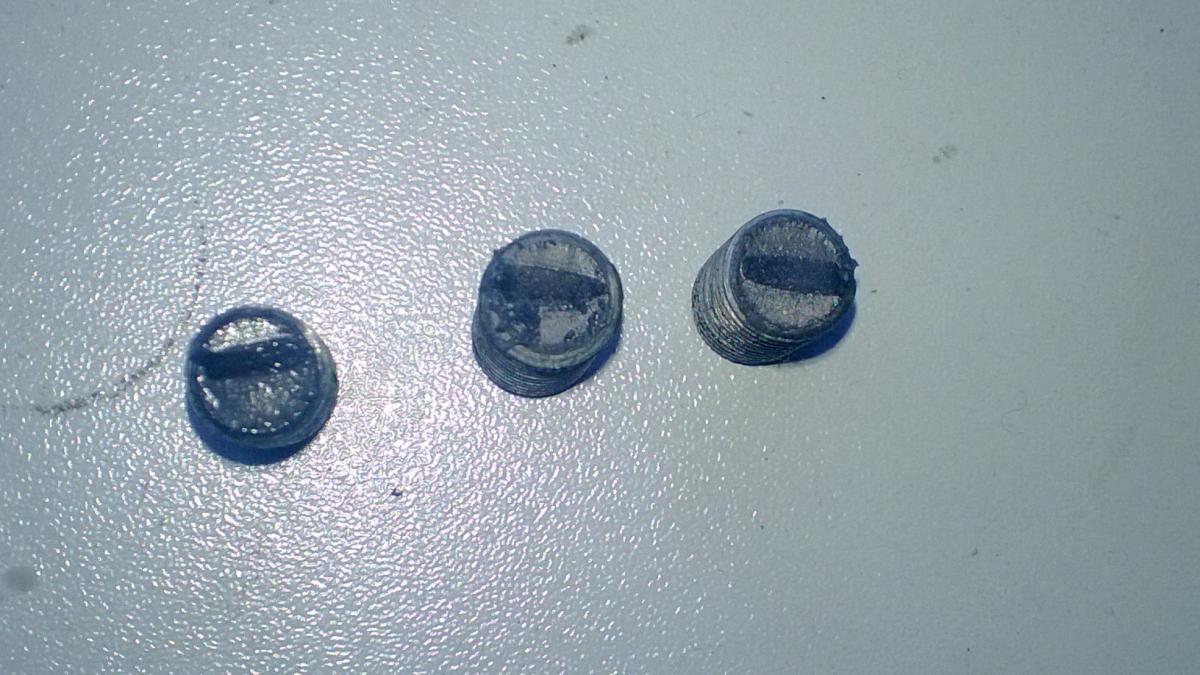

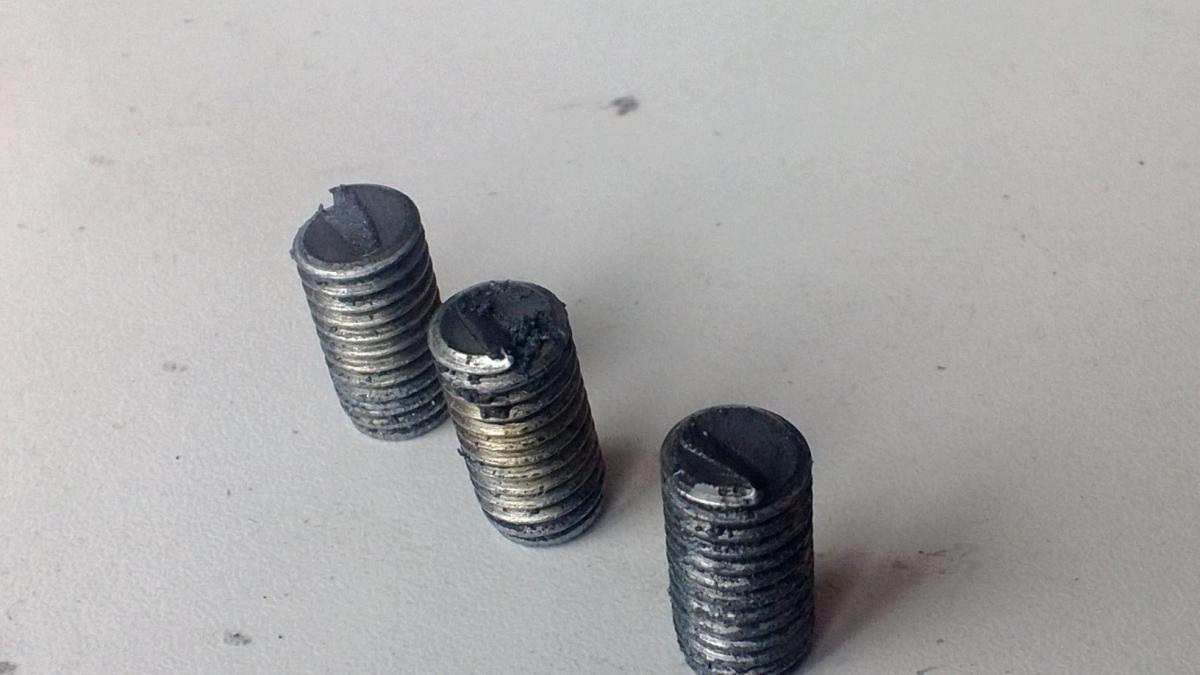

Like diz?
Attached Thumbnails
Why are these extension housing bolts sheared?-wp_20130503_001.jpg   Why are these extension housing bolts sheared?-wp_20130503_002.jpg   Why are these extension housing bolts sheared?-wp_20130503_003.jpg   Why are these extension housing bolts sheared?-wp_20130503_004.jpg
Laur3ns is offline   Reply With Quote
Old 05-06-2013, 10:26 AM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

IMO it looks like over torque on high grade hardware. I realize that Grade 8 is used there as the clamping force is needed, but I suspect they've be torqued before (multiple times?) and gave up this time around. So I vote (a).
m2cupcar is offline   Reply With Quote
Old 05-06-2013, 10:39 AM   #12
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

I'll say undertorqued, but that's a non-expert opinion.

I'd buy new bolts, lube & torque them per mazda specs. Make sure dowels are used too. You should be fine if the threads in the aluminum are not damaged.
TurboTim is online now   Reply With Quote
Old 05-06-2013, 11:04 AM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I've now been able to replace 6 out of 8. The other 2 I cannot reach/remove the remains.

From the few that were still tight, I can say those were not undertorqued. I was afraid they would snap too.

The re-use multiple times - could have been the issue.
The torque spec is 34Nm.

I'll report back after the next run or two.
Laur3ns is offline   Reply With Quote
Old 05-06-2013, 01:11 PM   #14
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Quote:
Originally Posted by Spookyfish View Post
Like diz?
Those pictures make it look like the bolts failed by fatigue, high cycle fatigue specifically. But not normal bolt fatigue. If the bolts were torqued correctly they would generally fatigue at the first thread (first from the bolt shank). And the surface would look different.

The fatigue looks like it is an alternating bending pattern.

Blah blah blah, I could go on and on BUT

To me it looks like they were undertorqued, or they had lost torque. The undertorque condition led to the bolts being put into a cyclic bending load, one they are not meant to take. I'm guessing the other ones didn't fail because they are torqued correctly.

That is my professional failure analysis and there will be a $2000 consulting fee. I'll PM you how you can settle the fee...
Efini~FC3S is offline   Reply With Quote
Old 05-07-2013, 04:13 AM   #15
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Thanks for the analysis. There are two options
a) Torque maybe was OK initially, then they loosened (vibrations?) and fatigued
b) Overtorqued combined with re-use of original bolts

Either way, I should be fine with
a) Resbond in threads
b) Proper torque and new bolts
Downside: only 6 out of 8 bolts.

There is no more oil sweating from the transmission, so it's tight now.
I'll report back
Laur3ns is offline   Reply With Quote
Old 05-07-2013, 09:10 AM   #16
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Quote:
Originally Posted by Spookyfish View Post
b) Overtorqued combined with re-use of original bolts
Trust me, they did not fail because they were over-torqued. It is possible that they were torqued correctly, and then they lost torque for whatever reason (vibration, reused bolts that were stretched, etc.).

In my experience, that sort of failure surface would not be seen in a proper torque condition.

Regardless,

Quote:
Originally Posted by Spookyfish
Either way, I should be fine with
a) Resbond in threads
b) Proper torque and new bolts
Downside: only 6 out of 8 bolts.
Yes, this should solve your problem. You might also want to add "check extension housing bolt torques" to your inter-race maintenance list. Resbond should prevent the bolts from losing torque, but it would be foolish NOT to check them periodically since you've had these failures.
Efini~FC3S is offline   Reply With Quote
Old 05-07-2013, 09:16 AM   #17
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Thanks for your input, it's on the list already
Laur3ns is offline   Reply With Quote
Old 09-19-2013, 09:37 AM   #18
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I'm replacing these bolts faster than changing oil.
I need to check my motor mounts. Something is killing them.
Laur3ns is offline   Reply With Quote
Old 09-19-2013, 02:07 PM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

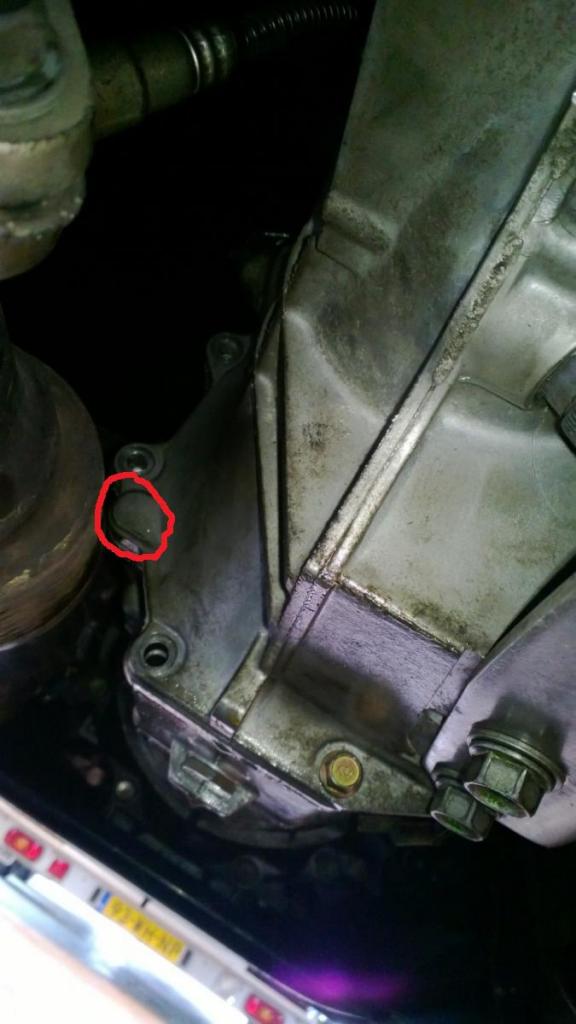

Is that part supposed to have any locating pins like the transmission bell housing?

Like maybe one here, and again on the other side?

Attached Thumbnails
Why are these extension housing bolts sheared?-extensionhousing_zps9445736b.jpg
curly is offline   Reply With Quote
Old 09-19-2013, 02:15 PM   #20
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I had one of my fuel rail bolts separate in the middle of the threads like that. I swear I threaded it all the way down by hand. The second I put a little snugging torque on the wrench it felt funny. I pulled it out and it looked just like that. No idea what happened. Called FM and they said they had never heard of that happening. Bad bolts maybe? Maybe try a little strip of white nail polish where the bolt head meets the case and see if the thing is backing out a hair. Vibrating funny.
TorqueZombie is offline   Reply With Quote
