Default New from Trackspeed Engineering: Coolant Blockoff and EGR Delete Plates

Just added a couple of new items to our catalog this week.

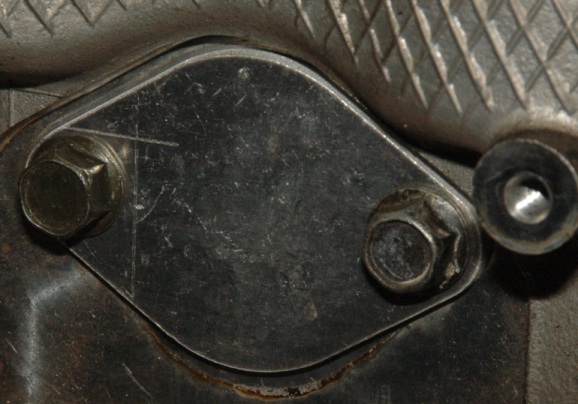

Trackspeed Engineering Coolant Block Off



For folks using a reroute, this is a much cleaner method of blocking off the front coolant flow. The 30mm freeze plug presses into the head, and the block off plate holds it securely in place. This is a particularly clean option for people who are deleting the plastic timing belt covers.

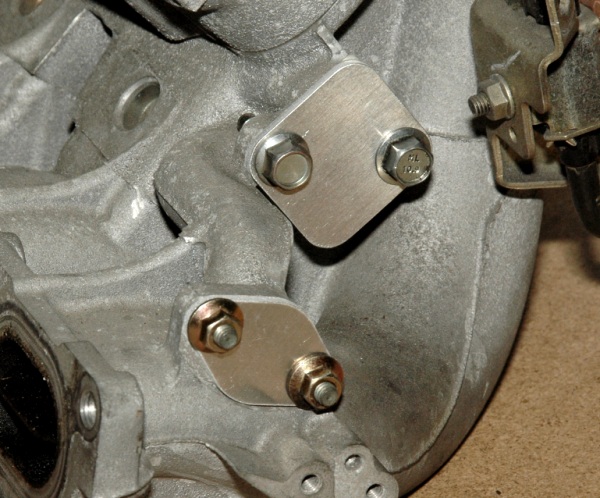

Trackspeed Engineering EGR Delete Plates



Another simple, effective item. These plates bolt on in place of the EGR valve and tube on the intake manifold. The EGR valve has been known to leak under boost if you don't have it hooked up, so if your EGR valve is just sitting on the engine with nothing plugged in, it's best to get it replaced with our EGR Delete Kit.

Keep an eye out in March for more new items!
Attached Thumbnails
New from Trackspeed Engineering: Coolant Blockoff and EGR Delete Plates-coolantplate.jpg   New from Trackspeed Engineering: Coolant Blockoff and EGR Delete Plates-egrinstalled.jpg
Savington is offline   Reply With Quote
Old 02-29-2012, 05:16 PM   #2
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

Can you run the the block off plate without the 30mm freeze plug? I ended up just hacking my coolant neck and welding a plate of aluminum in. Hoping it doesnt leak (there is an o-ring in there).
Boost Joose is offline   Reply With Quote
Old 02-29-2012, 06:21 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I just ordered the coolant block off plate. I was actually about to take a water neck up to the machine shop this week to have them make me one.
shuiend is offline   Reply With Quote
Old 02-29-2012, 06:40 PM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Does the freeze plug need the blockoff plate to retain it, or is it just nicer looking?
vehicular is offline   Reply With Quote
Old 02-29-2012, 07:04 PM   #5
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

^ - what he said. The engine block has freeze plugs in other locations that don't have cover plates to keep them there, why is one necessary at this location?
RyanY is offline   Reply With Quote
Old 02-29-2012, 07:13 PM   #6
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

From the link

Quote:
Included is a freeze plug and block off plate for the front of the head to ensure the freeze plug stays put.
turotufas is offline   Reply With Quote
Old 02-29-2012, 07:16 PM   #7
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

Quote:
Originally Posted by turotufas View Post
From the link
Still doesn't answer the question - why is a cover plate necessary for this freeze plug when other freeze plugs are capable of staying in place for the life of the engine without a cover plate?
RyanY is offline   Reply With Quote
Old 02-29-2012, 07:18 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Nice, this doubles as the freeze plug installation tool.

Sav has said in the past that particular one likes to back out. 30mm fits, although for whatever reason, extra pressure, loose tolerance, etc, they can back out. Hence the plate. I'm assuming it doesn't have an o-ring groove, so I wouldn't think you'd want to use it alone. I haven't experienced the backing out myself, but I did make one for myself just a few days ago.
curly is offline   Reply With Quote
Old 02-29-2012, 07:46 PM   #9
Junior Member
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Do the EGR block-off plates come with fasteners?
skou is offline   Reply With Quote
Old 02-29-2012, 07:48 PM   #10
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

ask Astroboy about the time his freeze plug popped out.

Nice parts. You guys always seem to sell the products that I would normally DIY, at prices that make me question my laziness to do it myself. Good marketing scheme! lol
240_to_miata is offline   Reply With Quote
Old 02-29-2012, 08:43 PM   #11
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Soooooooo worth it to buy these! I made my own and would NOT do it again.
miatauser884 is offline   Reply With Quote
Old 02-29-2012, 10:08 PM   #12
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Freeze plug and plate ordered. For $20 it isn't worth it to mess it up and have to do it twice. I don't trust my freeze plug install skills enough to just run the plug.
TorqueZombie is offline   Reply With Quote
Old 02-29-2012, 11:31 PM   #13
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I wasn't trolling, btw. The outlet wasn't designed to hold a freeze plug, and I totally belive that people have had them pop out without a retainer of some kind.

It's also perfectly plausible (though much less likely from Trackspeed) that they just didn't like looking at a stupid brass freeze plug on the front of the head.
vehicular is offline   Reply With Quote
Old 02-29-2012, 11:33 PM   #14
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

Wouldn't the 323 have had a freeze plug in that location?
RyanY is offline   Reply With Quote
Old 03-01-2012, 08:52 AM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Who wants pics of my "freeze-plug"?
hustler is offline   Reply With Quote
Old 03-01-2012, 11:02 AM   #16
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Share the wealth, papi.
vehicular is offline   Reply With Quote
Old 03-01-2012, 11:39 AM   #17
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Pics or freeze plug didn't happen.
TorqueZombie is offline   Reply With Quote
Old 03-01-2012, 12:03 PM   #18
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by RyanY View Post
Wouldn't the 323 have had a freeze plug in that location?
Irrelevant, the freeze plug backs out on our cars. I know it happened to some locals who ran the freezeplug. its like you're just trying to threadcrap.
MartinezA92 is offline   Reply With Quote
Old 03-01-2012, 12:29 PM   #19
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I made some caveman blockoff plates last weekend lol. Good to know these are available!
turotufas is offline   Reply With Quote
Old 03-01-2012, 01:10 PM   #20
Newb

RyanY's Avatar

Join Date: Jul 2011
Location: North Phoenix, AZ
Posts: 28
Total Cats: 3
Default

Quote:
Originally Posted by MartinezA92 View Post
Irrelevant, the freeze plug backs out on our cars. I know it happened to some locals who ran the freezeplug. its like you're just trying to threadcrap.
No threadcrapping intended, just looking for some valid explanation or personal experience rather than hearsay about what somebody has heard somebody else tell them is a problem. If the engine has a freezeplug there in the FWD applications, then it doesn't make sense that it wouldn't work just as well to have a freezeplug there in a Miata application - there are other freeze plugs in the engine that don't need a cover plate to stay in place. Is it truly a problem with a correctly installed freezeplug or is it just a rumor propagated by someone that didn't install theirs properly and had a problem with it? Being that Trackspeed is selling the part I'm guessing its a real problem but nobody has given me any real proof of that.

FYI - I ordered my blockoff plate from Trackspeed yesterday.
RyanY is offline   Reply With Quote
