Default Settings

As more of us are getting into the MS, and as many heads are better than one I've been thinking that we should probably start a settings page.

If we can work together to test and hopefully build on each other's settings then we should be able to develop a really strong default msq for the miata.

Here are my starting contributions; 1.8 NB engine, naturally aspirated.
MSnS-E 029h, Req Fuel 13.3
Attached Thumbnails
Settings-constants-1.jpg   Settings-idle-control-1.jpg   Settings-idle-control-continued.jpg   Settings-naturally-aspirated-spark-table.jpg   Settings-cranking-settings.jpg


Last edited by Aussie Driver; 03-16-2006 at 12:44 AM.
Aussie Driver is offline   Reply With Quote
Old 03-16-2006, 12:22 AM   #2
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Good idea!
You forgot to specify your engine type. It is a 1999 1.8, correct?
I will have my default 1.6 NA setup up soon, as well as a 1.6 Turbo setup soon, I hope.
We may also want to attach a .zip containing your .msq, so others can simply load it into the MS and go.
Al Hounos is offline   Reply With Quote
Old 03-17-2006, 08:10 PM   #3
Junior Member

Join Date: Nov 2005
Location: Quebec, Canada
Posts: 47
Total Cats: 0
Default

Anyone would have some Accel enrich setting I could try?

I tried a whole bunch of setting and I can't nail it down perfectly. There is always this small stumble when blipping lightly the throttle.
MiataMath is offline   Reply With Quote
Old 03-19-2006, 11:56 PM   #4
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

I'd reccomend you try using Mapdot. It might make it easier for you instead of using the RPM accel.
Al Hounos is offline   Reply With Quote
Old 03-20-2006, 11:31 PM   #5
Junior Member

Join Date: Nov 2005
Location: Quebec, Canada
Posts: 47
Total Cats: 0
Default

I tried using Mapdot, tpsdot.. rpm base..

When I think I have it right.. the next day or after a short drive.. I always find something not quite right.

I'll post my screenie tomorrow.. You might be able to tell me if I'm far from the thruth or not.
MiataMath is offline   Reply With Quote
Old 03-25-2006, 05:50 PM   #6
Junior Member

Join Date: Nov 2005
Location: Quebec, Canada
Posts: 47
Total Cats: 0
Default

Hello,

Here are some screenies to help newcomers start from somewhat of a running base.

That VE table got me 27 mpg average on rush hour traffic. Wot is rich but I can only tune it with a NarrowBand sensor. Up to you to modify it to your liking.

The Accel is RPM base as it is giving me the best drivibility.

The cold start and ASE got me reliable start down to 15F. But it take 2 short crank to start it that cold. (it is starting at least )

Hope it can help and ask if you have any questions.

Edit: 1.8 N/A, Code 29J, Req 13.4
Attached Thumbnails
Settings-ve-miatmath-25-03-06.jpg   Settings-cranking-miatamath-25-03-06.jpg   Settings-rpm-ae-miatamath-25-03-06.jpg   Settings-ase-miatamath-25-03-06.jpg
MiataMath is offline   Reply With Quote
Old 04-03-2006, 05:50 AM   #7
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Down Under
Posts: 252
Total Cats: 0
Default

After playing around with both the fuel and the spark tables and by comparing them to the factory computer's fuel and spark tables, I'm now running the following settings for fuel and for spark.
Attached Thumbnails
Settings-spark-table-experiment-2.jpg   Settings-ve-table.jpg
Aussie Driver is offline   Reply With Quote
Old 04-04-2006, 08:20 AM   #8
Junior Member

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

I have this in the other thread but it would be good idea to centralize everything.

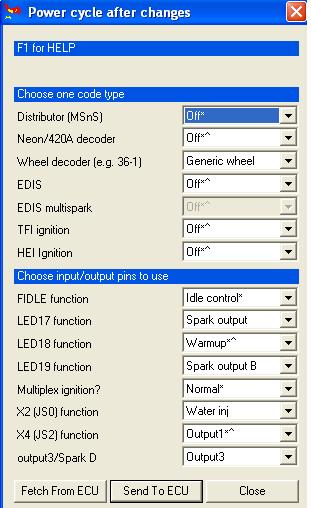

Sparks Settings:
Attached Thumbnails
Attached Images

kingofl337 is offline   Reply With Quote
Old 05-01-2006, 07:41 AM   #9
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

I haven't tested the following but it looks promising:

http://msefi.com/viewtopic.php?p=94291

Quote:
Stock specs for MX-5 coolant sensor:

(k-ohms)
-4F = 14.6-17.8
68F = 2.2-2.7
176F = 0.29-0.35
You should be able to use these values in EasyTherm

Maybe this is an easier/cleaner alternative to fitting a GM CLT sensor?
timk is offline   Reply With Quote
Old 05-01-2006, 12:27 PM   #10
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Just so you know, I used the averages of those and my coolant read about 165 when it was warmed up. So I just set up warmup enrich accordingly. Works well enough for me, but some may want something more precise I suppose.

All my fueling temp corrections are set to use the AIT, so that shouldn't be affected.
Al Hounos is offline   Reply With Quote
Old 05-01-2006, 02:29 PM   #11
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

I was able to use the CLT, by removing R7 all together...Easytherm didn't fit on my 2HD floppy...
Jefe is offline   Reply With Quote
Old 06-09-2006, 12:19 AM   #12
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

How do you N/A guys work out your VE tables? I used the following values and my VE table looks totally different:

Engine displacement: 1839cc
Idle: 800, 20
Peak torque: 121.7, 4500, 100
Peak HP: 142.2, 6500, 100
Redline: 7400, 100

I haven't tested it out yet but I would have thought since I got these figures from Mazda sources, they would be fairly accurate?
Attached Thumbnails
timk is offline   Reply With Quote
Old 06-09-2006, 02:30 AM   #13
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Down Under
Posts: 252
Total Cats: 0
Default

They will certainly work as a starting point.

My fixed idle VE is 40 (I'm now running keithmac's idle code 029L4), which I've gotten to after some mucking around, but sorting your tables out/tuning is half of the fun.

Last edited by Aussie Driver; 06-09-2006 at 04:02 AM.
Aussie Driver is offline   Reply With Quote
Old 06-10-2006, 11:34 PM   #14
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Down Under
Posts: 252
Total Cats: 0
Default

I'm now running keithmac's 029L4 code with the ignition idle control.

It's been running the car for the last four or so days and I'm really impressed with the improvement over the 029q2 idle control. The idle on the car doesn't 'bounce' anywhere near as much as it used to and for the first time I have been able to run the idle as 'closed loop' and it's a nice stable drop in revs from around 1500-1600rpm at startup.

If anyone is interested in giving it a go, I've attached my current settings below.

I've also included my current spark table (N/A) which is running more advance than the one I used to, and I've included my cranking settings and dwell control. Between the two, I'm really close to getting a factory startup.

Please note that I'm running a 99 engine from a 1.6 CAS and with 1.6 coils and ignitor. These settings may harm a NB engine running with 1.8 coils.

If you can make any improvement on these settings, please post them here for reference.
Attached Thumbnails
Settings-cranking-settings.jpg   Settings-dwell-settings.jpg   Settings-idle-control-pg-1.jpg   Settings-idle-control-pg-2.jpg   Settings-spark-table.jpg


Last edited by Aussie Driver; 06-11-2006 at 04:06 AM.
Aussie Driver is offline   Reply With Quote
Old 06-19-2006, 06:53 PM   #15
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

squirt 'n spark, DSM injectors

Last edited by Al Hounos; 07-21-2007 at 06:23 PM.
Al Hounos is offline   Reply With Quote
Old 08-07-2006, 05:27 PM   #16
Newb

Join Date: May 2006
Posts: 9
Total Cats: 0
Default

How much dwell time should I run with the 1.8 coils with integrated ignitors?
2.5ms seem to be working fine. How much dwell is possible without burning the coils?
Symtomatics is offline   Reply With Quote
Old 10-14-2006, 11:30 AM   #17
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

I interpolated the ignition timing values from the "1.8 with 1990-95 ECU, NA, stock injectors, NB head" page on the Flyin' Miata Link site as a starting point. I can do some other ones if someone wants them.
Attached Thumbnails
timk is offline   Reply With Quote
Old 11-08-2006, 08:47 PM   #18
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

I did similar thing for the 1.6 turbo map from FM. I'm using it in my setup. No signs of detonation up to 15psi.
Here is my msq for 029q2, if you want to see my idle and boost settings. also has .vex files if you're using other code versions.
Attached Files
File Type: zip Desktop.zip (6.2 KB, 634 views)
Al Hounos is offline   Reply With Quote
Old 11-08-2006, 08:57 PM   #19
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

What size injectors do you use? I havent been able to find out after searching your past posts.
neogenesis2004 is offline   Reply With Quote
Old 11-08-2006, 08:58 PM   #20
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

who me? 450cc. but that's easy enough to change in the constants page.
Al Hounos is offline   Reply With Quote
