Old 09-02-2015, 04:02 PM   #21
Senior Member
iTrader: (1)
Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140

Originally Posted by emilio700 View Post
The ND wheel is much higher offset so it's going to rub on the inside.
Thanks, that's all I really wanted to know. And I suppose I could've figured it out by checking the stock ND offset.

Originally Posted by emilio700 View Post
Please don't be offended by this...
Not offended at all. I totally understand your desire to not be supporting people doing unintended things with your very specific product.
gesso is offline   Reply With Quote
Old 09-03-2015, 05:24 AM   #22
Supporting Vendor
iTrader: (3)
Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492

This will generate a lot of mixed feelings, but we knew people were going to ask about the ND wheels on NA/NB, so we took a look at it.

***This is just to satisfy curiosity, we don't recommend 17" on the NA or NB***

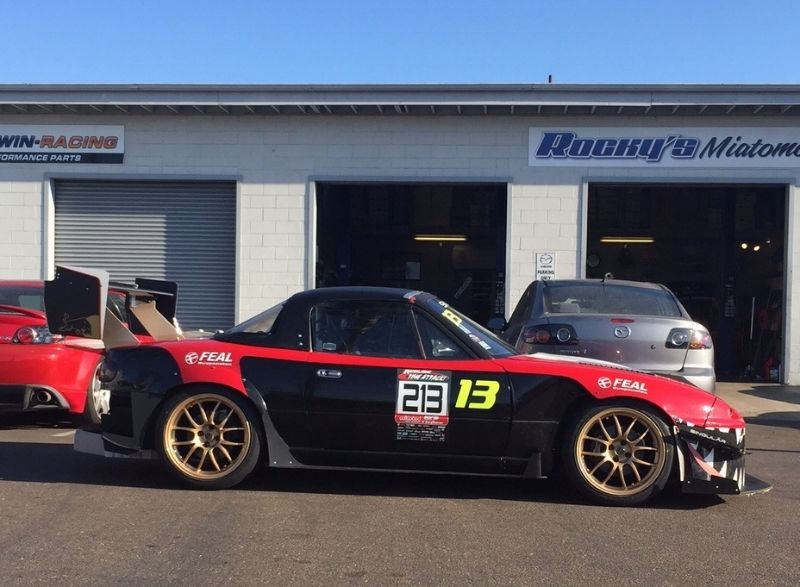

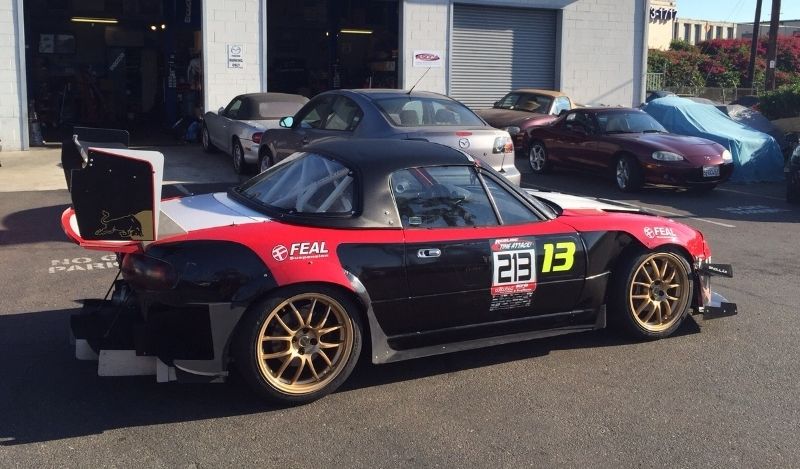

17x9 4x100 6UL with 235/40/17, no spacers:

With a flare in the rear and lots of stretch to the front fender on this car, we can't make any conclusions about clearance with standard fenders. Looking at it, I'd expect it to need a strong roll and pull to fit these under stock fenders.

Inner clearance:

Front clears everything without a wheel spacer at "normal"steering angles that you would see in highway or track driving. Rubs on my 3" brake duct hoses in the last 1/2" to full lock. A steering angle stop could prevent this at the cost of parking lot turning radius.

Suspension travel is the killer here. This tire is 1.3" taller than a 225/45/15 and 1.8" taller than 245/40/15. That means less bump travel before tire hits the tub. At my ride height in the pics, there is ~1.325" of bump travel available in the front. A big spacer on the shock shaft would be mandatory to engage the bumpstop earlier and limit travel.

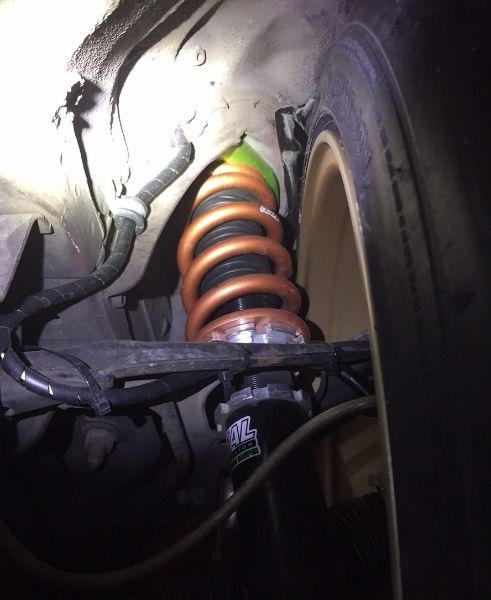

Front inner clearance in photo below. :

Forgot to snap a picture of the rear, but the wheel/tire clears everything on the inside juuuuust barely. Bump travel looks OK in the rear, but if you only limited shock travel in the front, you'd be in for some funky handling characteristics.
Attached Thumbnails
949 Racing dealers accepting orders for 17" 6UL-80-img_2702_zpsryhvhjsx_a0f64e16efc9a4e126088b71361e081a35c5ed08.jpg   949 Racing dealers accepting orders for 17" 6UL-80-img_2695_zpsxzuwruax_a889e16a5711c76b1422d52920fa3b9dd0c1b244.jpg   949 Racing dealers accepting orders for 17" 6UL-80-img_2704_zpsejaqitnz_bb11d2a7294cdb857ffb3b8f17bdea9d965ccff2.jpg

Last edited by ThePass; 09-03-2015 at 03:56 PM.
ThePass is offline   Reply With Quote
Old 09-04-2015, 06:37 PM   #23
Senior Member
iTrader: (1)
Join Date: Jun 2007
Posts: 669
Total Cats: 29

Hmm. Looks like we need to get set up on a dealer account. I'll get them here for you Turbofan.
yank is offline   Reply With Quote
Old 09-05-2015, 02:21 PM   #24
I take big bites
iTrader: (1)
turbofan's Avatar
Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526

<p>Ha. Maybe for my next set... already pre-ordered Picked up the x9's direct from 949, and the X8's through JR.</p><p>Silly me though... Didn't order enough lugnuts or valves </p>
turbofan is offline   Reply With Quote
