Default So whats the problem with spacers?

I have a widebody NA and just got rid of the super heavy wheels the last owner had on there and purchased a set of 6ULS. Now obviously with the +36 offset of the wheels it looks like crap on a widebody. I have heard it is better to go with a lower offset vs using wheel spacers, but what really is the problem with them? Are you more likeley to brake a stud because of the extra leverage? What about getting adaptors, (they bolt to the original studs and have a new set for the wheels? This vehicle will not be going to a track, just DD fun car for now.
fizbin84 is offline   Reply With Quote
Old 05-15-2011, 10:37 PM   #2
Ds1
Junior Member
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Well for one your looking at more leverage, which can lead to a broken stud and other odd issues. Basically, I have always understood that if you can get wheels with a different offset, its just better in general.
Ds1 is offline   Reply With Quote
Old 05-16-2011, 12:53 AM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

There is no problem with spacers.
falcon is offline   Reply With Quote
Old 05-16-2011, 02:08 PM   #4
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

Thanks for the responses, anyone with mechanical engineering experience that can tell us for sure if the extra force will have a negative impact? Also would the new width act like the control arms were extended rather than act like the wheel with a lower offset, which would keep the cornering characteristics more like stock?
fizbin84 is offline   Reply With Quote
Old 05-16-2011, 02:11 PM   #5
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

read: Cspence
Bond is offline   Reply With Quote
Old 06-09-2011, 09:06 PM   #6
Junior Member

Join Date: May 2011
Location: Blacksburg VA
Posts: 115
Total Cats: 0
Default

added stress on the wheel bearings also
Cookiesoup is offline   Reply With Quote
Old 06-09-2011, 10:43 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

If my current bearings can last all season on r-comps, with about 15 days of track action, this dude can drive to and from Tin Lizzy's with those spacers.
hustler is offline   Reply With Quote
Old 07-23-2011, 02:14 PM   #8
Junior Member
iTrader: (9)

Join Date: Jan 2011
Location: Socal
Posts: 169
Total Cats: 5
Default

Quote:
Originally Posted by Cookiesoup View Post
added stress on the wheel bearings also
what he said^

Basically they add more stress to everything. Stock wheels center the load over the wheel bearings and youll notice most if not all cars from the factory will center the load right over the wheel bearing. When you buy the +36 offset its not a huge change in where the weight is placed but when you keep moving it outwards you can eventually *sometimes* run into problems. Mostly people do all kinds of crazy crap without having issues. Just look at all the hondas with diamond steelies and spacers, or for some reason around here in socal people (cough mexicans) like to put tiny +0 offset wheels on their astro vans and f150s, and then they add spacers. I don't really hear about them having problems and like I said most people don't but if you were going to break a stud or wreck your alignment bushings its much more likely to happen with the crazy offsets and spacers rather then the stockies
Jpopsbronco is offline   Reply With Quote
Old 07-23-2011, 04:14 PM   #9
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

You'll be fine. Either go with long ARP studs and a hubcentric spacer or get the bolt on adapters with their own studs.
Doppelgänger is offline   Reply With Quote
Old 07-23-2011, 04:18 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Like these guys said, if its a street driven car and you use quality spacers/studs, its not the end of the world and you'll probably be fine.
18psi is offline   Reply With Quote
Old 07-23-2011, 04:19 PM   #11
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Weight, stress, gayness, etc.
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-23-2011, 04:38 PM   #12
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Notice the post counts of the people saying it's fine vs that of the people telling you the opposite. I'd get the spacers.
gearhead_318 is offline   Reply With Quote
Old 07-23-2011, 07:22 PM   #13
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

Well ive been running the spacers since the post went up and have not had an issue. I had them custom made so they are great quality. If something happens I will be sure to update, but for now I don't even sweat it. If I do a track day and try to take the vehicle to the limits of my driving ability, then I may worry a bit. Since that won't happen within the next year or two, I think I'll be ok. Thank you to everyone who contributed to the response. For everyone that posted with nothing helpful... your welcome for boosting your post count lol...
fizbin84 is offline   Reply With Quote
Old 07-23-2011, 07:49 PM   #14
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Spacers just change the net offset of the wheel. There are many grades available. They are safe if used as intended and to spec. Porsche even uses them on some bone stock 911s which are intended to be driven quite hard. No problems. On wheel bearings, spacers produce the same load to them as the equivalent offset wheel would exhibit.

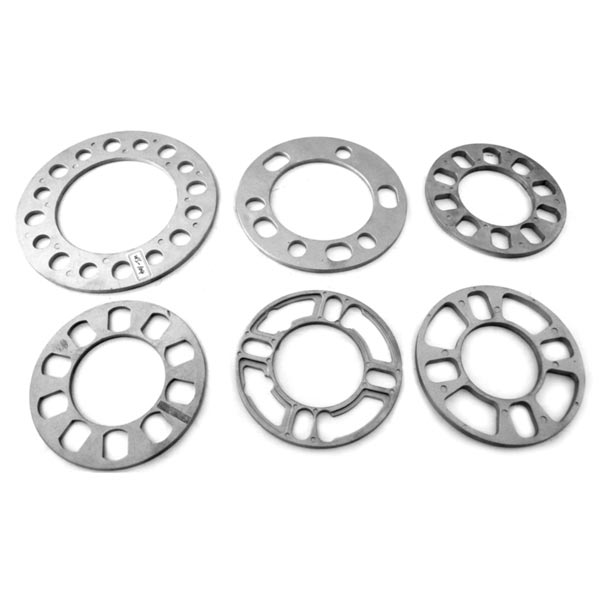

The problem is that many use them improperly. Like some clown using those generic multiple pattern plate spacers to hellaflush his ride. Hey lets stack up a bunch of them. And use the stock studs or wheel bolts. Hey they fell off. Well there was one thread doing all the work genius. Not to mention the instability of the stack, poor tolerances, and non-hubcentric layout.

Ugh:


These are spacers made by HR, the spring people. They are fine.
Attached Thumbnails
So whats the problem with spacers?-wheelspacers.jpg
sjmarcy is offline   Reply With Quote
Old 08-21-2011, 11:42 PM   #15
I'm Miserable!

Join Date: Aug 2011
Posts: 17
Total Cats: 0
Default

I've notcied tire shops refuse to service cars with aftermarket spacers.
dubtastic is offline   Reply With Quote
Old 08-22-2011, 12:11 AM   #16
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Quote:
Originally Posted by dubtastic View Post
I've notcied tire shops refuse to service cars with aftermarket spacers.
I can imagine the kind of stuff they have seen over the years. I have teched at autocrosses for many years. I've seen folks try to use stacks of washers at each stud as a "spacer". And then they hold the wheel on with maybe 2 threads. Yeah I am the guy who has to say the most powerful word in the English Language to them. No. But I do try to hook them up with a car for the event as a co-driver. Or maybe have them use some other wheels/tires or something. And to educate them so that they learn and can be safer. I mean, I don't want them to go away mad or have their wheels fall off at any point at the event or elsewhere. I want them to have fun and come back again. Without dying or destroying their beloved car.
sjmarcy is offline   Reply With Quote
Old 08-22-2011, 01:17 AM   #17
Senior Member

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

Im in the auto industrys and I wont touch spacers (at the shop), Its more of a corporate/a small group ruined it for everyone. Plus america is way to litigious so in the case of a failure theyd probably sue me, even if the install spacers werent at fault, cause some dumbass old timer down the street told them it was. Ive been sued for dumber reasons haha.

At my old shop, a regular wanted me to put some balancers on his wheels. pretty much a spacer attached to a ring that was filled with beads and fluids (same principle of putting flour in tires I think) told him know I wouldnt cause inthe event of a failure it would be epic. He took it down the street and had someone else throw them on, came bad a few months later and everything behind the pass wheel was destroyed.

As long as the studs are up to snuff spacers are fine though. Putting a spacer on affects the bearings just the same different offset wheels, and on alot of cares that run high offset wheels its actually better as it make brings the wheel closer to center over the wheel. In non extreme cases though Ive never seen a problem. If you think about it a rotor is pretty much the same thing as a wheel spacer.

The only times Ive seen noticeable accelerated wear on bearing/front end parts from offset/spacer changes, are crazy low offset stuff or hugely heavy big diameter wheels. I dont think either apply in this case.

Just put them on.
Opti is offline   Reply With Quote
Old 08-22-2011, 01:22 AM   #18
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Also note that certain spacers are TÜV approved by the German Technical Inspection Agency. Those three letters are the real deal. America has no comparable designation.
sjmarcy is offline   Reply With Quote
Old 09-18-2011, 08:12 PM   #19
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

That's impossible. You added something new, can't be exactly the same.
FRT_Fun is offline   Reply With Quote
Old 09-19-2011, 12:31 PM   #20
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by Cookiesoup View Post
added stress on the wheel bearings also
The spacers themselves don't add to the stress. Its the change in offset that does (so it would be the same if he ran 40mm offset w/ a 5mm spacer or 35mm offset).
Seefo is offline   Reply With Quote
