Default WTB 6-speed shifter, stock/short whatever

I am in need of a shifter to fit into my newly acquired 6-speed. The one out of my old one is totally loose and isnt the proper year or something.

I've got a 99 6-speed so let me know what you've all got!
thesnowboarder is offline   Reply With Quote
Old 07-11-2010, 02:05 PM   #2
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

How loose is it? slightly loose or what? I'm in the same boat. I might have a shifter, but it sounds like we might have the same problem. Mine just drops right into the shift rod with no effort at all, and has a little jiggle room. I'm going to buy a 2004 MS miata trans tomorrow. The guy is unsure if it has the shifter. If it does, then I will compare it to the one I already have and post some specs.
miatauser884 is offline   Reply With Quote
Old 07-11-2010, 11:43 PM   #3
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

There are three size bushings from what I understand. One for the MS, one for the earlier 6-speed and one for the later non MS unit.
rharris19 is offline   Reply With Quote
Old 07-11-2010, 11:53 PM   #4
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by thesnowboarder View Post
I am in need of a shifter to fit into my newly acquired 6-speed. The one out of my old one is totally loose and isnt the proper year or something.

I've got a 99 6-speed so let me know what you've all got!
Nick; don't you have a shifter from a 5 speed transmission lying around?

I bought a 6 speed short shifter from ebay but never used it. I just put in the 5 speed one I already had in my car without any issues and that's the one I've been using ever since.

I'd offer you the ebay one for free but shipping it to you would be too costly.
Rafa is offline   Reply With Quote
Old 07-12-2010, 11:11 AM   #5
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Wait, so are you saying that the shifter ball on the end of the shifter are the same for all years, it's just the bushing that is different? I pick up my MS trans tomorrow.

I've got a six speed, it's an 01, but not sure it it is early or late. The shifter wasn't from the transmission.
miatauser884 is offline   Reply With Quote
Old 07-20-2010, 08:04 PM   #6
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

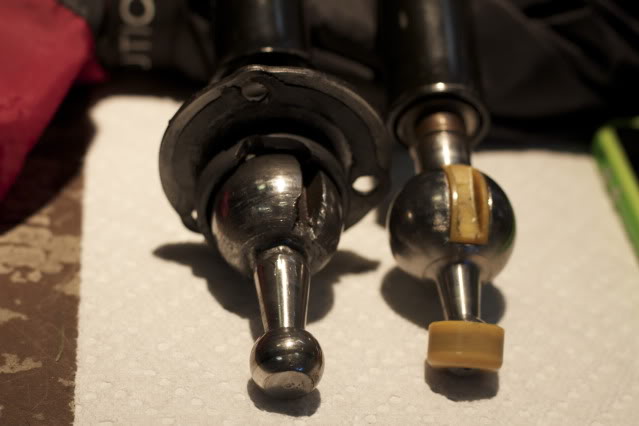

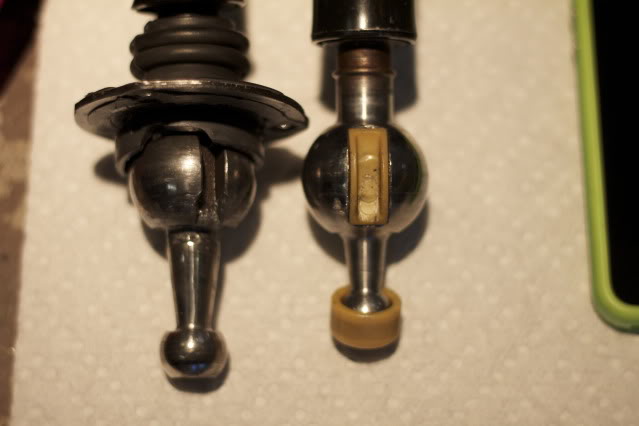

5 speed shifter on the right, 6 on the left:



Name:  IMG_6298.jpg
Views: 0
Size:  28.3 KB

Name:  IMG_6299.jpg
Views: 0
Size:  31.1 KB
thesnowboarder is offline   Reply With Quote
Old 07-25-2010, 03:49 AM   #7
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Bump, still looking for a shifter.
thesnowboarder is offline   Reply With Quote
Old 07-25-2010, 11:44 AM   #8
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Which version of the 6 speed shifter do you need? If you need one as a loaner until you find one to buy I have spare from my extra transmission (00 SE 6 speed).
JayL is offline   Reply With Quote
Old 07-25-2010, 03:21 PM   #9
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

PMed
thesnowboarder is offline   Reply With Quote
Old 07-25-2010, 10:35 PM   #10
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default





There is no way to mistake the MS shifter from the regular shifter. MS is a lot bigger. Unfortunately I'm unsure of what version of the regular six speed shifter I have.

MS bushing diameter is 21.5mm
unknown six speed shifter bushing is 17.8 mm
miatauser884 is offline   Reply With Quote
Old 07-26-2010, 01:25 AM   #11
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

FWIW, I'm using my old 92 5 speed shifter in what I'm now assuming to be a non-MS 6 speed and it is prom night tight.
Bryce is offline   Reply With Quote
Old 07-26-2010, 05:03 PM   #12
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by djp0623 View Post

There is no way to mistake the MS shifter from the regular shifter. MS is a lot bigger. Unfortunately I'm unsure of what version of the regular six speed shifter I have.

MS bushing diameter is 21.5mm
unknown six speed shifter bushing is 17.8 mm
Would you be able to pop the bushing off and measure the metal ball, i assume the looseness is from the shifter that i have NOT having a bushing.
thesnowboarder is offline   Reply With Quote
Old 07-26-2010, 05:22 PM   #13
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Sorry, too late. I buttoned everything back up. I have two six speeds in my miata. One under it and one in the trunk. When I get it back from install I'll be able to measur the small diameter one without the bushing.
miatauser884 is offline   Reply With Quote
Old 07-27-2010, 03:30 AM   #14
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Thanks, i would appreciate that alot!
thesnowboarder is offline   Reply With Quote
Old 08-14-2010, 04:34 PM   #15
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

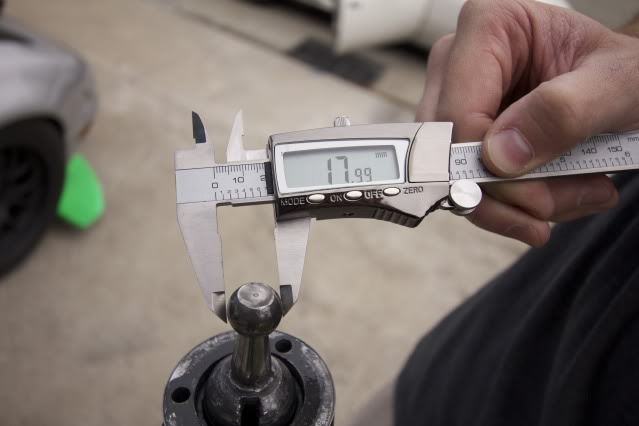

This is my "mystery" 6 speed shifter
Name:  IMG_7159.jpg
Views: 0
Size:  31.1 KB

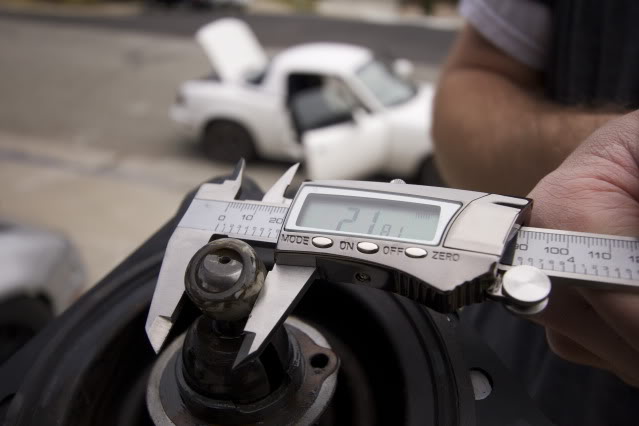

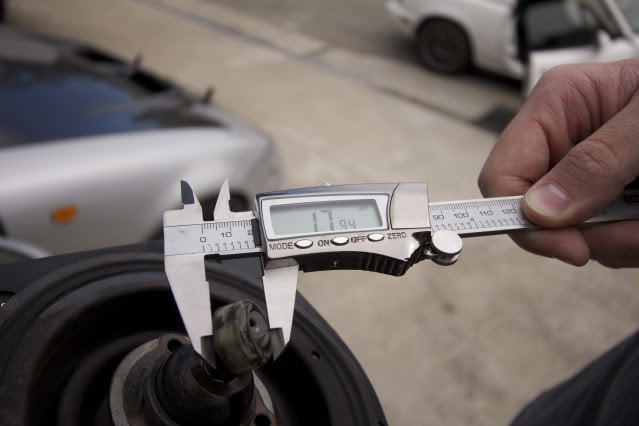

This is a MSM shifter and plastic ball thingy.
Name:  IMG_7160.jpg
Views: 0
Size:  30.4 KB

Name:  IMG_7161.jpg
Views: 0
Size:  32.2 KB

Anyone have any idea what the pre MSM trans shifters size is?

Last edited by thesnowboarder; 08-16-2010 at 04:04 AM.
