Wtb: Hks ssqv bov
Mine leaked like a **** when i first bought it, heres modifications i did to it to fix it from leaking

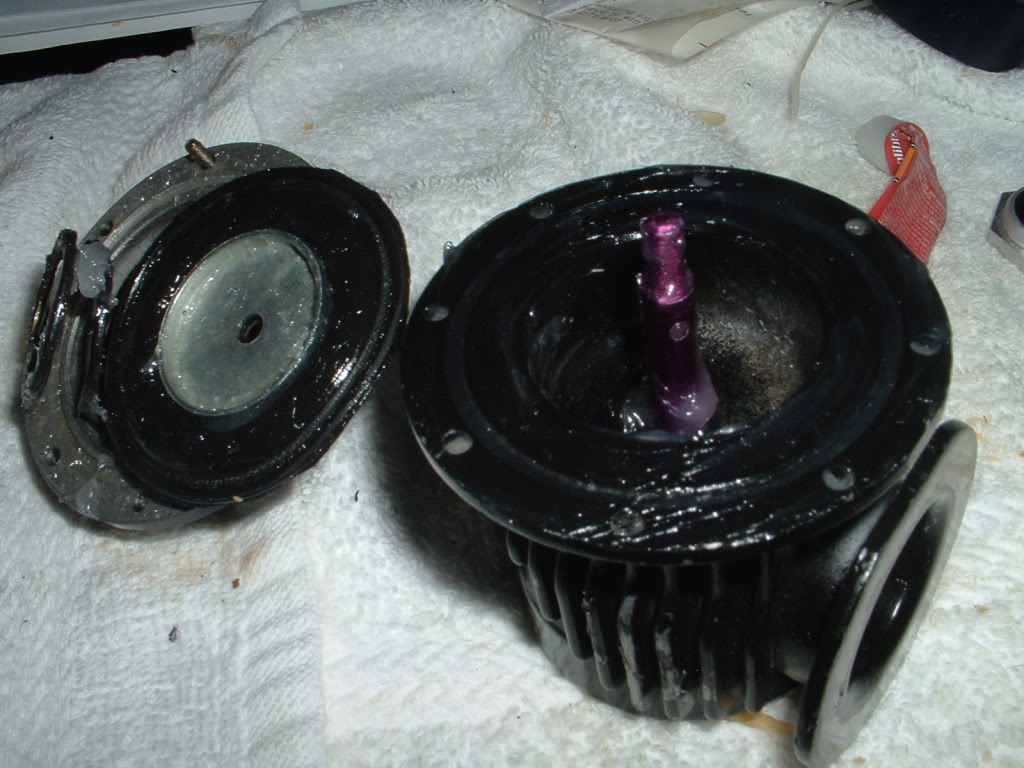

First it was bone dry (big cause for concern see the purple shaft? It's aluminum, i'd expect a bov thats not oiled would last a month max before it stops working right.

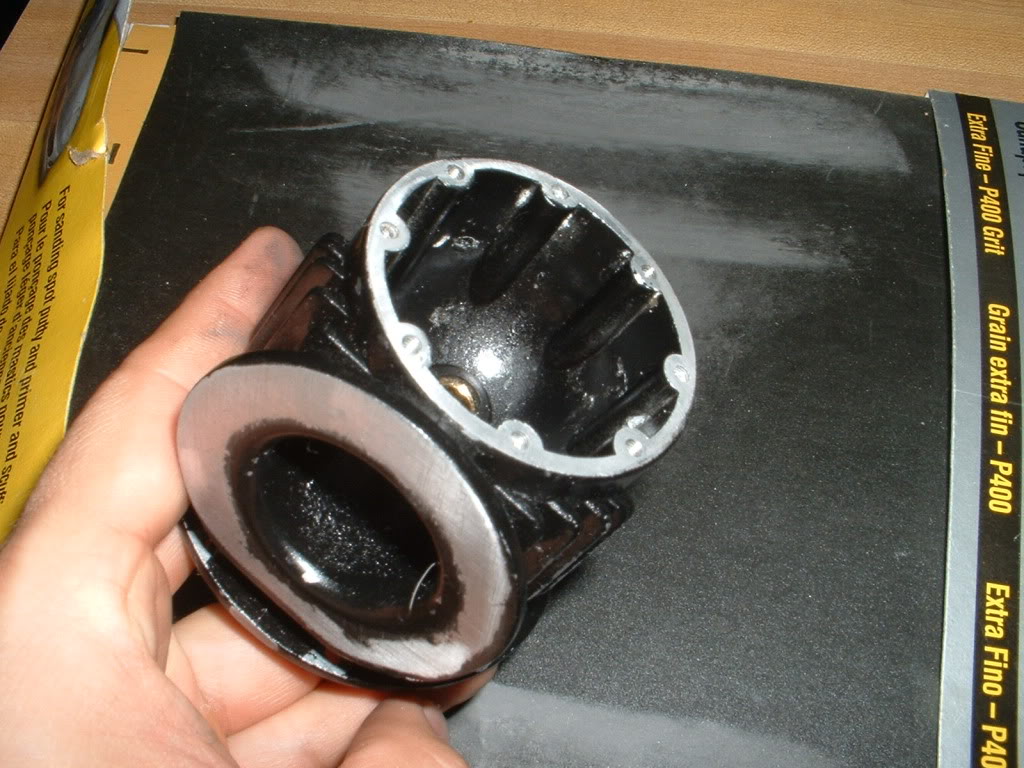

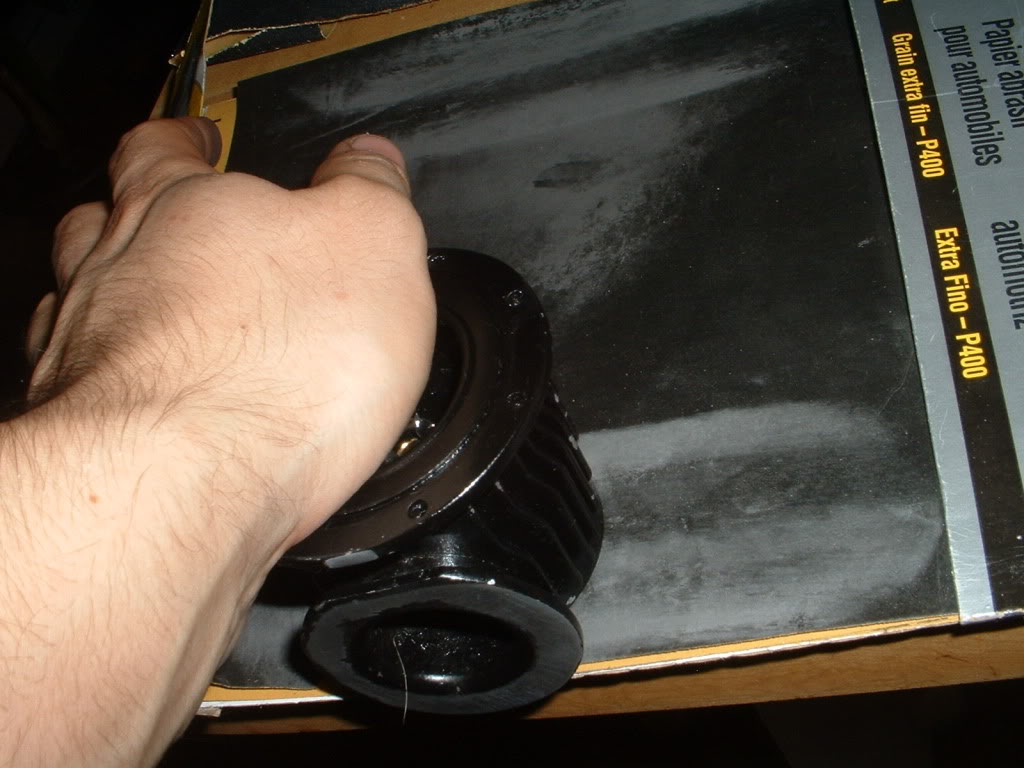

I'd say the paint is the main cause of leakage, the paint is garbage on the knock offs. Anyhow i made it flat so it has a flat surface to seal

Same with the front

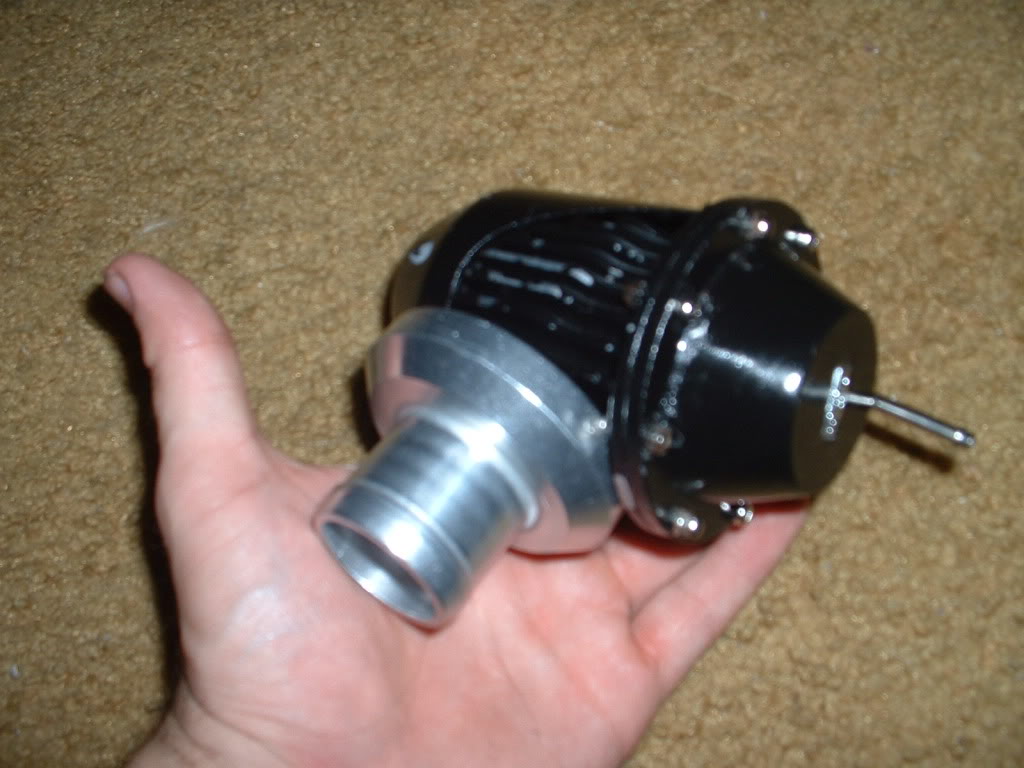

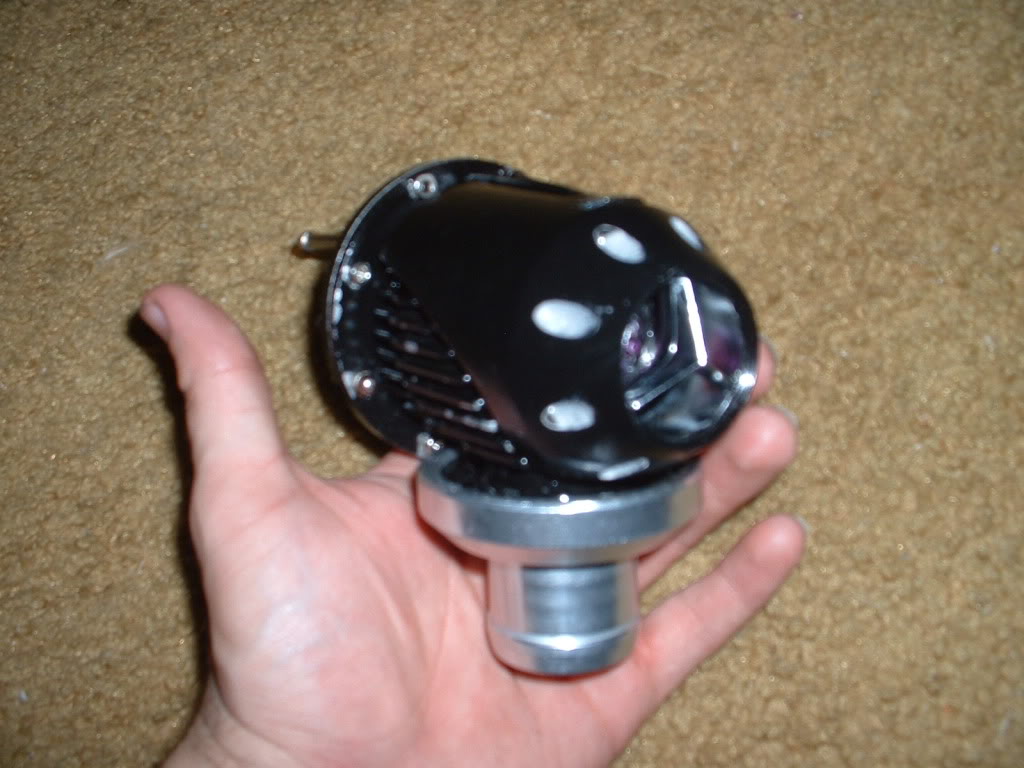

Put that side together.

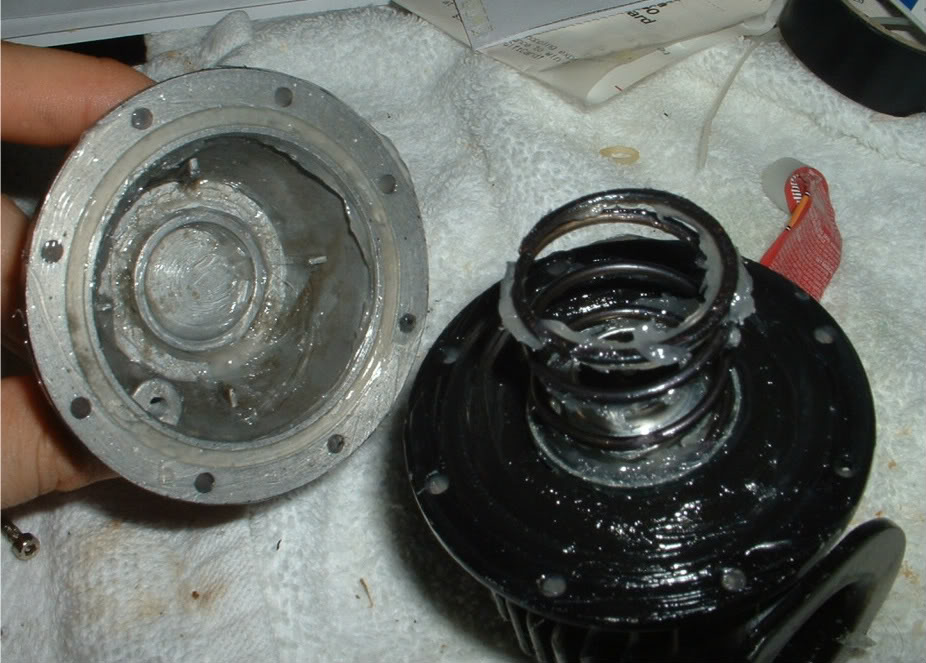

A big cause of leaks was in the front was the bolt holes. I used rtv on them and no more leaks.
First it was bone dry (big cause for concern see the purple shaft? It's aluminum, i'd expect a bov thats not oiled would last a month max before it stops working right.

I'd say the paint is the main cause of leakage, the paint is garbage on the knock offs. Anyhow i made it flat so it has a flat surface to seal

Same with the front

Put that side together.


A big cause of leaks was in the front was the bolt holes. I used rtv on them and no more leaks.

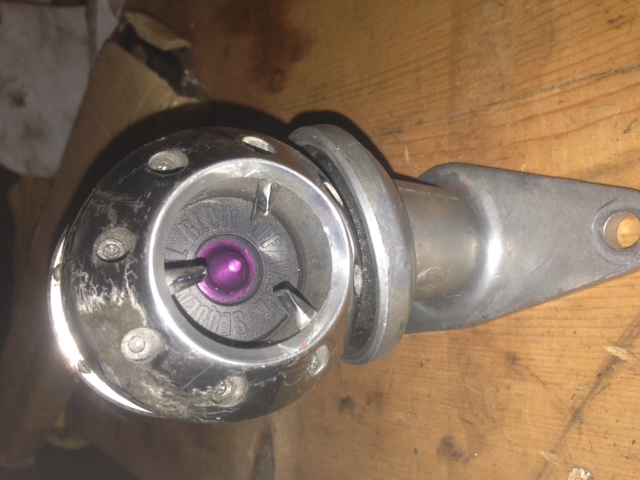

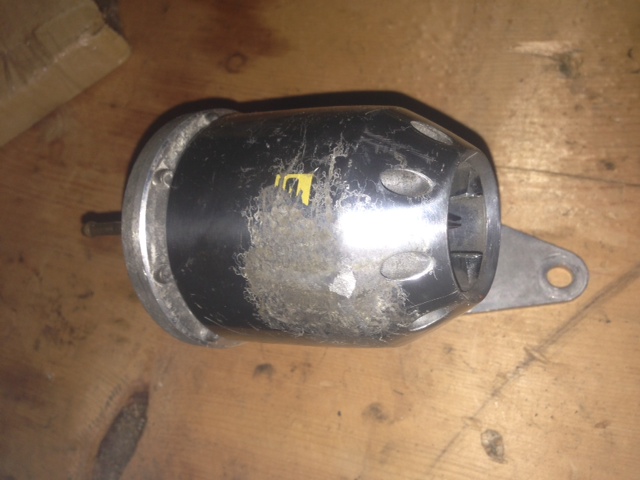

not sure if this is the one you are looking for but here are pics.

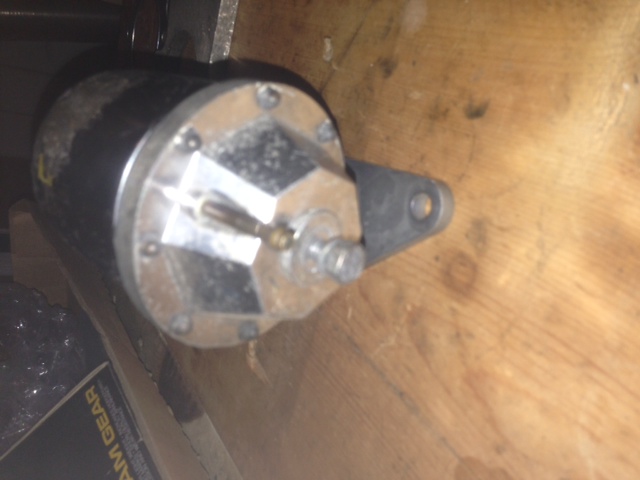

It has a WRX flange on it, but you can easily cut that off and weld to your piping or make your own flange.
It has a WRX flange on it, but you can easily cut that off and weld to your piping or make your own flange.
I would suggest to find a V1 of the SSQV. There adjustable manually and do not open at idle. It is the only way I can go on bandaids, but I would assume sucking in any unfiltered air would not be good. You can find the V1S on ebay for 60 bucks time to time.
And there are NO fake V1s so thats a plus also
And there are NO fake V1s so thats a plus also
