Old 04-17-2016, 08:37 PM   #41
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by 18psi View Post
why do you prefer to stay away from coilovers?
A couple childish stupid reasons.
I do not care to lower ride height.
I also know i am far to cheap to buy very high quality coilovers which leaves me cheap ones I had BC coilovers on my old sti I did not enjoy them at all granted i did daily drive the car.

A solid strut spring combo is what I want in my head. Unless there is a very very big benefit of going with xxx coilovers then of course i would consider it.
Shortpersonbk is offline   Reply With Quote
Old 04-17-2016, 08:41 PM   #42
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

it really depends.
this doesnt look like it will be a daily driver
and it certainly won't be a twisties carver or road racer
so the only thing left is highway pulls or something

I'd suggest the "budget bilstein" setup, but technically it's a "coilover"

if this thing hooks like it should, it will squat like crazy, and you'll need to be able to raise ride height if needed

.........there are only 1 set of springs for these cars that are not utter junk. FM
18psi is offline   Reply With Quote
Old 04-17-2016, 09:06 PM   #43
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by 18psi View Post
it really depends.
this doesnt look like it will be a daily driver
and it certainly won't be a twisties carver or road racer
so the only thing left is highway pulls or something

I'd suggest the "budget bilstein" setup, but technically it's a "coilover"

if this thing hooks like it should, it will squat like crazy, and you'll need to be able to raise ride height if needed

.........there are only 1 set of springs for these cars that are not utter junk. FM
I will look into budget bilsteins right now.
Shortpersonbk is offline   Reply With Quote
Old 04-17-2016, 10:35 PM   #44
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

flame suit on, and im drunk

Vmaxxes arnt bad, a step above ricelands, and not too expensive. lifetime warranty (i think). For what you are doing, I think theyll suffice.
hi_im_sean is offline   Reply With Quote
Old 04-17-2016, 10:51 PM   #45
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

Good suspension will help with traction. All about weight transfer.
aidandj is offline   Reply With Quote
Old 04-18-2016, 12:30 AM   #46
Mr Broke Pants
iTrader: (5)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,081
Total Cats: 55
Default

If you had a subaru, I could point you to a drag specific suspension, with lateral links from a different car.... but sadly i don't know anything about a miata drag suspension...

All I know, is you want to maintain as close to zero toe and camber throughout the rear suspension travel, and have enough squat to minimize hop, but not too much, or your launches and 60 foot suffers.

maybe have slightly positive camber at rest?
thumpetto007 is offline   Reply With Quote
Old 04-18-2016, 04:04 AM   #47
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by aidandj View Post
Good suspension will help with traction. All about weight transfer.
Yeap. I'm running mostly stock suspension and very sticky tires, 1.74 60'. About the fastest you'll find any miata running that's not spraying out of the hole, faster than some V8 miatas out of the hole.
patsmx5 is offline   Reply With Quote
Old 04-22-2016, 04:03 PM   #48
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by patsmx5 View Post
Yeap. I'm running mostly stock suspension and very sticky tires, 1.74 60'. About the fastest you'll find any miata running that's not spraying out of the hole, faster than some V8 miatas out of the hole.

Operation 1.5-1.6s just to set the new standard
Shortpersonbk is offline   Reply With Quote
Old 04-22-2016, 04:12 PM   #49
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Shortpersonbk View Post
Operation 1.5-1.6s just to set the new standard
Nice.
I had a cracked subframe on those times (now fixed) and ran a better 60' the last time I broke an axle but didn't get the slip. That's a trailered race car in the left lane for reference.

patsmx5 is offline   Reply With Quote
Old 05-02-2016, 09:33 PM   #50
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Well had some starting issues i think my current oem harness is just to beat up many clips broken many places where i hacked in and was unhappy. So tore it back apart and ordered a new harness that will have only the connections i need. It will also have a "mill spec" connector to the firewall so i am excited to play with the fancy connector.

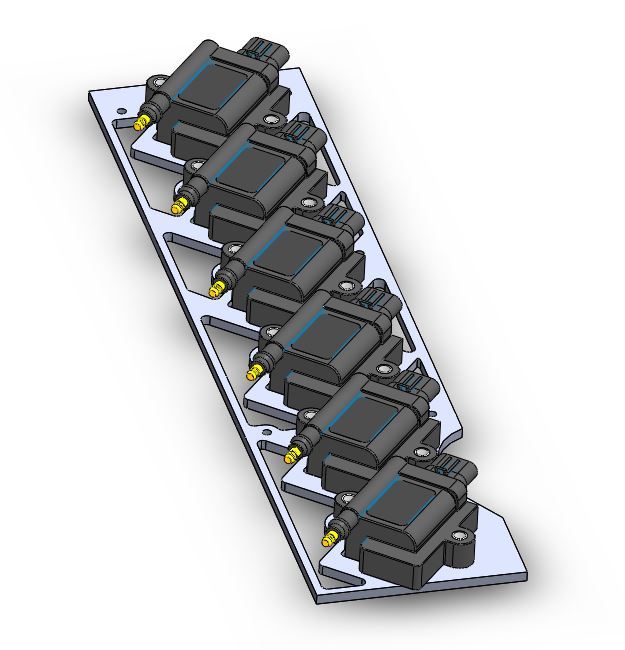

Since i was getting a upgraded harness i decided it was also the correct time to switch from a janky oem 3 coilpack wasted spark setup with an ignitor to a aem smart coil setup.

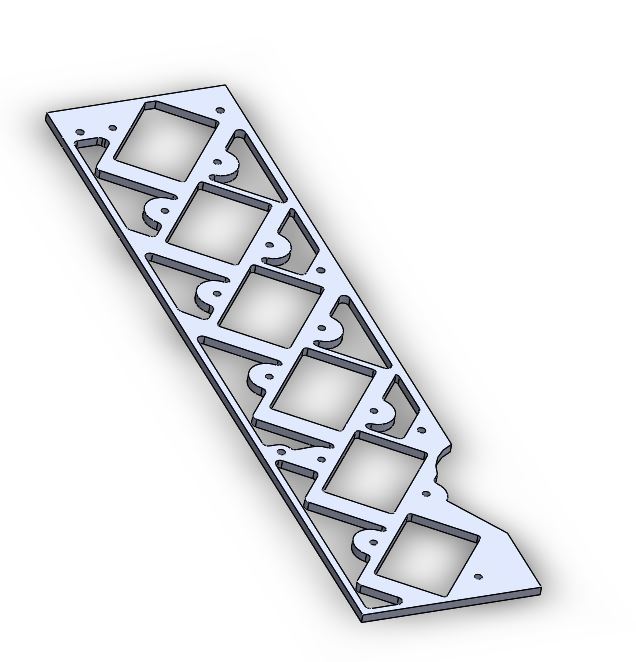

There is a company that makes a bracket but wants $250 and it does not fit right with the VVTI head so i decided that I will design up my own and give it a shot first before resorting to paying that much for the bracket.
Here is where i am currently with it after 1-2 hours of playing with it unsure how happy i am with it yet.



Attached Thumbnails
2JZ Miata 68mm turbo six speed-pic%25201%2520coilpack%2520bracket_zpshpo5p38l.jpg   2JZ Miata 68mm turbo six speed-pic%25202%2520coilpack%2520bracket_zpsw1rgapic.jpg
Shortpersonbk is offline   Reply With Quote
Old 05-07-2016, 09:10 AM   #51
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

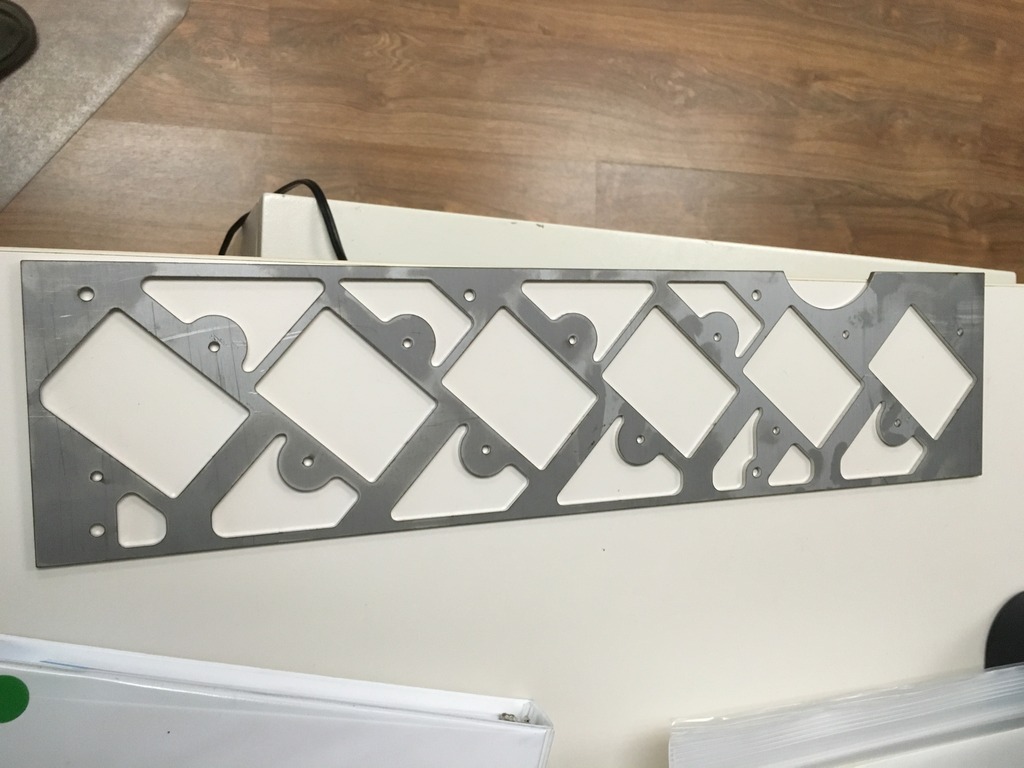

Well i hope my measuring skills were not that far off but its easy to fix at least .

Yay for poorly made homemade/designed parts.

Attached Thumbnails
2JZ Miata 68mm turbo six speed-0f886cd9-a95b-4cf4-943e-bbd336549e24_zpsslhryc9k.jpg
Shortpersonbk is offline   Reply With Quote
Old 05-11-2016, 07:57 PM   #52
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Just sent out my cluster to Revlimiter so a surprise is in order. It will either look really good or really ghetto so im excited to see it .

Shortpersonbk is offline   Reply With Quote
Old 05-11-2016, 10:14 PM   #53
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,447
Total Cats: 359
Default

If Adam's gauges look tacky, it's because you chose a terrible design.
His work is very nice.
Monk is online now   Reply With Quote
Old 05-11-2016, 10:26 PM   #54
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

We worked on a custom design with an idea I had. He does good work im sure but I ment that you never really know what it will look like till it is actually assembled and in your hands.
Shortpersonbk is offline   Reply With Quote
Old 05-19-2016, 10:11 AM   #55
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

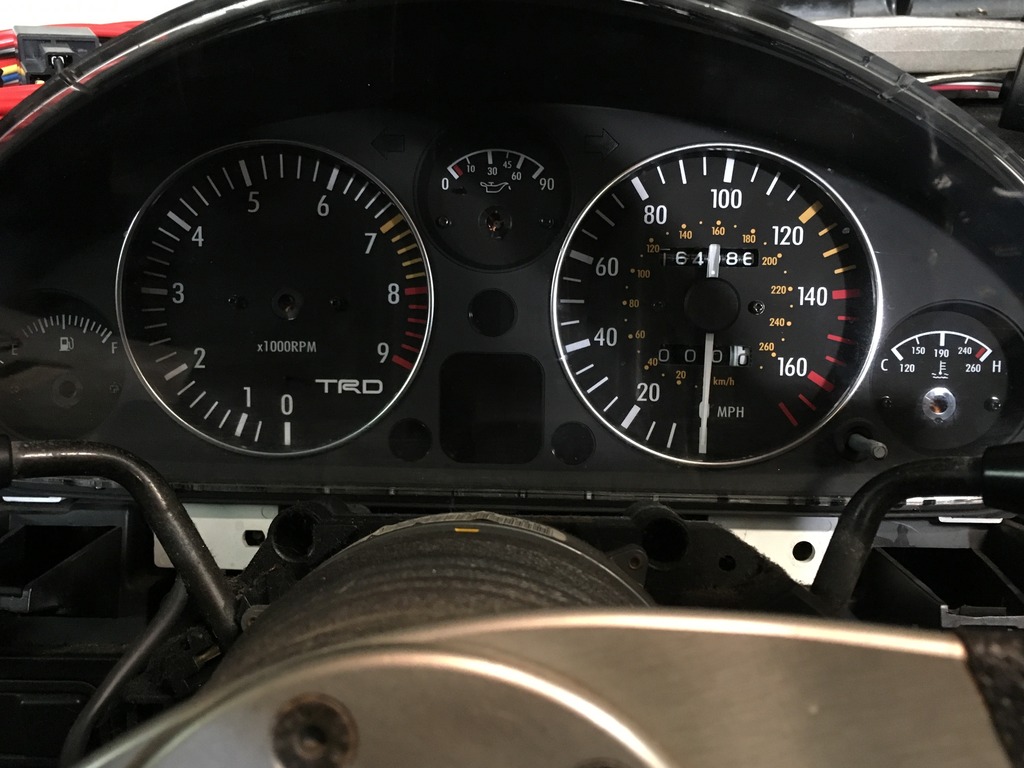

Well like i said you will either hate it or tolerate it but i am happy . (ignore the missing needles car has to be running to put them in)

Attached Thumbnails
2JZ Miata 68mm turbo six speed-74617a26-64c9-45e2-bf75-629059649993_zpsqnoyr7dn.jpg
Shortpersonbk is offline   Reply With Quote
Old 05-19-2016, 04:24 PM   #56
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

"TRD"

lol
hi_im_sean is offline   Reply With Quote
Old 05-19-2016, 05:04 PM   #57
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by hi_im_sean View Post
"TRD"

lol
It is modeled after the supra Trd cluster which has been for a long time my favorite cluster.
Shortpersonbk is offline   Reply With Quote
Old 05-20-2016, 02:48 AM   #58
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 771
Total Cats: 29
Default

Brilliant. I am really tempted to get a Honda or MG badged horn button for my Momo just to confuse people.
x_25 is online now   Reply With Quote
Old 05-30-2016, 10:50 AM   #59
Newb

Join Date: May 2016
Location: Orlando, Florida
Posts: 10
Total Cats: -12
Default

Man this build is very cool! I'm really interested to know what kind of number this thing will push out. I support you in this thing man keep it going! 😁
davidnieves23 is offline   Reply With Quote
Old 05-30-2016, 05:16 PM   #60
Newb

Join Date: Jul 2015
Posts: 2
Total Cats: 0
Default

Buuuuump

Where's the update that includes the video of the car running? Still waiting on the new engine harness? It feels like this car has been sitting/not running for at least a year already...
Travisty75 is offline   Reply With Quote
