93' Miata stolen and flipped build thread - Page 173 - Miata Turbo Forum -Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 02-23-2015, 06:45 PM   #3441
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

Damn, first my EGR thread post from years ago gets pulled up a few days ago, now my oil temp sensor thread. Glad i have some usefull threads around here, lol
240_to_miata is offline   Reply With Quote
Old 02-23-2015, 07:35 PM   #3442
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by 240_to_miata View Post
Damn, first my EGR thread post from years ago gets pulled up a few days ago, now my oil temp sensor thread. Glad i have some usefull threads around here, lol

Attached Thumbnails
93' Miata stolen and flipped build thread-2603.gif
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 09:56 PM   #3443
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Pa
Posts: 126
Total Cats: 11
Default

Would it make sense to run a Mocal sandwich plate to get oil temp and pressure there? Or is there not enough room to stack both.
darkcambria is offline   Reply With Quote
Old 02-23-2015, 10:00 PM   #3444
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by darkcambria View Post
Would it make sense to run a Mocal sandwich plate to get oil temp and pressure there? Or is there not enough room to stack both.
No point for oil pressure, as Mazda already has the stock location available for you. If you have a aftermarket pressure sensor as I do, just remove the OEM sender and put your aftermarket one there. No need to create more work.
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 10:07 PM   #3445
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,219
Total Cats: 339
Default

...says the guy who polished his PPF...
rleete is online now   Reply With Quote
Old 02-23-2015, 10:12 PM   #3446
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by rleete View Post
...says the guy who polished his PPF...
I'm not saying I'm logical...buy c'mon, that one is a given!

There ain't no rhyme or reason to my logic structure; especially when it comes to making things shiny and clean.

I have another PPF laying in my garage that I want to polish like the first and mount it on my wall. Because art.

Also procrastination of several projects on the Miata I've been avoiding as of late...
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 10:49 PM   #3447
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Quote:
Originally Posted by Jeffbucc View Post
No point for oil pressure, as Mazda already has the stock location available for you. If you have a aftermarket pressure sensor as I do, just remove the OEM sender and put your aftermarket one there. No need to create more work.
There's another reason as well. The port on the side of the block is in the same galley that feeds your main bearings. An oil pressure reading there is legit -- that's what your engine is seeing.

If you tap for oil pressure at the sandwich plate, you'll be reading the output of the oil pump. That's BEFORE potential oil pressure drops from a clogged cooler or oil filter. It could mask a critical blockage.
hornetball is offline   Reply With Quote
Old 02-23-2015, 11:02 PM   #3448
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by hornetball View Post
Uhhhh . . . .

Think about it. I know you'll come to the correct conclusion.

Hint #1 . . . our oil pans have fins for a reason.
Hint #2 . . . liquids like oil and water don't follow the ideal gas law -- they're considered "incompressible."
Hint #3 . . . even if the oil pump raised the temperature 1000F, that's still the temp going into your cooler/engine -- so wouldn't you like to know what it is?

That said, generally the difference will be on the order of 15F under light running and 30F under track conditions, so the oil pan is "good enough." Beyond absolute numbers, the main thing you want to catch on track is a bad trend (i.e., oil suddenly getting hotter for no apparent reason -- time to slow down and investigate).
This should be the end of the discussion. Tap your Mocal and call it a day.
FAB is offline   Reply With Quote
Old 02-24-2015, 02:32 PM   #3449
Senior Member
iTrader: (12)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,169
Total Cats: 29
Default

Ordered an oil temp sender to install in my sandwich plate while my motor is out because of this thread. Thanks for the heads up.
Midtenn is offline   Reply With Quote
Old 02-24-2015, 08:52 PM   #3450
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

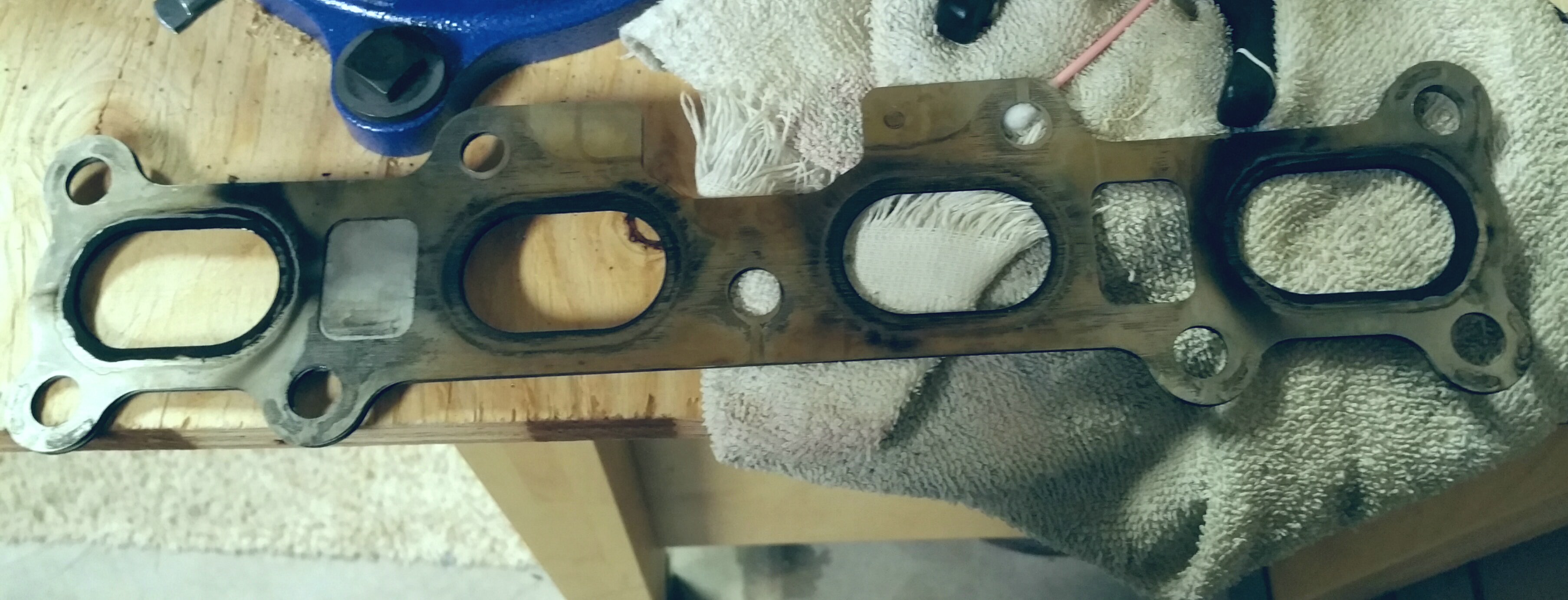

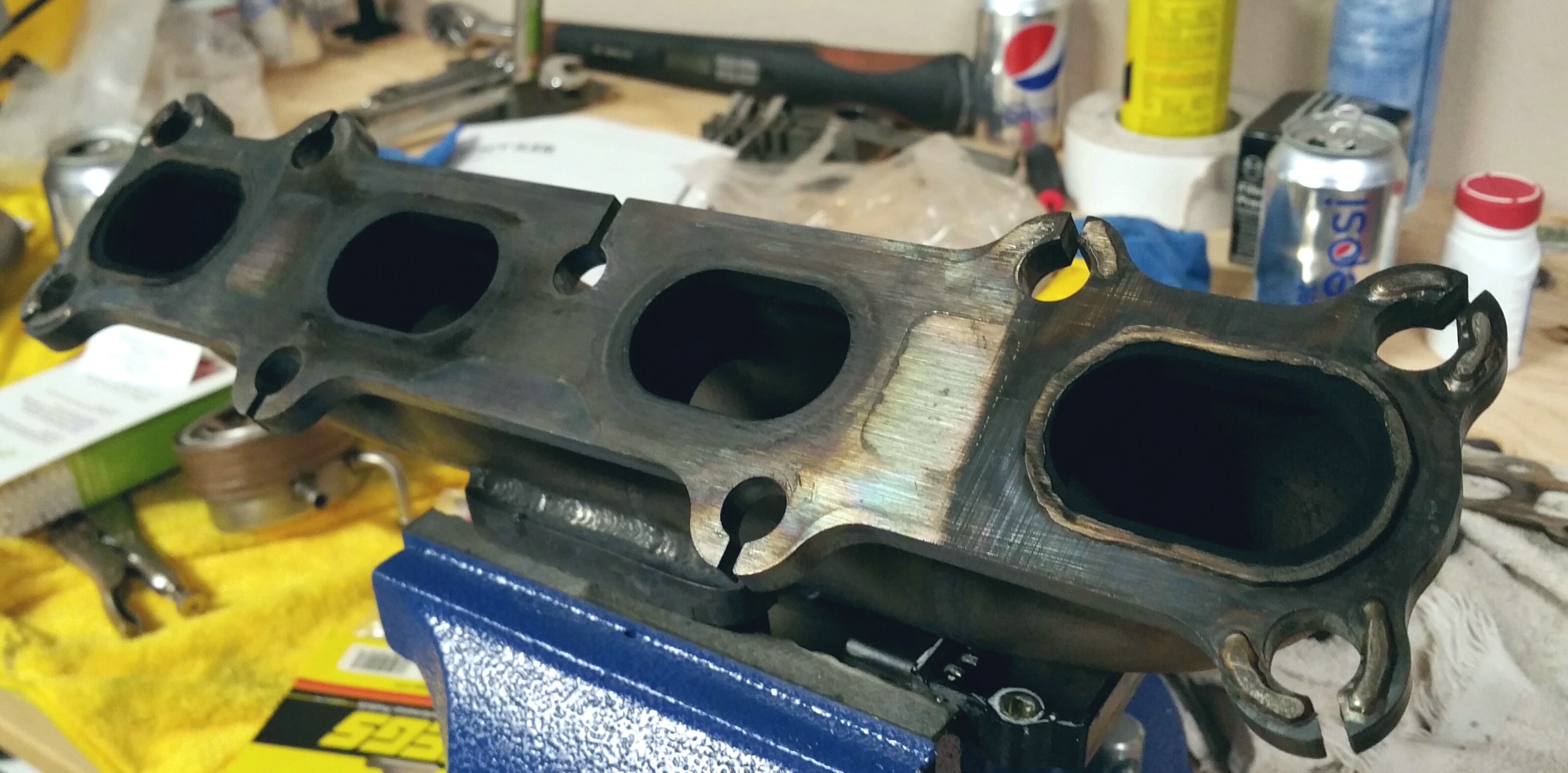

Let's play a game. Find the exhaust manifold leaks...no idea why it was so bad. Flanges were nilled and new gasket, nuts were and was torqued to spec. 2 studs backed out with their nuts. Resbond new studs?

This explains why AFR tuning and idle always fought me.



Jeffbucc is offline   Reply With Quote
Old 02-24-2015, 09:41 PM   #3451
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,703
Total Cats: 472
Default

Certainly doesn't look well machined.
curly is offline   Reply With Quote
Old 02-24-2015, 10:14 PM   #3452
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,203
Total Cats: 974
Default

Cause its not. Thats belt sander marks right thur.
aidandj is offline   Reply With Quote
Old 02-24-2015, 10:17 PM   #3453
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,203
Total Cats: 974
Default

Also wtf is on the right side stud holes, looks like weld beads?
aidandj is offline   Reply With Quote
Old 02-24-2015, 10:42 PM   #3454
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Pa
Posts: 126
Total Cats: 11
Default

Quote:
Originally Posted by Jeffbucc View Post
No point for oil pressure, as Mazda already has the stock location available for you. If you have a aftermarket pressure sensor as I do, just remove the OEM sender and put your aftermarket one there. No need to create more work.
Thanks! Guess I can sell that sandwich plate I had sitting around. That was my original thought but then I second guessed myself.
darkcambria is offline   Reply With Quote
Old 02-24-2015, 11:16 PM   #3455
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

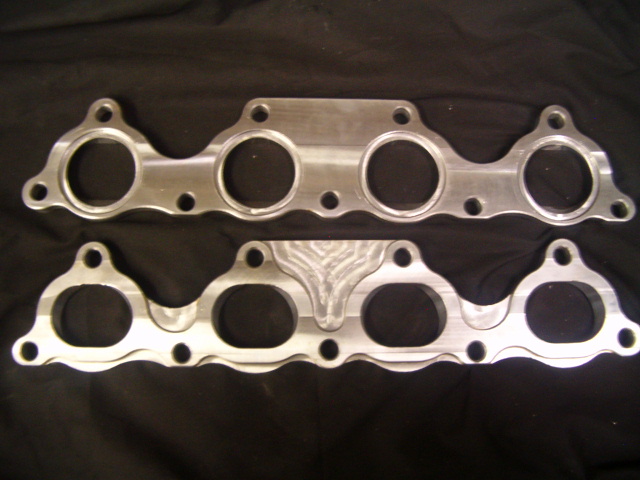

When you mentioned this earlier I was under the impression you were speaking of raised areas of the flange that were machined into the flange. This looks like the flange warped during construction of the manifold and beads were run around areas that no longer made solid contact with the head.

This is what I thought you were talking about (clearly not the case).
Attached Thumbnails
93' Miata stolen and flipped build thread-b.jpg
FAB is offline   Reply With Quote
Old 02-24-2015, 11:45 PM   #3456
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Who did dat? Kill 'em.
turbofan is offline   Reply With Quote
Old 02-25-2015, 12:21 AM   #3457
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Well that's...

I have no...

revlimiter is offline   Reply With Quote
Old 02-25-2015, 03:45 AM   #3458
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by aidandj View Post
Cause its not. Thats belt sander marks right thur.
I want to go back in time and slap naive me after I took a look at the flange surface. Such a shitty job that I am going to stop by the "machine" shop that did it and ask them what the hell they actually did.

Quote:
Originally Posted by FAB View Post
When you mentioned this earlier I was under the impression you were speaking of raised areas of the flange that were machined into the flange. This looks like the flange warped during construction of the manifold and beads were run around areas that no longer made solid contact with the head.

This is what I thought you were talking about (clearly not the case).
OK, that makes more sense. I was a little confused by your earlier comment.

Quote:
Originally Posted by revlimiter View Post
Well that's...

I have no...
You and me both sir.

-
-
-

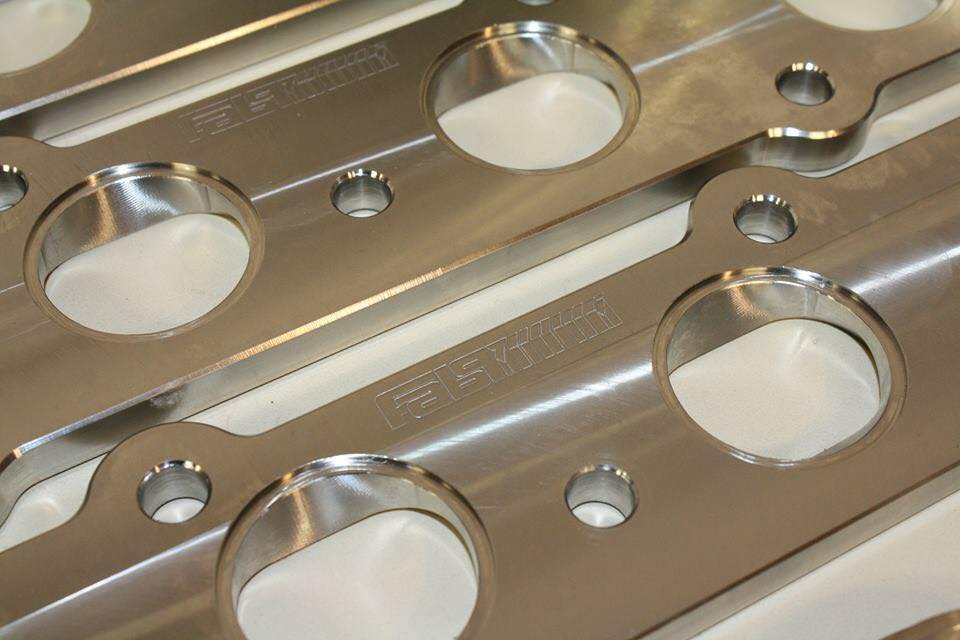

Bryan could tell I was a little annoyed and so he sent me a very pretty picture of the latest revision to his manifold flange.

I love me some CNC ****.

Jeffbucc is offline   Reply With Quote
Old 02-25-2015, 05:15 AM   #3459
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,484
Total Cats: 79
Default

*Gasp*
Zaphod is offline   Reply With Quote
Old 02-25-2015, 12:02 PM   #3460
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,203
Total Cats: 974
Default

I had mine belt sanded and no issues so far, the major issue to me I is the cylinder 1 port. Will you post a picture looking parallel to the flange? Is the area around the cylinder port raised?
aidandj is offline   Reply With Quote
