Old 05-02-2015, 02:53 AM
  #3761
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,169
Total Cats: 856
Default

Originally Posted by Der_Idiot
Maybe FM would be willing to open their doors for a few pulls? Not exactly close but hey you get to see FM...?
FM is happy to dyno cars if you pay them. They don't do it for free.

If you're going to the open house in August and want to dyno then, it's best to get reservations in early because it fills up.

--Ian
codrus is offline
Old 05-02-2015, 10:31 AM
  #3762
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by codrus
FM is happy to dyno cars if you pay them. They don't do it for free.

If you're going to the open house in August and want to dyno then, it's best to get reservations in early because it fills up.

--Ian
I keep forgetting people think I'm close to CO due to living in Southern Utah. Utah is a huge state and I live in the southwest corner of it. Flyin' Miata is 5 hours from Cedar City. Not something I'd be willing to make a drive to Dyno the car for unless their Dyno is made of fairy dust and unicorn tears. It would be cool to see their facility though.

On another note. I refinished my steering wheel again. It must not have like the leather conditioner I was using as it stripped the top coat off and was looking a little beat. So I removed the top coat and refinished it and then buffed it with a dry microfiber towel. Just going to use water and some light interior protector from now on.

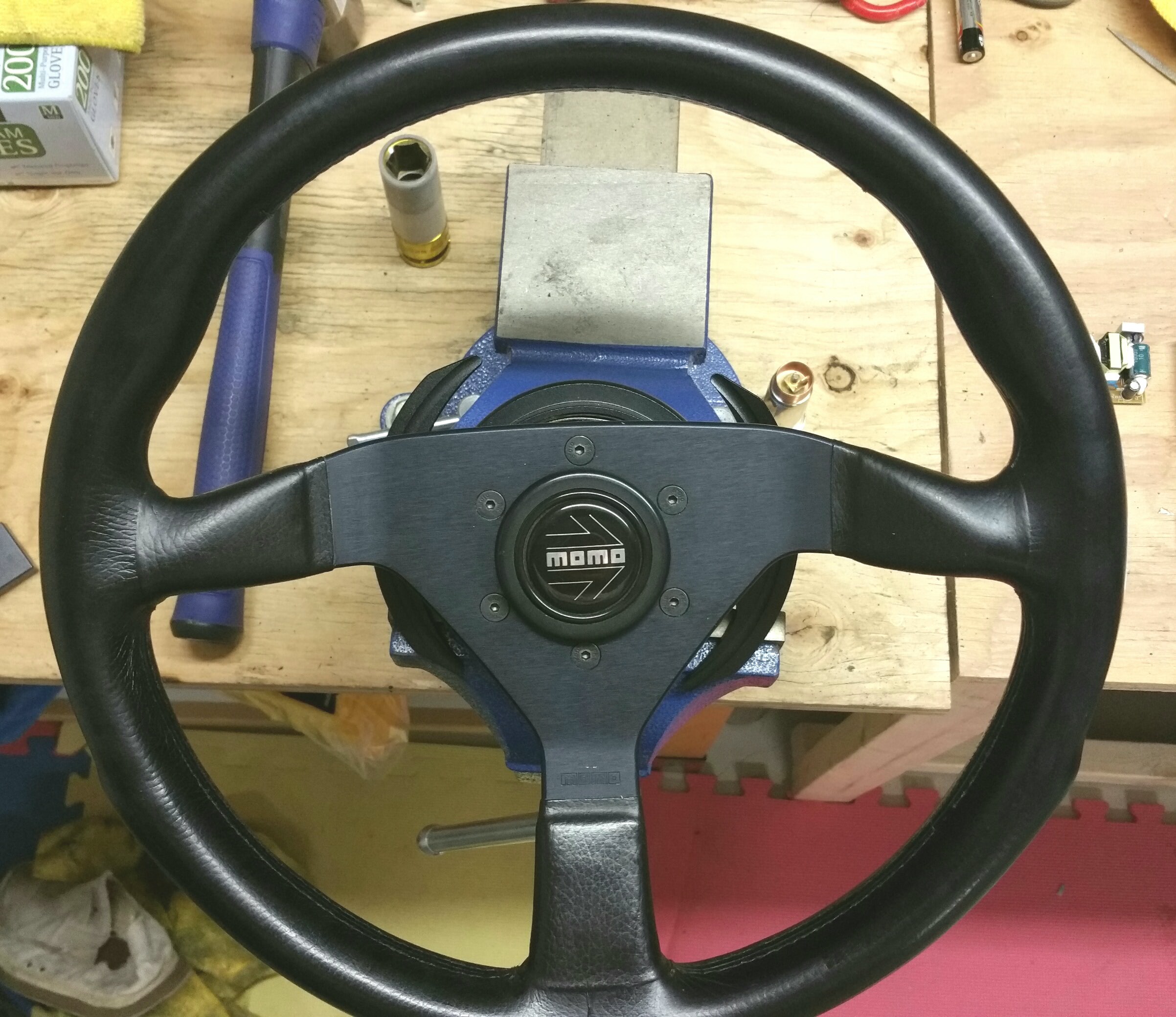

Name:  HnHaAPl.jpg
Views: 9
Size:  663.9 KB

Also bought these adjustable AN wrenched after a couple people recommended them(thanks Bryan), for my fuel fittings and to stop further damage to my turbo fittings. There are a ton of options and buying multiple of each type was looking expensive. CNC'd billet aluminum. Yum.

They don't loosen up as you use them supposedly as well, which I always found annoying on other adjustable wrenches. They are so light they feel really cheap, because my muscle memory is used to the heft and feel of steel tools. They are far from bad quality though. Hopefully I have these in my tool kit for a very long time.

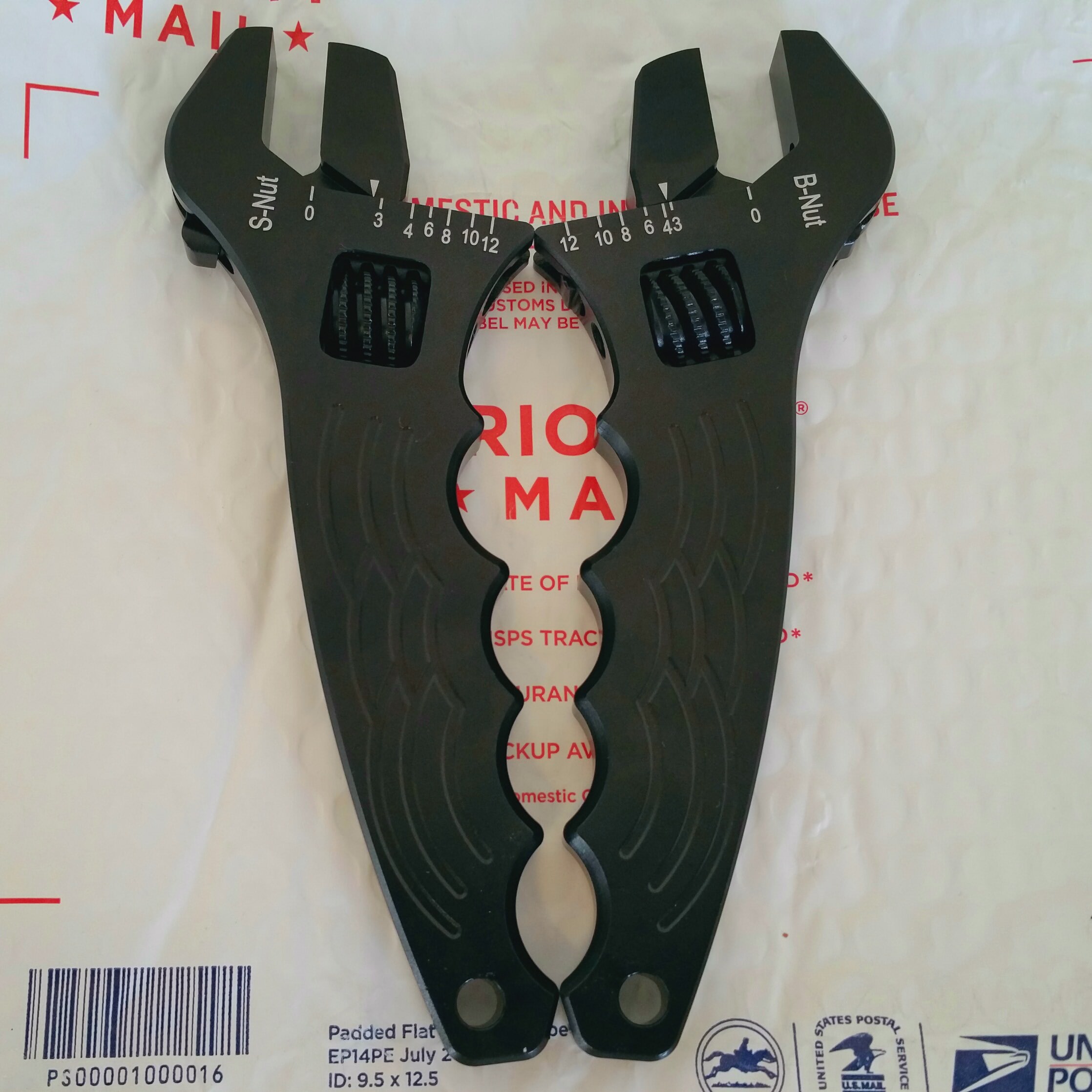

Name:  82BhUMh.jpg
Views: 9
Size:  402.4 KB
Jeffbucc is offline
Old 05-02-2015, 10:40 AM
  #3763
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

No link?
aidandj is offline
Old 05-02-2015, 10:44 AM
  #3764
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by aidandj
No link?

Vibrant Performance ::.

I didn't buy mine here but it gives you a starting point.
Jeffbucc is offline
Old 05-02-2015, 12:51 PM
  #3765
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,598
Total Cats: 1,263
Default

For leather, I use Ultra Shield leather care cleaner and conditioner. It's made for furniture, and it works great on seats. If you use it sparingly, it leaves the leather soft, but not oily or slippery feeling. A $10 bottle will do an entire sofa several times, so 1 bottle should last for years doing seats and trim.
rleete is offline
Old 05-03-2015, 02:28 AM
  #3766
Junior Member
iTrader: (1)

BoostedSmurf's Avatar

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 403
Total Cats: 65
Default

Those wrenches look pretty interesting. I've just been using an adjustable wrench with electrical tape on it. Seems to be working well so far.
BoostedSmurf is offline
Old 05-03-2015, 10:19 AM
  #3767
Elite Member
iTrader: (13)

Fireindc's Avatar

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 6,612
Total Cats: 567
Default

Wow, this thing is great! Looking at the video, this thing just makes smooth and effortless power. It's almost like a larger displacement motor.

I guess that's EFR for ya, but damn.
Fireindc is online now
Old 05-03-2015, 10:59 AM
  #3768
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by BoostedSmurf
Those wrenches look pretty interesting. I've just been using an adjustable wrench with electrical tape on it. Seems to be working well so far.
I should've just done that but I like having the right tool for the job. I've gotten a little tired of the, "make a tool work but it is a pain in the ***" method I've done in the past.

Originally Posted by Fireindc
Wow, this thing is great! Looking at the video, this thing just makes smooth and effortless power. It's almost like a larger displacement motor.

I guess that's EFR for ya, but damn.
It really is suprising just how different it hits. It is still scary, but not in the brutal sense like the 2860rs. When the 2860 hit full boost....look out...and hope you are going in a straight line. With the EFR's linearity it just makes the car so much more predictable, as you said, a larger displacement NA motor.
Jeffbucc is offline
Old 05-03-2015, 01:03 PM
  #3769
Elite Member
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: Very NorCal
Posts: 10,441
Total Cats: 1,899
Default

Originally Posted by Jeffbucc
It really is surprising just how different it hits. It is still scary, but not in the brutal sense like the 2860rs. When the 2860 hit full boost....look out...and hope you are going in a straight line.
Not to talk **** about the potato or your car/abilities, but I think a lot of that was in your tune.

Originally Posted by Jeffbucc
With the EFR's linearity it just makes the car so much more predictable, as you said, a larger displacement NA motor.
So what, like a rotrex?

You have no idea how antsy I'm getting as mine comes together.
EO2K is offline
Old 05-03-2015, 01:12 PM
  #3770
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by EO2K
Not to talk **** about the potato or your car/abilities, but I think a lot of that was in your tune.

So what, like a rotrex?

You have no idea how antsy I'm getting as mine comes together.
psshhh don't be hatin' because your car isn't assembled yet G!

I'm sure it was partially tune related, but the delivery is really quite different. Before the car was stolen and it was all sorted it still hit pretty visciously.

And yes, the Rotrex comparison was quite the exaggeration in retrospect but ya'll know what I mean....
Jeffbucc is offline
Old 05-04-2015, 09:52 AM
  #3771
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Fun was not had yesterday...

So I've had misfire issues for as long as I can remember on cylinder #1, always chalked it up to a faulty COP or spark plug but after putting in fresh plugs gapped even narrower it finally stopped misfiring on cyl #1 but would always return at idle.

So I finally got off my lazy *** and did a compression test and leakdown test and it showed low compression on cyl #1, and didn't rise after squirting some oil in the cylinder. So knowing that I did a leakdown test and saw that it was leaking from my exhaust valve on #1. Cylinders 2, 3, and 4 all were stable and had the exact same compression numbers.

So after considering my options I pulled the head. Dropping it off at an engine shop later today to find out the full story before I make a decision on what I replace. The original owner did a 3 way valve job with backcut valves but used the 99 valves that came with the head.

Shop I'm dropping the head off to is a performance drag motor shop and works on a lot of import motors as well and has been in business for 30 years so I am not really nervous about their experience/quality.

And before anyone says it, no this was not due to my tune I had done recently. It was a prevalent issue before it was tuned, most likely caused by myself learning how to tune the car and/or the rollover incident.

Not mad about it, as it is part of the reality you accept when you enter this "world", and seeing as there is no rush to get it done I'm not feeling ansy or annoyed to meet a deadline. Luckily it wasn't the bottom end, as that could have caused this to be considerably more expensive.

Took me 3 hours to pull the head, and the only tricky part was getting the CAS to clear the firewall. Really a fairly undramatic job considering how I was building it up in my head.

Probably going to go with Supertech valves to replace the OEM valves and maybe dual light valve springs for a little more assurance.

Let the fun begin...again!

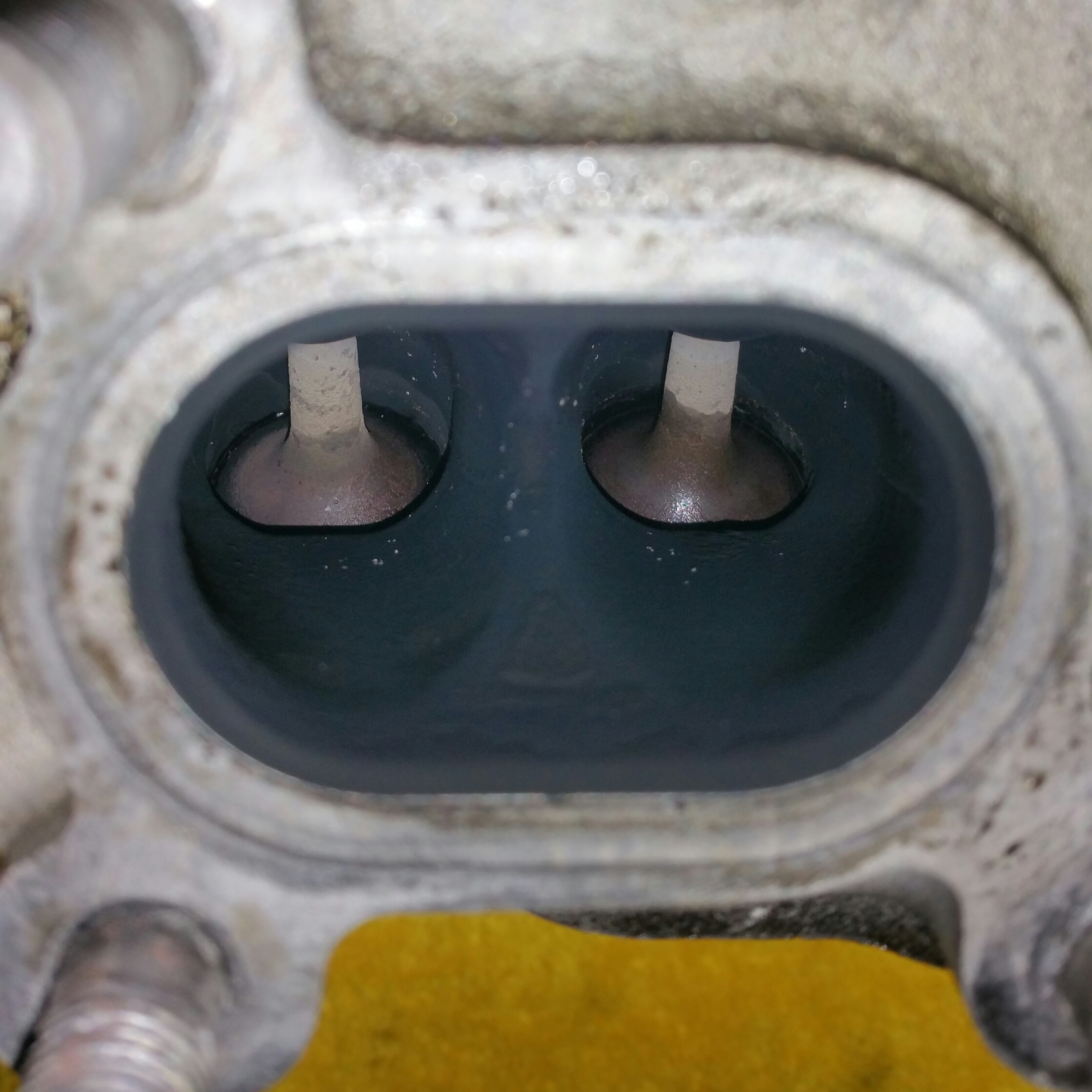

Name:  PvFZW2x.jpg
Views: 9
Size:  2.28 MB

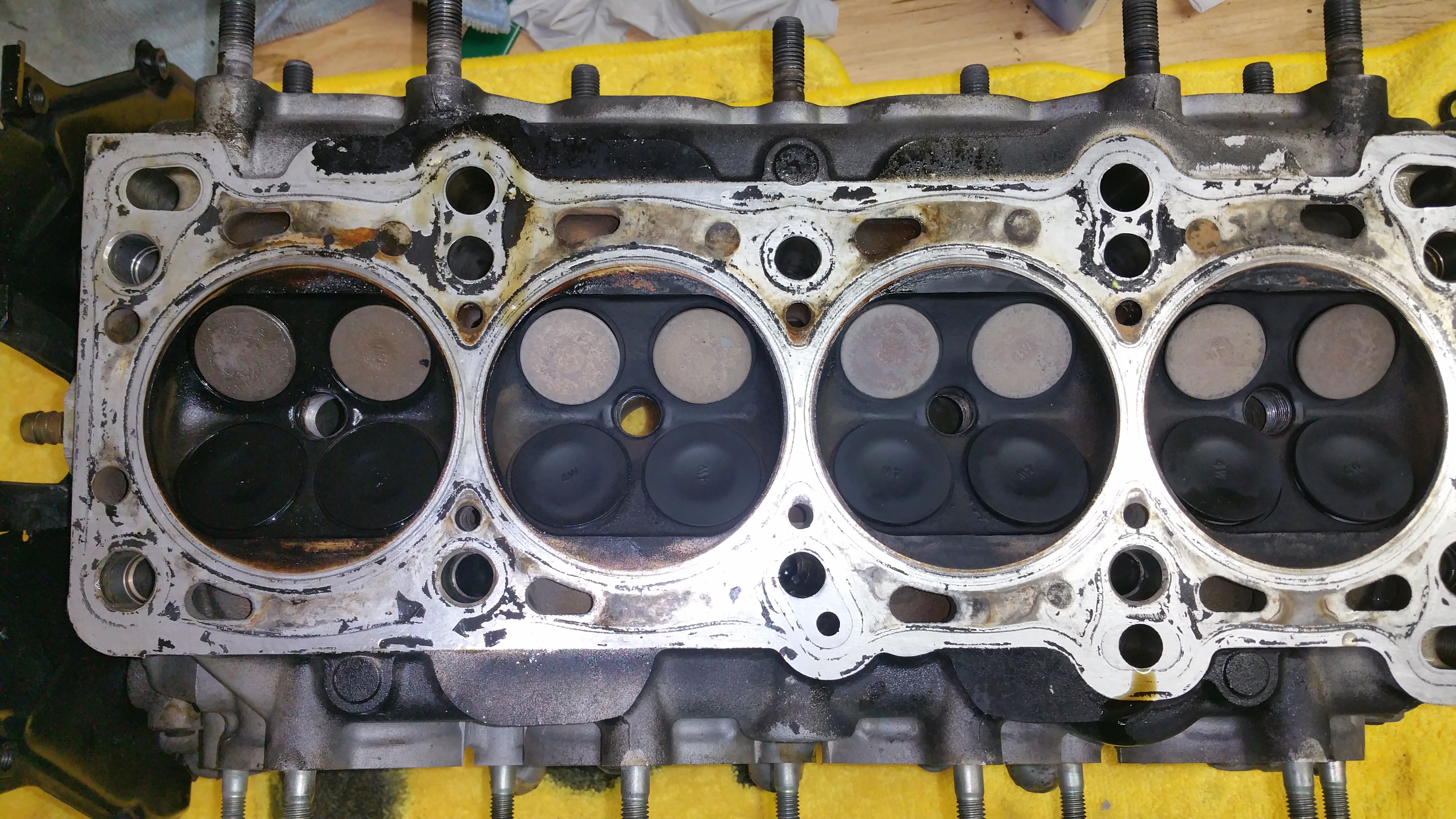

Name:  Rr9al0d.jpg
Views: 9
Size:  4.66 MB

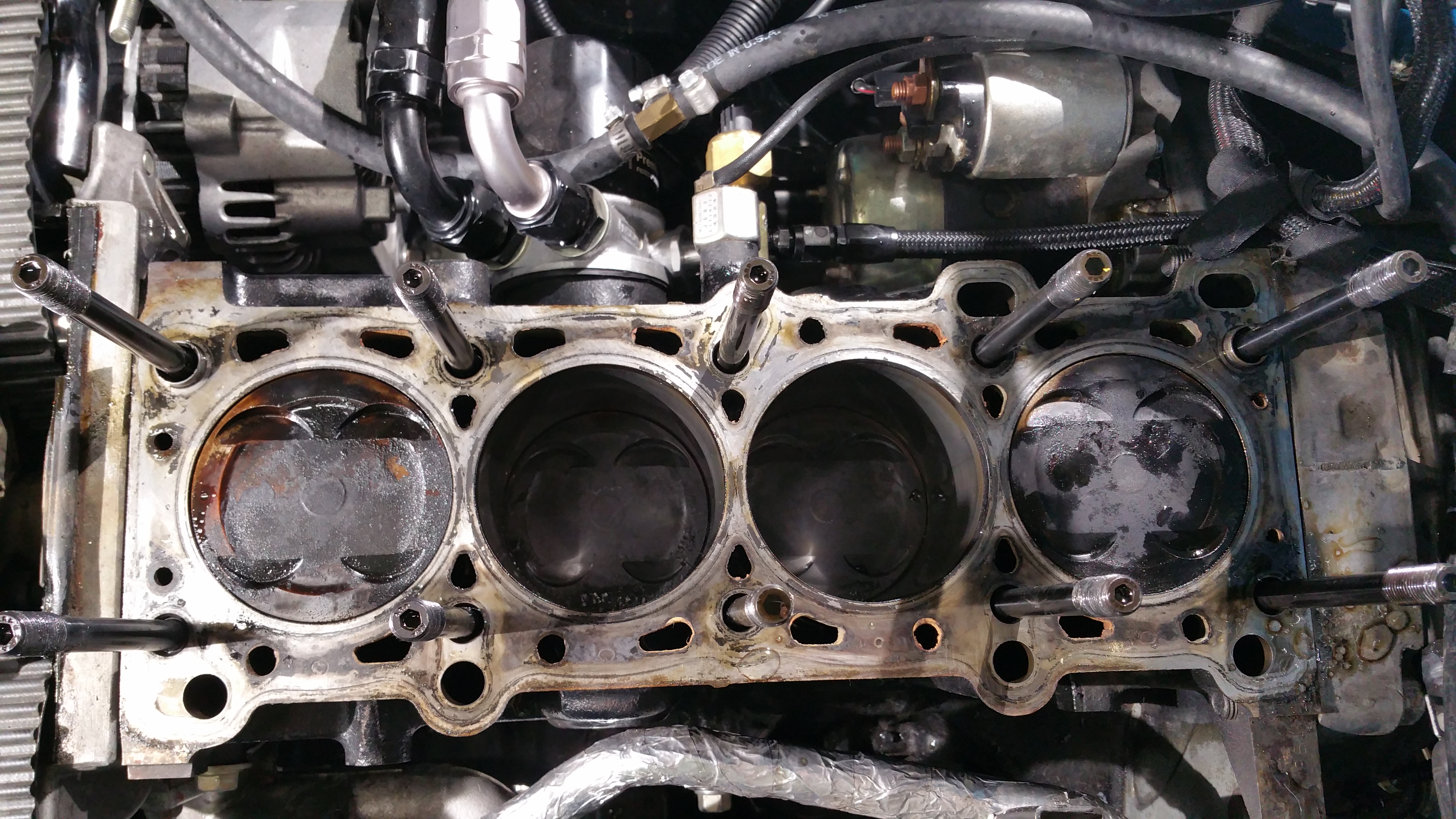

Name:  KlKvKan.jpg
Views: 9
Size:  4.55 MB
Attached Thumbnails 93' Miata stolen and flipped build thread-xsww9i0.jpg
Jeffbucc is offline
Old 05-04-2015, 11:08 AM
  #3772
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,213
Total Cats: 1,139
Default

Two bolts to remove the cap and the CAS will just slip up and out.

Wait isn't this a '99? Why are you running the CAS at all?
curly is online now
Old 05-04-2015, 11:13 AM
  #3773
Elite Member
iTrader: (4)

hornetball's Avatar

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,301
Total Cats: 696
Default

Jeff, as you know, I've been pulling my head pretty regularly (actually, valves are holding up fine now that I changed machine shops). I recommend that you remove those studs before pulling/installing the head. I didn't at first, and the head would sometimes **** and drag on the studs. Having them out of the way makes things much easier.
hornetball is offline
Old 05-04-2015, 11:15 AM
  #3774
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,493
Total Cats: 268
Default

Originally Posted by curly
Two bolts to remove the cap and the CAS will just slip up and out.

Wait isn't this a '99? Why are you running the CAS at all?
Probably because the CAS is to modify into "one trigger per cam rotation" and run full sequential with a crank trigger wheel.

Until megasquirt supports 36-1T with NB cam signal we're stuck with this ****.
soviet is offline
Old 05-04-2015, 11:15 AM
  #3775
Elite Member
iTrader: (4)

hornetball's Avatar

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,301
Total Cats: 696
Default

Originally Posted by curly
Wait isn't this a '99? Why are you running the CAS at all?
I do the same on my '95 with '99 head. Let me retain the OEM '95 harness and MSPNP9495. Perhaps I shouldn't?
hornetball is offline
Old 05-04-2015, 11:22 AM
  #3776
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Bummer dude, Ed told me about this yesterday. Hope the machine shop has good news.
aidandj is offline
Old 05-04-2015, 12:14 PM
  #3777
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,598
Total Cats: 1,263
Default

Originally Posted by hornetball
...I've been pulling my head pretty regularly...
Not one comment on this? Man, you guys are really slipping.
rleete is offline
Old 05-04-2015, 12:30 PM
  #3778
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

Boy, that escalated quickly.
I find it kinda funny that the ONE thing you haven't completely re-done yet is the one thing you're finally re-doing.
18psi is offline
Old 05-04-2015, 12:50 PM
  #3779
Elite Member
iTrader: (4)

hornetball's Avatar

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,301
Total Cats: 696
Default

Originally Posted by rleete
Not one comment on this? Man, you guys are really slipping.
hornetball is offline
Old 05-04-2015, 01:29 PM
  #3780
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,917
Total Cats: 2,201
Default

Originally Posted by hornetball
I do the same on my '95 with '99 head. Let me retain the OEM '95 harness and MSPNP9495. Perhaps I shouldn't?
Scatter at high rpm. I was in the middle of buying **** to convert mine to full NB1 triggers before i got rid of it.
concealer404 is offline
