Old 12-03-2013, 12:05 PM   #461
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by concealer404 View Post
Send them all off to a zinc plater. They'll strip and re-finish them all in a nice pimpy gold zinc coating. It's surprisingly affordable.
Jesus. Christ. That is insanity! I just wish I had a local shop close to me that does it, maybe I am searching using the wrong words but the closest is 3 hours from me.

Quote:
Originally Posted by Braineack View Post
holy. ****. me.
This

Quote:
Originally Posted by concealer404 View Post
I'm buying a Zinc plating setup so i can do that myself this winter. I already have a nice big blast cabinet, so the prep will be simple, if time consuming.
I'd love to buy my own setup, but I just don't want to spend a lot of money on a really one time usage.

I think I'm just going to soak it in a cleaner over a couple days while I cant work on the car. I'm pretty good at making pretty potent cleaning combos. If all else fails I'll ship the bolts to a plater if I get really insane, but I think I'll be able to control my OCD to just cleaning them well.
Jeffbucc is offline   Reply With Quote
Old 12-03-2013, 12:08 PM   #462
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,912
Total Cats: 1,469
Default

now i must post my box of miata bolts/nuts.
Braineack is online now   Reply With Quote
Old 12-03-2013, 12:11 PM   #463
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Shipping them wouldn't really be a huge deal...
concealer404 is offline   Reply With Quote
Old 12-03-2013, 03:56 PM   #464
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by concealer404 View Post
Shipping them wouldn't really be a huge deal...
True....
Jeffbucc is offline   Reply With Quote
Old 12-03-2013, 05:02 PM   #465
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by concealer404 View Post




Ok, that's dope. Where did you have that done?
Pinky is offline   Reply With Quote
Old 12-03-2013, 05:07 PM   #466
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

That's not me, but that particular batch was done by a place in Louisville, KY. There's a few options within a couple hours of me that will do the same.

I'm just going to invest in the tools to do it myself and maybe do side jobs for people as an investment.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 05:37 PM   #467
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

I just got a quote from a shop in Northern Utah for $55 for <20 lbs of bolts. Going to ship them to him tomorrow. Decided to do yellow zinc since supposedly it has higher corrosion resistance than the clear.
Jeffbucc is offline   Reply With Quote
Old 12-03-2013, 05:42 PM   #468
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 177
Default

I would NEVER be able to put a car together after shipping off a multi-pound box of hardware.
Scrappy Jack is offline   Reply With Quote
Old 12-03-2013, 05:43 PM   #469
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

Does that price include sandblasting? Would of been a great alternative for me when I restored my bike. Instead I went to Ace about 5 or 6 times, dropping somewhere between $20 and $60 each time in SS allen head hardware.
curly is offline   Reply With Quote
Old 12-03-2013, 05:51 PM   #470
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Jeffbucc View Post
I just got a quote from a shop in Northern Utah for $55 for <20 lbs of bolts. Going to ship them to him tomorrow. Decided to do yellow zinc since supposedly it has higher corrosion resistance than the clear.
Excellent!

Quote:
Originally Posted by Scrappy Jack View Post
I would NEVER be able to put a car together after shipping off a multi-pound box of hardware.
The trick is to make a spreadsheet with detailed information before you send it off. Many pictures.

Quote:
Originally Posted by curly View Post
Does that price include sandblasting? Would of been a great alternative for me when I restored my bike. Instead I went to Ace about 5 or 6 times, dropping somewhere between $20 and $60 each time in SS allen head hardware.
Buying individual pieces like that sucks so bad. I spent over $400 in OEM hardware from Mazda when i was working on the Escort.

I wish i could just buy a gigantic grab bag of Mazda bolts for future projects. Should be easy... they really only use about 3 different bolts, just in different lengths.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 06:38 PM   #471
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,885
Total Cats: -11
Default

Quote:
Originally Posted by concealer404 View Post
I wish i could just buy a gigantic grab bag of Mazda bolts for future projects. Should be easy... they really only use about 3 different bolts, just in different lengths.
It's called parting a car out.

1. Buy shitty crashed/rusty/non-running miata (or whatever)

2. Part out everything valuable

3. Keep all the hardware

4. ???

5. Profit


(PS I did basically this same thing with my old RX7 and now have an ample supply of high grade OEM bolts/nuts in all sorts of sizes)
Efini~FC3S is offline   Reply With Quote
Old 12-03-2013, 06:41 PM   #472
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Yeah i'll be doing that with my next MX6 coming, but from how much i tend to get out of a car, i really need to part out say... 4 cars, and none of them will be rollers by the time i'm done.

About to just go to the junkyard and start pulling bolts and nuts.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 08:53 PM   #473
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

I have a confession. Every time I go to a pick-n-pull, I generally leave with a pound or two of hardware. Especially if they don't inspect my tool bag. One time they did and they didn't even care.

I figure I'm stealing all of $.02 of scrap metal value. Or it'll end up sitting in the gravel.
curly is offline   Reply With Quote
Old 12-03-2013, 09:14 PM   #474
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by concealer404 View Post
Excellent!
I wish i could just buy a gigantic grab bag of Mazda bolts for future projects. Should be easy... they really only use about 3 different bolts, just in different lengths.
I kept all the bolts from both cars so if anyone needs some spares I'll throw them in a box and ship them to you if anyone wants them post zinc'ing.

Quote:
Originally Posted by curly View Post
Does that price include sandblasting? Would of been a great alternative for me when I restored my bike. Instead I went to Ace about 5 or 6 times, dropping somewhere between $20 and $60 each time in SS allen head hardware.
Yes, includes media blasting, good company. I've done the same replacing bolts on my industrial 6 rack bread oven for my bakery...never again, so much money spent.

Quote:
Originally Posted by Scrappy Jack View Post
I would NEVER be able to put a car together after shipping off a multi-pound box of hardware.
I'm slightly terrified.

Decided to come down and work on the car tonight. Couldn't stand being in my store any longer and needed a break.

Replaced the Upper Control Arm boots. I took some detailed photos in case anyone does it.

Item number for the boots is: SEAL, DUST (NA01-34-548)

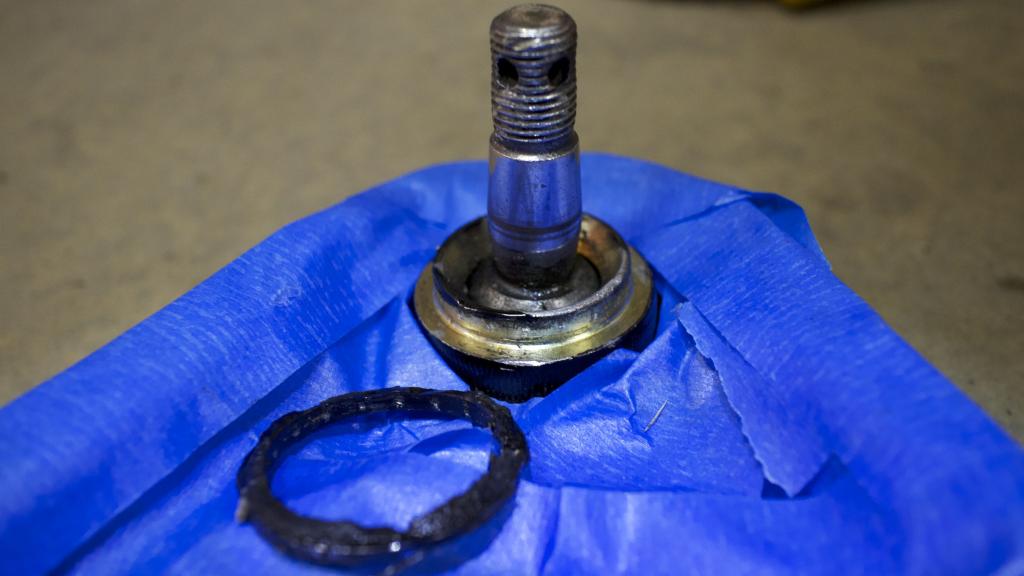

Use a dry chisel with the angle side facing the control arm and lightly tap it with a rubber mallet slowly going around the bushing so that it evenly goes off the control arm.

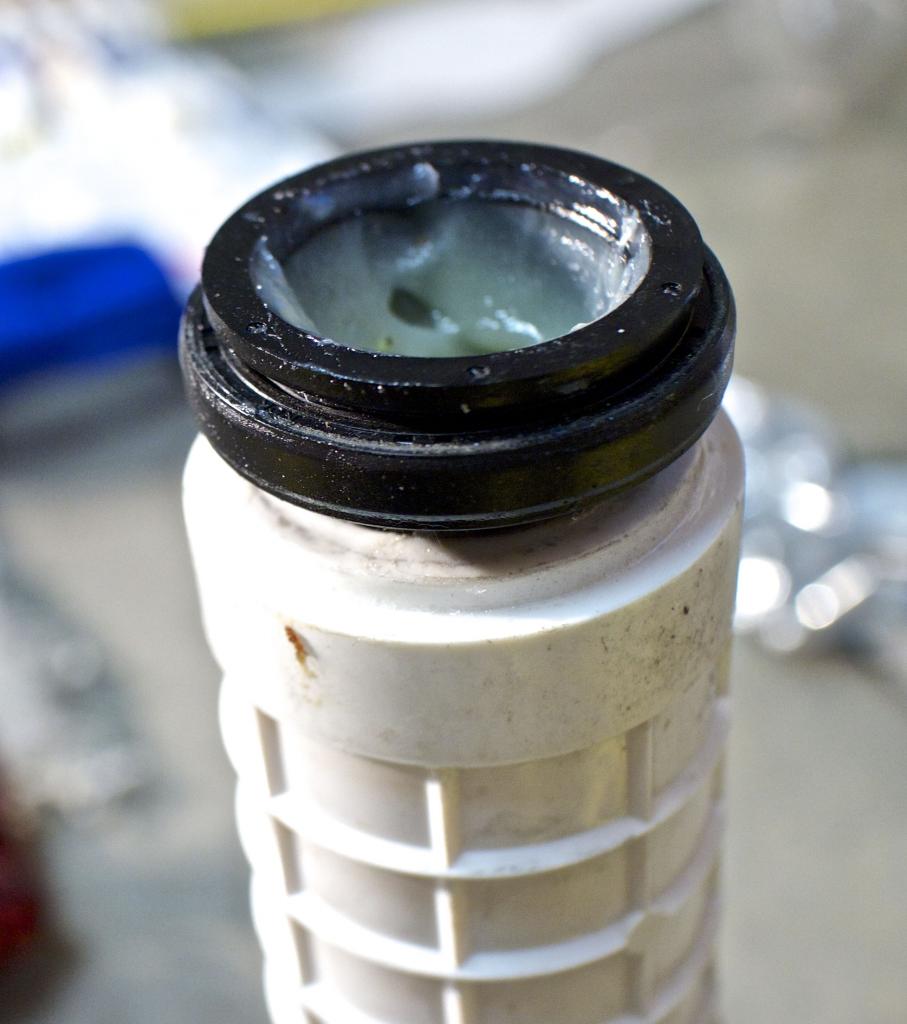

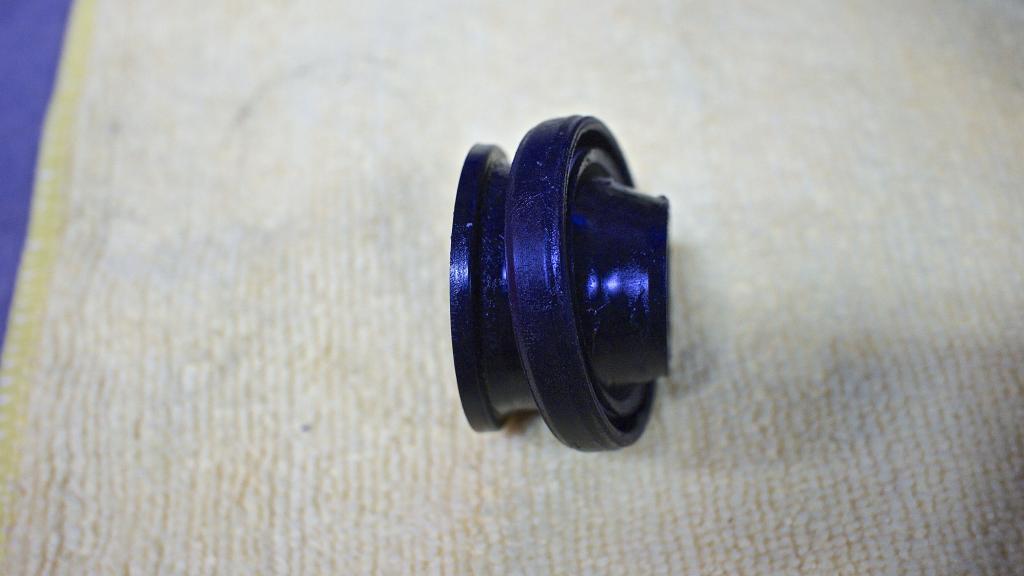

I used an old seal from my transmission and it fit perfectly over the metal retaining part of the boot. You don't have to do this it just ensured I didn't damage it, and it gave me a better fit with the PVC Pipe.

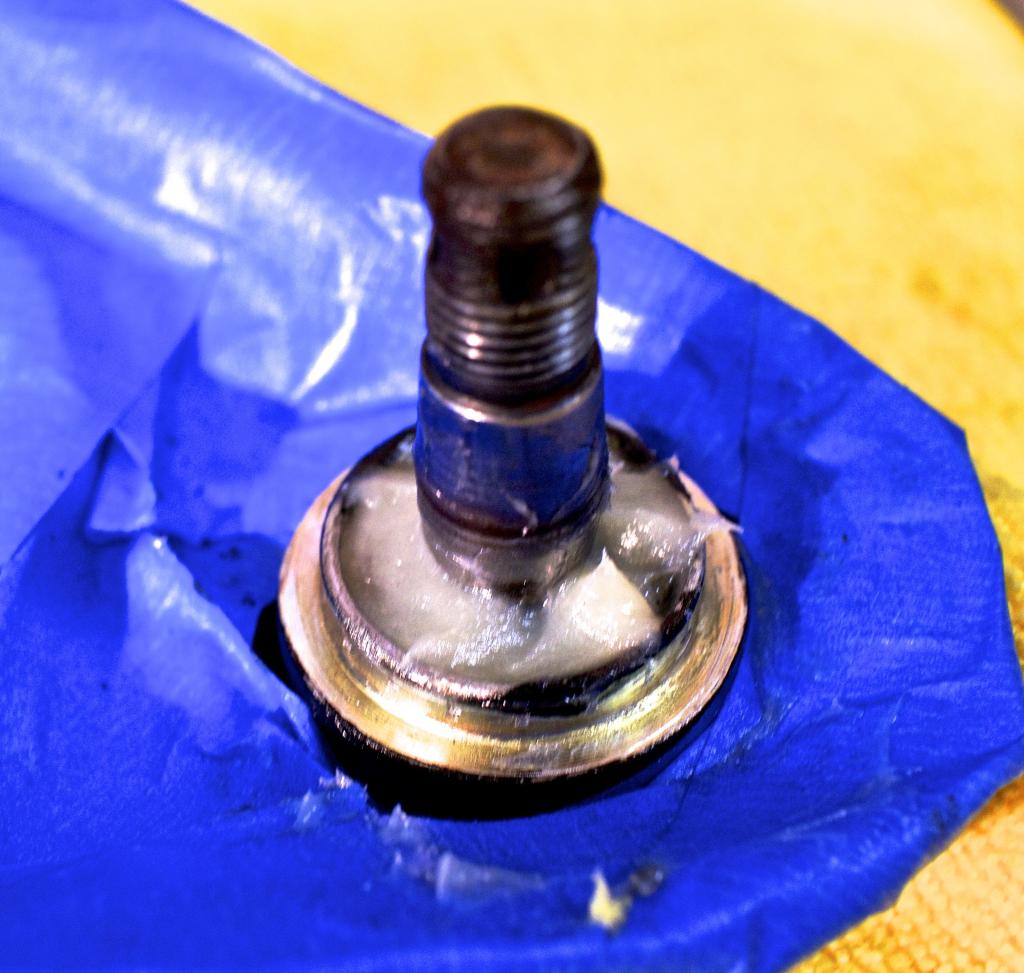

Clean out the old grease from the joint and seal surface, and fill with your favorite grease, which for me is Amsoil Dominator Synthetic Grease.



Fill the new boot with grease, put on the seal(if you'd like), and find a pvc pipe that fits perfectly on the boot.

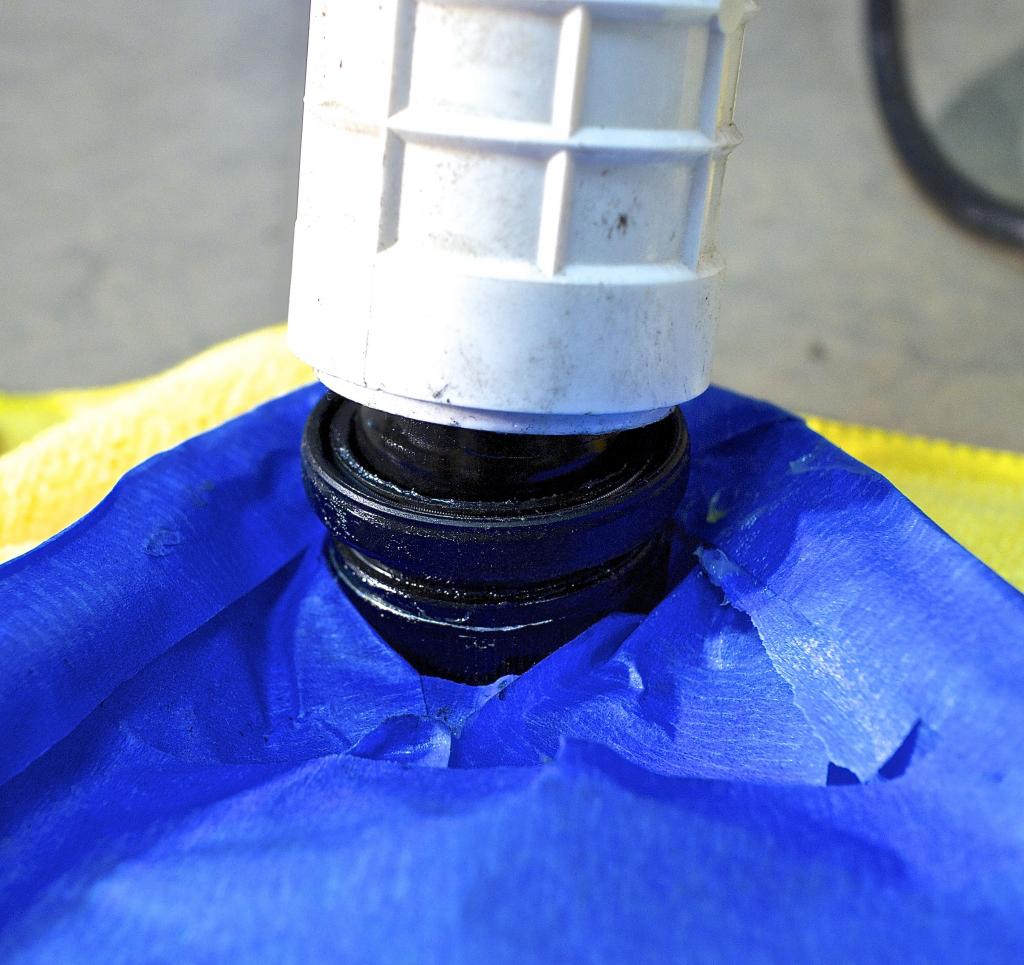

Position the boot onto the ball joint and with a rubber mallet lightly tap on the pvc pipe to get the extremely tight boot onto the ball joint. Try not to flex the boot too much or you'll eject some of the grease.

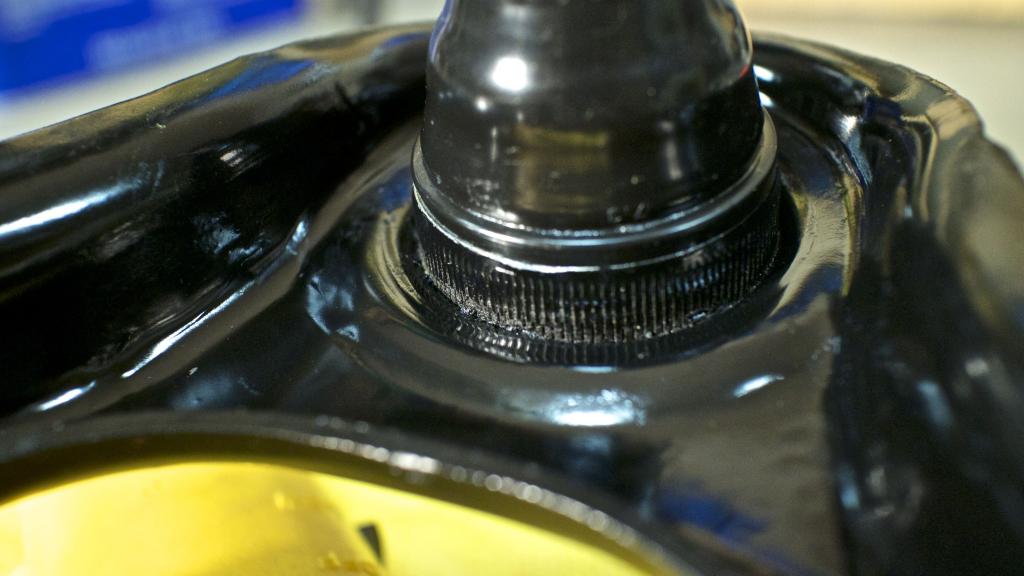

Make sure the boot is flush on the mounting surface.



Booyah.

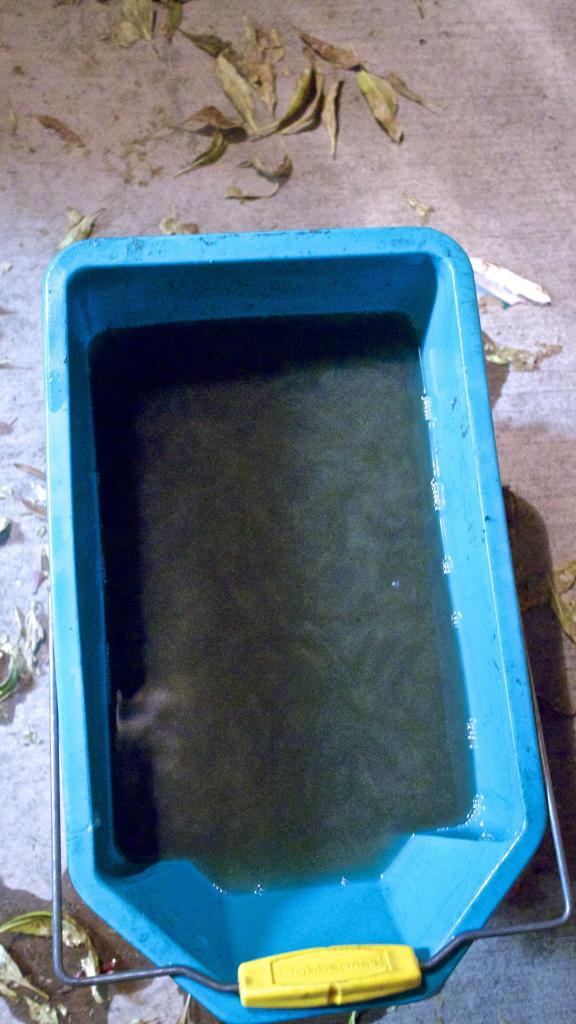

Also chemical bath of goodness. Apple cider vinegar, paint stripper, purple power, a little diesel additive. Put it in the backyard since even my respirator wouldn't filter the fumes out. Vinegar for the rust, and the rest to remove the gunk.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_0806.jpg   93' Miata stolen and flipped build thread-img_0812.jpg   93' Miata stolen and flipped build thread-img_0816.jpg   93' Miata stolen and flipped build thread-img_0815.jpg   93' Miata stolen and flipped build thread-img_0817.jpg

93' Miata stolen and flipped build thread-img_0818.jpg   93' Miata stolen and flipped build thread-img_0820.jpg
Jeffbucc is offline   Reply With Quote
Old 12-03-2013, 09:37 PM   #475
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

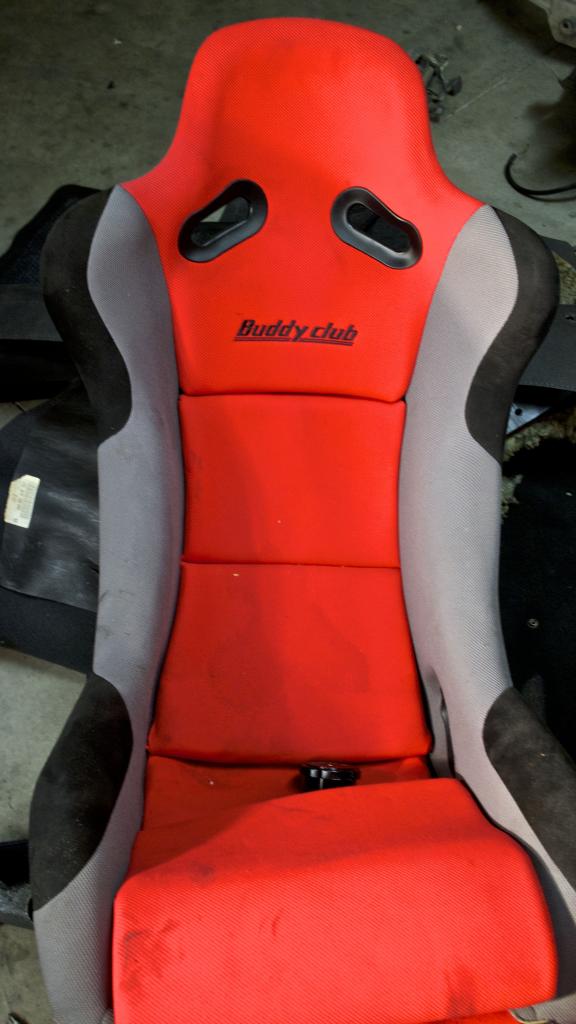

Also, what do you guys think of changing the color of the Buddy Club Race seats to all black?

I Don't think I'll like the look of red seats in a blue car.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_0811.jpg
Jeffbucc is offline   Reply With Quote
Old 12-03-2013, 10:55 PM   #476
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,095
Total Cats: 121
Default

Yea that seat is ugly as ****.
jacob300zx is offline   Reply With Quote
Old 12-04-2013, 12:38 AM   #477
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

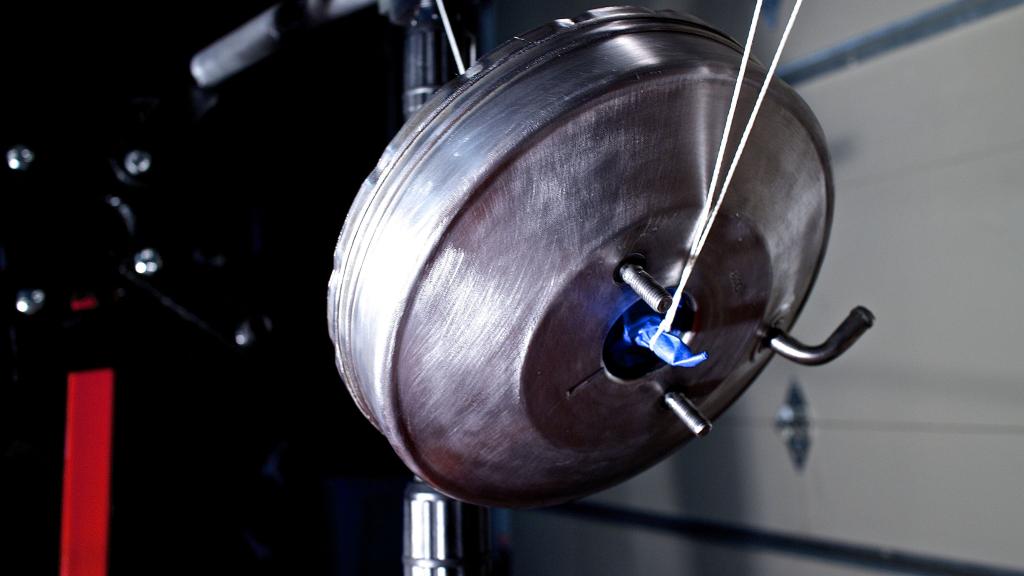

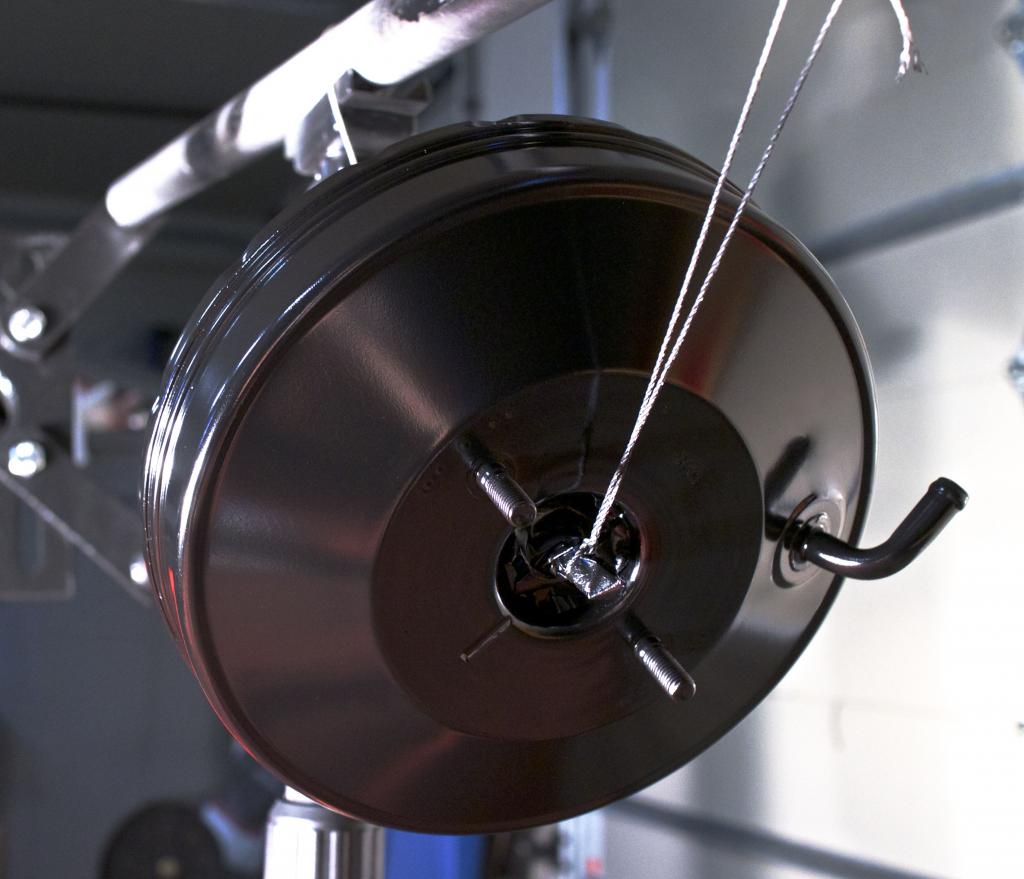

Brake Booster rust removed and ready for painting. Yes I see the string touching the metal!



Fabric stripped off seats to clean in washing machine. These seats rock for maintenance. All velcro fabric connections and removable padding so you can just toss the fabric in the washing machine.



Attached Thumbnails
93' Miata stolen and flipped build thread-img_0821.jpg   93' Miata stolen and flipped build thread-img_0823.jpg   93' Miata stolen and flipped build thread-img_0824.jpg
Jeffbucc is offline   Reply With Quote
Old 12-04-2013, 02:33 AM   #478
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

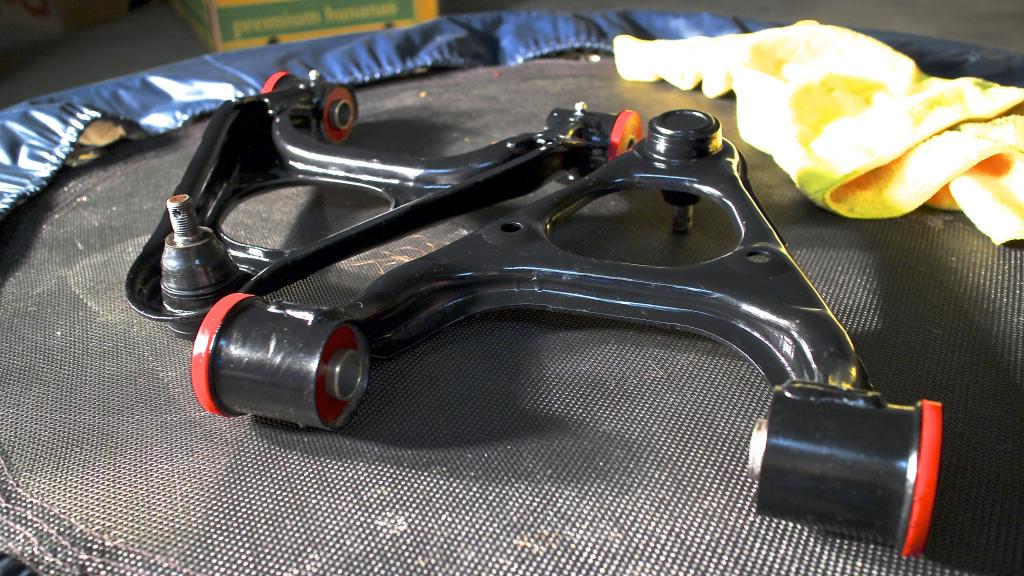

Upper Control arms all done, that was a messy job. Checked all zerk fittings to insure that grease channel through the poly wasn't blocked. Put silver anti-seize on the interior of metal bushing to help with corrosion.



Brake booster all done. A couple runs on the back side but nothing to complain about.

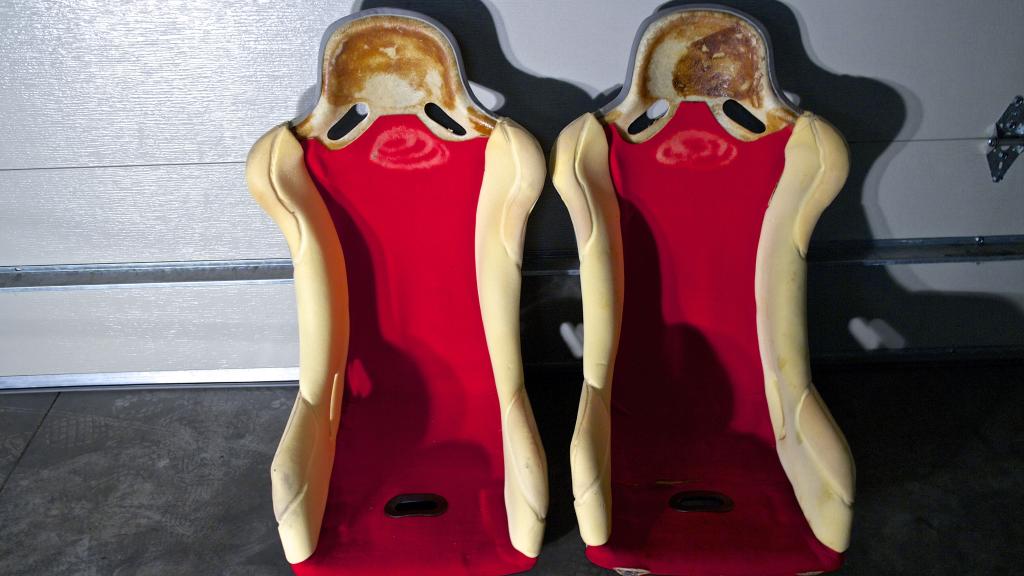

Just waiting on the fabric to dry so I can refinish the seats in black.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_0827.jpg   93' Miata stolen and flipped build thread-img_0831.jpg
Jeffbucc is offline   Reply With Quote
Old 12-04-2013, 09:59 AM   #479
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 177
Talking

Quote:
Originally Posted by Jeffbucc View Post
Also, what do you guys think of changing the color of the Buddy Club Race seats to all black?

I Don't think I'll like the look of red seats in a blue car.
Quote:
Originally Posted by Jeffbucc View Post
Just waiting on the fabric to dry so I can refinish the seats in black.
I don't know why I even bother to post suggestions. By the time I get to it, he'll have already made a decision and implemented it.

For confirmation, I agree with changing the color.
Scrappy Jack is offline   Reply With Quote
Old 12-04-2013, 10:07 AM   #480
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Scrappy Jack View Post
I don't know why I even bother to post suggestions. By the time I get to it, he'll have already made a decision and implemented it.

For confirmation, I agree with changing the color.
I figure if I get no response by the time I get done with the project at hand, I need to make an executive decision. I still appreciate late input as sometimes after I make my "choice" I still haven't actually gotten to it yet!

Currently tearing apart my rear subframe. Holy **** the rust! The rear diff housing is a little scary. The rear hubs have so much rust I think I'd rather replace them not for superficiality but safety!

East coast is not kind to cars.
Jeffbucc is offline   Reply With Quote
